VENTURI

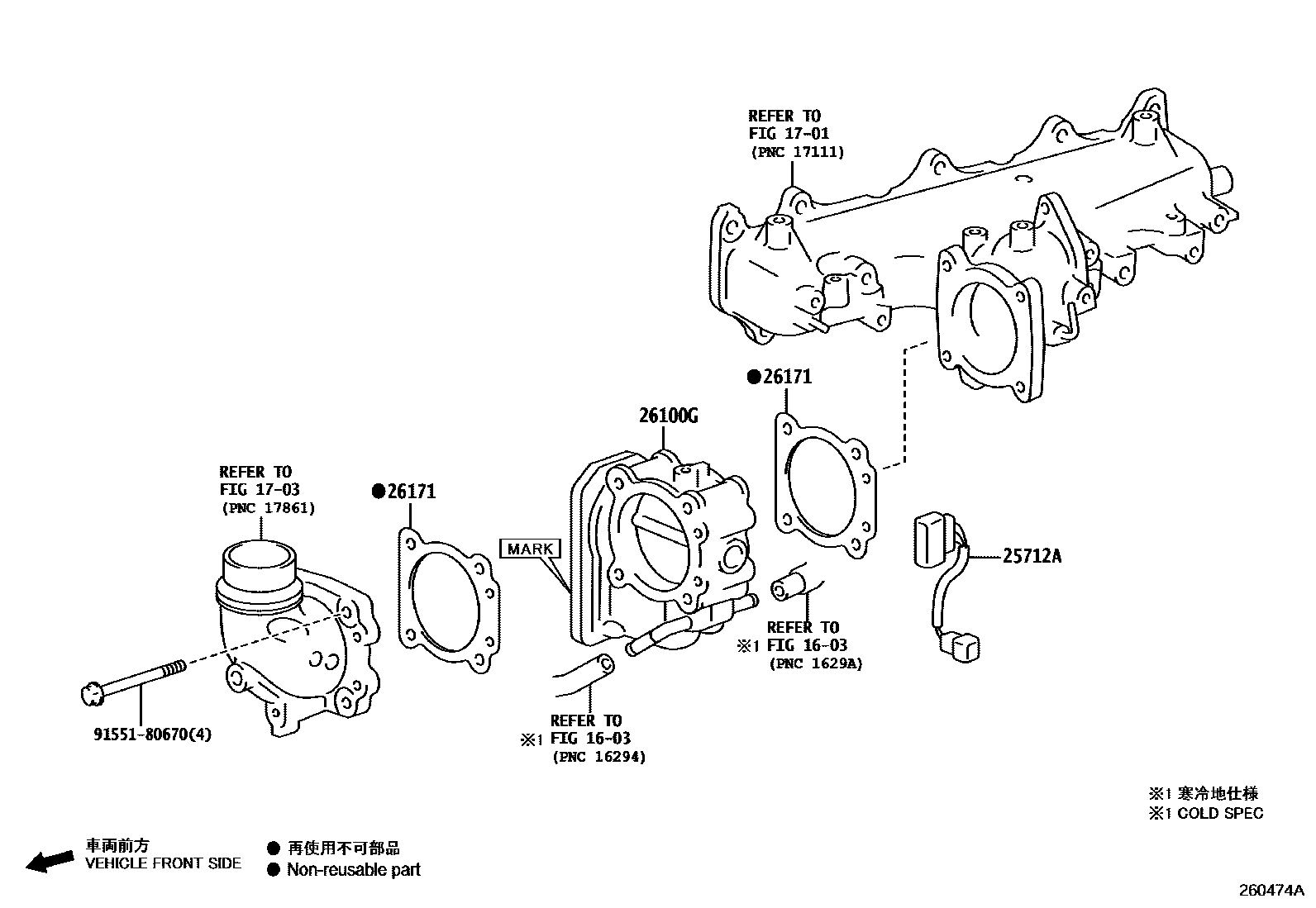

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

25712AWIRE, EMISSION CONTROL VALVE

main25712-0E010i202006-202201

THA SOURCED PARTS

main25712-0E020i202008-202109

IND SOURCED PARTS

main25712-11010i202006-202108

JAPAN SOURCED PARTS

26100VENTURI ASSY

main26100-54300i202009-202109

26100GBODY ASSY, DIESEL THROTTLE

main26100-0E050i202006-202110

MARK=26100-0E050

main26100-0E060i202008-202109

MARK=26100-0E060

main26100-11040i202006-202108

MARK=26100-11040

main26100-0E040i202011-202110

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,MARK=26100-0E040; COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,MARK=26100-0E040

26171GASKET, VENTURI

main17116-54030i202009-202109

main26171-0E030×2i202006-202201

THA SOURCED PARTS

main26171-0E040×2i202008-202109

IND SOURCED PARTS

main26171-11020×2i202006-202108

JAPAN SOURCED PARTS

9155180670

main91551-80670

8 parts on this diagram · 2 diagrams in section
