CAMSHAFT & VALVE

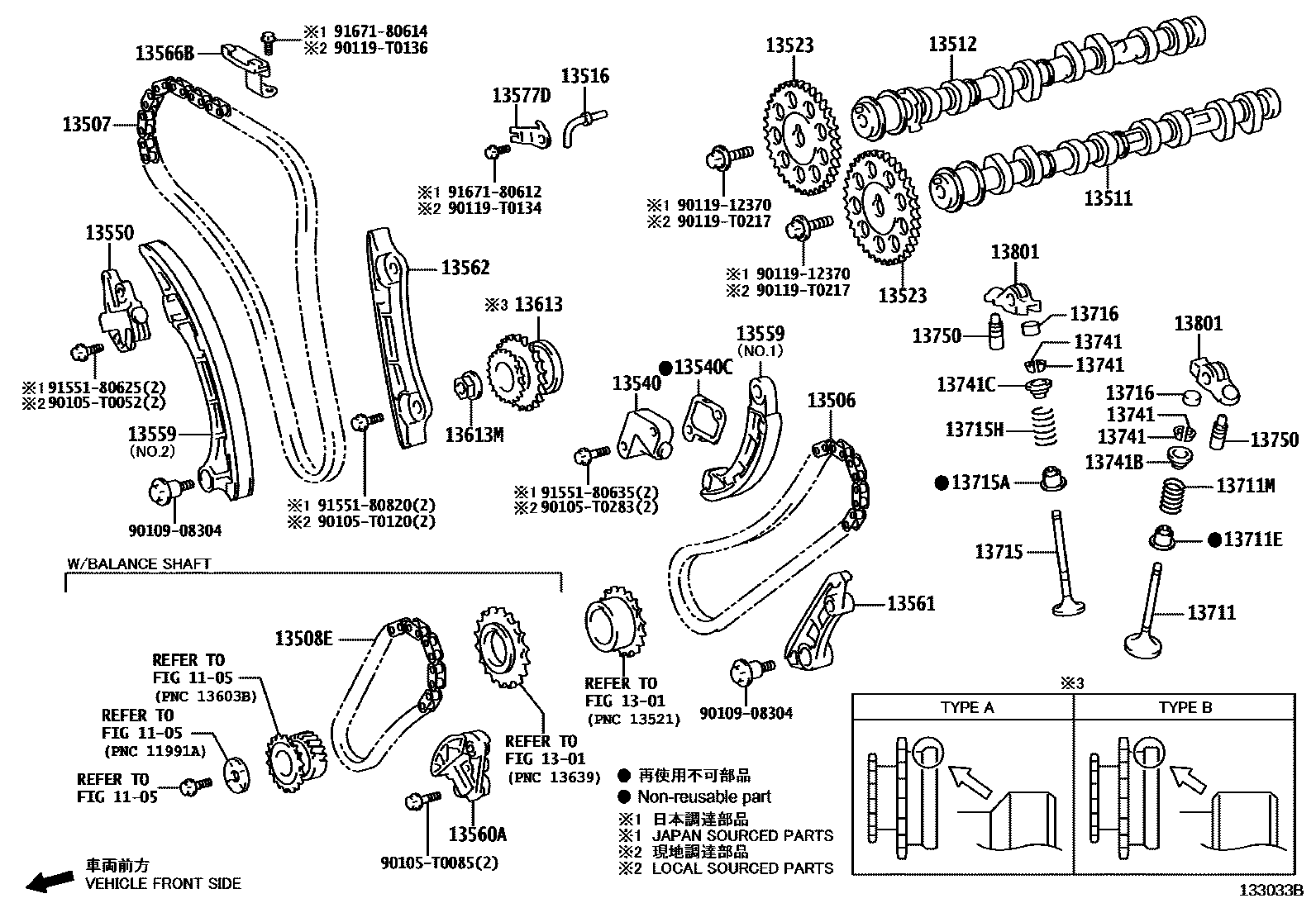

Parts diagram
1105CYLINDER BLOCK
→ Go to FIG 11-05
1301CRANKSHAFT & PISTON
→ Go to FIG 13-01
13506CHAIN SUB-ASSY
main13506-0C040i202006-202204
(L)
main13506-0E011i202006-202204
(L)
main13506-11011i202006-202108
(J)
main13506-31010i202006-202203
main13506-75070i202006-202204
(J)
13507CHAIN SUB-ASSY, NO.2
main13507-0C010i202006-202204
(L)
main13507-0E010i202006-202111
(L)
main13507-0E011i202112-202204
(L)
main13507-11010i202006-202108
(J)
main13507-31010i202006-202203
main13507-75030i202006-202204
(J)
13508ECHAIN SUB-ASSY, NO.3
main13508-0E010i202006-202111
(L)
main13508-0E011i202112-202204
(L)
main13508-11010i202006-202111
(J)
main13508-11011i202112-202204
(J)
13511CAMSHAFT
main13501-0C011i202007-202204
main13501-0C011i202006-202108
(L)
main13501-0E010i202006-202204
THA SOURCED PARTS
main13501-0E020i202008-202109
IND SOURCED PARTS
main13501-11070i202006-202110
JAPAN SOURCED PARTS
main13501-31040i202006-202203
main13501-54090i202009-202109
main13501-75071i202006-202108
(J)
13512CAMSHAFT, NO.2
main13502-0C030i202007-202204
main13502-0C030i202006-202108
(L)
main13502-0E010i202006-202204
THA SOURCED PARTS
main13502-0E020i202008-202109
IND SOURCED PARTS
main13502-11070i202006-202110
JAPAN SOURCED PARTS
main13502-31010i202006-202203
main13502-75080i202006-202108
(J)
13516JET, OIL
main13516-0E010i202008-202109
(L)
main13516-11010i202006-202204
(J)
main13516-31010i202006-202203
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-0E010i202006-202204
THA SOURCED PARTS
main13523-0E030i202008-202109
IND SOURCED PARTS
main13523-11030i202006-202108
JAPAN SOURCED PARTS
main13523-31030i202006-202203
13540TENSIONER ASSY, CHAIN, NO.1
main13540-0C021i202006-202204
(L)
main13540-0E010i202006-202204
(L)
main13540-11010i202006-202108
(J)
main13540-31011i202006-202203
main13540-75041i202006-202204
(J)
13540CGASKET(FOR CHAIN TENSIONER)
main13552-0C020i202006-202108
(L),MADE IN THAILAND
main13552-0C030i202007-202204
(L),MADE IN IDN
main13552-0E010i202006-202204
THA SOURCED PARTS
main13552-0E020i202008-202109
IND SOURCED PARTS
main13552-11010i202006-202108
(J)
main13552-75030i202006-202204
(J)
13550TENSIONER ASSY, CHAIN, NO.2
main13550-0C020i202006-202204
(L)
main13550-0E010i202006-202204
(L)
main13550-11010i202006-202108
(J)
main13550-31010i202006-202203
main13550-75010i202006-202204
(J)
13559SLIPPER, CHAIN TENSIONER
main13559-0C040i202006-202204
(L)
main13559-0E010i202006-202204
(L),NO.2
main13559-0E020i202006-202204
(L),NO.1
main13559-11010i202006-202108
(J),NO.2
main13559-11020i202006-202108
(J),NO.1
main13559-31010i202006-202203
main13559-75060i202006-202204
(J)
13560ATENSIONER ASSY, CHAIN, NO.3
main13560-0E010i202006-202204
(L)
main13560-11011i202006-202204
(J)
main13560-31010i202006-202203
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-0C040i202006-202204
(L)
main13561-0E011i202006-202204
(L)
main13561-11011i202006-202108
(J)
main13561-31010i202006-202203
main13561-75060i202006-202204
(J)
13562DAMPER, CHAIN VIBRATION, NO.2
main13562-0C010i202006-202204
(L)
main13562-0E010i202006-202204
(L)
main13562-11010i202006-202108
(J)
main13562-31010i202006-202203
main13562-75010i202006-202204
(J)
13566BGUIDE, TIMING CHAIN
main13566-0C020i202006-202204
(L)
main13566-0E010i202006-202204
(L)
main13566-11030i202006-202108
(J)
main13566-75020i202006-202204
(J)
13577DPLATE, LOCK
main13577-0E010i202006-202204
THA SOURCED PARTS
main13577-0E010i202011-202110
(L)
main13577-0E020i202008-202109
IND SOURCED PARTS
main13577-11010i202006-202108
(J)
13613GEAR, INJECTION PUMP DRIVE
main13616-0E011i202006-202204
TYPE B,*652
main13616-0E021i202008-202109
TYPE B,*650
main13616-11020i202006-202108
TYPE A:REFER ILLUST.
13613MNUT(FOR INJECTION PUMP DRIVE GEAR)
main90179-18021i202006-202108
(J)
main90179-T0009i202006-202204
(L)
13711VALVE, INTAKE
main13711-0C040i202007-202204
(L)
main13711-0C051i202006-202108
MARK=2T,T
main13711-0C080i202011-202110
main13711-0E010i202006-202204
THA SOURCED PARTS
main13711-0E020i202008-202109
IND SOURCED PARTS
main13711-11030i202006-202108
JAPAN SOURCED PARTS
main13711-31071i202006-202203
main13711-54030i202009-202109
main13711-75110i202006-202108
MARK=2T
main13711-75110i202007-202204
(J)
13711ESEAL, INTAKE VALVE STEM OIL
main90913-02101i202006-202203
main90913-02110i202009-202109
TYPE A:REFER ILLUST.
main90913-02117i202009-202109
TYPE B:REFER ILLUST.
main90913-02130i202006-202108
(J)
main90913-T2006i202006-202204
(L)
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
main90501-29063i202006-202108
(J)
main90501-T0043i202006-202204
(L)
13715VALVE, EXHAUST
main13715-0C040i202007-202204
(L)
main13715-0C051i202006-202108
MARK=2T,T
main13715-0E010i202006-202204
THA SOURCED PARTS
main13715-0E020i202008-202109
IND SOURCED PARTS
main13715-11050i202006-202108
JAPAN SOURCED PARTS
main13715-31091i202006-202203
main13715-54050i202009-202109
main13715-75130i202011-202110
main13715-75140i202007-202204
(J)
main13715-75140i202006-202108
MARK=8
13715ASEAL, EXHAUST VALVE STEM OIL
main90913-02110i202009-202109
TYPE A:REFER ILLUST.
main90913-02112i202006-202203
main90913-02117i202009-202109
TYPE B:REFER ILLUST.
main90913-02130i202006-202108
(J)
main90913-T2006i202006-202204
(L)
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
main90501-29063i202006-202108
(J)
main90501-T0043i202006-202204
(L)
13716CAP, VALVE STEM
main13716-0C010i202006-202108
*163,(L)
main13716-0E010i202006-202204
(L)
main13716-33010i202006-202108
(J)
main13716-75020i202006-202204
(J)
13741RETAINER, VALVE SPRING
main13741-0C030i202006-202204
(L),MADE IN IDN
main13741-0Y010i202007-202204
(L),MADE IN THAILAND
main13741-20021i202006-202203
main13741-36010i202006-202204
(J)
main13741-54020i202009-202109
main90913-03021i202006-202204
13741BRETAINER, INTAKE VALVE SPRING
main13741-0E010i202006-202204
(L)
main13741-33020i202006-202204
(J)
13741CRETAINER, EXHAUST VALVE SPRING
main13741-0E010i202006-202204
(L)
main13741-33020i202006-202204
(J)
13750ADJUSTER ASSY, VALVE LASH
main13750-0C030i202006-202108
*163,(L)
main13750-0C040i202007-202204
*555,(L)
main13750-0E010i202006-202204
(L)
main13750-21010i202006-202204
(J)
main13750-26010i202006-202108
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13801-0C020i202006-202108
*163,(L)
main13801-0C030i202007-202204
*555,(L)
main13801-0E012i202006-202204
(L)
main13801-11012i202006-202108
(J)
main13801-36020i202006-202204
(J)
90105T0052
main90105-T0052
90105T0085
main90105-T0085
90105T0120
main90105-T0120
90105T0283
main90105-T0283
9010908304
main90109-08304
9011912370
main90119-12370
90119T0134
main90119-T0134
90119T0136
main90119-T0136
90119T0217
main90119-T0217
9155180625
main91551-80625
9155180635
main91551-80635
9155180820
main91551-80820
9167180612
main91671-80612
9167180614
main91671-80614
