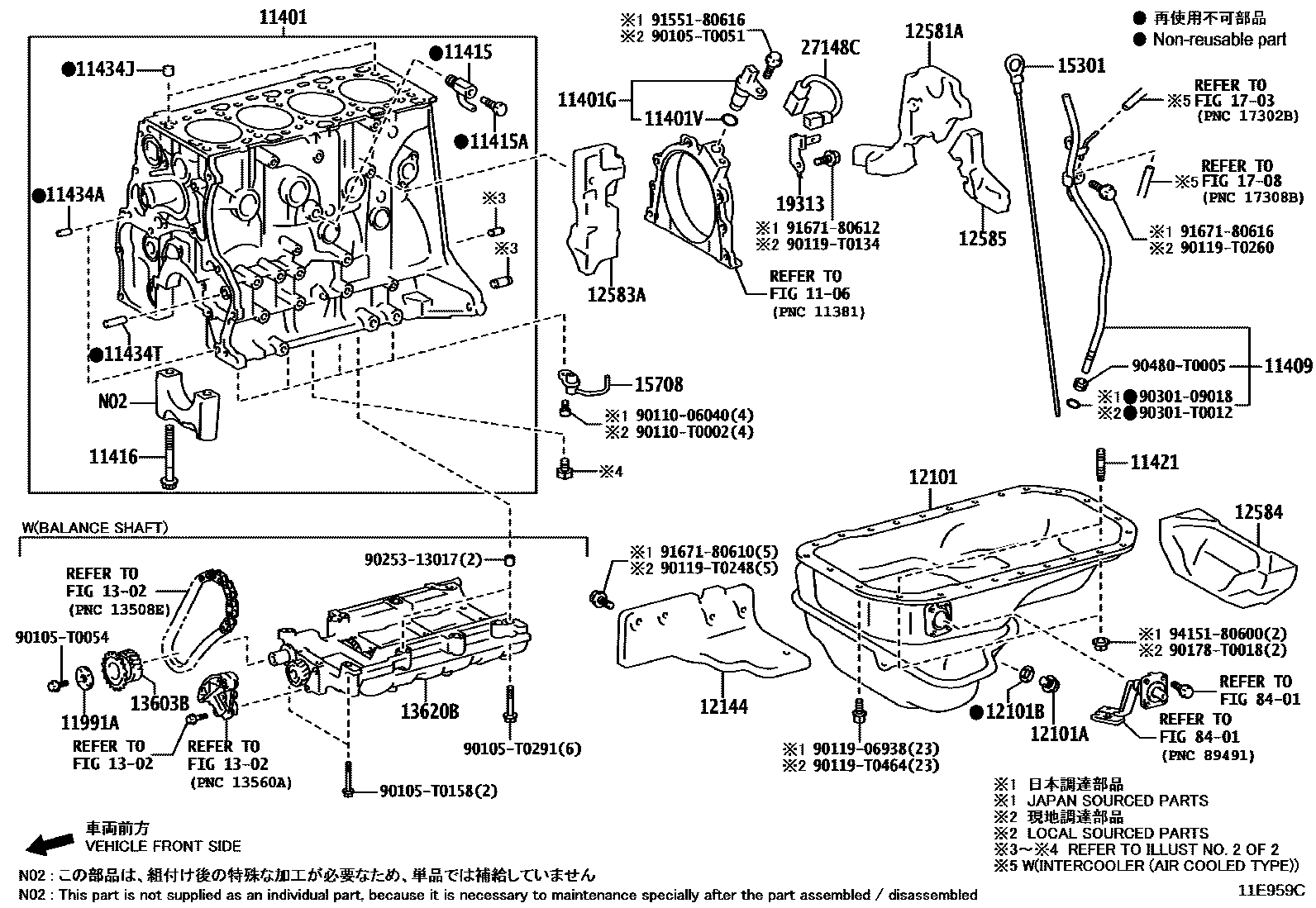

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

11401BLOCK SUB-ASSY, CYLINDER

main11401-09412i2TRFE..TGN156,16#..AGTSU202006-202110

(L)

main11401-09841i2GDFTV..GUN165..LA202006-202110

main11401-09851i1GDFTV..GUN156..GEN;1GDFTV..GUN156..LHD..6FC..SA;1GDFTV..GUN156,166..(AGTSU,SASUV)..6F202006-202110

main11401-09861i1GDFTV..GUN156..AGTSU..6FC202006-202110

main11401-09871i1GDFTV..GUN156,166..IND202101-202109

main11401-59767i5LE..LAN155202009-202109

main11401-80858i1GRFE..GGN155..EPT,GCC,GEN202006-202203

11401GSENSOR, CRANK POSITION

main90919-05005i5LE..LAN155202009-202109

main90919-05057i1GRFE..GGN155..LA202006-202110

main90919-05073i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

11401VO-RING, CRANK POSITION SENSOR

main90301-14016i1G#,2GDFTV..GGN155,GUN156,165..AGTSU202006-202110

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-0E011i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

THA SOURCED PARTS

main11409-0E021i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09110i5LE..LAN155202009-202109

main90910-09128i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

main90910-09129i1GRFE..GGN155..EPT,GCC,GEN202006-202203

main90910-T9002i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i5LE..LAN155202009-202109

main90910-T9001i1GDFTV,2GDFTV..GUN156,165..AGTSU; 2TRFE..TGN156,16#..AGTSU202006-202110

(L)

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02061×10i5LE..LAN155202009-202109

main90910-02176×16i1GRFE..GGN155..LA202006-202110

main90910-02179×10i2TRFE..TGN156,166..PKN202006-202201

(J)

main90910-02191×10i1GDFTV..GUN156..AGTSU..6F;2GDFTV..GUN155,165..AGTSU,THSUV202006-202110

(J)

main90910-T2002×10i2TRFE..TGN156,166..PKN202006-202201

(L)

main90910-T2009×10i1GDFTV..GUN156..PKN202006-202201

(L)

11421BOLT, STUD(FOR OIL PAN)

main90126-06028×2i1GDFTV..GUN156..PKN; 2TRFE..TGN156,166..PKN202006-202201

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120×2i2GDFTV..GUN155,165..THSUV202006-202108

L=18,OD=8,(J)

main90250-T0007×2i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

L=18,OD=8,(L)

main90253-11021×2i5LE..LAN155202009-202109

L=8,OD=11

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90250-04097×4i1GRFE..GGN155..EPT,GCC,GEN202006-202203

main90253-15016×2i2GDFTV..GUN155,165..THSUV202006-202108

(J)

main90253-T0002×2i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

(L)

main90253-T0007×2i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,VNSUV202007-202204

THA SOURCED PARTS

main90253-T0013×2i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,VNSUV202007-202204

IDN SOURCED PARTS

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i1GDFTV..GUN156..PKN202006-202201

(J)

main90250-T0019i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

(L)

11991APLATE, BALANCESHAFT THRUST, NO.1

main11991-0E010i1GDFTV..GUN156..PKN202006-202201

(L)

main11991-11010i1GDFTV..GUN156..AGTSU..6FC202006-202110

(J)

12101PAN SUB-ASSY, OIL

main12101-0C030i2TRFE..TGN156,16#..AGTSU202007-202110

main12101-0C040i2TRFE..TGN156,166..GCC,GEN,IDN202006-202108

THA SOURCED PARTS

main12101-0E010i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

THA SOURCED PARTS

main12101-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main12101-11120i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

main12101-54340i5LE..LAN155202009-202109

main12111-31130i1GRFE..GGN155..LA202006-202110

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2TRFE..TGN156,166..PKN202006-202201

main90341-T0004i1GDFTV,2GDFTV..GUN15#,16#..IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

(L)

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

(L)

main90430-12031i1GRFE..GGN155..LA; 2TRFE..TGN156,16#..AGTSU202006-202110

(J)

main90430-T0024i2TRFE..TGN156,16#..AGTSU202006-202110

(L)

12144SILENCER, OIL PAN COVER

main12144-0C020i2TRFE..TGN156,16#..AGTSU202007-202110

main12144-0E010i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

THA SOURCED PARTS

main12144-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main12144-11010i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

12581AINSULATOR, CYLINDER BLOCK, NO.1

main12581-0E010i1GDFTV..GUN156..PKN202006-202201

THA SOURCED PARTS

main12581-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main12581-11020i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

12583AINSULATOR, CYLINDER BLOCK, NO.3

main12583-0E010i1GDFTV,2GDFTV..GUN15#,16#..IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

THA SOURCED PARTS

main12583-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main12583-11020i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-0E011i1GDFTV..GUN156..PKN202006-202201

THA SOURCED PARTS

main12584-0E021i1GDFTV..GUN156,166..IND202101-202109

IND SOURCED PARTS

12585INSULATOR, CYLINDER BROCK, NO.5

main12585-0E010i1GDFTV,2GDFTV..GUN15#,16#..IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

THA SOURCED PARTS

main12585-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main12585-11020i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

13603BGEAR SUB-ASSY, BALANCESHAFT

main13603-0E010i1GDFTV..GUN156..PKN202006-202201

(L)

main13603-11010i1GDFTV..GUN156..AGTSU..6FC202006-202110

(J)

13620BBALANCER ASSY, ENGINE

main13620-11012i1GDFTV..GUN156..LHD..GEN; 1GDFTV..GUN166..6FC;1GDFTV..GUN156..RHD..(SASUV,THSUV)..6FC;1GDFTV..GUN156..6FC..(BZAGT,GCC,LA,PH,VN)202006-202012

EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS)

main13620-11013i1GDFTV..GUN156..AGTSU..6FC202101-202110

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0C020i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

THA SOURCED PARTS

main15301-0C030i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

IDN SOURCED PARTS

main15301-0E011i1GDFTV..GUN156..GEN;1GDFTV..GUN156,166..6F..SA;1GDFTV..GUN156..LHD..6FC..SA;2GDFTV..GUN155,165..IDNSU,MASUV,SASUV,THSUV,VNSUV202006-202204

THA SOURCED PARTS

main15301-0E020i1GDFTV..GUN156,166..IND202101-202109

IND SOURCED PARTS

main15301-0E030i2GDFTV..GUN165..LA;1GDFTV..GUN156..AGTSU..6F202011-202110

BRA SOURCED PARTS

main15301-0E040i1GDFTV..GUN156..AGTSU..6FC202006-202110

(L)

main15301-11070i2GDFTV..GUN155,165..THSUV202006-202108

(J)

main15301-11100i1GDFTV..GUN156..GCC,PH,VN;1GDFTV..GUN166..6FC..(PH,SA,TH);1GDFTV..GUN156..RHD..(MASUV,SASUV,THSUV)..6FC202006-202204

(J)

main15301-31140i1GRFE..GGN155..EPT,GCC,GEN202006-202203

main15301-54111i5LE..LAN155202009-202109

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0C010×4i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

(L)

main15708-0E010×4i1GDFTV..GUN156..PKN202006-202201

(L)

main15708-11010×4i2GDFTV..GUN155,165..THSUV202006-202108

(J)

main15708-31020×3i1GRFE..GGN155..LA202006-202110

main15708-54060×4i5LE..LAN155202009-202109

main15708-75020×4i2TRFE..TGN156,16#..AGTSU202006-202110

(J)

1703AIR CLEANER

→ Go to FIG 17-03

1708VACUUM PIPING

→ Go to FIG 17-08

19313BRACKET, CRANK POSITION SENSOR HARNESS

main19313-0E010i1GDFTV,2GDFTV..GUN15#,16#..IDNSU,MASUV,SASUV,THSUV,VNSUV202006-202204

THA SOURCED PARTS

main19313-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main19313-11010i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

27148CWIRE, CONNECTING

main27148-0E010i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

THA SOURCED PARTS

main27148-0E040i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main27148-11010i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0051

main90105-T0051

90105T0054

main90105-T0054

90105T0158

main90105-T0158

90105T0291

main90105-T0291

9011006040

main90110-06040

90110T0002

main90110-T0002

9011906938

main90119-06938

90119T0134

main90119-T0134

90119T0248

main90119-T0248

90119T0260

main90119-T0260

90119T0464

main90119-T0464

90178T0018

main90178-T0018

9025313017

main90253-13017

9030109018

main90301-09018

90301T0012

main90301-T0012

90480T0005

main90480-T0005

9155180616

main91551-80616

9167180610

main91671-80610

9167180612

main91671-80612

9167180616

main91671-80616

9415180600

main94151-80600

52 parts on this diagram · 7 diagrams in section
