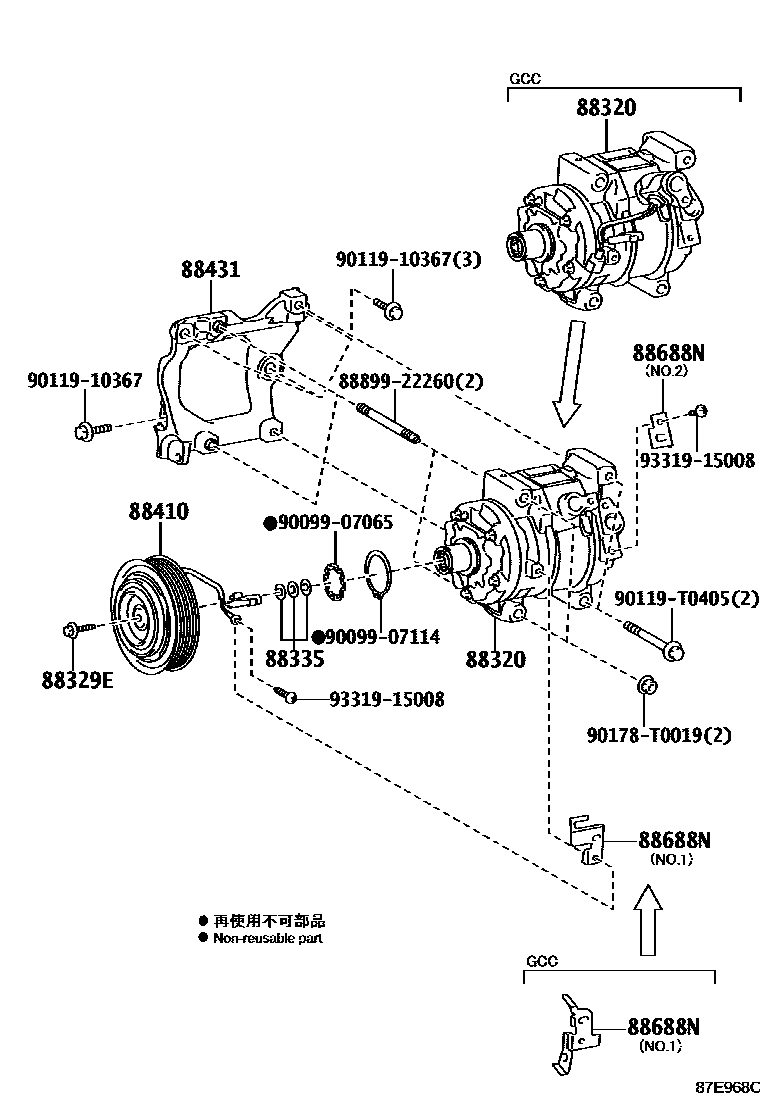

HEATING & AIR CONDITIONING - COMPRESSOR
88320COMPRESSOR ASSY, COOLER
main88320-0K540iGGN155,GUN15#,16#..ARL,BZAGT,GEN,IDN,IND,LA,MA,PH,TH,VN; TGN156,16#..BZAGT,GEN,IDN,IND,KZS,LA,MA,PH,TH,VN201507-202012
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
88329EBOLT, COMPRESSOR, NO.1
88335GASKET KIT, OVERHAUL
88410CLUTCH ASSY, MAGNET
FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
88431BRACKET, COMPRESSOR MOUNTING, NO.1
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
88688NBRACKET, COOLER
NO.2
NO.1
8889922260COVER, EVAPORATOR
main88899-22260
9009907065
main90099-07065
9009907114
main90099-07114
9011910367
main90119-10367
90119T0405
main90119-T0405
90178T0019
main90178-T0019
9331915008
main93319-15008
13 parts on this diagram · 9 diagrams in section
