HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

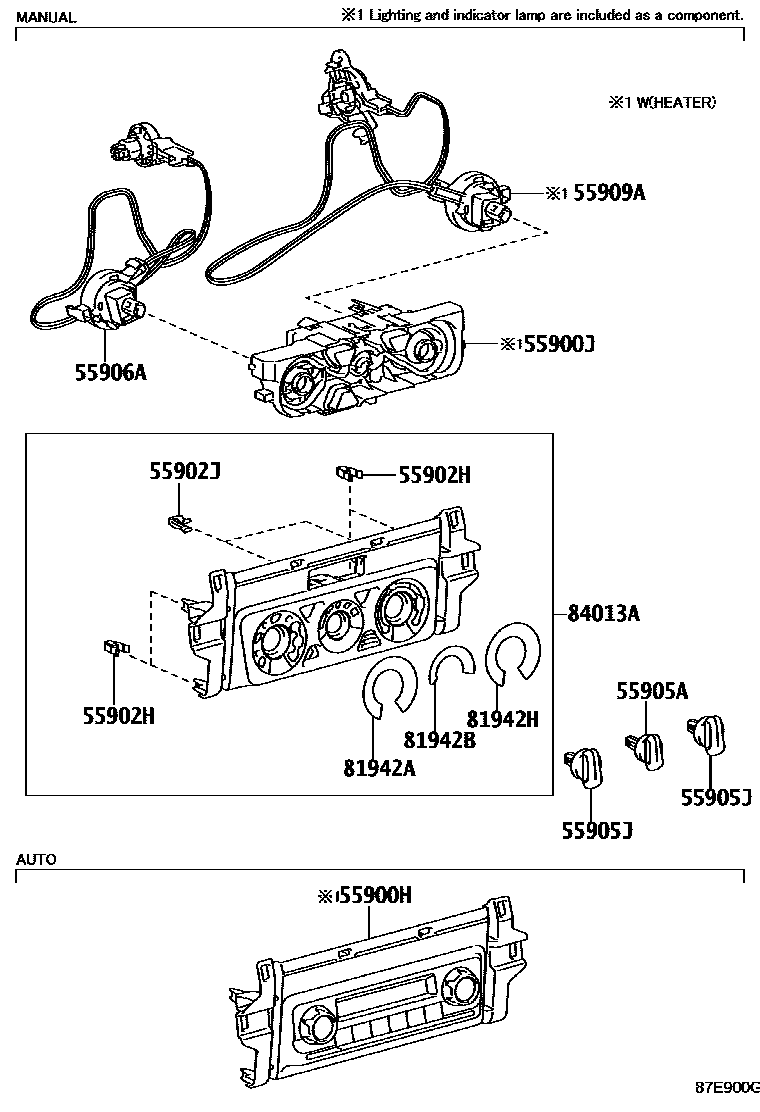

0001 1FRONT HEATER CONTROL 0002 1REAR HEATER CONTROL 0003 1FRONT AIR DUCT 0004 1FRONT AIR DUCT 0005 1ROOF AIR DUCT 0006 1SENSOR 0007 1SENSOR

55900HCONTROL ASSY, AIR CONDITIONER(AUTO)

main55900-0K430iGUN156..M..ARL;GGN155,GUN156,166,KUN156,TGN166..RHD..S..SA201507-201906

main55900-0K431iGUN156..M..ARL201906-202009

main55900-0K450iGUN165,TGN166..S..PH201601-202008

main55900-0K460iKUN156,TGN156,166..RHD..M..GEN201601-202007

FRONT AIR CONDITIONER-MANUAL

main55900-0K460iKUN156,TGN156,166..RHD..M..GEN201601-202007

HEATER CONTROL PANEL-MANUAL AIR CONDITIONER

main55900-0K860iGGN155..GEN201601-201905

HEATER CONTROL PANEL-MANUAL HEATER OR *AIC(MANUAL(DOP))

main55900-0K860iGUN156,KUN156..IDNSU..M..LA;GGN155,TGN156,166..LHD..IDNSU..M..(GEN,LA)201601-201905

FRONT AIR CONDITIONER-MANUAL

main55900-0K860iGUN156,KUN156..IDNSU..M..LA;GGN155,TGN156,166..LHD..IDNSU..M..(GEN,LA)201601-201905

HEATER CONTROL PANEL-MANUAL AIR CONDITIONER

main55900-0K861iGGN155..GEN201905-202007

FRONT AIR CONDITIONER-MANUAL

main55900-0K861iGGN155..GEN201905-202007

HEATER CONTROL PANEL-MANUAL AIR CONDITIONER

main55900-0K861iGGN155..GEN201905-202007

HEATER CONTROL PANEL-MANUAL HEATER OR *AIC(MANUAL(DOP))

main55900-0KB60iGUN156,166,TGN166..IND201610-202012

sub55900-0KB61

main55900-0KB80iGGN155,165,GUN15#,165..(EPTSU,THSUV)..(H,S)..(EPT,GCC)201601-202101

main55900-0KB90iTGN156,166..IDNSU..S..GCC201601-202007

main55900-0KC00iGUN156,KUN156,TGN166..RHD..M..GEN201601-202007

BRUNEI SPEC

main55900-0KC00iGUN155,TGN166..IDN;GUN165..RHD..IDNSU201601-202007

SINGAPORE SPEC

main55900-0KF10iGUN165..M..(MA,TH);GUN15#,166,TGN156,166..(M,S)..(MA,PKN,TH)201507-202104

main55900-0KF20iTGN156..AGTSU..M;GUN156..AGTSU..6FC..(M,S);GGN155,KUN156,TGN168..AGTSU..(H,M,S);GUN156,TGN166..AGTSU..(H,M)..(HTWC,IART)201512-201907

main55900-0KF21iGUN156,TGN156,166..M..LA;GGN155,GUN156,TGN168..AGTSU..(H,M,S)..(HTWC,HTWCF,IART)201907-202010

main55900-0KF80iGUN156..THSUV..M..GEN201708-202005

FRONT AIR CONDITIONER-AUTO

main55900-0KG50iGUN156,TGN156..H..(HDCR,HTWC)..BZAGT201710-201907

main55900-0KG51iGUN156..H..HDCR..BZAGT201907-202010

main55900-0KM20iGUN156..M..ARL201908-202005

55900JCONTROL ASSY, AIR CONDITIONER(MANUAL)

main55900-0KD50iGUN155,165..(L,S)..(MA,TH)201507-202012

main55900-0KE70iGUN156..(L,S)..ARL;TGN156..S..(KZS,SA);GUN155,165,TGN156,166..(EPTSU,SASUV,THSUV)..L;GUN15#,KUN156,165,LAN155..LHD..(L,S)..(GEN,SA)201507-202101

main55900-0KF50iGUN165,TGN166..S..PH201601-201708

main55900-0KF60iTGN156,166..S..BZAGT;GUN156,165..(L,S)..HDCR..(BZAGT,LA,VN);GUN156,165..(AGTSU,IDNSU)..L..(BZAGT,GCC);GUN155,KUN156,TGN156,16#..(AGTSU,IDNSU)..L201512-202010

55902HCLIP(FOR AIR CONDITIONER PANEL)

main90467-10203iTGN166..BZAGT;GUN156..(L,S)..ARL;GUN155,165,KUN165,LAN155..LA,SA,VN;GUN156,TGN16#..L..(HTWC,HTWCF,IART)..(BZAGT,GEN,LA,SA);GUN156,KUN156,TGN156..LHD..(AGTSU,IDNSU,S201507-202010

main90467-T0033iGUN155,165..6FC..(L,S)..(MA,TH)201605-202012

55902JCLIP(FOR AIR CONDITIONER PANEL) NO.2

main90467-10203iGUN156..S..HDCR..BZAGT;TGN156,166..(L,S)..(BZAGT,LA);GUN156,165,KUN156,TGN168..L..(BZAGT,LA)201507-202009

main90467-T0033iGUN155,165..6FC..(L,S)..(MA,TH)201605-202012

main90468-08048iTGN156,166..L..GEN;GUN156..6FC..(L,S)..HDCR..(ARL,BZAGT)201905-202010

55905AKNOB, HEATER CONTROL

main55917-0K050iGUN165,TGN166..S..PH201507-202101

55905JKNOB SUB-ASSY, CONTROL

main55905-0K180iGUN165,TGN166..S..PH201507-202101

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0K060iGUN165,TGN166..S..PH201507-202101

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K060iTGN156,166..L;GUN165..L..GCC;GUN165..LA,SA,VN;GUN156..(L,S)..ARL;GUN15#,TGN168..L..(BZAGT,GCC,SA);TGN156,166..LHD..S..(BZAGT,KZS,SA);GUN15#,KUN156,165,LAN155..LHD..201507-202101

81942ASHEET, HEATER CONTROL NAME, NO.1

main81941-0K050iGUN165,TGN166..S..PH201507-202101

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-0K710iTGN156,166..L;GUN165..L..GCC;GUN156..(L,S)..ARL;GUN165..(L,S)..(LA,SA,TH,VN);TGN156,166..LHD..S..(BZAGT,KZS,SA);GUN15#,TGN168..L..(BZAGT,GCC,MA,SA);GUN15#,KUN156,16201507-202101

81942HSHEET, HEATER CONTROL NAME, NO.3

main81943-0K070iGUN165,TGN166..S..(PH,TH)201507-201708

main81943-0K080iTGN156,166..L;GUN165..L..GCC;GUN165..LA,SA,VN;GUN156..(L,S)..ARL;GUN15#,TGN168..L..(BZAGT,GCC,SA);TGN156,166..LHD..S..(BZAGT,KZS,SA);GUN15#,KUN156,165,LAN155..LHD..201507-202101

main81943-0K180iGUN165..6F..TH201605-202012

84013APANEL SUB-ASSY, INTEGRATION

main55406-KK090iGUN165,TGN166..S..(PH,TH)201507-201708

main55406-KK100iGUN156,TGN156..THSUV..S..(GEN,KZS);GUN155,165,TGN156,166..L..(EPT,GCC,KZS)201601-202101

main55406-KK110iTGN166..L..SA;GUN156..6F..(L,S)..ARL;GUN156,KUN156..LHD..SA;GUN155,165,KUN165,LAN155,TGN156..(L,S)..(SA,VN)201507-202009

main55406-KK220iGUN156..S..HDCR..BZAGT;TGN156,166..(L,S)..(BZAGT,LA);GUN156,165,KUN156,TGN168..L..(BZAGT,LA)201512-201907

main55406-KK250iGUN165..6F..TH201605-202012

main55406-KK270iGUN156..(L,S)..ARL201905-202005

main55406-KK280iGUN156..6F..S..BZAGT;TGN156,166..AGTSU..(L,S);GUN156,165,TGN168..AGTSU..L201905-202010

12 parts on this diagram · 7 diagrams in section
