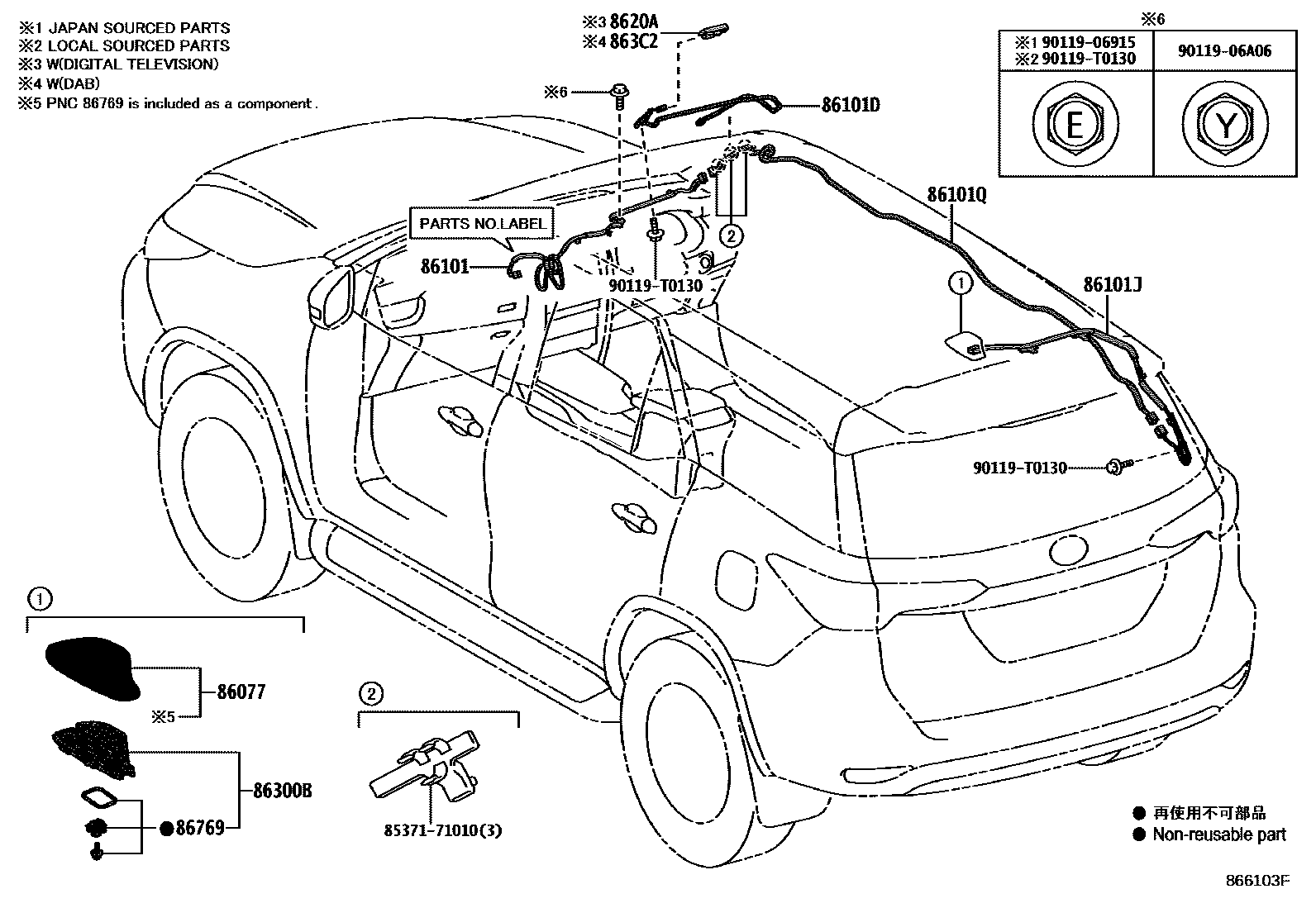

ANTENNA
86077COVER KIT, ANTENNA
main86077-0K010-A1iGUN156..THSUV..(H,L);GUN156..RHD..THSUV..(M,S);GUN156..AGTSU,IDNSU,INDSU,SASUV,VNSUV;GGN155,165,GUN155,16#,KUN156,165,LAN155,TGN156,16#..BZAGT,GCC,GEN,IDN,IND,LA,MA,PH,SA,TH,VN201507-202012
SUPER WHITE 2,040
main86077-0K010-A2iGUN156..THSUV..(H,L);GUN156..RHD..THSUV..(M,S);GUN156..AGTSU,IDNSU,INDSU,VNSUV;GGN155,165,GUN155,16#,KUN156,TGN156,16#..BZAGT,GCC,GEN,IDN,IND,LA,PH,TH,VN201507-202012
WHITE PEARL CS.,070
SILVER ME.,1D4
main86077-0K010-B1iGUN156..THSUV..(H,L);GUN156..RHD..THSUV..(M,S);GUN156..AGTSU,IDNSU,INDSU,SASUV,VNSUV;GGN155,165,GUN155,16#,KUN156,165,LAN155,TGN156,16#..BZAGT,GCC,GEN,IDN,IND,LA,PH,SA,TH,VN201507-202012
SILVER ME.,1D6
MEDIUM SILVER ME.,1F8
main86077-0K010-B3iGUN156..THSUV..(H,L);GUN156..RHD..THSUV..(M,S);GUN156..AGTSU,IDNSU,INDSU,SASUV,VNSUV;GGN155,165,GUN155,16#,KUN156,165,LAN155,TGN156,16#..BZAGT,GCC,GEN,IDN,IND,LA,MA,PH,SA,TH,VN201507-202008
GRAY ME.,1G3
ATTITUDE BLACK MC.,070 ,218
main86077-0K010-C0iGUN156..(M,S)..ARL;GUN156..THSUV..(H,L);GUN156..AGTSU,IDNSU,INDSU,SASUV,VNSUV;GUN165,TGN166..AGTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV;GGN155,165,GUN155,166,KUN156,165,LAN155,TGN156,168..BZAGT,GCC,GEN,IDN,IND,LA,MA,SA,VN201507-202012
ATTITUDE BLACK MC.,218
main86077-0K010-E0iGUN156..THSUV..H;TGN156,166..(IDNSU,SASUV)..L..(GCC,GEN,SA);TGN156,166..(H,M,S)..(GCC,GEN,IDN,IND,MA,PH,SA,VN);GGN155,165,GUN15#,16#,KUN156,165,LAN155..(IDNSU,INDSU,MASUV,SASUV,VNSUV)..(GCC,GEN,IDN,IND,MA,PH,SA,VN)201601-202012
AVANT-GARDE BRONZE ME.,4V8
main86077-0K010-E1iGUN156..THSUV..(H,L);GUN156..RHD..THSUV..(M,S);GUN156..AGTSU,IDNSU,INDSU,SASUV,VNSUV;GGN155,165,GUN155,16#,KUN156,165,LAN155,TGN156,16#..BZAGT,GCC,GEN,IDN,IND,LA,MA,PH,SA,TH,VN201507-202009
PHANTOM BROWN ME.,4W9
main86077-0K010-J0iGUN156..THSUV..(H,L);GUN156..RHD..THSUV..(M,S);GUN156..(IDNSU,SASUV,VNSUV)..(GCC,GEN,PH,SA,VN);GGN155,165,GUN155,16#,KUN156,165,LAN155,TGN156,166..GCC,GEN,PH,SA,TH,VN201507-202009
NEBULA BLUE ME.,8X2
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
AVANT-GARDE BRONZE ME.,4V8
PHANTOM BROWN ME.,4W9
NEBULA BLUE ME.,8X2
86101CORD SUB-ASSY, ANTENNA
AUDIO-*DA & CD & *BT & RDS & DAB
AUDIO-8INCH *DA & *BT
main86101-0K860iGUN156..AGTSU..(L,M);GUN156..S..HDCR..BZAGT;KUN156,TGN156,166..AGTSU..(L,M,S)201512-201711
AUDIO-AVN & DVD & *BT & DIGITAL TV
ANTI-THEFT SYSTEM-WITH(*IM & SIREN & *GBS)
AUDIO-WITHOUT
AUDIO-WITHOUT
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ANTI-THEFT SYSTEM-WITH(*IM&HORN&TRACKING&BLOCKING SYSTEM)
ANTI-THEFT SYSTEM-WITH(*IM & SIREN & *GBS & TRACKING)
ANTI-THEFT SYSTEM-WITH(*IM&HORN&TRACKING&BLOCKING SYSTEM)&AUDIO-AVN & DVD & *BT &DIGITAL TV
AUDIO-AVN & DVD & *BT & DIGITAL TV
AUDIO-AVN & DVD & *BT
AUDIO-AVN & DVD & *BT
AUDIO-AVN & CD & *BT & DAB & ENTUNE
main86101-0KJ70iGGN155,165,GUN15#,165,KUN156,165,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV)201601-201711
main86101-0KJ71iGGN155,165,GUN15#,165,LAN155,TGN156,166..LHD..(EPTSU,IDNSU,SASUV,VNSUV)201711-202101
main86101-0KJ90iGUN156,TGN166..RHD..(IDNSU,SASUV)..(H,L,M);GUN155,165,KUN156,TGN156..RHD..(IDNSU,MASUV,PKNSU,SASUV)201601-201711
main86101-0KJ91iGUN156..RHD..(GEN,PKN);GUN155,165,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV)201711-202104
AUDIO-8INCH *DA & *BT & RDS & DAB,P/N LABEL=861010KK21
P/N LABEL=861010KK21
AUDIO-*DA & DVD & *BT & RDS & DAB
86101DCORD SUB-ASSY, ANTENNA, NO.3
AUDIO-AVN & CD & *BT & DAB & ENTUNE
AZERBAIJAN SPEC(EURO 4 REGULATION)&AUDIO-*DA & CD & *BT & RDS & DAB
86101JCORD SUB-ASSY, ANTENNA, NO.2
AZERBAIJAN SPEC(EURO 4 REGULATION)&AUDIO-*DA & CD & *BT & RDS & DAB
AUDIO-AVN & CD & *BT & DAB & ENTUNE
86101QCORD SUB-ASSY, ANTENNA, NO.4
main86101-0KK80iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,PKNSU,SASUV201601-201711
8620AANTENNA SUB-ASSY, DIGITAL TELEVISION, NO.1
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-0K280iGUN156..THSUV..(H,L);GUN156..RHD..THSUV..(M,S);GGN155,165,GUN155,16#,TGN156,166..THSUV..(GCC,TH)201507-202005
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
AUDIO-AVN & DVD & *BT
AUDIO-8INCH *DA & *BT
AUDIO-*DA & DVD & *BT
86769HOUSING, ROOF ANTENNA
main86769-0K010iGUN156..THSUV..(H,L);GUN156..RHD..THSUV..(M,S);GGN155,165,GUN155,16#,TGN156,166..THSUV..(GCC,TH)201507-202005
8537171010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-71010
9011906915
main90119-06915
9011906A06
main90119-06A06
90119T0130
main90119-T0130
13 parts on this diagram · 1 diagram in section
