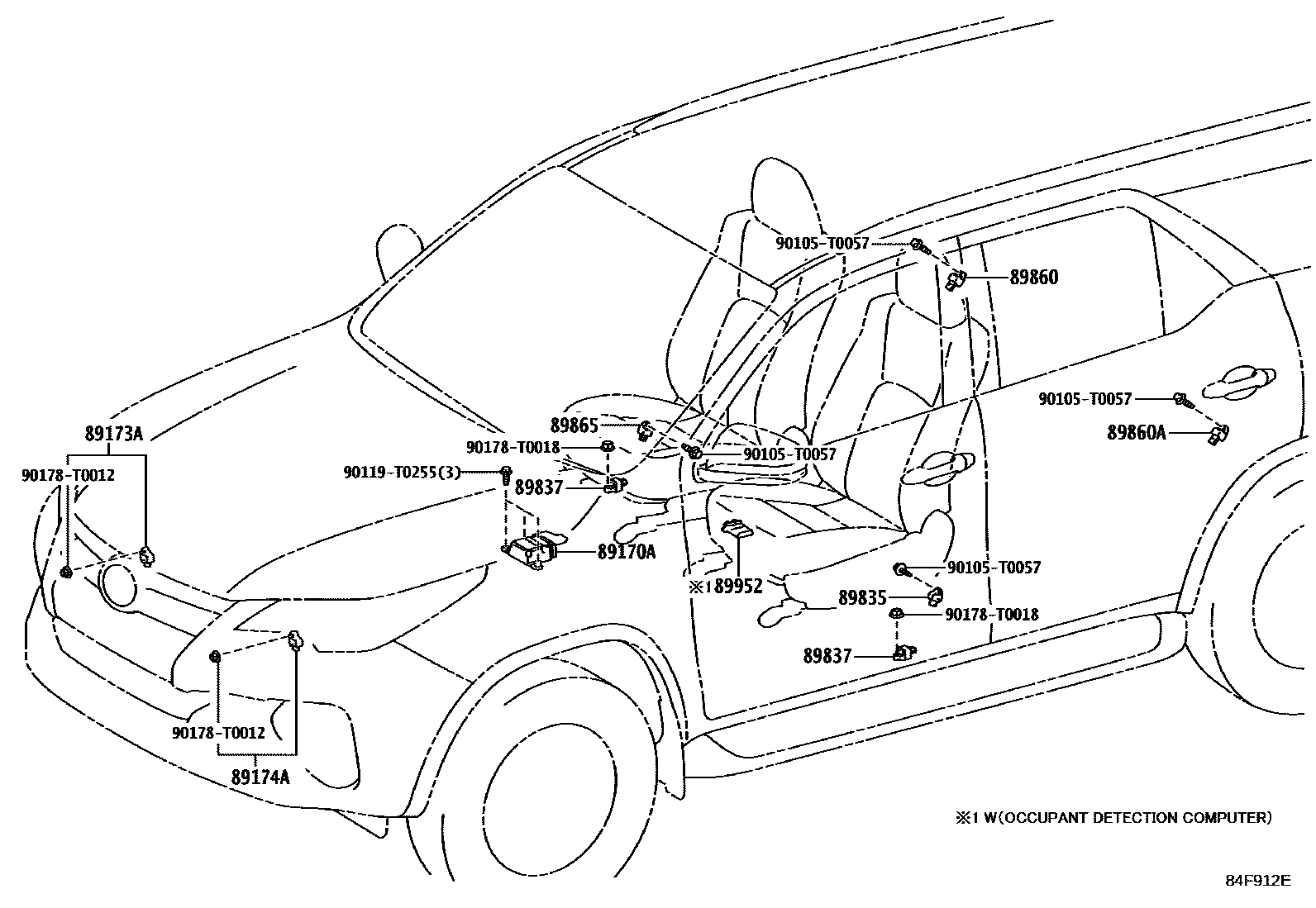

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-0K420iKUN156..SA;TGN166..M..GEN;GUN156,LAN155,TGN156..LHD..SA;GUN156,KUN156,TGN156..RHD..(H,M)..GEN201601-202009
main89170-0K460iKUN156,TGN166..RHD..M..GEN; TGN156,166..(H,S)..GEN; TGN156..M..GEN; TGN166..5F..GCC;TGN166..6FC..(L,M)..(GCC,GEN);GGN155,165,GUN155,165,TGN156..GCC201601-201708
P/N LABEL=891700K460; VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),P/N LABEL=891700K460; VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),P/N LABEL=891700K460; VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),P/N LABEL=891700K460; VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL),P/N LABEL=891700K460
main89170-0K630iGUN156..6F..ARL;GUN156,TGN166..RHD..S..SA;GGN155,GUN155,166..RHD..(M,S)..(GEN,SA)201507-202009
main89170-0KB90supersedes 89170-0KB70iGUN16#..TH; TGN166..VNSUV;TGN156..L..GEN;GUN155..M..(IDN,MA,TH);GGN155,GUN165..M..(GEN,MA);TGN166..LHD..IDNSU..(GEN,LA);GUN156,KUN156,TGN156..(IDNSU,MASUV,THSUV,VNSUV)..(LA,MA,PH,TH,VN)201507-202012
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
P/N LABEL=891700KF60
VEHICLE STABILITY CONTROL-WITHOUT&SRS AIR BAG-WITH(*DRP)
main89170-0K430iGUN156,KUN156,TGN156,166..AGTSU..(M,S);GGN155,GUN156,TGN168..AGTSU..(L,M)..(HTWC,HTWCF,IART)201512-201907
VEHICLE STABILITY CONTROL-WITHOUT&SRS AIR BAG-WITH(*DRP)
SRS AIR BAG-WITH(*DRP)
VEHICLE STABILITY CONTROL-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
CS AMERICA SPEC
BRUNEI SPEC&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&SRS AIR BAG-WITH(*DRS& SIDE & CURTAIN); BRUNEI SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VEHICLE STABILITY CONTROL-WITHOUT
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89835SENSOR, DOOR SIDE AIRBAG, LH
main89831-0K040iGUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);GUN165..AGTSU,MASUV,VNSUV;TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);GGN155,GUN166,TGN168..BZAGT,GEN,IND,LA,SA;TGN166..(AGTSU,INDSU,SASUV,VNSUV)..(H,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN); KUN156..LHD..H;GUN156..THSUV..H;GUN156..IDNSU..(GCC,GEN);GUN155..(H,L,S)..(GEN,IDN,MA,SA);GUN156,TGN156,166..LHD..S..(PH,SA);GUN165,KUN156,LAN155..(L,M,S)..(GEN,IDN,PH,SA,TH);GUN166,TGN156,166..RHD..(IDNSU,SASUV,THSUV)..(L,M)201507-202012
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89837SENSOR, FRONT FLOOR SIDE AIRBAG
89860SENSOR ASSY, SIDE AIRBAG, RH
main89831-0K070iGUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);GUN165..AGTSU,MASUV,VNSUV;TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);GGN155,GUN166,TGN168..BZAGT,GEN,IND,LA,SA;TGN166..(AGTSU,INDSU,SASUV,VNSUV)..(H,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN); KUN156..LHD..H;GUN156..THSUV..H;GUN156..IDNSU..(GCC,GEN);GUN155..(H,L,S)..(GEN,IDN,MA,SA);GUN156,TGN156,166..LHD..S..(PH,SA);GUN165,KUN156,LAN155..(L,M,S)..(GEN,IDN,PH,SA,TH);GUN166,TGN156,166..RHD..(IDNSU,SASUV,THSUV)..(L,M)201507-202012
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89860ASENSOR ASSY, SIDE AIRBAG, LH
main89831-0K070iGUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);GUN165..AGTSU,MASUV,VNSUV;TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);GGN155,GUN166,TGN168..BZAGT,GEN,IND,LA,SA;TGN166..(AGTSU,INDSU,SASUV,VNSUV)..(H,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN); KUN156..LHD..H;GUN156..THSUV..H;GUN156..IDNSU..(GCC,GEN);GUN155..(H,L,S)..(GEN,IDN,MA,SA);GUN156,TGN156,166..LHD..S..(PH,SA);GUN165,KUN156,LAN155..(L,M,S)..(GEN,IDN,PH,SA,TH);GUN166,TGN156,166..RHD..(IDNSU,SASUV,THSUV)..(L,M)201507-202012
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89865SENSOR, DOOR SIDE AIRBAG, RH
main89831-0K040iGUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);GUN165..AGTSU,MASUV,VNSUV;TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);GGN155,GUN166,TGN168..BZAGT,GEN,IND,LA,SA;TGN166..(AGTSU,INDSU,SASUV,VNSUV)..(H,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN); KUN156..LHD..H;GUN156..THSUV..H;GUN156..IDNSU..(GCC,GEN);GUN155..(H,L,S)..(GEN,IDN,MA,SA);GUN156,TGN156,166..LHD..S..(PH,SA);GUN165,KUN156,LAN155..(L,M,S)..(GEN,IDN,PH,SA,TH);GUN166,TGN156,166..RHD..(IDNSU,SASUV,THSUV)..(L,M)201507-202012
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89952COMPUTER, OCCUPANT DETECTION
90105T0057
main90105-T0057
90119T0255
main90119-T0255
90178T0012
main90178-T0012
90178T0018
main90178-T0018
13 parts on this diagram · 1 diagram in section
