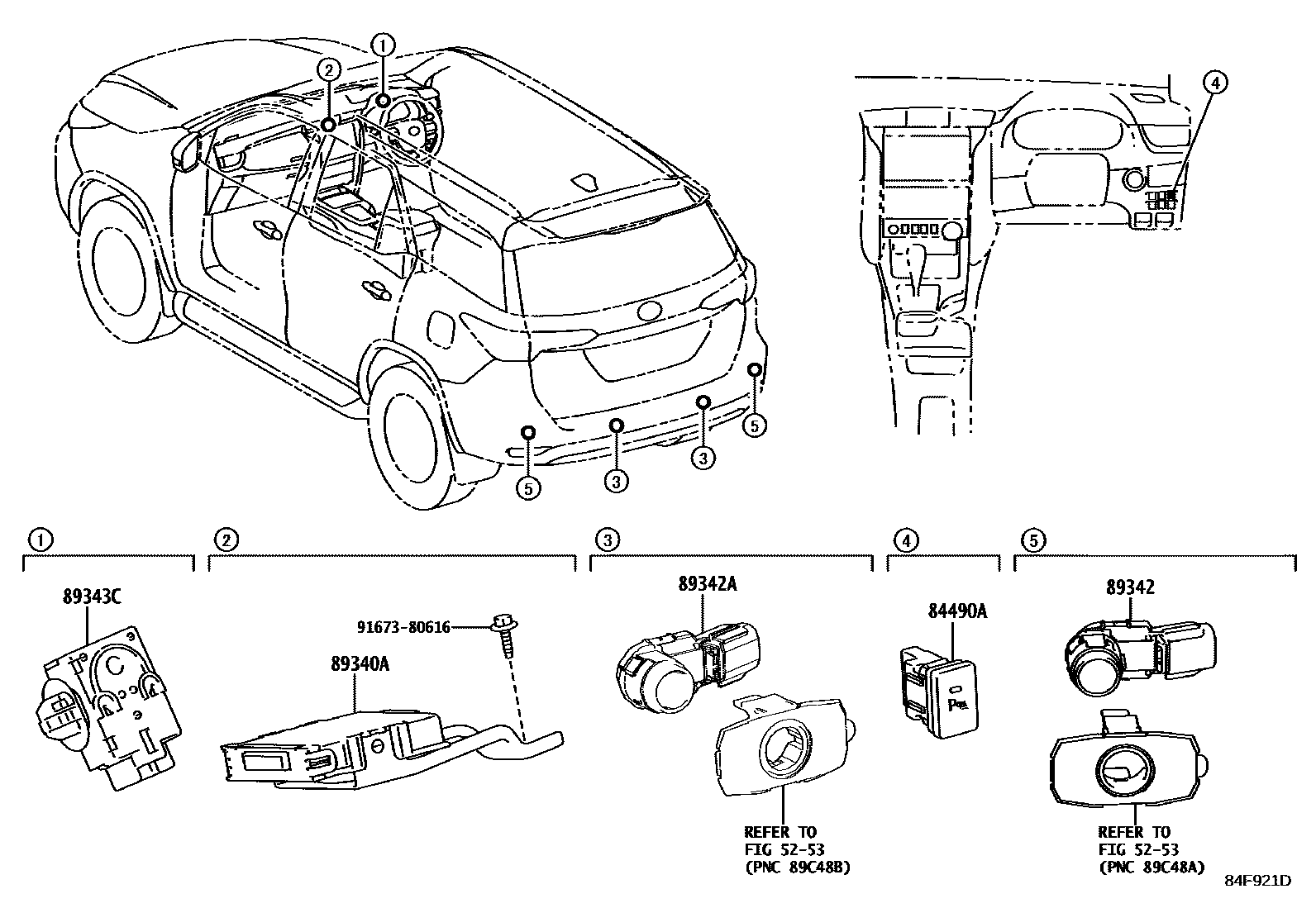

CLEARANCE & BACK SONAR
5253REAR BUMPER & BUMPER STAY
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
main84490-0K040iGUN155,165..RHD..IDNSU;TGN166..IDNSU..(IDN,VN);GUN156,165,TGN156..IDNSU..VN; KUN156..RHD..M;TGN166..IDNSU..(L,M,S)..(GCC,GEN,LA);GUN156,TGN156..IDNSU..(GCC,GEN,LA,PH);GUN165,KUN156..IDNSU..(5FC,6F)..(GCC,LA);GGN155,165,GUN155,165..LHD..IDNSU..6FC..(H,M,S)..(GCC,GEN,PH)201601-202007
CLEARANCE & BACK SONAR-WITH
main84490-0K060iGGN155,GUN156,165,KUN156,TGN156,166..AGTSU..LA; TGN168;GUN156..S..IART;GGN155,GUN156,TGN156..(H,L)..BZAGT201512-202010
CLEARANCE & BACK SONAR-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
89342SENSOR, ULTRASONIC, REAR CORNER
SUPER WHITE 2,040
WHITE PEARL CS.,070
GRAY ME.,1G3
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
PHANTOM BROWN ME.,4W9
AVANT-GARDE BRONZE ME.,4V8
89342ASENSOR, ULTRASONIC, REAR CENTER
SUPER WHITE 2,040
WHITE PEARL CS.,070
GRAY ME.,1G3
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
PHANTOM BROWN ME.,4W9
AVANT-GARDE BRONZE ME.,4V8
main89341-0K010-A0×2iGUN165..S..TH;GUN156..S..IART;GUN156,TGN156..(H,M)..(BZAGT,VN);GUN156,TGN166..(H,M,S)..(ARL,IDN,IND,VN);GGN155,GUN155,16#,TGN168..BZAGT,IDN,IND,VN201507-201611
SUPER WHITE 2,040
main89341-0K010-A1×2iGUN165..S..TH;GUN156..S..IART;GUN156,TGN156..(H,M)..(BZAGT,VN);GUN156,TGN166..(H,M,S)..(ARL,IDN,IND,VN);GGN155,GUN155,16#,TGN168..BZAGT,IDN,IND,VN201507-201611
WHITE PEARL CS.,070
main89341-0K010-B0×2iGUN165..S..TH;GUN156..S..IART;GUN156,TGN156..(H,M)..(BZAGT,VN);GUN156,TGN166..(H,M,S)..(ARL,IDN,IND,VN);GGN155,GUN155,16#,TGN168..BZAGT,IDN,IND,VN201507-201611
SILVER ME.,1D6
main89341-0K010-B1×2iGUN165..S..TH;GUN156..S..IART;GUN156,TGN156..(H,M)..(BZAGT,VN);GUN156,TGN166..(H,M,S)..(ARL,IDN,IND,VN);GGN155,GUN155,16#,TGN168..BZAGT,IDN,IND,VN201507-201611
GRAY ME.,1G3
main89341-0K010-C0×2iGUN165..S..TH;GUN156..S..IART;GUN156,TGN156..(H,M)..(BZAGT,VN);GUN156,TGN166..(H,M,S)..(ARL,IDN,IND,VN);GGN155,GUN155,16#,TGN168..BZAGT,IDN,IND,VN201507-201611
ATTITUDE BLACK MC.,218
main89341-0K010-E0×2iGUN15#,16#,TGN156,166..IDN,IND,VN; KUN156..RHD..M;GUN165..6F..GCC;TGN166..(L,M)..(GCC,GEN);GGN155,165,GUN15#,165,TGN156..(5F,6FC)..(GCC,GEN,PH)201601-201611
AVANT-GARDE BRONZE ME.,4V8; CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8
main89341-0K010-E1×2iGUN165..S..TH;GUN156..S..IART;GUN156,TGN156..(H,M)..(BZAGT,VN);GUN156,TGN166..(H,M,S)..(ARL,IDN,IND,VN);GGN155,GUN155,16#,TGN168..BZAGT,IDN,IND,VN201507-201611
PHANTOM BROWN ME.,4W9
NEBULA BLUE ME.,8X2
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040; SUPER WHITE 2,040
main89341-0K011-A1×2iGUN165..LA;KUN156..RHD..M;TGN156..S..KZS;GUN156..LHD..THSUV..(H,S);TGN156,166..(L,M,S)..(GCC,GEN,LA);GUN165,KUN156..(5FC,6F)..(GCC,LA);GUN156..(AGTSU,IDNSU)..(GCC,GEN,LA,PH);GGN155,165,GUN155,165..LHD..6FC..(H,M,S)..(GCC,GEN,LA,PH); TGN166..IDN,VN;GUN156..S..ARL;GUN156..S..IART;GUN155,165..RHD..IDNSU;GUN156..(THSUV,VNSUV)..M..(ARL,GEN,VN);GGN155,GUN165,TGN168..(H,L,S)..(BZAGT,TH,VN);GUN156,TGN156..(AGTSU,IDNSU)..(H,L,M)..(BZAGT,VN)201612-202010
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070; WHITE PEARL CS.,070
SILVER ME.,1D6
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3; GRAY ME.,1G3
main89341-0K011-C0×2iGUN165..LA;KUN156..RHD..M;TGN156..S..KZS;GUN156..LHD..THSUV..(H,S);TGN156,166..(L,M,S)..(GCC,GEN,LA);GUN165,KUN156..(5FC,6F)..(GCC,LA);GUN156..(AGTSU,IDNSU)..(GCC,GEN,LA,PH);GGN155,165,GUN155,165..LHD..6FC..(H,M,S)..(GCC,GEN,LA,PH); TGN166..IDN,VN;GUN156..S..ARL;GUN156..S..IART;GUN155,165..RHD..IDNSU;GUN156..(THSUV,VNSUV)..M..(ARL,GEN,VN);GGN155,GUN165,TGN168..(H,L,S)..(BZAGT,TH,VN);GUN156,TGN156..(AGTSU,IDNSU)..(H,L,M)..(BZAGT,VN)201612-202010
ATTITUDE BLACK MC.,218; CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
main89341-0K011-E0×2iGUN165..VN;GUN156..IDNSU..VN;TGN156,166..IDN,VN;GUN155,165..RHD..IDNSU;GUN156..LHD..(THSUV,VNSUV)..M; KUN156..RHD..M;GUN165..IDNSU..6F..GCC;GUN156..LHD..THSUV..(H,S);GUN156..IDNSU..(GCC,GEN,PH);TGN156,166..(M,S)..(GCC,GEN);TGN156,166..IDNSU..L..(GCC,GEN);GGN155,165,GUN155,165..LHD..IDNSU..6FC..(H,M,S)..(GCC,GEN,PH)201612-202004
AVANT-GARDE BRONZE ME.,4V8; CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8
CLEARANCE & BACK SONAR-WITH,PHANTOM BROWN ME.,4W9; PHANTOM BROWN ME.,4W9
CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2; NEBULA BLUE ME.,8X2
89343CBUZZER, CLEARANCE WARNING, NO.1
9167380616
main91673-80616
7 parts on this diagram · 2 diagrams in section
