OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1RC61 & RC61F, W(I-MT) 0002 1AC60E & AC60F 0008 1A750F

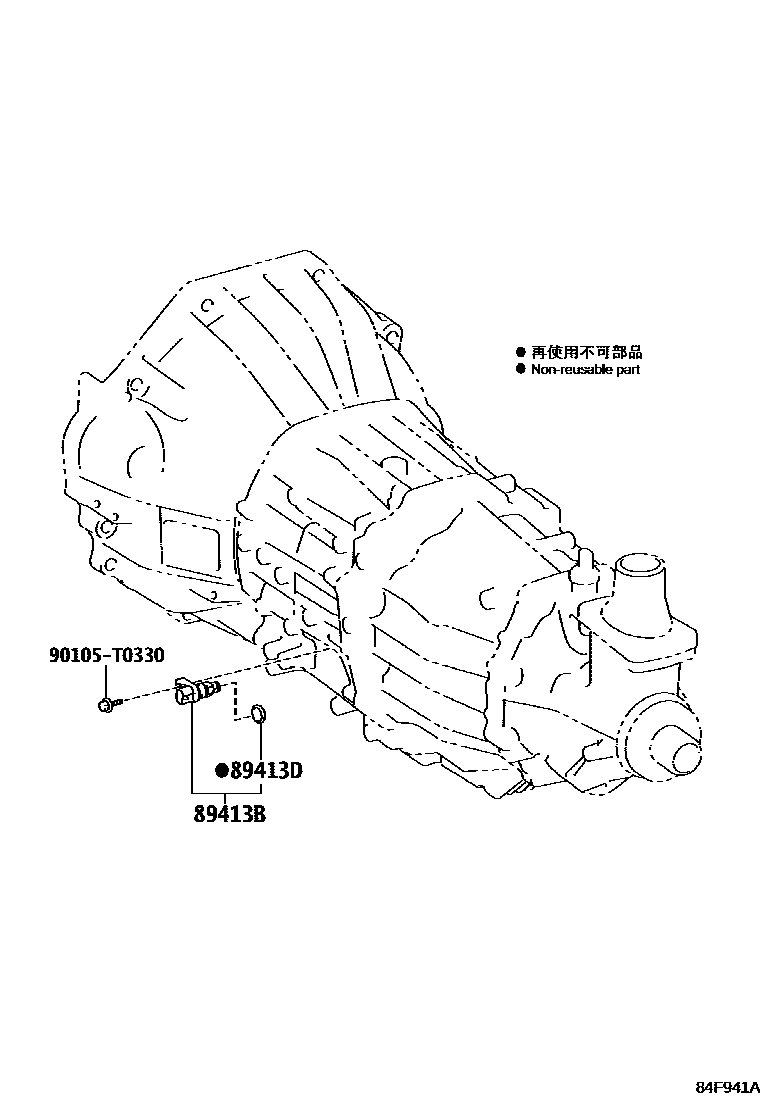

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-28010iGUN156,166..6F..(H,M,S)201507-201807

main89413-28011iGUN156,166..6F..(BZAGT,IND,SA)201808-202012

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iGUN15#..TH;KUN156..5FC;GUN156,166..6F..(H,M,S); TGN166..H..IND201507-202012

90105T0330

main90105-T0330

3 parts on this diagram · 3 diagrams in section
