ELECTRONIC FUEL INJECTION SYSTEM

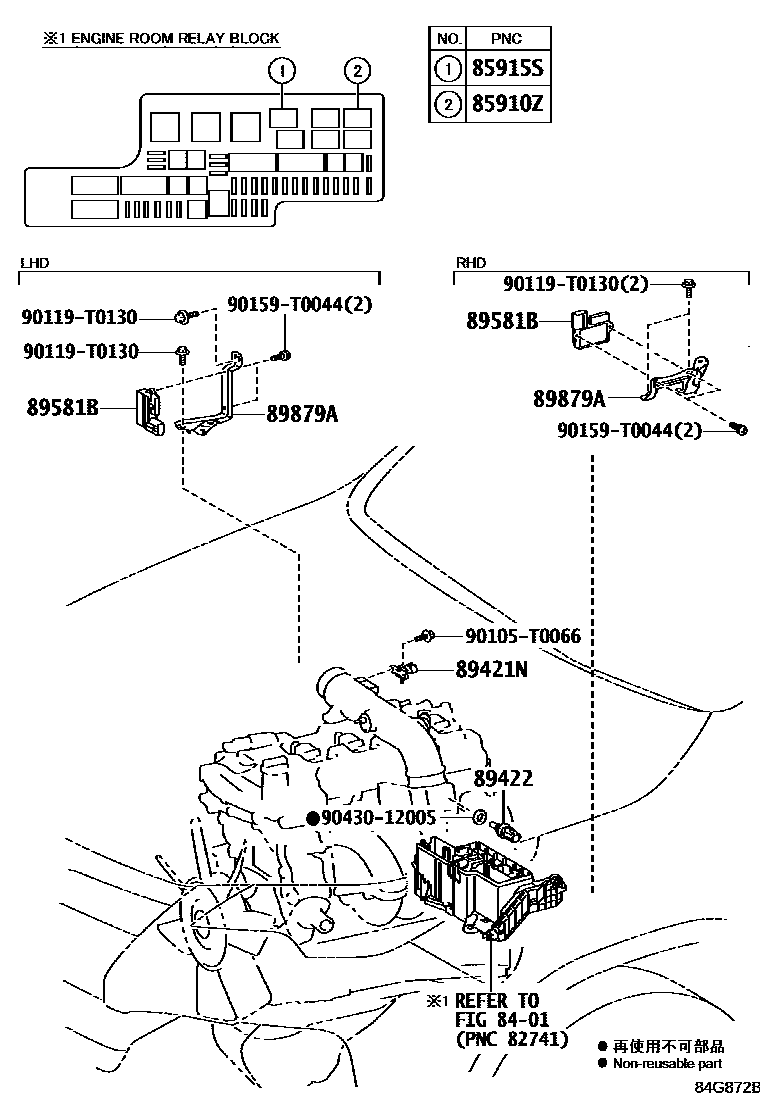

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1COWL 0004 1COWL

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iTGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(J)

main90987-T2001iTGN156,166..EPT201507-202101

(L)

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iTGN166..IND201507-202012

(J)

main90987-T2001iGGN155,165,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

89421NSENSOR, AIR PRESSURE

main89421-71010iTGN156..S..GCC;TGN166..AGTSU..L;TGN166..IDNSU..S..GCC;TGN156,168..BZAGT,KZS,LA;TGN166..LHD..IDNSU..(GEN,LA,PH);TGN166..(AGTSU,INDSU,THSUV,VNSUV)..(H,M,S)201507-202012

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iTGN166..IND201507-202012

89581BDRIVER, AIR INJECTION CONTROL

main89581-60010iTGN156..S..GCC;TGN166..AGTSU..L;TGN166..IDNSU..S..GCC;TGN156,168..BZAGT,KZS,LA;TGN166..LHD..IDNSU..(GEN,LA,PH);TGN166..(AGTSU,INDSU,THSUV,VNSUV)..(H,M,S)201507-202012

89879ABRACKET, INJECTOR DRIVER

main89589-0K010iTGN166..IND,TH201507-202012

main89589-0K020supersedes 89589-0K040iTGN166..IDNSU..VN;TGN156..LHD..(GEN,VN)201708-202010

MADE IN THAILAND

main89589-0K040iTGN168;TGN156..L..LA;TGN166..AGTSU..L;TGN166..IDNSU..S..GCC;TGN156..(H,M,S)..(BZAGT,GCC,LA);TGN166..LHD..IDNSU..(GEN,LA,PH);TGN166..LHD..(AGTSU,THSUV,VNSUV)..(M,S)201512-202010

MADE IN INDONESIA

90105T0066

main90105-T0066

90119T0130

main90119-T0130

90159T0044

main90159-T0044

9043012005

main90430-12005

11 parts on this diagram · 4 diagrams in section
