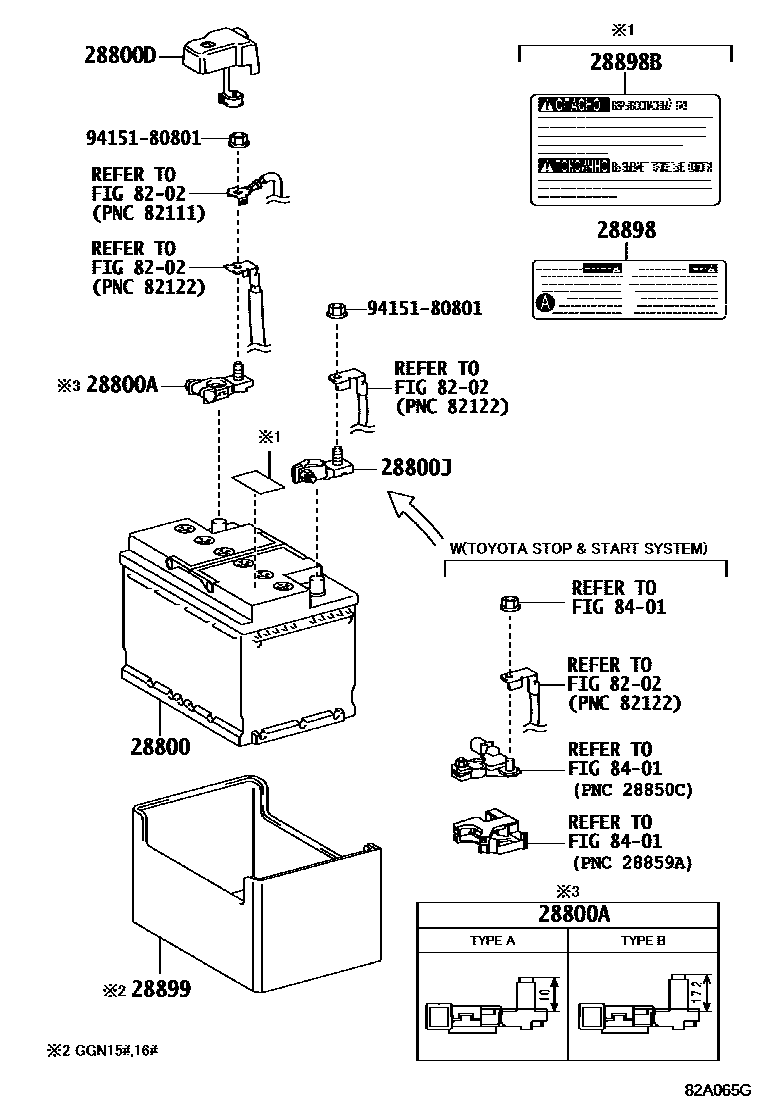

BATTERY & BATTERY CABLE

0001 11-BATTERY 0002 12-BATTERY

28800BATTERY

main28800-0C150i2TRFE..TGN166..PH,VN;2TRFE..TGN156..IDNSU..L..GCC;2TRFE..TGN156..IDNSU..(GEN,LA,VN);2TRFE..TGN166..(IDNSU,INDSU)..(H,L,M)201601-201809

LN2

main28800-0C151i2TRFE..TGN166..IDNSU..(PH,VN);2TRFE..TGN156,166..IDNSU..(L,M)201810-202007

LN2

main28800-0C240i2TRFE..TGN156,166..THSUV..6FC..L201507-201811

LN2,GS

main28800-0C250i2TRFE..TGN156,166..AGTSU201512-202003

LN2,JOHNSON CONTROLS

main28800-0C251i2TRFE..TGN156,166..AGTSU; 2TRFE..TGN168202004-202010

LN2; LN2,JOHNSON CONTROLS

main28800-0C260i2TRFE..TGN156,166..SA201603-202009

LN2

main28800-0C270i2TRFE..TGN156,166..THSUV201507-201607

LN2,FURUKAWA

main28800-0C271i2TRFE..TGN156,166..THSUV201608-201610

LN2,FURUKAWA

main28800-0C272i2TRFE..TGN156,166..THSUV..6FC..L201611-201811

LN2,FURUKAWA

main28800-0C280i2TRFE..TGN156,166..AGTSU201512-202010

LN2,UNION BATTERY

main28800-0L380i1GDFTV,2TRFE..GUN156,TGN156,166..PKN201612-202104

80D26L

main28800-0L430i2TRFE..TGN156,166..IDNSU..S..GCC;1G#,2GDFTV..GGN155,165,GUN15#,165..IDNSU201601-201809

LN3

main28800-0L431i2TRFE..TGN156,166..IDNSU..S..GCC;1G#,2GDFTV..GGN155,GUN15#,165..IDNSU,VNSUV201810-202008

LN3

main28800-0L440i1GDFTV..GUN156,166..6F..IND202002-202012

LN3

main28800-0L460i1G#..GGN155,GUN156..(HTWC,IART)..BZAGT; 1GDFTV..GUN156..AGTSU..HDCR;1GRFE,2GDFTV..GGN155,GUN165..LA201512-202010

LN3; LN3,JOHNSON CONTROLS

main28800-0L470i1KDFTV..KUN156..AGTSU201512-201709

LN4

main28800-0L480i1G#,2GDFTV,2KDFTV..GGN155,GUN15#,16#,KUN165..SA201603-202009

LN3

main28800-0L490i1KDFTV,5LE..KUN156,LAN155..SA201603-202009

LN4

main28800-0L500i1GDFTV,2GDFTV..GUN16#..THSUV;1G#,2GDFTV..GGN155,165,GUN15#..THSUV..(ARL,GCC)201507-201607

LN3,FURUKAWA

main28800-0L501i1GDFTV,2GDFTV..GUN16#..THSUV;1G#,2GDFTV..GGN155,165,GUN15#..THSUV..(ARL,GCC); 2TRFE..TGN156..THSUV..6FC201608-201610

LN3,ASIA COLD COUNTRY SPEC,FURUKAWA; LN3,FURUKAWA

main28800-0L502i2TRFE..TGN156..KZS;1G#..GGN155,GUN166..EPT,TH;1GDFTV..GUN156..(M,S)..ARL;1GDFTV..GUN156..THSUV..(H,L)..(ARL,GEN);1GRFE,2GDFTV..GGN165,GUN165..THSUV..(H,M,S)201611-202006

LN3,FURUKAWA

main28800-0L503i1GRFE..GGN155..EPT202007-202101

LN3,FURUKAWA

main28800-0L520i1GDFTV..GUN156,166..6FC..IND201709-202012

LN4

main28800-0L560i1KDFTV..KUN156..IDNSU201601-201707

LN4

main28800-0L570i2GDFTV..GUN165..THSUV..L;2TRFE..TGN156,166..THSUV..S..GCC;1G#,2GDFTV..GGN155,GUN15#..THSUV..GCC201507-201811

LN3,YUASA

main28800-0L591i1GDFTV..GUN156,166..6F..IND201610-202002

LN3

main28800-0L600i1GDFTV..GUN156..AGTSU..HDCR;1GRFE,2GDFTV..GGN155,GUN165..LA201512-202010

LN3,UNION BATTERY

main28800-0L672i1GDFTV..GUN156..THSUV..(M,S)..GEN201708-202005

LN3R,SUB

main28800-0L710i2TRFE..TGN166..IND201809-202012

LN2

main28800-0L720i2TRFE..TGN156,166..THSUV..S..GCC;1G#,2GDFTV..GGN155,GUN15#,165..THSUV..GCC201811-202005

LN3

main28800-0L730i2TRFE..TGN156,166..THSUV..L..GCC201811-202005

LN2

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2TRFE..TGN156..PKN201507-201802

main90982-05061i5LE..LAN155..S;2TRFE..TGN156,166..(AGTSU,SASUV)..(H,L,S)201710-202104

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-0K160i1GDFTV..GUN156,166..IND202002-202012

main82821-0K180i1GDFTV..GUN156,166..6FC..IND201709-201809

main82821-0K220i2TRFE..TGN168201710-202010

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GRFE,2GDFTV..GGN155,165,GUN155..BZAGT,GCC,GEN,IDN,LA,MA,SA;1GDFTV,2GDFTV,2TRFE..GUN16#,TGN166..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV;1GDFTV,1KDFTV,2KDFTV,5LE,2TRFE..GUN156,KUN156,165,LAN155,TGN156,168..ARL,BZAGT,GCC,GEN,KZS,LA,MA,PH,PKN,SA,VN201507-202104

28898PLATE, BATTERY

main28897-36030i1G#,2GDFTV,2TRFE..GGN155,165,GUN15#,165,TGN156,166..GCC201608-202007

main28898-0L010×2i1GDFTV..GUN156..THSUV..(M,S)..GEN201708-202005

28898BPLATE, BATTERY

main28897-31040×2i1GDFTV..GUN156..THSUV..(M,S)..GEN; 2TRFE..TGN156..KZS201708-202005

28899INSULATOR, BATTERY

main28899-27020i1GRFE..GGN155,165;1GDFTV..GUN156..THSUV..(M,S)..GEN201512-202101

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

10 parts on this diagram · 2 diagrams in section
