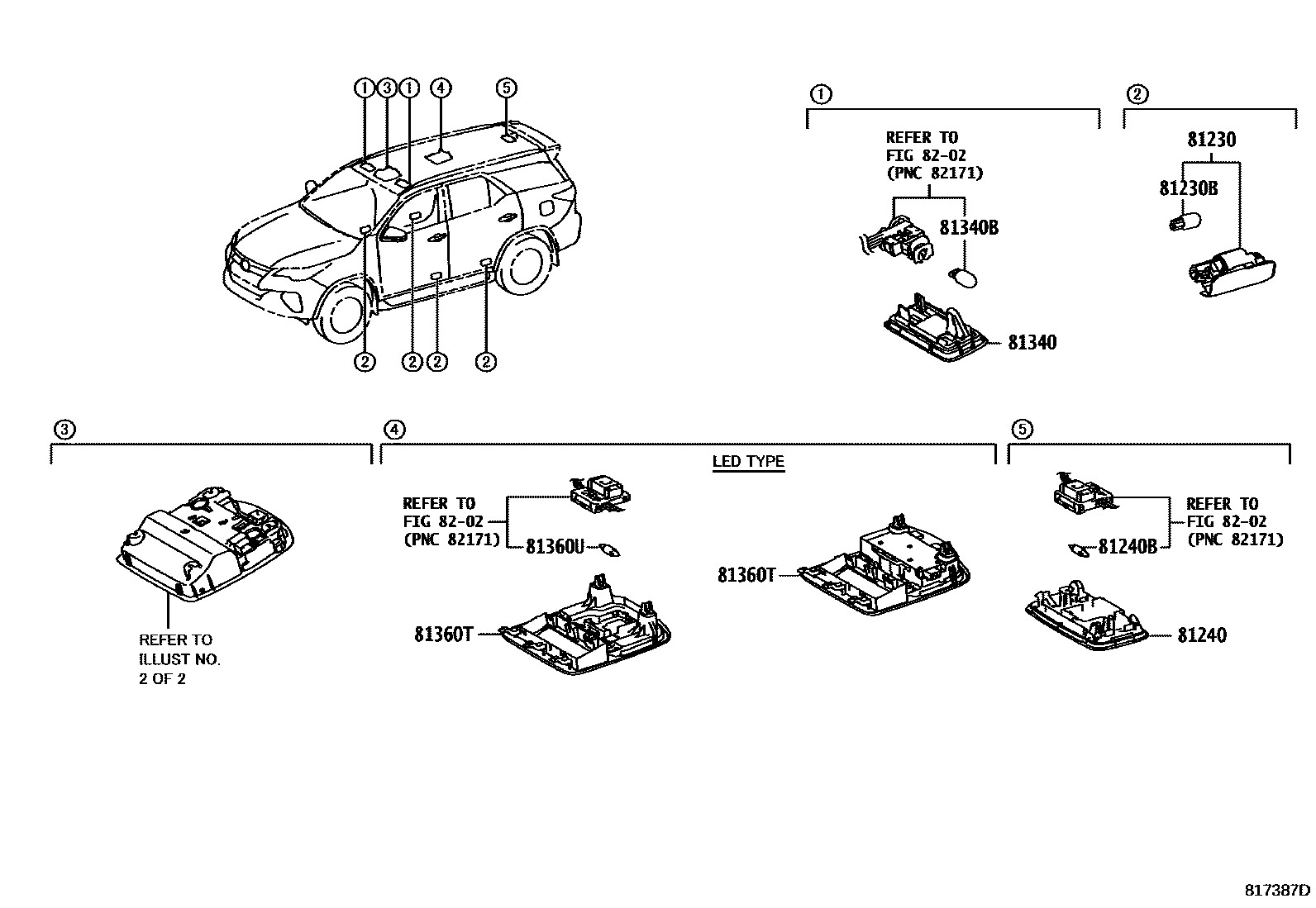

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-0K010×4iGUN156,166,TGN166..IND201912-202012

main81230-30200×4iGUN156,166,TGN166..IND201507-201912

81230BBULB(FOR COURTESY LAMP)

main90981-12010×4iGUN156..(H,M)..(ARL,BZAGT);TGN156..(H,M)..(BZAGT,GEN);TGN156..(M,S)..(KZS,LA,MA,VN);GUN156..(H,M,S)..(GCC,GEN,LA,PH,PKN,TH,VN);GGN155,165,GUN155,16#,KUN156,TGN166..(AGTSU,IDNSU,MASUV,THSUV)..(H,M)201507-202104

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-0K030iGGN155,GUN15#,165,TGN156,166..IDNSU,VNSUV202006-202008

main81240-0K030-B0iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202006

LT.GRAY,TRIM4#

main81240-0K070-B0iGGN155,TGN156,166..EPT201507-202101

LT.GRAY,TRIM4#

main81240-0K080-B0iGUN156,166,TGN166..IND201912-202012

LT.GRAY,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iGGN155,TGN156,166..EPT201507-202101

12V 8W

81340LAMP ASSY, VANITY

main81340-0K030×2iTGN156..H;GUN156..S..IART;GUN166,TGN168..6FC..(BZAGT,TH);TGN156,166..(AGTSU,MASUV,PKNSU,THSUV)..(M,S)..(LA,MA,PKN,TH);GGN155,165,GUN15#,165,KUN156..(AGTSU,MASUV,PKNSU,THSUV)..(H,M)201507-202104

main81340-0K040×2iGUN165..LHD..GEN;GGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M)201605-202008

main81340-0K050×2iGUN156,166,TGN166..IND201912-202012

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iGUN156,166,TGN166..IND201912-202012

12V 8W

81360TLAMP ASSY, SPOT

main81360-0K010-B0supersedes 81360-0K050-B0iGUN156,TGN156,166..PKN201612-202104

LT.GRAY,TRIM4#

main81360-0K040iGUN165..GCC,VN;GUN155,TGN156,166..IDNSU..L202006-202008

main81360-0K040-B0iGUN165..THSUV..L;TGN156,166..S..BZAGT;GUN165..(L,S)..(LA,SA,TH);GUN165,TGN156,166..IDNSU..MTM..GCC;TGN156,166..(AGTSU,EPTSU,SASUV,THSUV)..L;TGN156,166..LHD..(IDNSU,SASUV,THSUV)..6FC..(L,S)..(KZS,LA,SA);GUN15#,TGN168..(AGTSU,MASUV,SASUV,THSUV)..L..(ARL,BZAGT,GCC,MA,SA);GUN15#,KUN156,165,LAN155..LHD..(L,S)..(DCR,DEFI,HDCR)..(BZAGT,GEN,LA,SA)201507-202101

LT.GRAY,TRIM4#

main81360-0K050iGUN165..GEN,IDN,PH;GGN155,GUN15#,TGN156,166..(IDNSU,VNSUV)..(H,M,S)202006-202008

main81360-0K050-B0iGUN165..GEN,IDN;TGN156..IDNSU..S..GCC;GUN165,TGN156..M..(GEN,PH,VN);TGN166..(IDNSU,VNSUV)..(M,S)..(GCC,GEN,IDN,VN);GGN155,GUN15#..(IDNSU,VNSUV)..(H,M,S)..(GCC,GEN,IDN,PH,VN)201507-202006

LT.GRAY,TRIM4#

81360UBULB, SPOT LAMP

main90981-14011iGUN156,166,TGN166..IND201507-201809

8202WIRING & CLAMP

→ Go to FIG 82-02

9 parts on this diagram · 2 diagrams in section
