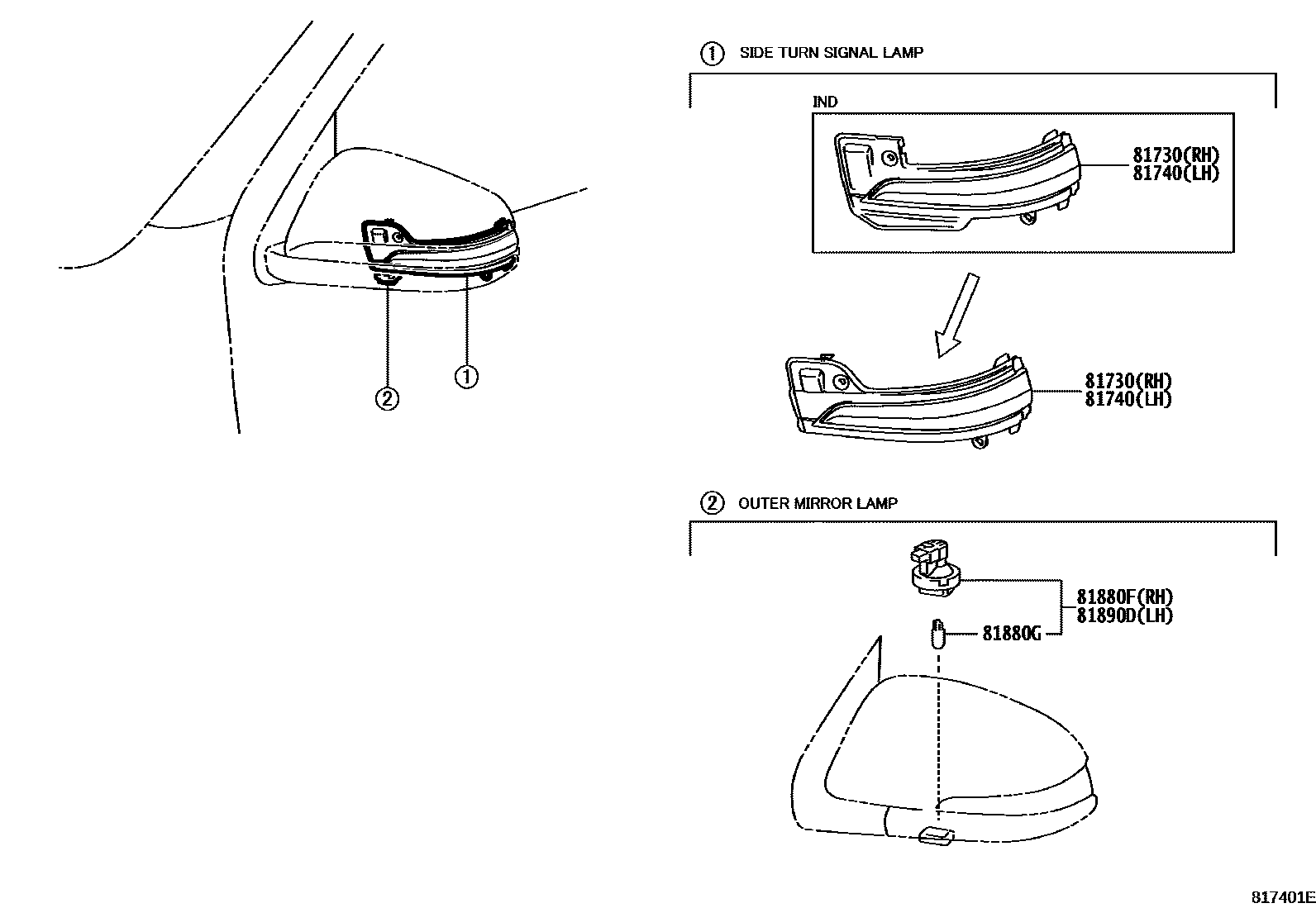

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-0K020iGGN155,TGN156,166..EPT201708-202101

HOUSING COLER:BLACK

main81730-0K070iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-201708

main81730-0K080iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,MASUV,PKNSU,SASUV,THSUV201507-201708

HOUSING COLER:GRAY

main81730-0K090iGGN155,165,GUN15#,165,TGN156,166..IDNSU,VNSUV201708-202008

main81730-0K100iGUN156,166,TGN166..IND201610-201709

main81730-0K120iGUN156,166,TGN166..IND201709-202012

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-0K020iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,MASUV,PKNSU,SASUV,THSUV201708-202104

HOUSING COLER:BLACK

main81740-0K030iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-201708

main81740-0K040iGGN155,165,GUN15#,165,TGN156,166..IDNSU,VNSUV201708-202008

main81740-0K050iGUN156,166,TGN166..IND201709-202012

main81740-0K080iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,MASUV,PKNSU,SASUV,THSUV201507-201708

HOUSING COLER:GRAY

main81740-0K100iGUN156,166,TGN166..IND201610-201709

81880FLAMP ASSY, OUTER MIRROR, RH

main81880-0K010iGUN156,TGN156..H..(HDCR,HTWC)..BZAGT201507-201710

81880GBULB, OUTER MIRROR LAMP ASSY

main99132-12050×2iGUN156,TGN156..H..(HDCR,HTWC)..BZAGT201507-201710

12V 5W

81890DLAMP ASSY, OUTER MIRROR, LH

main81890-0K010iGUN156,TGN156..H..(HDCR,HTWC)..BZAGT201507-201710

5 parts on this diagram · 1 diagram in section
