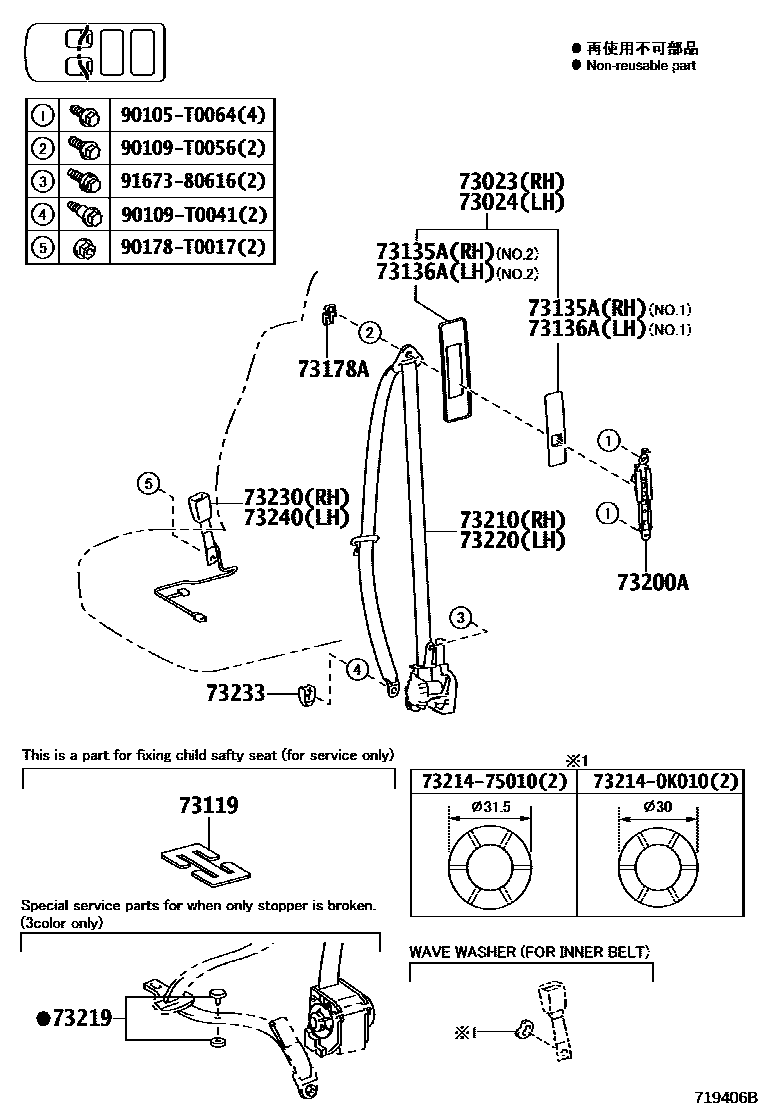

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-KK010-B0iGUN156..6FC..H..BZAGT201512-202010

LT.GRAY,TRIM0#,3#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73023-KK010-B0iTGN156,166..S..GCC201808-202104

LT.GRAY,TRIM4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iGGN155,TGN156,166..EPT201507-202101

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73023-KK010-B0×2iGUN165,LAN155..LHD..L..(LA,SA)201810-202012

LT.GRAY,TRIM4#

main73135-KK010-B0iGUN156..6F..M;TGN156..AGTSU..M;TGN166..L..(GCC,LA);GUN156..IDNSU..H..GEN;GUN156..(H,L)..(ARL,GCC);TGN166..BZAGT,GEN,IDN,PH,PKN,SA,TH,VN;GUN165..IDNSU,MASUV,SASUV,TH201507-202104

LT.GRAY,TRIM4#,NO.1:REFER ILLUST.

main73135-KK020-B0iGUN156,166,TGN166..IND201507-202012

LT.GRAY,TRIM4#,NO.2:REFER ILLUST.

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73135-KK010-B0iGGN155,TGN156,166..EPT201507-202101

LT.GRAY,TRIM4#,NO.1:REFER ILLUST.

main73135-KK020-B0iGUN156,166,TGN166..IND201507-202012

LT.GRAY,TRIM4#,NO.2:REFER ILLUST.

73178ACAP, SEAT BELT ANCHOR COVER

main73178-KK010-B0×2iGUN156,166,TGN166..IND201507-202012

LT.GRAY,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0D051-B2×2iKUN156..LHD..H;KUN156..IDNSU..(L,M);GGN155,165,GUN15#,165,TGN156,166..IDNSU201507-201703

LT.GRAY,TRIM4#

main73200-0K030-B0×2iKUN156..LHD..H;KUN156..IDNSU..(L,M);TGN156,166..GEN,IDN,PH,VN;TGN156,166..IDNSU..L..(GCC,LA);GGN155,165,GUN15#,165..IDNSU,VNSUV201703-202008

LT.GRAY,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0K840-C0iGUN156..6F..M;GUN156..THSUV..(H,L)..(ARL,GCC);GUN155..(MASUV,THSUV)..(GCC,MA);GGN155,165,GUN165..EPTSU,MASUV,THSUV;GUN156,TGN156..THSUV..(M,S)..(GEN,KZS);TGN156,166201507-202101

BLACK,TRIM4#

main73210-0K860-C0iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

BLACK,TRIM4#

sub73210-0K861

main73210-0K880-C0iGUN156,TGN168..L..BZAGT;GGN155,GUN156,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201512-202010

BLACK,TRIM3#,4#

main73210-0K890-C0iTGN156,166..GEN,IDN,PH,VN;TGN156,166..IDNSU..L..(GCC,LA);GGN155,165,GUN15#,165,KUN156..IDNSU,VNSUV201601-202008

BLACK,TRIM4#

main73210-0KA00-C0iGUN156,166,TGN166..IND201610-202012

BLACK,TRIM4#

sub73210-0KA01

main73210-0KB40-C0iGUN156,TGN156,166..PKN201612-202104

BLACK,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-33010iGUN165,LAN155..LHD..L..(LA,SA)201810-202104

BLACK

main73219-33020iGGN155,TGN156,166..EPT201507-202101

GRAY

main73219-33030iGGN155,TGN156,166..EPT201507-202101

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0K550-C0iGUN156..6F..M;GUN156..THSUV..(H,L)..(ARL,GCC);GUN155..(MASUV,THSUV)..(GCC,MA);GGN155,165,GUN165..EPTSU,MASUV,THSUV;GUN156,TGN156..THSUV..(M,S)..(GEN,KZS);TGN156,166201507-202101

BLACK,TRIM4#

main73220-0K570-C0iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

BLACK,TRIM4#

sub73220-0K571

main73220-0K590-C0iGUN156,TGN168..L..BZAGT;GGN155,GUN156,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201512-202010

BLACK,TRIM3#,4#

main73220-0K600-C0iTGN156,166..IDNSU..S..GCC201808-202008

BLACK,TRIM4#

main73220-0K610-C0iGUN156,166,TGN166..IND201610-202012

BLACK,TRIM4#

sub73220-0K611

main73220-0K760-C0iGUN156,TGN156,166..PKN201612-202104

BLACK,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0KA50-C0iGUN156..THSUV..H..GEN201601-201905

BLACK,TRIM4#

main73230-0KA60-C0iTGN156..H;GUN156..6F..H..BZAGT201512-201710

BLACK,TRIM3#,4#

main73230-0KA70-C0iLAN155..L201810-202009

BLACK,TRIM4#

main73230-0KC00-C0iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU..(M,S)201601-202007

BLACK,TRIM4#

main73230-0KC10-C0iGUN156..ARL;GUN155,165..(L,S)..(MA,TH)201507-202012

BLACK,TRIM4#

main73230-0KC20-C0iGUN155..M..MA;GUN165,TGN156,166..M..(MA,TH)201507-202012

BLACK,TRIM4#

main73230-0KC30-C0iGUN155,165,TGN166..L..SA201603-202009

BLACK,TRIM4#

main73230-0KC40-C0iGGN155,GUN156,166,KUN156,TGN166..RHD..S..SA201603-202009

BLACK,TRIM4#

main73230-0KC70-C0iKUN156,TGN166..RHD..H..GEN201601-201805

BLACK,TRIM4#

main73230-0KD90-C0supersedes 73230-0KD80-C0iGUN156,TGN156..PKN201612-202104

BLACK,TRIM4#

main73230-0KE90-C0iTGN156,166..IDNSU..S..GCC201808-202008

BLACK,TRIM4#

main73230-0KF00-C0iGUN156,166,TGN166..IND201610-202012

BLACK,TRIM4#

main73230-0KF30-C0iGUN156..THSUV..H..GEN201905-202005

BLACK,TRIM3#,4#

main73230-0KF40-C0iTGN156..H;GUN156..6F..H..BZAGT201710-202010

BLACK,TRIM0#,3#,4#

main73230-0KF50-C0iGUN155..H..GEN201708-202007

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-KK010-C0×2iGUN156..6F..S..ARL;GUN156..6F..H..BZAGT;GUN156..THSUV..H..GEN;GUN156,TGN168..S..(HTWCF,IART);GUN156..RHD..THSUV..6FC..(M,S);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,201507-202010

BLACK,TRIM3#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0K890-C0iTGN156,166..(EPTSU,THSUV)..L;GGN155,165,GUN15#,165..THSUV..GCC;GUN156,TGN156..THSUV..(M,S)..(GEN,KZS)201601-202101

BLACK,TRIM4#

main73230-0KA00-C0iGUN156,TGN168..L..BZAGT;GGN155,GUN156,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201512-202010

BLACK,TRIM4#

main73230-0KA10-C0iLAN155..S;GUN15#,KUN156,165,TGN156..LHD..SA201603-202009

BLACK,TRIM4#

main73230-0KA20-C0iGUN156..THSUV..H..GEN201705-201905

BLACK,TRIM4#

main73230-0KA30-C0iTGN156..H;GUN156..6F..H..BZAGT201512-201710

BLACK,TRIM3#,4#

main73230-0KA50-C0iGUN156,166..TH201507-201708

BLACK,TRIM4#

main73230-0KA70-C0iGGN155,GUN15#,16#,KUN156,TGN166..RHD..SA201603-202009

BLACK,TRIM4#

main73230-0KE40-C0iTGN156,166..PKN201612-202104

BLACK,TRIM4#

main73230-0KE70-C0iTGN166..PH;GUN156..IDNSU..GCC;TGN156,166..IDNSU..L;GGN155,165,GUN155..LHD..IDNSU;GUN165..LHD..(IDNSU,VNSUV)..(H,L,M);GUN165..LHD..IDNSU..S..(GCC,GEN,PH);GUN156,KUN1201601-202008

BLACK,TRIM4#

main73230-0KE80-C0iGUN156,165,TGN156,166..6FC..VN;GUN156,KUN156..LHD..IDNSU..H..GEN201601-202008

BLACK,TRIM4#

main73230-0KE90-C0iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU201601-202007

BLACK,TRIM4#

main73230-0KF10-C0iGUN156,166,TGN166..IND201610-201809

BLACK,TRIM4#

main73230-0KF60-C0iGUN15#,166..TH201708-202005

BLACK,TRIM4#

main73230-0KG00-C0iGUN156,166,TGN166..IND201809-202012

BLACK,TRIM4#

main73230-0KG10-C0iGUN156..PKN201902-202104

BLACK,TRIM4#

main73230-0KG20-C0iGUN156..ARL201908-202005

BLACK,TRIM4#

main73230-0KA40-C0iGUN15#,KUN156,LAN155,TGN156..LHD..S..SA201603-202009

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM4#

main73230-0KF80-C0iTGN156..M..GEN201708-202007

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM4#

main73230-0KG60-C0iGUN156..(M,S)..ARL201908-202005

SEAT COVER MATERIAL-LEATHER(BLACK & RED),BLACK,TRIM3#,4#

732140K010PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105T0064

main90105-T0064

90109T0041

main90109-T0041

90109T0056

main90109-T0056

90178T0017

main90178-T0017

9167380616

main91673-80616

20 parts on this diagram · 3 diagrams in section
