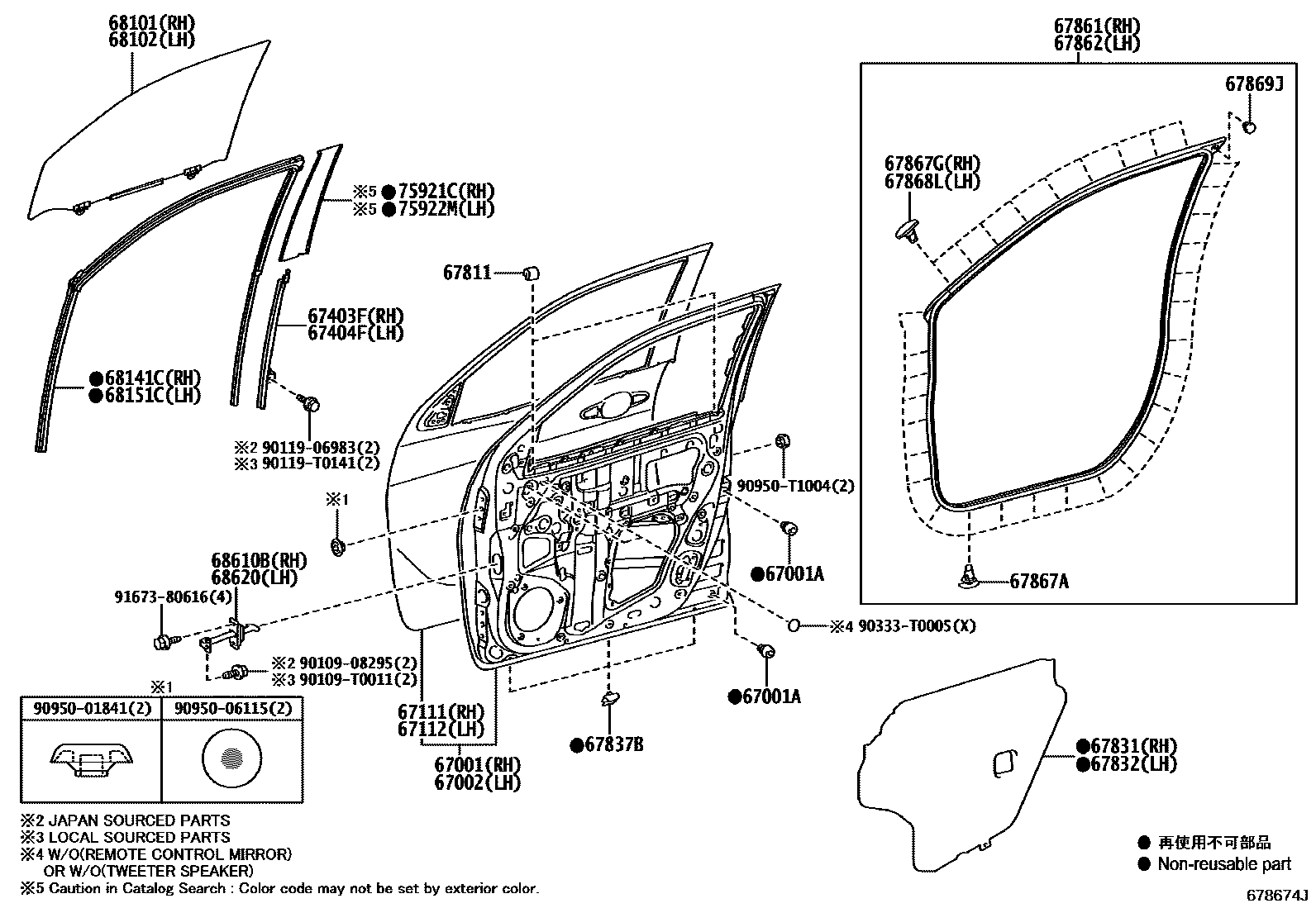

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-KK010iGGN155,TGN156,166..EPT201507-202101

67001ACUSHION, FRONT DOOR PANEL

main90541-09131×4iGUN156,166,TGN166..IND201507-202012

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-KK010iGUN156,166,TGN166..IND201507-202012

67111PANEL, FRONT DOOR, OUTER RH

main67111-KK010iGUN156,166,TGN166..IND201507-202012

67112PANEL, FRONT DOOR, OUTER LH

main67112-KK010iGGN155,TGN156,166..EPT201507-202101

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K070iGGN155,TGN156,166..EPT201507-202101

main67403-0K080iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main67403-0K090iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main67403-0K100iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IND,SA201603-202012

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K070iGGN155,165,GUN15#,16#,TGN156,166..MASUV,PKNSU,THSUV201507-202104

main67404-0K080iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main67404-0K090iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main67404-0K100iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IND,SA201603-202012

67811PAD, FRONT DOOR SILENCER

main69759-0K030×4iGGN155,TGN156,166..EPT201507-202101

main69759-0K060×4iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201707-202009

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K120iGGN155,TGN156,166..EPT201507-202101

main67831-0K140iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main67831-0K150iGUN156,166,TGN166..IND201610-202012

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0K120iGGN155,TGN156,166..EPT201507-202101

main67832-0K140iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main67832-0K150iGUN156,166,TGN166..IND201610-202012

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K090×6iGGN155,165,GUN15#,16#,KUN156,TGN156,16#..AGTSU,MASUV,THSUV201507-201608

main67837-0K091×6iGGN155,165,GUN15#,16#,KUN156,TGN156,16#..AGTSU,INDSU,MASUV,PKNSU,THSUV201609-201703

main67837-0K092×6iGGN155,165,GUN15#,16#,TGN156,166..EPTSU,MASUV,PKNSU,THSUV201707-202104

PLANT TMT

main67837-0K100×6iGGN155,GUN156,16#,KUN156,165,LAN155,TGN156,166..SA201603-201608

main67837-0K101×6iGGN155,GUN156,16#,KUN156,165,LAN155,TGN156,166..SA201609-201703

main67837-0K102×6iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201704-202009

main67837-0K110×6iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-201608

main67837-0K111×6iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201609-201703

main67837-0K112×6iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201704-202008

main67837-0K121×6iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201707-202010

EXCEPT PLANT TMT

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K120iGGN155,TGN156,166..EPT201507-202101

main67861-0K150iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main67861-0K160iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-201905

main67861-0K161iGGN155,GUN156,165,TGN156,16#..AGTSU201906-202010

main67861-0K190iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main67861-0K200iGUN156,166,TGN166..IND201610-202012

main67861-0K240iGUN155,165,TGN156..MA201605-202012

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K120iGGN155,TGN156,166..EPT201507-202101

main67862-0K150iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main67862-0K160iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-201905

main67862-0K161iGGN155,GUN156,165,TGN156,16#..AGTSU201906-202010

main67862-0K190iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main67862-0K200iGUN156,166,TGN166..IND201610-202012

main67862-0K240iGUN155,165,TGN156..MA201605-202012

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×48iGUN156,166,TGN166..IND201507-202012

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52040×9iGUN156,166,TGN166..IND201507-202012

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52010×9iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

67869JCLIP, FRONT DOOR WEATHERSTRIP

main90467-06084×2iGGN155,TGN156,166..EPT201507-202101

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K180iGGN155,GUN15#..IDNSU..H..GCC; GGN155,GUN155,TGN156,166..IDNSU..S..GCC201806-202007

BACK GLASS-FIX TYPE(GREEN,*HSEA)

main68101-0K250iGGN155,GUN15#..IDNSU..H..GCC201601-201806

main68101-0K260iGUN156,166,TGN166..IND201610-202012

main68101-0K270iGGN155,TGN156,166..EPT201507-201706

main68101-0K271iGGN155,165,GUN15#,16#,TGN156,166..EPTSU,PKNSU,THSUV201706-201712

main68101-0K272iGGN155,GUN155..THSUV..(L,M,S);GGN165,GUN16#,TGN156,166..PKNSU,THSUV;GUN156..(PKNSU,THSUV)..(ARL,GEN,PKN,TH)201801-202104

main68101-0K280iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main68101-0K290iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main68101-0K330iGUN155,165,TGN156..MA201605-202012

main68101-0K380iGGN155,GUN15#..THSUV..H..GCC; GGN155,GUN155,TGN156,166..THSUV..S..GCC201806-202005

BACK GLASS-FIX TYPE(GREEN,*HSEA)

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K160iGGN155,GUN15#..IDNSU..H..GCC; GGN155,GUN155,TGN156,166..IDNSU..S..GCC201806-202007

BACK GLASS-FIX TYPE(GREEN,*HSEA)

main68102-0K250iGUN155..H..GEN;GGN155,GUN155..IDNSU..(L,M,S);GUN156..(IDNSU,VNSUV)..(GEN,LA,PH,VN);GGN165,GUN165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main68102-0K260iGUN156,166,TGN166..IND201610-202012

main68102-0K270iGGN155,TGN156,166..EPT201507-201706

main68102-0K271iGGN155,165,GUN15#,16#,TGN156,166..EPTSU,PKNSU,THSUV201706-201712

main68102-0K272iGGN155,GUN155..THSUV..(L,M,S);GGN165,GUN16#,TGN156,166..PKNSU,THSUV;GUN156..(PKNSU,THSUV)..(ARL,GEN,PKN,TH)201801-202104

main68102-0K280iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main68102-0K290iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main68102-0K330iGUN155,165,TGN156..MA201605-202012

main68102-0K370iGGN155,GUN15#..THSUV..H..GCC; GGN155,GUN155,TGN156,166..THSUV..S..GCC201806-202005

BACK GLASS-FIX TYPE(GREEN,*HSEA)

68141CRUN, FRONT DOOR GLASS, RH

main68141-0K070iGGN155,TGN156,166..EPT201507-202101

main68141-0K090iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main68141-0K100iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main68141-0K130iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,VNSUV201601-202012

main68141-0K140iGUN156,166,TGN166..IND201610-202012

68151CRUN, FRONT DOOR GLASS, LH

main68151-0K070iGGN155,TGN156,166..EPT201507-202101

main68151-0K090iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main68151-0K100iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main68151-0K130iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,VNSUV201601-202012

main68151-0K140iGUN156,166,TGN166..IND201610-202012

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K090iGGN155,165,GUN15#,16#,TGN156,166..EPTSU,MASUV,PKNSU,THSUV201507-201806

main68610-0K091iGGN155,TGN156,166..EPT201806-202101

main68610-0K100iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main68610-0K110iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IND,SA201603-202012

main68610-0K120iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K090iGGN155,165,GUN15#,16#,TGN156,166..EPTSU,MASUV,PKNSU,THSUV201507-201806

main68610-0K091iGGN155,TGN156,166..EPT201806-202101

main68610-0K100iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main68610-0K110iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IND,SA201603-202012

main68610-0K120iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0K030iGGN155,165,GUN15#,16#,TGN156,166..EPTSU,MASUV,PKNSU,THSUV; GUN15#,166..TH; GUN156,166..TH201507-201806

ACCESSORY TYPE 1 PACKAGE; ACCESSORY TYPE 2 PACKAGE

main75921-0K040iGGN155,GUN156,165,TGN156,16#..AGTSU201808-202010

main75921-0K090iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-201808

main75921-0K130iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-201806

main75921-0K140iGUN156,166,TGN166..IND201809-202012

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0K030iGGN155,GUN15#,16#,TGN156,166..MASUV,PKNSU,THSUV201806-202104

main75922-0K040iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-201808

main75922-0K090iGGN155,GUN15#,16#,LAN155,TGN156,166..SA201808-202009

main75922-0K130iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-201806

main75922-0K140iGUN156,166,TGN166..IND201610-201809

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

90333T0005

main90333-T0005

9095001841

main90950-01841

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

34 parts on this diagram · 2 diagrams in section
