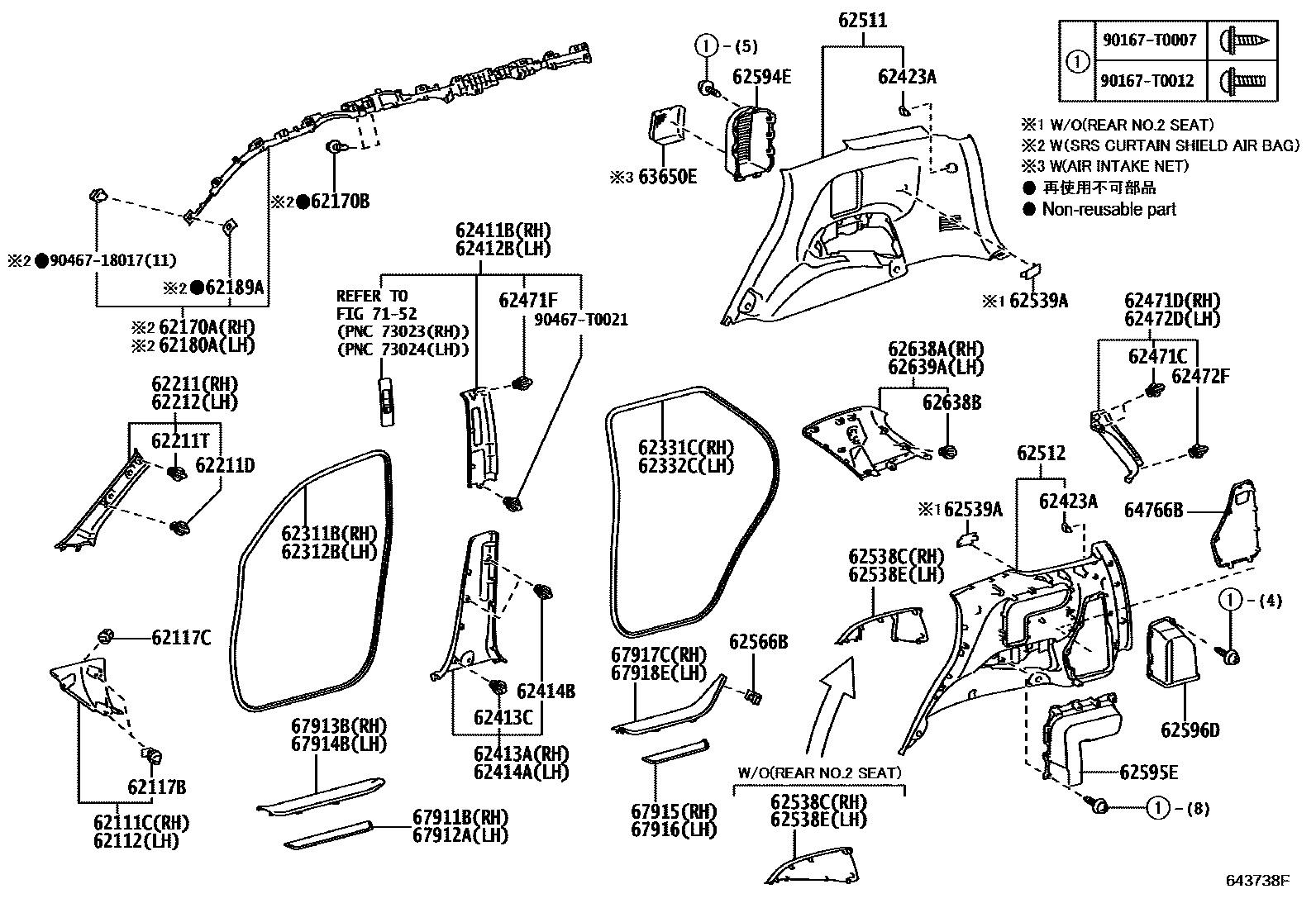

INSIDE TRIM BOARD

0001 1 0002 1 0003 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-0K210-C0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005

BLACK,TRIM3#,4#

main62111-0K210-C0iTGN156,166..THSUV..S..GCC201507-202101

BLACK,TRIM4#

main62111-KK010-C0iGUN156,166,TGN166..IND201512-202104

BLACK,TRIM4#

main62111-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM3#,4#

main62111-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-0K210-C0iTGN156,166..THSUV..S..GCC201507-202101

BLACK,TRIM4#

main62112-0K210-C0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005

BLACK,TRIM3#,4#

main62112-KK010-C0iGUN165,LAN155..LHD..L..(LA,SA)201512-202104

BLACK,TRIM4#

main62112-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

main62112-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM3#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-11089-A0iGUN165,LAN155..LHD..L..(LA,SA)201507-202104

IVORY

sub90467-11089

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147iGGN155,TGN156,166..EPT201507-202104

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0K110iGUN165,TGN166..IDNSU..VN201810-202012

sub62170-0K111

main62170-0K110iGUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;GUN165..MASUV,VNSUV;TGN166..AGTSU,VNSUV;GUN156..IDNSU..(LA,PH,VN);GGN155,TGN168..BZAGT,GEN,LA;TGN166..LHD..IDNSU..(GEN,LA)201507-202012

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

sub62170-0K111

main62170-0K130iGGN155,GUN156,166,TGN166..RHD..S..SA201603-202009

SRS AIR BAG-WITH(*DRP)

main62170-0K130iTGN166..L..SA;GUN156..LHD..SA;GUN155,165,KUN156,LAN155,TGN156..SA201603-202009

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main62170-0K180iGUN156,166,TGN166..IND201610-202012

sub62170-0K181

62170BBOLT, W/WASHER

main91673-80616iKUN156..LHD..H;GUN156..THSUV..H;GUN156..IDNSU..(GCC,GEN);GUN155..(H,L,S)..(GEN,IDN,MA,SA);GUN156,TGN156,166..LHD..S..(PH,SA);GUN165,KUN156,LAN155..(L,M,S)..(GEN,IDN201507-202012

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main91673-80616iGUN165..LA201810-202012

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0K110iGUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;GUN165..MASUV,VNSUV;TGN166..AGTSU,VNSUV;GUN156..IDNSU..(LA,PH,VN);GGN155,TGN168..BZAGT,GEN,LA;TGN166..LHD..IDNSU..(GEN,LA)201507-202012

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

sub62180-0K111

main62180-0K110iGUN165,TGN166..IDNSU..VN201810-202012

sub62180-0K111

main62180-0K130iTGN166..L..SA;GUN156..LHD..SA;GUN155,165,KUN156,LAN155,TGN156..SA201603-202009

SRS AIR BAG-WITH(*DRP)

main62180-0K130iTGN166..L..SA;GUN156..LHD..SA;GUN155,165,KUN156,LAN155,TGN156..SA201603-202009

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main62180-0K180iGUN156,166,TGN166..IND201610-202012

sub62180-0K181

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iGUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN165..MASUV,VNSUV;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);TGN166..LHD..IDNSU..(GEN,LA);GUN156..201507-202012

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main62189-42010iGUN165..LA201810-202012

62211GARNISH, FRONT PILLAR, RH

main62211-0K190-B0iGUN155,165,TGN156..M..MA201507-202012

LT.GRAY,TRIM4#

main62211-0K190-B0iGUN156..6F..S..ARL;GUN15#..RHD..THSUV..6FC..(M,S)201507-202005

LT.GRAY,TRIM3#,4#

main62211-0K190-B0iGUN156..6F..S..ARL;GUN15#..RHD..THSUV..6FC..(M,S)201507-202005

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM3#,4#

main62211-0K190-B0iGUN156..6FC..L..ARL;GUN156..6F..(L,M)..ARL;GUN15#,165,TGN156..(MASUV,THSUV)..(M,S)..(GEN,KZS,MA)201507-202012

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM4#

main62211-0K200-B0iGGN155,TGN156,166..EPT201507-202104

LT.GRAY,TRIM4#

main62211-0K200-B0iGUN156..THSUV..H..GEN201507-202005

LT.GRAY,TRIM3#,4#

main62211-KK020-B0iTGN156,166..IDNSU..L..GCC201803-202007

LT.GRAY,TRIM42

main62211-KK020-B0iGUN165..PH;GGN155,165..IDNSU..GCC;TGN156,166..6FC..(GEN,PH)201803-202007

LT.GRAY,TRIM41,42

main62211-KK020-B0iGUN156..LHD..SA;KUN156,165..GEN,SA;GUN156,165..IDNSU..(GCC,GEN);GUN155..(IDNSU,MASUV,SASUV)..(H,L,S)..(GCC,GEN,MA,SA)201601-202012

LT.GRAY,TRIM4#

main62211-KK020-B0iGUN165,TGN156,166..IDN,SA;GUN155,LAN155..(5F,6FC)..S..(IDN,SA)201803-202009

LT.GRAY,TRIM41

main62211-KK020-B0iTGN166..VN;GUN165..L..VN201803-201905

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM41,42

main62211-KK020-C0iGGN155,165..IDNSU..S;TGN156,166..IDNSU..L..GCC201803-202007

BLACK,TRIM41,42

main62211-KK020-C0iGUN165..PH;GGN155,165..IDNSU..H;TGN156,166..6FC..(GEN,PH)201803-202007

BLACK,TRIM42

main62211-KK020-C0iTGN166..VN;GUN165..L..VN201803-201905

SRS AIR BAG-WITH(*DRP),BLACK,TRIM41,42

main62211-KK020-C0iGUN165,TGN156,166..IDN,SA;GUN155,LAN155..(5F,6FC)..S..(IDN,SA)201803-202009

BLACK,TRIM41

main62211-KK030-B0iGUN155..M..IDN;GGN155,GUN156,166..RHD..SA201804-202009

LT.GRAY,TRIM41

main62211-KK030-B0iGUN156..S..IART;GUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT201512-201804

LT.GRAY,TRIM0#,3#,4#

main62211-KK030-B0iGUN156..S..IART;GUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT201512-202010

LT.GRAY,TRIM3#,4#

main62211-KK030-B0iGUN156..S..IART;GUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT201512-202012

LT.GRAY,TRIM4#

main62211-KK030-B0iGUN155..M..IDN;GGN155,GUN156,166..RHD..SA201804-202009

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM41

main62211-KK030-B0iGUN156..6FC..H..BZAGT201804-202010

LT.GRAY,TRIM0#,3#,41,42

main62211-KK030-B0iGUN156..6FC..H..BZAGT201804-202010

LT.GRAY,TRIM3#,41,42

main62211-KK030-B0iTGN156..VN;GGN155,GUN166..GEN,IND;GUN156..(H,M)..(IND,LA,PH)201804-202012

LT.GRAY,TRIM41,42

main62211-KK030-C0iTGN166..IDNSU..VN201804-202012

BLACK,TRIM41,42

main62211-KK030-C0iGUN156..RHD..SA;GUN156..S..IART;GGN155,GUN166..BZAGT,SA;GUN156..(H,M)..(BZAGT,LA);GUN155,TGN156..(H,M)..(BZAGT,IDN)201804-202010

BLACK,TRIM41

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-T0021iGUN156,166,TGN166..IND201507-202104

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10188iLAN155..L201507-202104

main90467-T0021iGUN165,TGN166..IDNSU..VN201905-202012

main90467-T0021iGUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN165..MASUV,VNSUV;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);TGN166..LHD..IDNSU..(GEN,LA);GUN156..201507-202012

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

62212GARNISH, FRONT PILLAR, LH

main62212-0K190-B0iGUN155,165,TGN156..M..MA201507-202012

LT.GRAY,TRIM4#

main62212-0K190-B0iGUN155..L201507-202012

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM4#

main62212-0K190-B0iGUN166..TH201507-202005

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM3#,4#

main62212-0K190-B0iGUN166..TH201507-202005

LT.GRAY,TRIM3#,4#

main62212-0K200-B0iTGN156,166..THSUV..S..GCC201507-202104

LT.GRAY,TRIM4#

sub62212-0K201

main62212-0K200-B0iGUN166..TH201507-202005

LT.GRAY,TRIM3#,4#

sub62212-0K201

main62212-KK020-B0iTGN166..VN;GUN165..L..VN201803-202007

LT.GRAY,TRIM41,42

main62212-KK020-B0iGUN165..S..VN201601-202012

LT.GRAY,TRIM4#

main62212-KK020-B0iGGN155,TGN156,166..LHD..GEN201803-201905

SRS AIR BAG-WITH(*DRP),LT.GRAY,TRIM41,42

main62212-KK020-B0iGUN165..PH;GGN155,165..IDNSU..GCC;TGN156,166..6FC..(GEN,PH)201803-202007

LT.GRAY,TRIM42

main62212-KK020-B0iGUN165,TGN156,166..IDN,SA;GUN155,LAN155..(5F,6FC)..S..(IDN,SA)201803-202009

LT.GRAY,TRIM41

main62212-KK020-C0iGGN155,TGN156,166..LHD..GEN201803-202007

BLACK,TRIM41,42

main62212-KK020-C0iTGN166..VN;GUN165..L..VN201803-201905

SRS AIR BAG-WITH(*DRP),BLACK,TRIM41,42

main62212-KK020-C0iGGN155,165..IDNSU..S;TGN156,166..IDNSU..L..GCC201803-202007

BLACK,TRIM42

main62212-KK020-C0iGUN165,TGN156,166..IDN,SA;GUN155,LAN155..(5F,6FC)..S..(IDN,SA)201803-202009

BLACK,TRIM41

main62212-KK030-B0iGUN156..S..IART;GUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT201804-202010

LT.GRAY,TRIM0#,3#,41,42

main62212-KK030-B0iGUN156..M..(LA,PH);GUN156..RHD..(IND,SA);GGN155,GUN166..GEN,IND,SA;GUN155,TGN156..M..(IDN,VN)201512-202010

LT.GRAY,TRIM3#,4#

main62212-KK030-B0iGUN156..M..(LA,PH);GUN156..RHD..(IND,SA);GGN155,GUN166..GEN,IND,SA;GUN155,TGN156..M..(IDN,VN)201512-201804

LT.GRAY,TRIM0#,3#,4#

main62212-KK030-B0iGUN156..6FC..H..BZAGT201512-202012

LT.GRAY,TRIM4#

main62212-KK030-B0iGUN155..M..IDN;GGN155,GUN156,166..RHD..SA201804-202009

LT.GRAY,TRIM41

main62212-KK030-B0iGUN155..M..IDN;GGN155,GUN156,166..RHD..SA201804-202009

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM41

main62212-KK030-B0iGUN156..6FC..H..BZAGT201804-202010

LT.GRAY,TRIM3#,41,42

main62212-KK030-B0iTGN156..VN;GGN155,GUN166..GEN,IND;GUN156..(H,M)..(IND,LA,PH)201804-202012

LT.GRAY,TRIM41,42

main62212-KK030-C0iGUN156..RHD..SA;GUN156..S..IART;GGN155,GUN166..BZAGT,SA;GUN156..(H,M)..(BZAGT,LA);GUN155,TGN156..(H,M)..(BZAGT,IDN)201804-202010

BLACK,TRIM41

main62212-KK030-C0iTGN166..IDNSU..VN201804-202012

BLACK,TRIM41,42

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0K110iGGN155,165,GUN15#,16#,TGN156,166..THSUV201507-201609

sub62311-0K111

main62311-0K111iGGN155,TGN156,166..EPT201610-202104

main62311-0K140iGGN155,GUN156,16#,KUN156,165,LAN155,TGN156,166..SA201603-201611

sub62311-0K141

main62311-0K141iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201612-202009

main62311-0K150iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-201609

sub62311-0K151

main62311-0K151iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201610-202010

main62311-0K170iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main62311-0K180iGUN156,166,TGN166..IND201610-202012

main62311-0K210iGUN155,TGN156..MA201605-201611

sub62311-0K211

main62311-0K211iGUN155,165,TGN156..MA201612-202012

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0K110iGGN155,165,GUN15#,16#,TGN156,166..THSUV201507-201609

sub62312-0K111

main62312-0K111iGGN155,165,GUN15#,16#,TGN156,166..PKNSU,THSUV201610-202104

main62312-0K140iGGN155,GUN156,16#,KUN156,165,LAN155,TGN156,166..SA201603-201611

sub62312-0K141

main62312-0K141iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201612-202009

main62312-0K150iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-201609

sub62312-0K151

main62312-0K151iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201610-202010

main62312-0K170iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main62312-0K180iGUN156,166,TGN166..IND201610-202012

main62312-0K210iGUN155,TGN156..MA201605-201611

sub62312-0K211

main62312-0K211iGUN155,165,TGN156..MA201612-202012

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0K130iGGN155,TGN156,166..EPT201507-202104

main62331-0K160iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main62331-0K170iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main62331-0K180iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main62331-0K190iGUN156,166,TGN166..IND201610-202012

main62331-0K220iGUN155,165,TGN156..MA201605-202012

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0K130iGGN155,TGN156,166..EPT201507-202104

main62332-0K160iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main62332-0K170iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main62332-0K180iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main62332-0K190iGUN156,166,TGN166..IND201610-202012

main62332-0K220iGUN155,165,TGN156..MA201605-202012

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-0K120-B0iGGN155,TGN156,166..EPT201507-202104

LT.GRAY,TRIM4#

main62411-0K120-B0iGUN156..THSUV..H..GEN201507-202010

LT.GRAY,TRIM3#,4#

main62411-0K120-B0iGUN156..6FC..H..BZAGT201512-202010

LT.GRAY,TRIM0#,3#,4#

main62411-KK010-B0iLAN155..S;TGN156,166..IDNSU..L..GCC;GGN155,165,GUN15#,16#,KUN156,165..IDNSU,SASUV,VNSUV;TGN156,166..(IDNSU,SASUV,VNSUV)..(GEN,IDN,LA,PH,SA,VN)201601-202009

LT.GRAY,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-0K120-B0iGUN156..THSUV..H..GEN201507-202010

LT.GRAY,TRIM3#,4#

main62412-0K120-B0iGUN156..6FC..H..BZAGT201512-202010

LT.GRAY,TRIM0#,3#,4#

main62412-0K120-B0iGUN156,166,TGN166..IND201507-202104

LT.GRAY,TRIM4#

main62412-KK010-B0iTGN156,166..IDNSU..S..GCC201601-202009

LT.GRAY,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0K110-C0iGUN156,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201507-202005

BLACK,TRIM3#,4#

main62413-0K110-C0iGUN156..6FC..H201507-202104

BLACK,TRIM4#

main62413-0K110-C0iGUN156..6FC..H201512-201603

BLACK,TRIM0#,3#,4#

main62413-KK010-C0iLAN155..S;TGN156,166..IDNSU..L..GCC;GGN155,165,GUN15#,16#,KUN156,165..IDNSU,SASUV,VNSUV;TGN156,166..(IDNSU,SASUV,VNSUV)..(GEN,IDN,LA,PH,SA,VN)201601-202009

BLACK,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10167iGGN155,GUN156,KUN156,TGN156,166..AGTSU201507-202104

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0K110-C0iGUN156,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201507-202005

BLACK,TRIM3#,4#

main62414-0K110-C0iGUN156,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201507-202104

BLACK,TRIM4#

main62414-0K110-C0iGUN156,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201512-201603

BLACK,TRIM0#,3#,4#

main62414-KK010-C0iTGN156,166..IDNSU..S..GCC201601-202009

BLACK,TRIM4#

62414BCLIP (FOR CENTER LOWER GARNISH)

main90467-10188iTGN156,166..S..GCC;GUN156..THSUV..H..GEN201507-202104

62423AHOOK, SIDE WINDOW GARNISH

main62423-KK010-C0iTGN156,166..IDNSU..S..GCC201512-202012

BLACK,TRIM4#

main62423-KK010-C0iGUN156,TGN156..H..(HDCR,HTWC)..BZAGT201512-202010

BLACK,TRIM3#,4#

main62423-KK010-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

BLACK,TRIM0#,3#,4#

main62423-KK010-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM3#,4#

62471CCLIP(FOR REAR PILLAR COVER)

main90467-10188iTGN156,166..S..GCC;GUN156..THSUV..H..GEN201507-202104

62471DGARNISH, REAR PILLAR, UPPER RH

main62471-0K200-B0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005

LT.GRAY,TRIM3#,4#

main62471-0K200-B0iTGN156,166..THSUV..S..GCC201507-202104

LT.GRAY,TRIM4#

main62471-0K280-B0iGUN165..LA201512-202010

LT.GRAY,TRIM4#

main62471-0K280-B0iGUN156..6FC..H..BZAGT201512-202010

LT.GRAY,TRIM0#,3#,4#

main62471-0K280-B0iGUN156..6FC..H..BZAGT201512-202010

LT.GRAY,TRIM3#,4#

main62471-KK010-B0iLAN155..L201601-202012

LT.GRAY,TRIM4#

62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)

main90467-10188iGUN156,166,TGN166..IND201507-202104

62472DGARNISH, REAR PILLAR, UPPER LH

main62472-0K200-B0iGGN155,TGN156,166..EPT201507-202104

LT.GRAY,TRIM4#

main62472-0K200-B0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005

LT.GRAY,TRIM3#,4#

main62472-0K280-B0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010

LT.GRAY,TRIM0#,3#,4#

main62472-0K280-B0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010

LT.GRAY,TRIM3#,4#

main62472-0K280-B0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010

LT.GRAY,TRIM4#

main62472-KK010-B0iLAN155..L201601-202012

LT.GRAY,TRIM4#

62472FCLIP(FOR REAR PILLAR GARNISH)

main90467-T0021iGUN156,166,TGN166..IND201507-202104

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-0K320-C0iGUN156..6FC..(M,S)..ARL201507-202005

BLACK,TRIM3#,4#

main62510-0K320-C0iGUN156..6FC..L..ARL201507-202104

BLACK,TRIM4#

main62510-0K400-C0iGUN156,TGN156..H..(HDCR,HTWC)..BZAGT201512-202010

BLACK,TRIM3#,4#

main62510-0K400-C0iGGN155,GUN156,TGN168..(H,S)..(HTWC,HTWCF,IART)..BZAGT201512-202010

BLACK,TRIM4#

main62510-0K410-C0iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-201707

BLACK,TRIM4#

main62510-0K411-C0iTGN156,166..IDNSU..S..GCC201708-202007

BLACK,TRIM4#

main62510-0K420-C0iTGN156..H;GUN156..6F..H..BZAGT201710-202010

BLACK,TRIM0#,3#,4#

main62510-0K420-C0iTGN156..H;GUN156..6F..H..BZAGT201710-202010

BLACK,TRIM4#

main62510-0K450-C0iGUN156..(M,S)..ARL201908-202005

BLACK,TRIM4#

main62510-0K450-C0iGUN156..(M,S)..ARL201908-202005

BLACK,TRIM3#,4#

main62510-0K460-C0iGUN156,165,TGN166..VNSUV201906-202008

BLACK,TRIM4#

main62510-KK010-C0iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IND,SA201603-202012

BLACK,TRIM4#

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-0K260-C0iTGN156,166..THSUV..S..GCC201507-202104

BLACK,TRIM4#

main62520-0K260-C0iGUN156..6FC..(M,S)..ARL201507-202005

BLACK,TRIM3#,4#

main62520-0K350-C0iGUN156,TGN168..L..BZAGT;GGN155,GUN156,KUN156,TGN156,166..AGTSU..(L,M,S)..(DCR,HDCR,HTWC)201512-202010

BLACK,TRIM3#,4#

main62520-0K350-C0iGUN165..LA201512-202010

BLACK,TRIM4#

main62520-0K360-C0iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-201707

BLACK,TRIM4#

main62520-0K361-C0iTGN156,166..IDNSU..S..GCC201708-202007

BLACK,TRIM4#

main62520-0K370-C0iTGN156..H;GUN156..6F..H..BZAGT201710-202010

BLACK,TRIM4#

main62520-0K370-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

BLACK,TRIM0#,3#,4#

main62520-0K390-C0iGUN156..L..ARL201908-202005

BLACK,TRIM4#

main62520-0K390-C0iGUN156..L..ARL201908-202005

BLACK,TRIM3#,4#

main62520-0K400-C0iGUN156,165,TGN166..VNSUV201906-202008

BLACK,TRIM4#

main62520-KK010-C0iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IND,SA201603-202012

BLACK,TRIM4#

62538CCOVER, QUARTER TRIM, HOLE

main79937-0K050-C0iGUN156..THSUV..H..GEN201507-201905

BLACK,TRIM4#

main79937-0K050-C0iGUN156..THSUV..H..GEN201507-201905

BLACK,TRIM3#,4#

main79937-0K070-C0iGGN155,TGN156,166..EPT201905-202104

BLACK,TRIM4#

main79937-0K070-C0iGUN156..(M,S)..ARL201905-202005

BLACK,TRIM3#,4#

main79937-KK030-C0iTGN156,166..IDNSU..S..GCC201512-202012

BLACK,TRIM4#

main79937-KK030-C0iGUN156..S..IART;GGN155,GUN156,TGN156..H..BZAGT201512-201710

BLACK,TRIM3#,4#

main79937-KK050-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

BLACK,TRIM4#

main79937-KK050-C0iGUN156..H..IART;GUN156..AGTSU..6F;GGN155,TGN156,16#..AGTSU;GUN156..AGTSU..6FC..(L,M,S)201710-202010

BLACK,TRIM0#,3#,4#

62538ECOVER, QUARTER TRIM, HOLE

main79937-0K060-C0iGUN156..6F..M;TGN166..EPT,PKN,TH;GUN155..(MASUV,THSUV)..(GCC,MA);TGN156..(EPTSU,MASUV,THSUV)..(L,M);GGN155,165,GUN165..EPTSU,MASUV,THSUV;GUN156,TGN166..THSUV..(H,L)201507-201905

BLACK,TRIM3#,4#

main79937-0K060-C0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-201905

BLACK,TRIM4#

main79937-0K080-C0iGGN155,TGN156,166..EPT201905-202104

BLACK,TRIM4#

main79937-0K080-C0iGUN156..ARL201905-202005

BLACK,TRIM3#,4#

main79937-KK040-C0iGUN156,TGN156,16#..AGTSU..(L,M,S)..(HDCR,HTWC,HTWCF)201512-201710

BLACK,TRIM3#,4#

main79937-KK040-C0iGUN156,TGN156,16#..AGTSU..(L,M,S)..(HDCR,HTWC,HTWCF)201512-202012

BLACK,TRIM4#

main79937-KK060-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

BLACK,TRIM4#

main79937-KK060-C0iGUN156..H..IART;GUN156..AGTSU..6F;GGN155,TGN156,16#..AGTSU;GUN156..AGTSU..6FC..(L,M,S)201710-202010

BLACK,TRIM0#,3#,4#

62539ACOVER, QUARTER TRIM UPPER BELT HOLE

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-71010iGGN155,TGN156,166..EPT201507-202104

62594EPOCKET, QUARTER TRIM, RH

main62594-0K130-C0iGUN156..THSUV..H..GEN201507-202005

BLACK,TRIM3#,4#

main62594-0K130-C0iTGN156,166..THSUV..S..GCC201507-202104

BLACK,TRIM4#

main62594-KK010-C0iTGN156,166..IDNSU..S..GCC201512-202012

BLACK,TRIM4#

main62594-KK010-C0iGUN156,TGN156..H..(HDCR,HTWC)..BZAGT201512-202010

BLACK,TRIM3#,4#

main62594-KK010-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

BLACK,TRIM0#,3#,4#

main62594-KK010-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM3#,4#

62595EPOCKET, QUARTER TRIM, LH

main62595-0K090-C0iGUN156..6F..M;TGN166..PKN,TH;TGN156..(MASUV,THSUV)..(L,M);GGN155,165,GUN165..MASUV,THSUV;GUN155..(MASUV,THSUV)..(GCC,MA);GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);GUN1201507-202104

BLACK,TRIM4#

main62595-0K090-C0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005

BLACK,TRIM3#,4#

main62595-KK010-C0iTGN156..H;GUN156..6F..H..BZAGT201512-202012

BLACK,TRIM4#

main62595-KK010-C0iGUN156,TGN156..H..(HDCR,HTWC)..BZAGT201512-202010

BLACK,TRIM3#,4#

main62595-KK010-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

BLACK,TRIM0#,3#,4#

main62595-KK010-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM3#,4#

62596DTRAY, QUARTER TRIM POCKET

main62596-0K030-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM3#,4#

main62596-0K030-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

BLACK,TRIM0#,3#,4#

main62596-0K030-C0iTGN156..H;GUN156..6F..H..BZAGT201507-202104

BLACK,TRIM4#

main62596-0K030-C0iGUN156,TGN156..H..(HDCR,HTWC)..BZAGT201507-202010

BLACK,TRIM3#,4#

main62596-KK010-C0iTGN156,166..IDNSU..L..GCC;TGN156,166..(IDNSU,INDSU,SASUV,VNSUV)..(GEN,IDN,IND,LA,PH,SA,VN);GGN155,165,GUN15#,16#,KUN156,165,LAN155..IDNSU,INDSU,SASUV,VNSUV201601-202012

BLACK,TRIM4#

62638AGARNISH, QUARTER PILLAR, RH

main62638-0K170-B0iGUN156..THSUV..H..GEN201507-202005

LT.GRAY,TRIM3#,4#

main62638-0K170-B0iTGN156,166..THSUV..S..GCC201507-202101

LT.GRAY,TRIM4#

main62638-0K180-B0iGUN155..L201507-202012

LT.GRAY,TRIM4#

main62638-0K180-B0iGUN156..6F..S..ARL;GUN15#..RHD..THSUV..6FC..(M,S)201507-202005

LT.GRAY,TRIM3#,4#

main62638-0K180-B0iGUN156..6F..S..ARL;GUN15#..RHD..THSUV..6FC..(M,S)201507-202005

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM3#,4#

main62638-0K180-B0iGUN156..6FC..L..ARL;GUN156..6F..(L,M)..ARL;GUN15#,165,TGN156..(MASUV,THSUV)..(M,S)..(GEN,KZS,MA)201507-202012

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM4#

main62638-KK010-B0iGUN165,TGN166..VN201601-202104

LT.GRAY,TRIM4#

main62638-KK020-B0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010

LT.GRAY,TRIM3#,4#

main62638-KK020-B0iGUN156..6FC..H..BZAGT201512-202010

LT.GRAY,TRIM0#,3#,4#

main62638-KK020-B0iGUN156..RHD..SA;GUN155..IDNSU..M;TGN166..AGTSU..L;GUN156..IND,LA,PH,VN;TGN166..LHD..IDNSU..(GEN,LA);GGN155,GUN166..GEN,IND,LA,SA;TGN156..LHD..(L,M,S)..(BZAGT,GEN,LA201512-202012

LT.GRAY,TRIM4#

62638BCLIP

main90467-T0021iTGN156,166..S..GCC;GUN156..THSUV..H..GEN201507-202104

62639AGARNISH, QUARTER PILLAR, LH

main62639-0K170-B0iGUN156..THSUV..H..GEN201507-202005

LT.GRAY,TRIM3#,4#

main62639-0K170-B0iGGN155,165,GUN165..EPTSU,THSUV;TGN156,166..(EPTSU,THSUV)..(L,M);GUN15#..(MASUV,THSUV)..(H,L,S)..(GCC,MA)201507-202101

LT.GRAY,TRIM4#

main62639-0K180-B0iGUN166..TH201507-202005

LT.GRAY,TRIM3#,4#

main62639-0K180-B0iGUN166..TH201507-202005

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM3#,4#

main62639-0K180-B0iGUN155,165,TGN156..M..MA201507-202012

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),LT.GRAY,TRIM4#

main62639-0K180-B0iGUN155,165,TGN156..M..MA201507-202012

LT.GRAY,TRIM4#

main62639-KK010-B0iTGN156,166..IDNSU..S..GCC201601-202104

LT.GRAY,TRIM4#

main62639-KK020-B0iGUN165..LA201512-202012

LT.GRAY,TRIM4#

main62639-KK020-B0iGUN156..6FC..H..BZAGT201512-202010

LT.GRAY,TRIM0#,3#,4#

main62639-KK020-B0iGUN156..6FC..H..BZAGT201512-202010

LT.GRAY,TRIM3#,4#

63650ENET ASSY, AIR INTAKE

main63650-0K650iGUN156,166,TGN166..IND201610-202012

64766BCOVER, QUARTER TRIM JACK

main64766-0K100-C0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005

BLACK,TRIM3#,4#

main64766-0K100-C0iTGN156,166..THSUV..S..GCC201507-202104

BLACK,TRIM4#

main64766-KK010-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM3#,4#

main64766-KK010-C0iGUN156..6FC..H..HDCR..BZAGT201710-202010

BLACK,TRIM0#,3#,4#

main64766-KK010-C0iGUN156..S..HDCR..BZAGT;TGN156..(L,M,S)..(BZAGT,GEN,LA,SA,VN);TGN166..BZAGT,GEN,IDN,IND,LA,PH,SA,VN;GUN156,TGN156,16#..(AGTSU,IDNSU)..L..(BZAGT,GCC);GGN165,GUN155,16201512-202012

BLACK,TRIM4#

main64766-KK010-C0iGUN156,TGN156..H..(HDCR,HTWC)..BZAGT201512-202010

BLACK,TRIM3#,4#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-0K030-C0iGUN156..THSUV..H..GEN201507-202005

BLACK,TRIM3#,4#

main67911-0K030-C0iGGN155,TGN156,166..EPT201507-202104

BLACK,TRIM4#

main67911-KK010-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010

BLACK,TRIM0#,3#,4#

main67911-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM3#,4#

main67911-KK010-C0iLAN155..S;GUN156..S..HDCR..BZAGT;TGN156..(L,M,S)..(BZAGT,GEN,LA,SA,VN);TGN166..BZAGT,GEN,IDN,IND,LA,PH,SA,VN;GUN156,TGN156,16#..(AGTSU,IDNSU)..L..(BZAGT,GCC);GGN165201512-202012

BLACK,TRIM4#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-0K010-C0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005

BLACK,TRIM3#,4#

main67912-0K010-C0iGGN155,TGN156,166..EPT201507-202104

BLACK,TRIM4#

main67912-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM3#,4#

main67912-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

main67912-KK010-C0iLAN155..S;GUN156..S..HDCR..BZAGT;TGN156..(L,M,S)..(BZAGT,GEN,LA,SA,VN);TGN166..BZAGT,GEN,IDN,IND,LA,PH,SA,VN;GUN156,TGN156,16#..(AGTSU,IDNSU)..L..(BZAGT,GCC);GGN165201512-202012

BLACK,TRIM4#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0K150-C0iGUN156..THSUV..H..GEN201507-202005

BLACK,TRIM3#,4#

main67913-0K150-C0iGGN155,TGN156,166..EPT201507-202104

BLACK,TRIM4#

main67913-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

main67913-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM3#,4#

main67913-KK010-C0iTGN156,166..IDNSU..S..GCC201512-202012

BLACK,TRIM4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0K150-C0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005

BLACK,TRIM3#,4#

main67914-0K150-C0iTGN156,166..THSUV..S..GCC201507-202104

BLACK,TRIM4#

main67914-KK010-C0iGUN165,LAN155..LHD..L..(LA,SA)201512-202012

BLACK,TRIM4#

main67914-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

main67914-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM3#,4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-0K100-C0iGUN156..6F..S..ARL;GUN156..6F..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART);GUN156..RHD..THSUV..6FC..(M,S);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH)201507-202010

BLACK,TRIM3#,4#

main67915-0K100-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

main67915-0K100-C0iGGN155,TGN156,166..EPT201507-202104

BLACK,TRIM4#

main67915-KK020-C0iTGN156,166..IDNSU..S..GCC201601-202012

BLACK,TRIM4#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-0K100-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

main67916-0K100-C0iGUN156..THSUV..H..GEN201507-202010

BLACK,TRIM3#,4#

main67916-0K100-C0iGUN156..6F..M;GGN165,GUN165..MASUV,THSUV;TGN156..S..(BZAGT,KZS,PKN);GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);TGN166..(AGTSU,PKNSU,THSUV)..(BZAGT,LA,PKN,TH);GGN155,GUN201507-202104

BLACK,TRIM4#

main67916-KK020-C0iLAN155..S;TGN156,166..IDNSU..L..GCC;GGN155,165,GUN15#,16#,KUN156,165..IDNSU,INDSU,SASUV,VNSUV;TGN156,166..(IDNSU,INDSU,SASUV,VNSUV)..(GEN,IDN,IND,LA,PH,SA,VN)201601-202012

BLACK,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0K160-C0iGUN156..6F..M;TGN166..PKN,TH;TGN156..(MASUV,THSUV)..(L,M);GGN155,165,GUN165..MASUV,THSUV;GUN155..(MASUV,THSUV)..(GCC,MA);GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);GUN1201507-202104

BLACK,TRIM4#

main67917-0K160-C0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005

BLACK,TRIM3#,4#

main67917-KK040-C0iGUN165,LAN155..LHD..L..(LA,SA)201512-202012

BLACK,TRIM4#

main67917-KK040-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

main67917-KK040-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM3#,4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0K160-C0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005

BLACK,TRIM3#,4#

main67918-0K160-C0iTGN156,166..THSUV..S..GCC201507-202104

BLACK,TRIM4#

main67918-KK040-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010

BLACK,TRIM3#,4#

main67918-KK040-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

main67918-KK040-C0iLAN155..S;GUN156..S..HDCR..BZAGT;TGN156..(L,M,S)..(BZAGT,GEN,LA,SA,VN);TGN166..BZAGT,GEN,IDN,IND,LA,PH,SA,VN;GUN156,TGN156,16#..(AGTSU,IDNSU)..L..(BZAGT,GCC);GGN165201512-202012

BLACK,TRIM4#

7152

90167T0007

main90167-T0007

90167T0012

main90167-T0012

9046718017

main90467-18017

90467T0021

main90467-T0021

55 parts on this diagram · 3 diagrams in section
