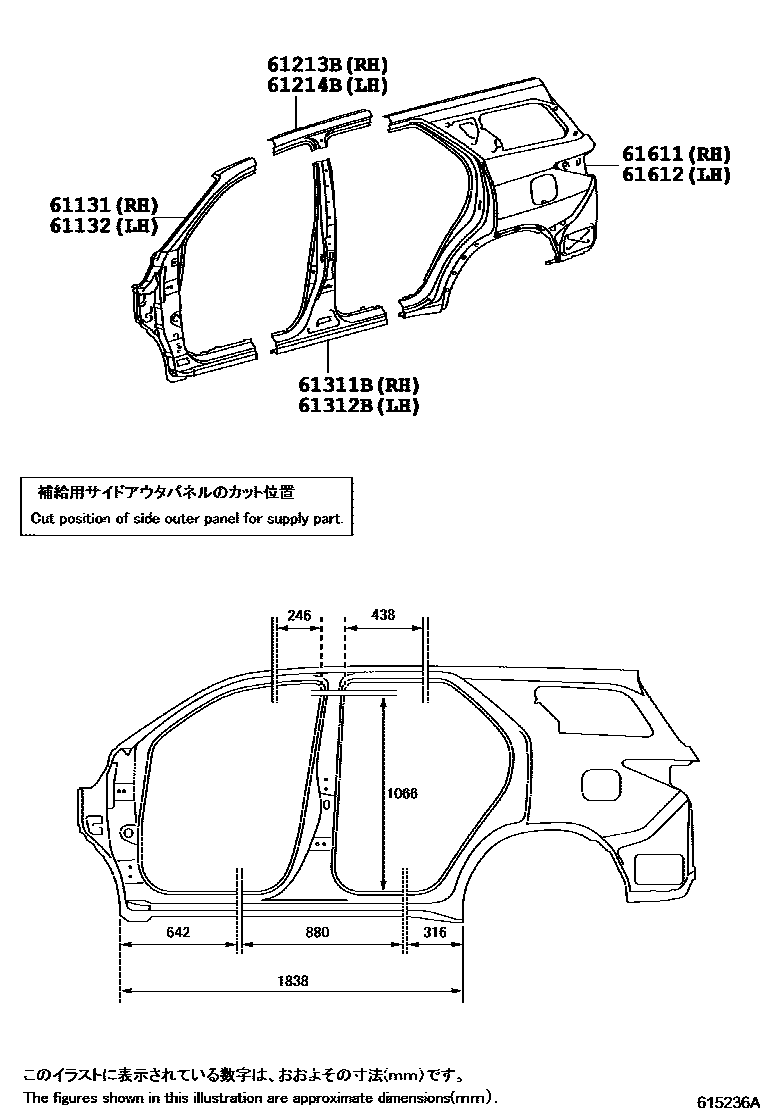

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-KK040iGUN156,166,TGN166..IND201507-202104

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-KK040iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-KK020iGGN155,TGN156,166..EPT201507-202104

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-KK020iGUN156,166,TGN166..IND201507-202104

61311BPILLAR, CENTER BODY, OUTER RH

main61311-KK020iGUN156,166,TGN166..IND201507-202104

61312BPILLAR, CENTER BODY, OUTER LH

main61312-KK020iGUN156,166,TGN166..IND201507-202104

61611PANEL, QUARTER, RH

main61601-KK010iGUN156,166,TGN166..IND201507-202104

61612PANEL, QUARTER, LH

main61602-KK010iGUN156,166,TGN166..IND201507-202104

8 parts on this diagram · 3 diagrams in section
