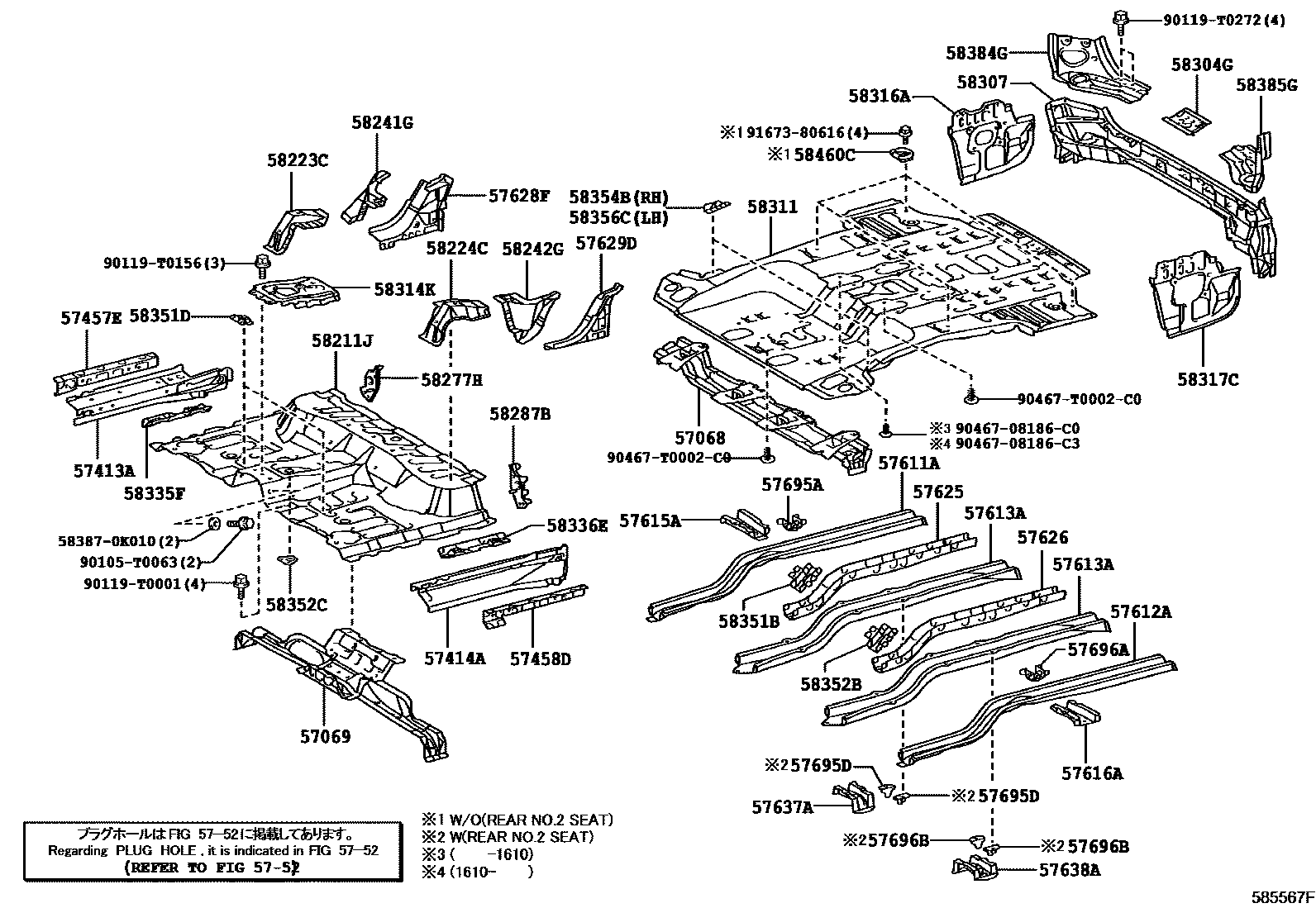

REAR FLOOR PANEL & REAR FLOOR MEMBER

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-0K010iGUN156,166,TGN166..IND201507-202012

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-KK010iGUN156,166,TGN166..IND201507-202012

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57413-KK010iGUN156,166,TGN166..IND201507-202012

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57414-KK010iGUN156,166,TGN166..IND201507-202012

57457EPATCH, FLOOR SIDE MEMBER, RR RH

main57457-KK010iGUN156,166,TGN166..IND201507-202012

57458DPATCH, FLOOR SIDE MEMBER, REAR LH

main57458-KK010iGUN156,166,TGN166..IND201507-202012

5752HOLE PLUG

→ Go to FIG 57-52

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-0K010iGGN155,TGN156,166..EPT201507-202101

57612AMEMBER, REAR FLOOR SIDE, LH

main57611-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202102

57613AMEMBER, REAR FLOOR SIDE CENTER

main57613-0K010×2iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IDNSU,SASUV201601-201605

main57613-0K011×2iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IDNSU,INDSU,SASUV,VNSUV201606-202012

main57613-0K090×2iGUN155,TGN156..MA201507-201606

main57613-0K091×2iTGN156..AGTSU,EPTSU,THSUV;GGN155,165,GUN15#,16#,KUN156,TGN16#..AGTSU,EPTSU,PKNSU,THSUV201606-202102

main57613-0K110×2iGUN156,TGN166202102-202104

main57613-0K100×2iGGN155,GUN156,TGN156,166..BZAGT201512-201605

REAR NO.2 SEAT-WITHOUT

main57613-0K101×2iGGN155,GUN156,TGN156,16#..BZAGT201606-202010

REAR NO.2 SEAT-WITHOUT

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202102

main57615-0K030iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202102

main57616-0K030iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH

main57641-0K040iGUN156,166,TGN166..IND201507-202012

57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH

main57641-0K040iGUN156,166,TGN166..IND201507-202012

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-KK010iGUN156,166,TGN166..IND201507-202012

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-KK010iGUN156,166,TGN166..IND201507-202012

57637AREINFORCEMENT, REAR FLOOR SIDE, RH

main57637-0K030iGUN156,166,TGN166..IND201507-202012

57638AREINFORCEMENT, REAR FLOOR SIDE, LH

main57637-0K030iGUN156,166,TGN166..IND201507-202012

57695AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH

main57696-0K010iGUN156,166,TGN166..IND201507-202012

57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH

main57695-0K010×2iGUN156,166,TGN166..IND201507-202012

57696AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH

main57696-0K010iGUN156,166,TGN166..IND201507-202012

57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH

main57695-0K010×2iGUN156,166,TGN166..IND201507-202012

58211JPAN, CENTER FLOOR

main58211-KK010iGGN155,TGN156,166..EPT201507-202101

58223CREINFORCEMENT, SEAT SET, NO.1

main58223-KK010iGGN155,TGN156,166..EPT201507-202101

58224CREINFORCEMENT, SEAT SET, NO.2

main58224-KK010iGGN155,TGN156,166..EPT201507-202101

58241GPANEL, FLOOR SIDE, RH

main58241-KK010iGUN156,166,TGN166..IND201507-202012

58242GPANEL, FLOOR SIDE, LH

main58242-KK010iGUN156,166,TGN166..IND201507-202012

58277HREINFORCEMENT, SIDE FLOOR, NO.2 RH

main58277-KK010iGUN156,166,TGN166..IND201507-202012

58287BREINFORCEMENT, SIDE FLOOR, NO.2 LH

main58287-KK010iGUN156,166,TGN166..IND201507-202012

58304GREINFORCE SUB-ASSY, BODY LOWER BACK PANEL

main58304-0K030×2iGUN156,TGN166202102-202104

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-KK010iGUN155,TGN156..MA201507-201606

main58307-KK011×2iGUN156,TGN166202102-202104

main58307-KK030iGGN155,GUN156,KUN156,TGN156,166..AGTSU201512-201605

main58307-KK031iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201606-202010

58311PAN, REAR FLOOR

main58311-0K143iGUN155,TGN156..MA201507-201606

main58311-KK190iGGN155,TGN156,166..EPT201606-202101

main58311-0K123iGGN155,GUN156,TGN156,166..BZAGT201512-201606

REAR NO.2 SEAT-WITHOUT

main58311-KK200iGGN155,GUN156,TGN156,16#..BZAGT201606-202010

REAR NO.2 SEAT-WITHOUT

58314KPANEL, REAR FLOOR, CENTER

main58314-KK010iGUN156,166,TGN166..IND201507-202012

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-0K020iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166201507-201605

main58316-0K021iGGN155,TGN156,166..EPT201606-202101

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166201507-201605

main58317-0K011iGUN156,166,TGN166..IND201606-202012

58335FPLATE, FLOOR SIDE, FRONT RH

main58335-KK010iGUN156,166,TGN166..IND201507-202012

58336EPLATE, FLOOR SIDE, FRONT LH

main58336-KK010iGUN156,166,TGN166..IND201507-202012

58351BREINFORCEMENT, REAR FLOOR PANEL, RH

main58351-0K010iGUN156,166,TGN166..IND201507-202012

58351DREINFORCEMENT, REAR FLOOR PANEL

main57555-KK010×2iGUN156,166,TGN166..IND201507-202012

58352BREINFORCEMENT, REAR FLOOR PANEL, LH

main58351-0K010iGUN156,166,TGN166..IND201507-202012

58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2

main58352-KK010iGUN156,166,TGN166..IND201507-202012

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K030iGUN156,166,TGN166..IND201507-202012

58356CREINFORCEMENT, REAR FLOOR PANEL, NO.6

main58356-0K010iGUN156,166,TGN166..IND201507-202012

58384GGUSSET, LOWER BACK, UPPER RH

main58384-KK010iGUN156,166,TGN166..IND201507-202012

58385GGUSSET, LOWER BACK, UPPER LH

main58385-KK010iGUN156,166,TGN166..IND201507-202012

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-35012×4iGGN155,GUN156,TGN156,16#..BZAGT201512-202010

REAR NO.2 SEAT-WITHOUT

583870K010PLATE, REAR FLOOR FINISH

main58387-0K010

90105T0063

main90105-T0063

90119T0001

main90119-T0001

90119T0156

main90119-T0156

90119T0272

main90119-T0272

9046708186C0

main90467-08186C0

9046708186C3

main90467-08186C3

90467T0002C0

main90467-T0002C0

9167380616

main91673-80616

55 parts on this diagram · 1 diagram in section
