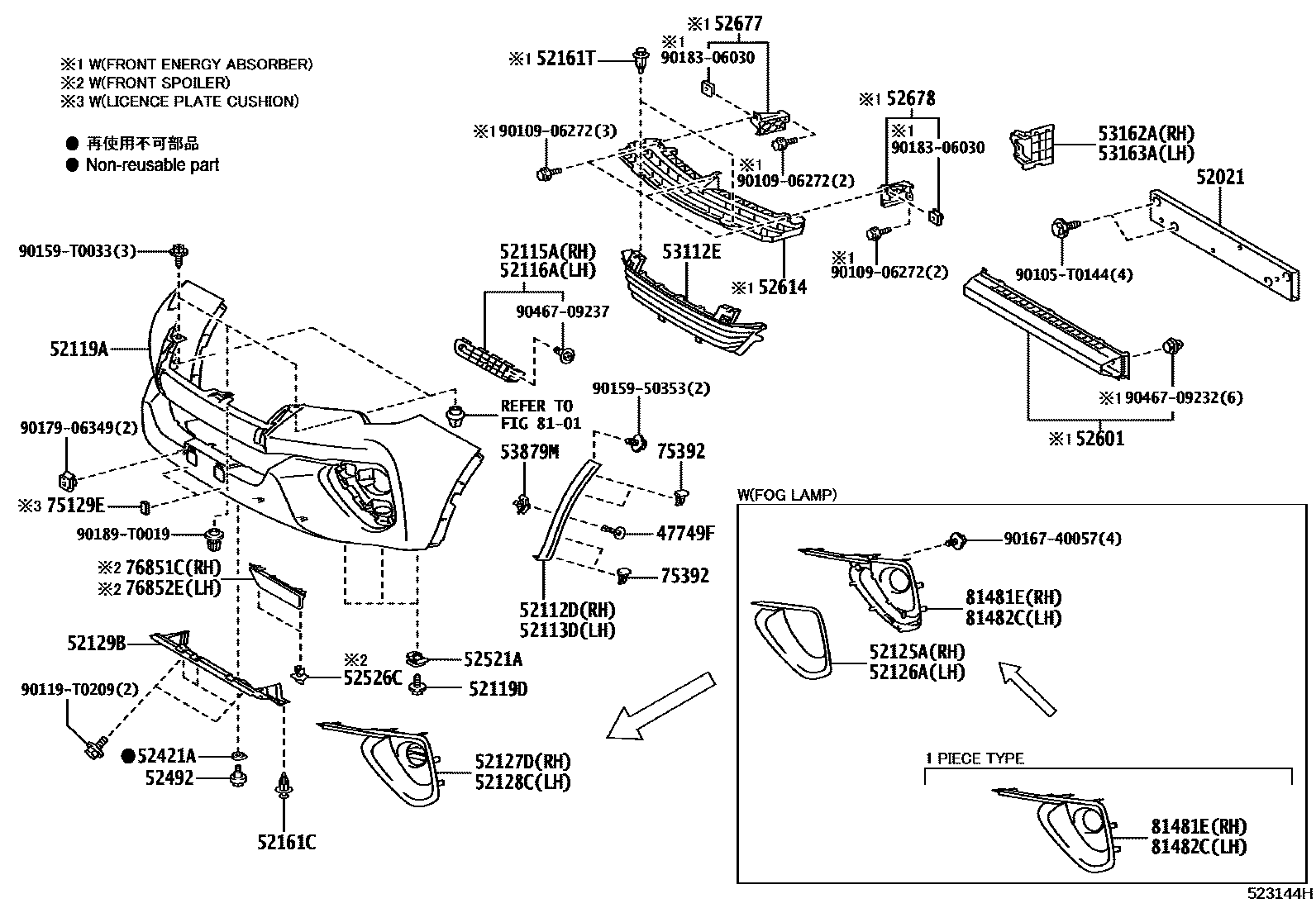

FRONT BUMPER & BUMPER STAY

47749FCLIP, PIN HOLD

main47749-50090iGUN156,166,TGN166..IND201507-202104

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-KK010iGGN155,TGN156,166..EPT201507-202104

52112DEXTENSION, FRONT BUMPER, RH

main52112-0K240iGUN155..TH;GGN155,165,GUN156,16#..THSUV;TGN156,166..MASUV,PKNSU,THSUV;GUN155..(MASUV,THSUV)..(H,L,S)201507-202104

main52112-0K240iGUN155,165..M..MA201507-201808

NO PAINT REQ.

main52112-0K250iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main52112-0K260iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main52112-0K270iGUN165..VNSUV..L;GGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202008

main52112-0K280iGUN156,166,TGN166..IND201610-202012

52113DEXTENSION, FRONT BUMPER, LH

main52113-0K240iGUN155,165..M..MA201507-201808

NO PAINT REQ.

main52113-0K240iGUN156..PKN201507-202104

main52113-0K250iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main52113-0K260iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main52113-0K270iGUN156,165,TGN166..VNSUV..6FC201601-202008

main52113-0K280iGUN156,166,TGN166..IND201610-202012

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-0K230iGUN155,165..M..MA201507-202104

main52115-0K240iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main52115-0K250iGUN156,165,TGN166..VNSUV..6FC201601-202008

main52115-0K260iGUN156,166,TGN166..IND201610-202012

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-0K230iGUN155,165..M..MA201507-202104

main52116-0K240iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main52116-0K250iGUN165..VNSUV..L;GGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202008

main52116-0K260iGUN156,166,TGN166..IND201610-202012

52119ACOVER, FRONT BUMPER

main52119-0M946iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main52119-0M947iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main52119-0M953iGUN155,165..M..MA201507-201808

PAINT REQ.

main52119-0M953iGUN156..PKN201507-202104

main52119-0M954iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main52119-0M955iGUN156,166,TGN166..IND201610-202012

52119DSCREW, NO.1

main90159-60217iGUN156,166,TGN166..IND201507-202104

52125ABRACKET, FOG LAMP MOUNTING, RH

main52125-0K090iGUN155,165..M..MA201507-202104

main52125-0K100iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main52125-0K120iGUN155,165,TGN156,166..IDNSU..L..GCC201601-202007

FRONT FOG LAMP-WITH

main52125-0K130iGUN156,166,TGN166..IND201610-202012

main52125-0K260iTGN156..S..KZS201708-201905

main52125-0K270iGUN156..THSUV..(M,S)..GEN201708-202005

52126ABRACKET, FOG LAMP MOUNTING, LH

main52126-0K090iGUN155,165..M..MA201507-202104

main52126-0K100iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main52126-0K120iGUN155,165,TGN156,166..IDNSU..L..GCC201601-202007

FRONT FOG LAMP-WITH

main52126-0K130iGUN156,166,TGN166..IND201610-202012

main52126-0K260iTGN156..S..KZS201708-201905

main52126-0K270iTGN156..S..KZS201708-202005

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-0K290iTGN166..(AGTSU,EPTSU,THSUV)..L;KUN156,TGN168..AGTSU..(5F,5FC,6F)..L;GUN15#,165,TGN156..(AGTSU,THSUV)..L..(HDCR,HTWC)201507-202101

main52127-0K350iGUN15#,165,KUN156,TGN156,166..IDNSU..L..(GCC,GEN,LA)201601-202007

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-0K290iTGN166..(AGTSU,EPTSU,THSUV)..L;KUN156,TGN168..AGTSU..(5F,5FC,6F)..L;GUN15#,165,TGN156..(AGTSU,THSUV)..L..(HDCR,HTWC)201507-202101

main52128-0K350iGUN15#,165,KUN156,TGN156,166..IDNSU..L..(GCC,GEN,LA)201601-202007

52129BCOVER, FRONT BUMPER, LOWER

main52129-KK010iGUN165,LAN155..LHD..L..(LA,SA)201507-202104

52161CPIECE, FRONT BUMPER

main52161-0K050iLAN155..S;GUN165..IDNSU,MASUV,SASUV,THSUV,VNSUV;GGN155,165,GUN15#,166,KUN156,165,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

52161TPIECE, FRONT BUMPER

main52161-0K040iGUN156..H..(BZAGT,IND);GUN156..(AGTSU,THSUV)..(L,M,S)..(ARL,BZAGT,GEN,LA);GGN155,GUN16#,KUN156,TGN156,16#..(AGTSU,INDSU,THSUV)..(BZAGT,IND,KZS,LA)201507-202012

main90467-T0041iGUN156,KUN156,TGN156,166..RHD..M..GEN201601-202007

BOLIVIA URUGUAY SPEC

main90467-T0041iTGN166..L..GEN201601-202007

CS AMERICA SPEC

52421APAD, FRONT BUMPER

main52421-60191iGUN155,165..M..MA201507-202104

52492BOLT, BUMPER PAD, NO.2

main52491-60010iGUN155,165..M..MA201507-202104

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05114iGUN156,165,TGN166..VNSUV..6FC201507-202104

52526CRETAINER, FRONT BUMPER, LOWER

main52526-60030iGUN156,166,TGN166..IND201507-202104

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-0K010iGGN155,GUN156,165,KUN156,TGN156,16#..(AGTSU,THSUV)..(ARL,BZAGT,LA)201507-202010

main52601-0K020iGUN156,166,TGN166..IND201610-202012

main52601-0K090iGUN156,KUN156..IDNSU..LA;GGN155,TGN156,166..LHD..IDNSU..(GEN,LA)201601-202007

BOLIVIA URUGUAY SPEC

main52601-0K090iTGN166..L..GEN201601-202007

CS AMERICA SPEC

main52601-0K100iTGN156..S..KZS201708-202005

ASIA COLD COUNTRY SPEC

main52601-0K100iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

AZERBAIJAN SPEC(EURO 4 REGULATION)

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-0K060iGUN156,166,TGN166..IND201610-202012

main52614-0K070iGUN156..H..BZAGT;GUN156..(AGTSU,THSUV)..(L,M,S)..(ARL,BZAGT,GEN,LA);GGN155,GUN165,KUN156,TGN156,16#..(AGTSU,THSUV)..(BZAGT,KZS,LA)201507-202010

main52614-0K130iTGN166..L..GEN201601-202007

BOLIVIA URUGUAY SPEC

main52614-0K130iGUN156,KUN156..IDNSU..LA;GGN155,TGN156,166..LHD..IDNSU..(GEN,LA)201601-202007

CS AMERICA SPEC

52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH

main52675-0K010iGUN156..H..BZAGT;GUN156..(AGTSU,THSUV)..(L,M,S)..(ARL,BZAGT,GEN,LA);GGN155,GUN165,KUN156,TGN156,16#..(AGTSU,THSUV)..(BZAGT,KZS,LA)201507-202010

main52675-0K040iGUN156,166,TGN166..IND201610-202012

main52675-0K080iGUN156,KUN156,TGN156,166..RHD..M..GEN201601-202007

CS AMERICA SPEC

main52675-0K080iGUN156,KUN156,TGN156,166..RHD..M..GEN201601-202007

BOLIVIA URUGUAY SPEC

52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH

main52676-0K010iGUN156..H..BZAGT;GUN156..(AGTSU,THSUV)..(L,M,S)..(ARL,BZAGT,GEN,LA);GGN155,GUN165,KUN156,TGN156,16#..(AGTSU,THSUV)..(BZAGT,KZS,LA)201507-202010

main52676-0K040iGUN156,166,TGN166..IND201610-202012

main52676-0K080iTGN166..L..GEN201601-202007

CS AMERICA SPEC

main52676-0K080iGUN156,KUN156..IDNSU..LA;GGN155,TGN156,166..LHD..IDNSU..(GEN,LA)201601-202007

BOLIVIA URUGUAY SPEC

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0K190iGUN155,165..M..MA201507-201808

NO PAINT REQ.

main53112-0K190iGUN156..PKN201507-202104

main53112-0K200iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53112-0K210iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main53112-0K220iGUN156,165,TGN166..VNSUV..6FC201601-202008

main53112-0K230iGUN156,166,TGN166..IND201610-202012

53162ADEFLECTOR, FRONT BUMPER STONE, RH

main53162-KK010iGGN155,TGN156,166..EPT201507-202104

main53162-KK030iGGN155,165..GCC201601-202007

53163ADEFLECTOR, FRONT BUMPER STONE, LH

main53163-KK010iGUN156,166,TGN166..IND201507-202104

main53163-KK030iGGN155,165..GCC201601-202007

53879MRETAINER, FRONT FENDER LINER

main53879-50020iGGN155,TGN156,166..EPT201507-202104

75129ECUSHION, FRONT LICENCE PLATE

main75129-48010iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

75392RETAINER, OUTSIDE MOULDING

main75392-0K010iGUN155,165..M..MA201507-202101

76851CFRONT SPOILER

main76851-0K030iTGN156,166..EPT201507-202104

main76851-0K040iGUN15#..RHD..SA;GUN16#,TGN156,166..SA201603-202009

main76851-0K060iGUN156..RHD..GEN;GUN155,165..IDNSU,VNSUV;TGN156,166..IDNSU..L..GCC;GUN156..(IDNSU,VNSUV)..(GCC,LA,PH,VN);TGN156,166..(IDNSU,VNSUV)..(GEN,IDN,LA,PH,VN)201601-202008

main76851-0K070iGUN156,166,TGN166..IND201610-202012

76852ESPOILER, FRONT, LH

main76852-0K030iTGN156,166..EPT201507-202104

main76852-0K040iGUN15#..RHD..SA;GUN16#,TGN156,166..SA201603-202009

main76852-0K060iGUN156..RHD..GEN;GUN155,165..IDNSU,VNSUV;TGN156,166..IDNSU..L..GCC;GUN156..(IDNSU,VNSUV)..(GCC,LA,PH,VN);TGN156,166..(IDNSU,VNSUV)..(GEN,IDN,LA,PH,VN)201601-202008

main76852-0K070iGUN156,166,TGN166..IND201610-202012

8101HEADLAMP

→ Go to FIG 81-01

81481ECOVER, FOG LAMP, RH

main52127-0K300iGGN155,TGN156..EPT201507-202104

main52127-0K320iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main52127-0K330iGUN155..MA201605-201709

main52127-0K340iGUN165..L..VN;TGN156..S..GEN201601-202008

main52127-0K360iGUN155,165,TGN156,166..IDNSU..L..GCC201601-202007

FRONT FOG LAMP-WITH

main52127-0K370iGUN156,166,TGN166..IND201610-202012

81482CCOVER, FOG LAMP, LH

main52128-0K300iGUN156..PKN201507-202104

main52128-0K320iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main52128-0K330iGUN155..MA201605-201709

main52128-0K340iGUN165..L..VN;TGN156..S..GEN201601-202008

main52128-0K360iTGN156..IDNSU..M;TGN156..IDNSU..S..GCC;GGN155,165,GUN15#,165,KUN156,TGN166..(IDNSU,VNSUV)..(H,M,S)201601-202007

FRONT FOG LAMP-WITH

main52128-0K370iGUN156,166,TGN166..IND201610-202012

90105T0144

main90105-T0144

9010906272

main90109-06272

90119T0209

main90119-T0209

9015950353

main90159-50353

90159T0033

main90159-T0033

9016740057

main90167-40057

9017906349

main90179-06349

9018306030

main90183-06030

90189T0019

main90189-T0019

9046709232

main90467-09232

9046709237

main90467-09237

45 parts on this diagram · 1 diagram in section
