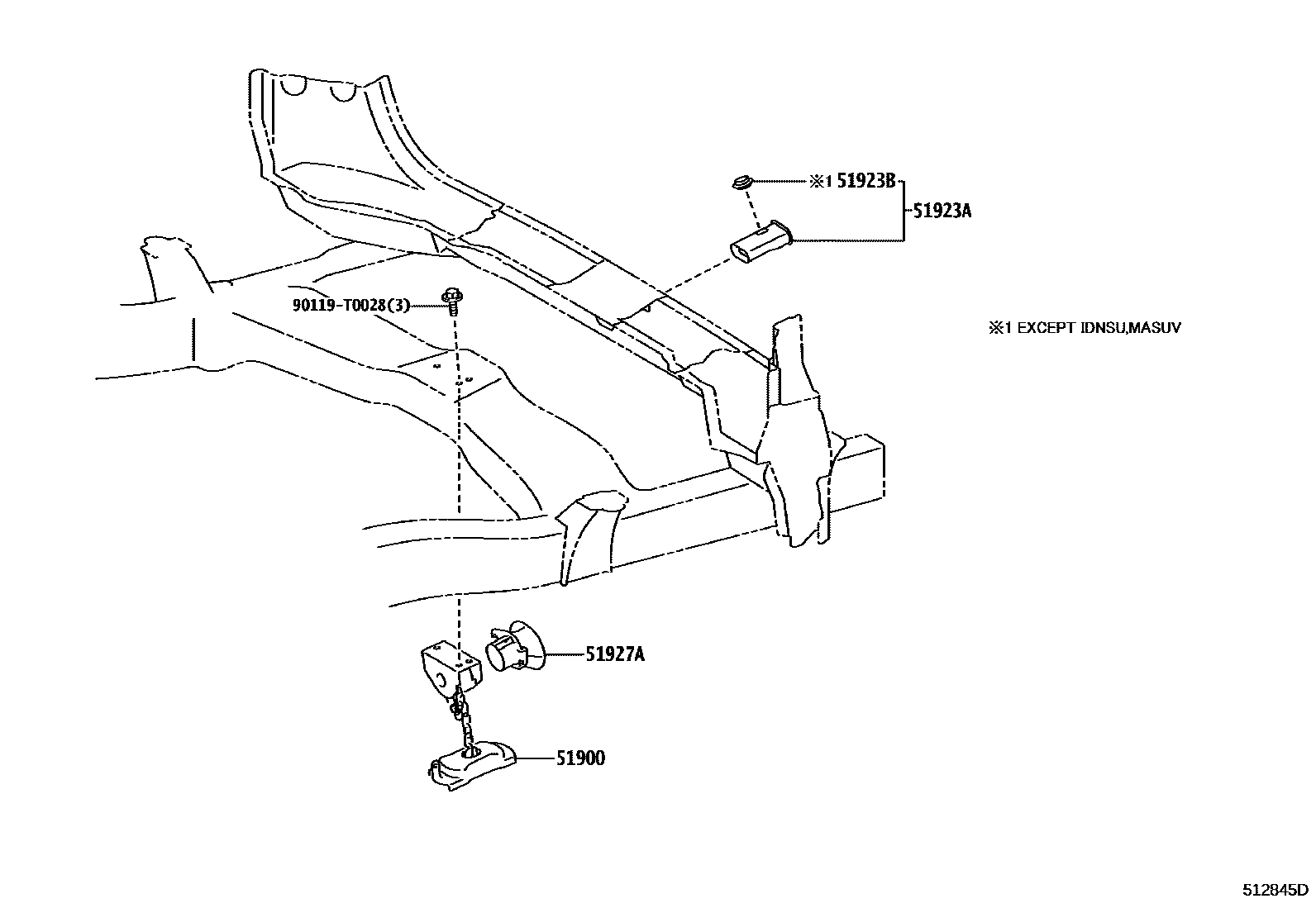

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51900-0K130iGUN156,166,TGN166..IND201705-202012

TYPE B:REFER ILLUST.

main51900-0K140iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main51900-0K160iGUN156,166,TGN166..IND201610-201704

main51900-0K161iGUN156,166,TGN166..IND201705-202012

TYPE A:REFER ILLUST.

main51900-0K180iGGN155,TGN156,166..EPT201801-202101

51923AGUIDE, SPARE WHELL CARRIER HANDLE

main51927-0K050iGGN155,TGN156,166..EPT201507-202101

main51927-KK020iGGN155,165,GUN15#,16#,KUN156,TGN156,166..IDNSU,INDSU,MASUV,VNSUV201601-202012

51923BPLUG, HOLE(FOR SPARE WHEEL GUIDE)

main90950-01398iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,PKNSU,SASUV,THSUV201507-201808

51927AGUIDE, SPARE WHEEL

main51927-0K030iGUN156,166,TGN166..IND201507-202012

main51927-0K040iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,VNSUV201601-202012

90119T0028

main90119-T0028

5 parts on this diagram · 2 diagrams in section
