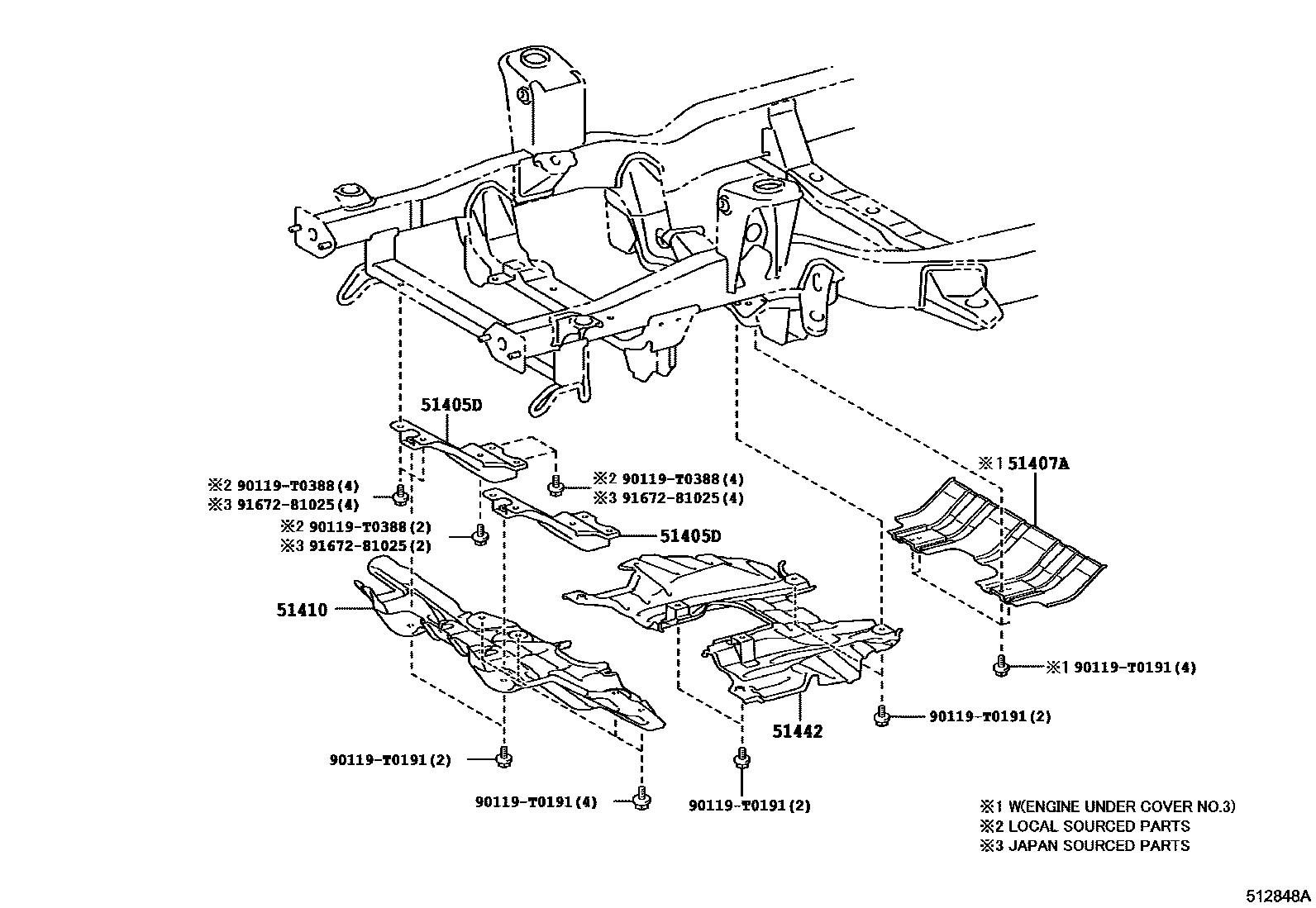

SUSPENSION CROSSMEMBER & UNDER COVER

51405DBRACE SUB-ASSY, ENGINE UNDER

main51405-KK030×2iGUN165,LAN155..LHD..L..(LA,SA)201810-202104

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-0K020iGUN156..6FC..ARL;TGN166..GCC,LA,VN;GGN155,165,TGN156201507-202101

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-KK010iGUN156,166,TGN166..IND201507-202012

main51410-KK020iGUN165..LHD..GEN;GUN165..GCC,LA,SA;GUN155..(H,L,S)..(GCC,GEN,SA);GGN155,165,GUN156,166,KUN156,165,LAN155,TGN156,16#..ARL,BZAGT,EPT,GCC,GEN,LA,SA201507-202101

51442COVER, ENGINE UNDER, NO.2

main51420-KK010iGUN165..PH,VN;GUN155,165..RHD..(IDNSU,MASUV,THSUV);GUN156,166,TGN156,166..IDN,KZS,MA,PH,PKN,TH,VN201507-202104

main51420-KK020iGUN165..LHD..GEN;GUN165..GCC,LA,SA;GUN155..(H,L,S)..(GCC,GEN,SA);GGN155,165,GUN156,166,KUN156,165,LAN155,TGN156,16#..ARL,BZAGT,EPT,GCC,GEN,LA,SA201507-202101

90119T0191

main90119-T0191

90119T0388

main90119-T0388

9167281025

main91672-81025

7 parts on this diagram · 1 diagram in section
