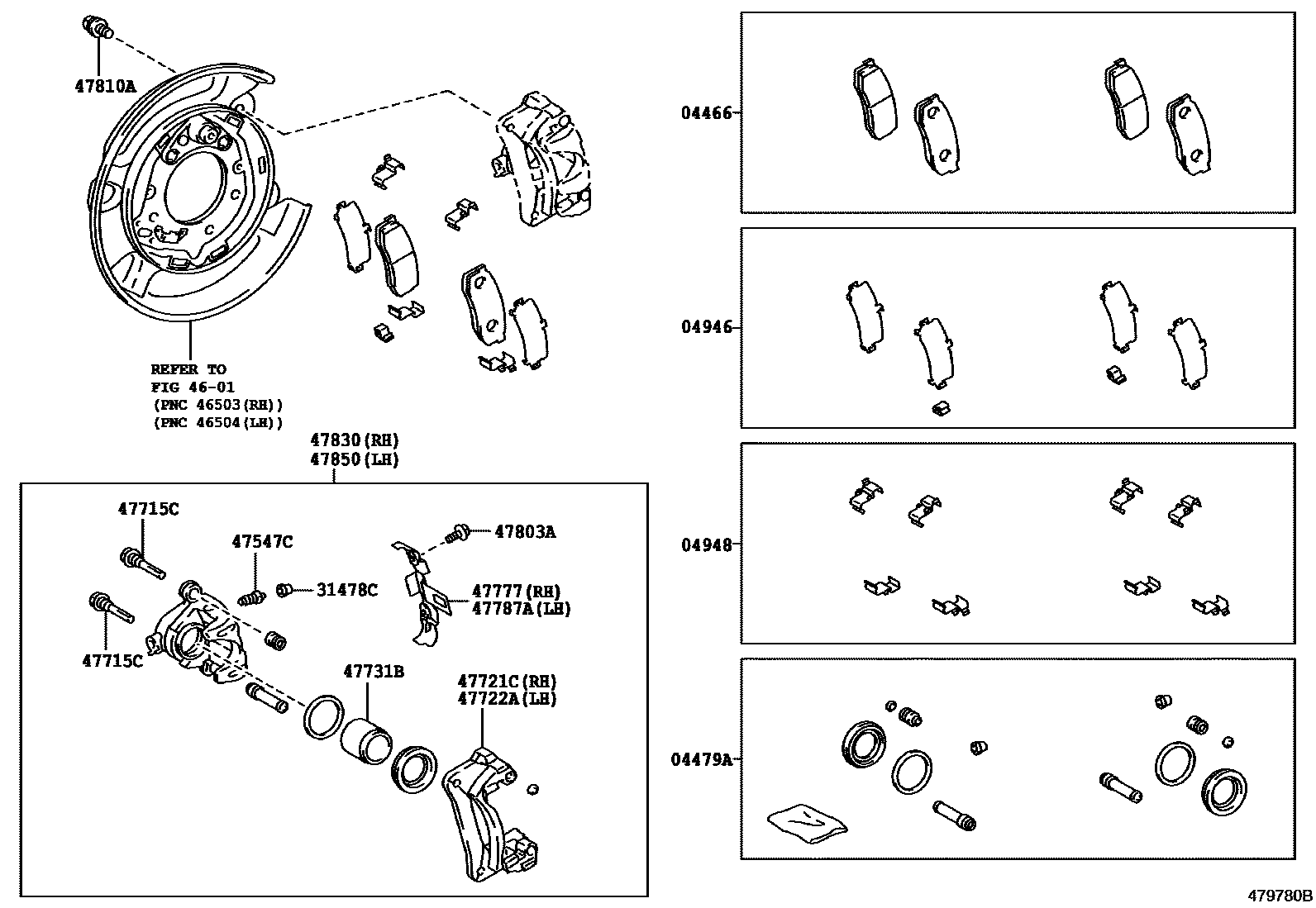

REAR DISC BRAKE CALIPER & DUST COVER

0001 1PNC 04466=MARK PA561 0002 1PNC 04466=MARK NS542

04466PAD KIT, DISC BRAKE, REAR

main04466-0K010iGUN156,166,TGN166..IND201610-202012

MARK AK NS542

main04466-60140iTGN156,166..IDNSU..L..(GEN,LA);GGN155,GUN156..(IDNSU,THSUV)..(ARL,GEN,LA)201507-201708

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0K020iTGN156..PKN201802-202104

main04479-0K030iGGN155,165,GUN15#,165,TGN156,166..IDNSU,VNSUV201708-202008

main04479-60030iKUN156..LA,SA;GGN155,GUN15#,16#,KUN165,LAN155,TGN156,16#..AGTSU,SASUV201507-202010

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0K010iTGN156..KZS;GUN156..GCC,GEN,PKN,VN;GUN155..(H,M)..(GEN,MA,TH);GUN165..6FC..S..(GEN,TH,VN);GUN165..(MASUV,VNSUV)..(L,M);TGN166..(PKNSU,THSUV,VNSUV)..S;TGN166..IDNSU.201610-202104

main04946-60141iKUN156..LA,SA;GGN155,GUN15#,16#,KUN165,LAN155,TGN156,16#..AGTSU,SASUV201507-202010

04948FITTING KIT, DISC BRAKE, REAR

main04947-22050iTGN156,166..IDNSU..L..(GEN,LA);GGN155,GUN156..(IDNSU,THSUV)..(ARL,GEN,LA)201507-201708

main04948-0D010iGUN156,166,TGN166..IND201610-202012

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0D040×2iTGN156..PKN201802-202104

main31478-30010×2iKUN156..LA,SA;GGN155,GUN15#,16#,KUN165,LAN155,TGN156,16#..AGTSU,SASUV201507-202010

main90016-AJ101×2iGGN155,165,GUN15#,165,TGN156,166..IDNSU,VNSUV201708-202008

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010×2iKUN156..LA,SA;GGN155,GUN15#,16#,KUN165,LAN155,TGN156,16#..AGTSU,SASUV201701-202010

main47547-12030×2iKUN156..LA,SA;TGN156..LHD..(BZAGT,GEN,LA,SA);TGN166..(L,S)..(BZAGT,GEN,LA,SA);GGN155,GUN156,16#,KUN165,LAN155,TGN168..ARL,BZAGT,GEN,LA,SA201507-201701

main47547-27030×2iTGN156..MA;GUN155..L..MA201709-202104

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-43010×4iTGN156,166..IDNSU..L..(GEN,LA);GGN155,GUN156..(IDNSU,THSUV)..(ARL,GEN,LA)201507-201708

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-60020iTGN156,166..IDNSU..L..(GEN,LA);GGN155,GUN156..(IDNSU,THSUV)..(ARL,GEN,LA)201507-201708

main47821-0K010iTGN156..PKN201802-202104

main47821-0K020iGGN155,165,GUN15#,165,TGN156,166..IDNSU,VNSUV201708-202008

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-60020iTGN156,166..IDNSU..L..(GEN,LA);GGN155,GUN156..(IDNSU,THSUV)..(ARL,GEN,LA)201507-201708

main47822-0K010iTGN156..MA;GUN155..L..MA201709-202104

main47822-0K020iGGN155,165,GUN15#,165,TGN156,166..IDNSU,VNSUV201708-202008

47731BPISTON, REAR DISC BRAKE

main47731-60020×2iKUN156..LA,SA;GGN155,GUN15#,16#,KUN165,LAN155,TGN156,16#..AGTSU,SASUV201507-202010

main47831-0K010×2iTGN156..PKN201802-202104

main47831-0K020×2iGGN155,165,GUN15#,165,TGN156,166..IDNSU,VNSUV201708-202008

47777PROTECTOR, DUST BOOT, RH

main47777-60010iGUN155,TGN166..L..SA;GGN155,GUN156,16#,LAN155,TGN156..SA201507-202008

47787APROTECTOR, DUST BOOT, LH

main47777-60010iTGN156,166..IDNSU..L..(GEN,LA);GGN155,GUN156..(IDNSU,THSUV)..(ARL,GEN,LA)201507-201708

47803ABOLT(FOR REAR DISC BRAKE DUST COVER)

main90105-06282×4iGUN155,TGN166..L..SA;GGN155,GUN156,16#,LAN155,TGN156..SA201507-202008

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-T0495×4iGUN156,166,TGN166..IND201507-202012

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0K010iGGN155,TGN156,166..EPT201803-202101

main47830-0K020iGGN155,165,GUN15#,165,TGN156,166..IDNSU,VNSUV201708-202008

main47830-71010iTGN156,166..IDNSU..L..(GEN,LA);GGN155,GUN156..(IDNSU,THSUV)..(ARL,GEN,LA)201507-201708

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0K010iGUN165..MA;GUN155..M..(MA,TH);TGN156..THSUV..S..GCC;GUN165,TGN156..(5F,6FC)..(L,S)..(KZS,TH);GUN156,TGN166..(PKNSU,THSUV)..(H,M,S)..(GCC,GEN,PKN)201610-202104

main47850-0K020iGGN155,165,GUN15#,165,TGN156,166..IDNSU,VNSUV201708-202008

main47850-71010iTGN156,166..IDNSU..L..(GEN,LA);GGN155,GUN156..(IDNSU,THSUV)..(ARL,GEN,LA)201507-201708

17 parts on this diagram · 2 diagrams in section
