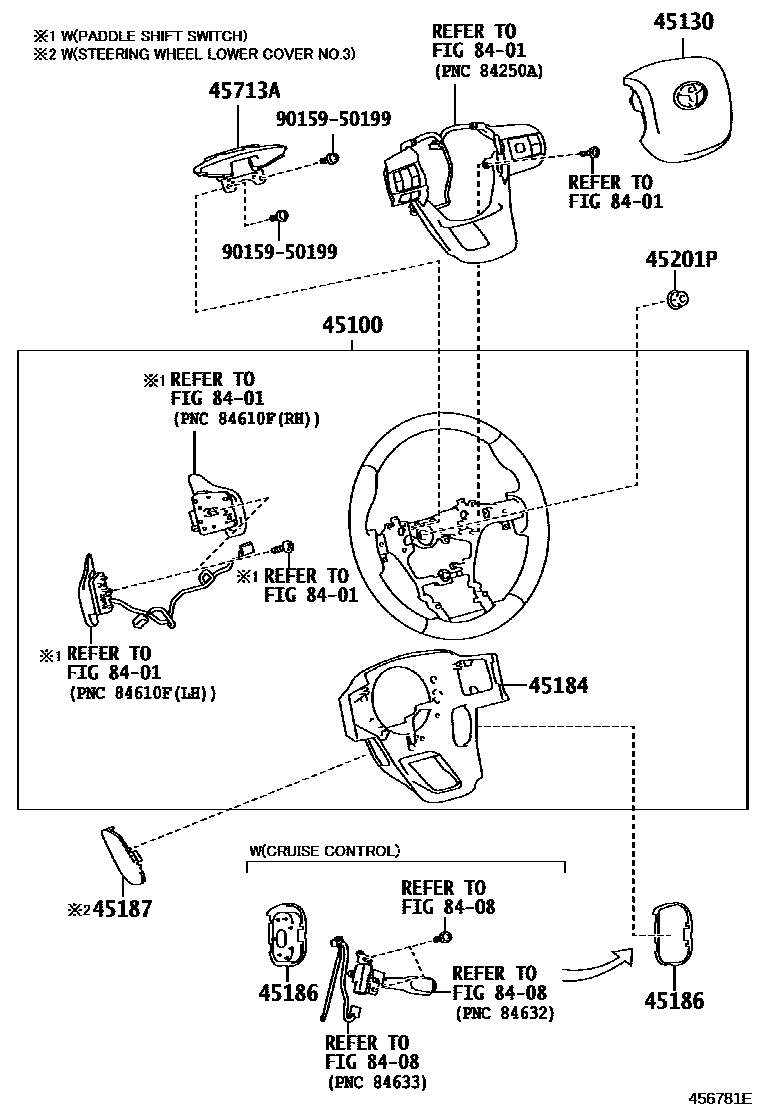

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM4#
3-SPOKE,WOOD&LEATHER,BLACK & GRAY,TRIM42
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM41
3-SPOKE,WOOD&LEATHER,BLACK & BEIGE & GRAY,TRIM3#,42
3-SPOKE,WOOD&LEATHER,BLACK & BEIGE & BROWN,TRIM4#
3-SPOKE,WOOD&LEATHER,BLACK & GRAY,TRIM4#,REFER84-01:PNC84610F
sub45100-0K821
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#,REFER84-01:PNC84610F
sub45100-0K821
3-SPOKE,WOOD&LEATHER,BLACK/CRIMSON NO.69,TRIM3#,REFER84-01:PNC84610F
sub45100-0K821
3-SPOKE,URETHANE,BLACK,TRIM4#
3-SPOKE,URETHANE,BLACK & GRAY,TRIM42
3-SPOKE,URETHANE,BLACK & BROWN,TRIM4#
main45100-0KC80-C2iGUN165..6FC..S..PH;TGN156,166..6FC..(GEN,PH,VN);GGN155,165,GUN15#,165,KUN156..IDNSU..(H,M)..(GCC,GEN,PH)201601-201608
3-SPOKE,WOOD&LEATHER,BLACK & GRAY,TRIM42,REFER84-01:PNC84610F
main45100-0KC80-C3iGUN165..6FC..S..PH;TGN156,166..6FC..(GEN,PH,VN);GGN155,165,GUN15#,165,KUN156..IDNSU..(H,M)..(GCC,GEN,PH)201601-201608
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#,REFER84-01:PNC84610F
3-SPOKE,LEATHER,BLACK & BROWN,TRIM4#
sub45100-0KE41
3-SPOKE,URETHANE,BLACK,TRIM4#
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#
sub45100-0KE81
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#
sub45100-0KE91
3-SPOKE,URETHANE,BLACK,TRIM4#
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#
sub45100-0KF21
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#
sub45100-0KF31
3-SPOKE,WOOD&LEATHER,BLACK/CRIMSON NO.69,TRIM3#,REFER84-01:PNC84610F
3-SPOKE,WOOD&LEATHER,BLACK & GRAY,TRIM42,REFER84-01:PNC84610F
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#,REFER84-01:PNC84610F
3-SPOKE,WOOD&LEATHER,BLACK & CRIMSON NO.69,TRIM3#
3-SPOKE,WOOD&LEATHER,BLACK & BEIGE & GRAY,TRIM4#
3-SPOKE,WOOD&LEATHER,BLACK & BEIGE & BROWN,TRIM4#
3-SPOKE,WOOD&LEATHER,BLACK & CRIMSON & GRAY,TRIM3#
main45100-0KQ90-C0iTGN156..IDNSU..(M,S)..(GEN,LA,VN);GGN155,165,GUN15#,165,KUN156,TGN166..IDNSU..ATM..(H,M,S)..(GCC,GEN,LA,PH,VN)201608-202007
3-SPOKE,WOOD&LEATHER,BLACK & GRAY,TRIM42,REFER84-01:PNC84610F
main45100-0KQ90-C1iTGN156..IDNSU..(M,S)..(GEN,LA,VN);GGN155,165,GUN15#,165,KUN156,TGN166..IDNSU..ATM..(H,M,S)..(GCC,GEN,LA,PH,VN)201608-202007
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#,REFER84-01:PNC84610F
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#
sub45100-0KR01
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#
sub45100-0KR11
main45100-0KR20-C0iGUN156..S..IART;GUN156..AGTSU..6FC..(H,M);GGN155,KUN156,TGN156,16#..AGTSU..(H,M,S)201610-202007
3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#
sub45100-0KR21
3-SPOKE,WOOD&LEATHER,BLACK & BEIGE & BLACK,TRIM0#
sub45100-0KR21
3-SPOKE,WOOD&LEATHER,STEERING WHEEL-LEATHER & WOOD LIKE, WITH(HEATER),BLACK & BEIGE & GRAY,TRIM42
3-SPOKE,WOOD&LEATHER,STEERING WHEEL-LEATHER & WOOD LIKE, WITH(HEATER),BRACK & BEIGE & BROWN,TRIM41
45130BUTTON ASSY, HORN
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM4#
main45130-0K261-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM4#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM3#,4#
main45184-0K100-C0iGUN165..IDNSU..6F;GUN165..IDNSU..6FC..L;GUN15#,KUN156,TGN156,166..IDNSU..L201601-202007
BLACK,TRIM4#
BLACK,TRIM4#
main45184-0K120-C0iTGN156..IDNSU..(M,S)..(GEN,LA,VN);GGN155,165,GUN15#,165,KUN156,TGN166..IDNSU..ATM..(H,M,S)201601-202007
BLACK,TRIM4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
main45184-0K150-C0iTGN166..L..SA;GUN156,166..6F..SA;GUN155,165,KUN156,165,LAN155..(5F,6F,6FC)..SA201603-202009
BLACK,TRIM4#
BLACK,TRIM4#
main45184-0K170-C0iGUN156..L..BZAGT;GUN156..AGTSU..(L,S)..HDCR;GUN165,KUN156,TGN156,16#..AGTSU..L201512-202010
BLACK,TRIM4#
BLACK,TRIM4#
STEERING WHEEL-LEATHER & WOOD LIKE, WITH(HEATER),BLACK,TRIM4#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM4#
main45186-0K080-C0iGUN156..IDNSU..6F;GUN165..RHD..IDNSU;GUN156,KUN156..IDNSU..GEN;GUN165..IDNSU..S..(PH,VN);TGN166..IDNSU..(L,S)..(LA,PH,VN);TGN166..IDNSU..(H,L,M)..(GCC,GEN,IDN);GGN1201601-202007
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM4#
main45186-0K120-C0supersedes 45186-0K130-C0iGUN156..6F..M;GUN156..THSUV..(H,L)..(ARL,GCC);TGN156..(PKNSU,THSUV)..S..(GCC,PKN);GUN156..(PKNSU,THSUV,VNSUV)..M..(GEN,PKN,VN);GGN155,165,GUN155,165,TGN166..(MASUV,201507-202104
BLACK,TRIM4#
main45186-0K130-C0iGUN156,TGN156..THSUV..S..(GEN,KZS);GUN155,165,TGN156,166..(MASUV,THSUV)..L;GUN165,TGN166..(EPTSU,THSUV,VNSUV)..(EPT,TH,VN)201507-202101
BLACK,TRIM4#
main45186-0K140-C0iGUN156..RHD..SA;KUN156..RHD..5FC..SA;GGN155,GUN155,166,TGN166..S..SA201603-202009
BLACK,TRIM4#
main45186-0K150-C0iTGN166..L..SA;GUN156,KUN156..LHD..SA;GUN165,KUN165,LAN155,TGN156..SA;GUN155,KUN156..RHD..(6F,6FC)..SA201603-202009
BLACK,TRIM4#
BLACK,TRIM4#
main45186-0K170-C0iGUN156,TGN156,166..AGTSU..L..(HTWC,IART);GUN156,KUN156,TGN168..AGTSU..(5F,5FC,6F)..L201512-202010
BLACK,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
main45187-0K040-C0iTGN156..IDNSU..L..GCC;TGN156..IDNSU..(GEN,LA,VN);GGN155,165,GUN15#,165,KUN156,TGN166..IDNSU201601-202007
BLACK,TRIM4#
main45187-0K050-C0iGUN156..6F..S..ARL;GUN156..THSUV..H..GEN;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005
BLACK,TRIM3#,4#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401
8408
9015950199
main90159-50199
10 parts on this diagram · 1 diagram in section
