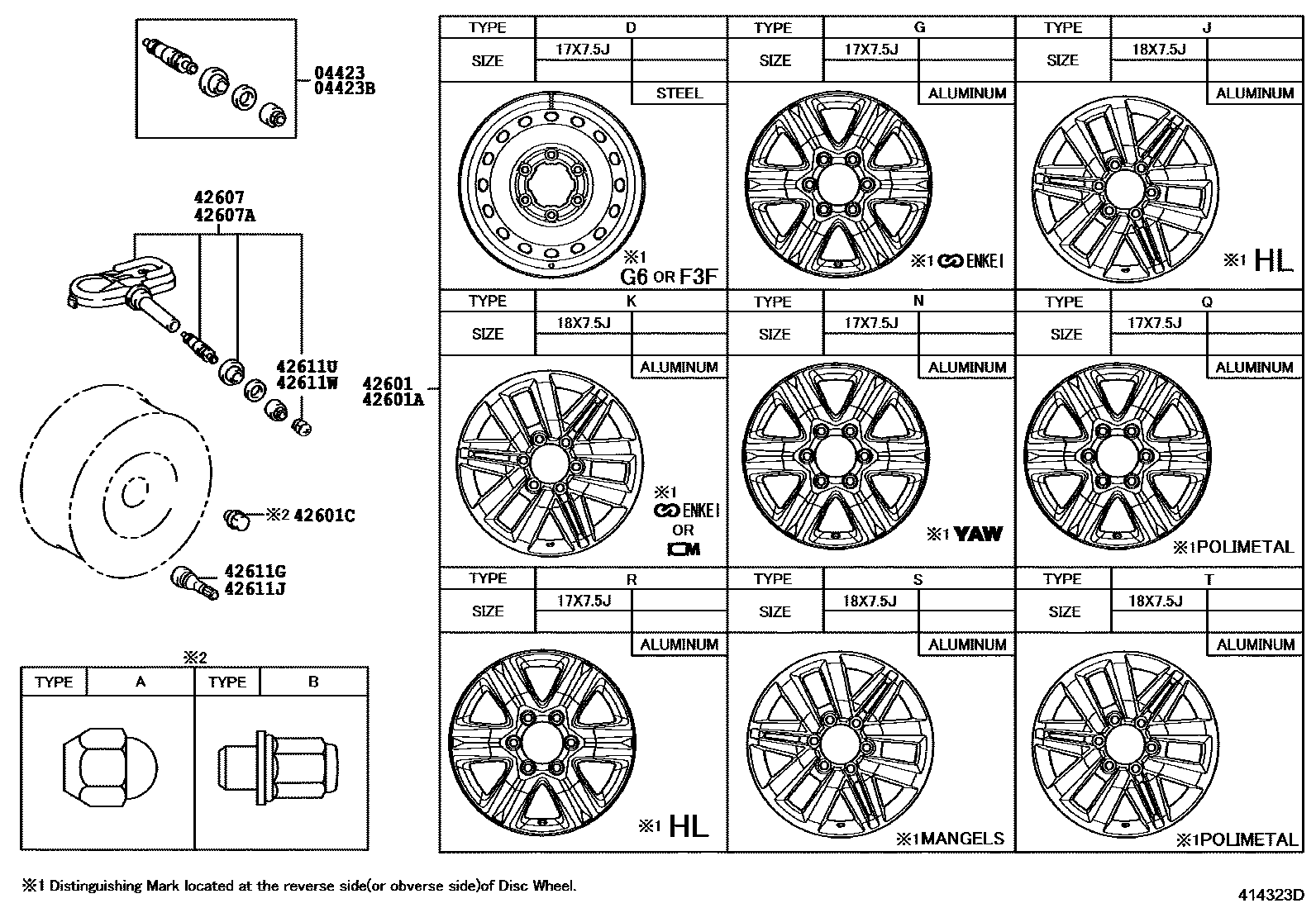

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
SYRIA SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM ACCESSORY
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
SYRIA SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM ACCESSORY
42601WHEEL, DISC
17X7.5J, #,TYPE D:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,TYPE K:REFER ILLUST.
17X7.5J, #,RADIATOR GRILL(FOR ACCESSORY(PAINTED)),TYPE R:REFER ILLUST.
17X7.5J, #,TYPE Q:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE Q:REFER ILLUST.
sub42611-0KK82
18X7.5J, #,TYPE T:REFER ILLUST.
main42611-0KL00×4iGUN165..M..PH;GUN165..IDNSU..S..GCC;GUN165..(L,S)..(GEN,IDN,PH,VN);TGN166..(IDNSU,VNSUV)..(L,M,S)..(GEN,LA,PH,VN);GGN155,165,GUN155,TGN156,166..IDNSU..S..(GCC,IDN);201601-202008
17X7.5J, #,TYPE W:REFER ILLUST.
main42611-0KL10×4iGUN165..M..IDN;GUN155..IDNSU..H..GCC;GGN155,TGN166..IDNSU..(H,M)..(GCC,IDN)201601-202007
18X7.5J, #,AFRICA SPEC&RADIATOR GRILL(FOR ACCESSORY(PAINTED))&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE X:REFER ILLUST.
main42611-0KM10×4iGUN156..M..ARL;GUN155..THSUV..L;GGN155,165,GUN165,TGN156,166..THSUV..(H,L)..GCC201507-202005
17X7.5J, #,TYPE N:REFER ILLUST.
18X7.5J, #,TYPE J:REFER ILLUST.
main42611-0KP30×4iTGN156,166..IDNSU..L..GCC;GGN155,GUN155,165..LHD..IDNSU..(L,M)..(GCC,GEN)201601-202007
17X7.5J, #,AFRICA SPEC&RADIATOR GRILL(FOR ACCESSORY(PAINTED)),TYPE D:REFER ILLUST.
main42611-0KP40×4iGUN165..M..PH;GUN165..IDNSU..S..GCC;GUN165..(L,S)..(GEN,IDN,PH,VN);TGN166..(IDNSU,VNSUV)..(L,M,S)..(GEN,LA,PH,VN);GGN155,165,GUN155,TGN156,166..IDNSU..S..(GCC,IDN);201601-202008
17X7.5J, #,TYPE V:REFER ILLUST.
main42611-0KP50×4supersedes 42611-0KP50iGUN165..M..PH;GUN165..IDNSU..S..GCC;GUN165..(L,S)..(GEN,IDN,PH,VN);TGN166..(IDNSU,VNSUV)..(L,M,S)..(GEN,LA,PH,VN);GGN155,165,GUN155,TGN156,166..IDNSU..S..(GCC,IDN);201601-202008
17X7.5J, #,TYPE G:REFER ILLUST.
main42611-0KP60×4supersedes 42611-0KP60iGUN155..IDNSU..(H,M);GGN155,165,GUN156,165,TGN166..IDNSU..(H,M)..(GCC,IDN)201601-202007
18X7.5J, #,TYPE K:REFER ILLUST.
17X7.5J, #,T/P AC:REFER ILLUST.
18X7.5J, #,TYPE K:REFER ILLUST.
17X7.5J, #,TYPE R:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL CAP-FOR ALUMINUM WHEEL,TYPER:REFER ILLUST.
18X7.5J, #,TYPE J:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,TYPE S:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,TYPE J:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-0KG60iGUN156..S..IART;GUN156..6F..S..BZAGT;TGN156,166..AGTSU..(L,S);GUN156,KUN156,TGN168..AGTSU..(L,M)..(DCR,HDCR,HTWCF)201702-202010
17X7.5J, #,TYPE D:REFER ILLUST.
main42611-0KJ40supersedes 42611-0KJ40iGUN156,KUN156,TGN156,16#..AGTSU..(5FC,6F,6FC)..(L,M,S)201512-201704
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE Y:REFER ILLUST.
17X7.5J, #,TYPE G:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,TYPE K:REFER ILLUST.
17X7.5J, #,RADIATOR GRILL(FOR ACCESSORY(PAINTED)),TYPE R:REFER ILLUST.
main42611-0KL00iGUN165..IDNSU..S..GCC;GUN165..(L,S)..(GEN,IDN,PH,VN);GGN155,165,GUN155,TGN156..IDNSU..S..(GCC,IDN);TGN166..(IDNSU,VNSUV)..(M,S)..(GCC,GEN,PH,VN);GUN156,165,KUN156,T201601-202008
17X7.5J, #,TYPE W:REFER ILLUST.
main42611-0KL10iGUN165..M..IDN;GUN155..IDNSU..H..GCC;GGN155,TGN166..IDNSU..(H,M)..(GCC,IDN)201601-202007
18X7.5J, #,AFRICA SPEC&RADIATOR GRILL(FOR ACCESSORY(PAINTED))&TIRE & DISC WHEEL-265/65R17 ALUMINUM,TYPE X:REFER ILLUST.
17X7.5J, #,TYPE N:REFER ILLUST.
18X7.5J, #,TYPE J:REFER ILLUST.
17X7.5J, #,AFRICA SPEC&RADIATOR GRILL(FOR ACCESSORY(PAINTED)),TYPE D:REFER ILLUST.
main42611-0KP40iGUN165..IDNSU..S..GCC;GUN165..(L,S)..(GEN,IDN,PH,VN);GGN155,165,GUN155,TGN156..IDNSU..S..(GCC,IDN);TGN166..(IDNSU,VNSUV)..(M,S)..(GCC,GEN,PH,VN);GUN156,165,KUN156,T201601-202008
17X7.5J, #,TYPE V:REFER ILLUST.
main42611-0KP50iGUN165..IDNSU..S..GCC;GUN165..(L,S)..(GEN,IDN,PH,VN);GGN155,165,GUN155,TGN156..IDNSU..S..(GCC,IDN);TGN166..(IDNSU,VNSUV)..(M,S)..(GCC,GEN,PH,VN);GUN156,165,KUN156,T201601-202008
17X7.5J, #,TYPE G:REFER ILLUST.
main42611-0KP60supersedes 42611-0KP60iGUN155..IDNSU..(H,M);GGN155,165,GUN156,165,TGN166..IDNSU..(H,M)..(GCC,IDN)201601-202007
18X7.5J, #,TYPE K:REFER ILLUST.
main42611-0KQ40supersedes 42611-0KS70iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU..(L,M,S)201705-202010
17X7.5J, #,T/P AC:REFER ILLUST.
18X7.5J, #,TYPE K:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R18 ALUMINUM,TYPE J:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01082×24iTGN168..5F;GGN155,GUN155,165..LHD..(L,M)..(GCC,GEN);GUN156,TGN156,166..L..(ARL,BZAGT,GCC,KZS)201507-202010
TYPE A:REFER ILLUST.
main90942-01109×24iGUN155..(H,S)..GCC;TGN156..(L,M)..GEN;TGN166..L..(GEN,LA,SA);GUN156,165,TGN156..L..(LA,SA,VN);TGN156..(H,M,S)..(BZAGT,GCC,KZS,LA,MA,PKN,SA,VN);GGN155,165,GUN166,KUN201507-202104
(J),T/P B:REF.ILLUST
main90942-T1005×24supersedes 90942-T1005iGUN155..(H,S)..GCC;TGN156..(L,M)..GEN;TGN166..L..(GEN,LA,SA);GUN156,165,TGN156..L..(LA,SA,VN);TGN156..(H,M,S)..(BZAGT,GCC,KZS,LA,MA,PKN,SA,VN);GGN155,165,GUN166,KUN201507-202104
(L),T/P B:REF.ILLUST
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
SYRIA SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM ACCESSORY
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
SYRIA SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM ACCESSORY
42611GVALVE (FOR TUBELESS TIRE)
main90080-94031×4iGUN156..RHD..THSUV..(M,S);GUN155,16#,TGN156,166..MA,TH;GUN156..THSUV..(H,L)..(ARL,GEN)201507-202012
RADIATOR GRILL(FOR ACCESSORY(PAINTED))&TIRE & DISC WHEEL-265/60R18 ALUMINUM
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90080-94031iGUN156..RHD..THSUV..(M,S);GUN155,16#,TGN156,166..MA,TH;GUN156..THSUV..(H,L)..(ARL,GEN)201507-202012
RADIATOR GRILL(FOR ACCESSORY(PAINTED))&TIRE & DISC WHEEL-265/60R18 ALUMINUM
42611UCAP, TIRE VALVE
SYRIA SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM ACCESSORY
42611WCAP, TIRE VALVE (FOR SPARE)
SYRIA SPEC&TIRE & DISC WHEEL-265/60R18, ALUMINUM ACCESSORY
11 parts on this diagram · 3 diagrams in section
