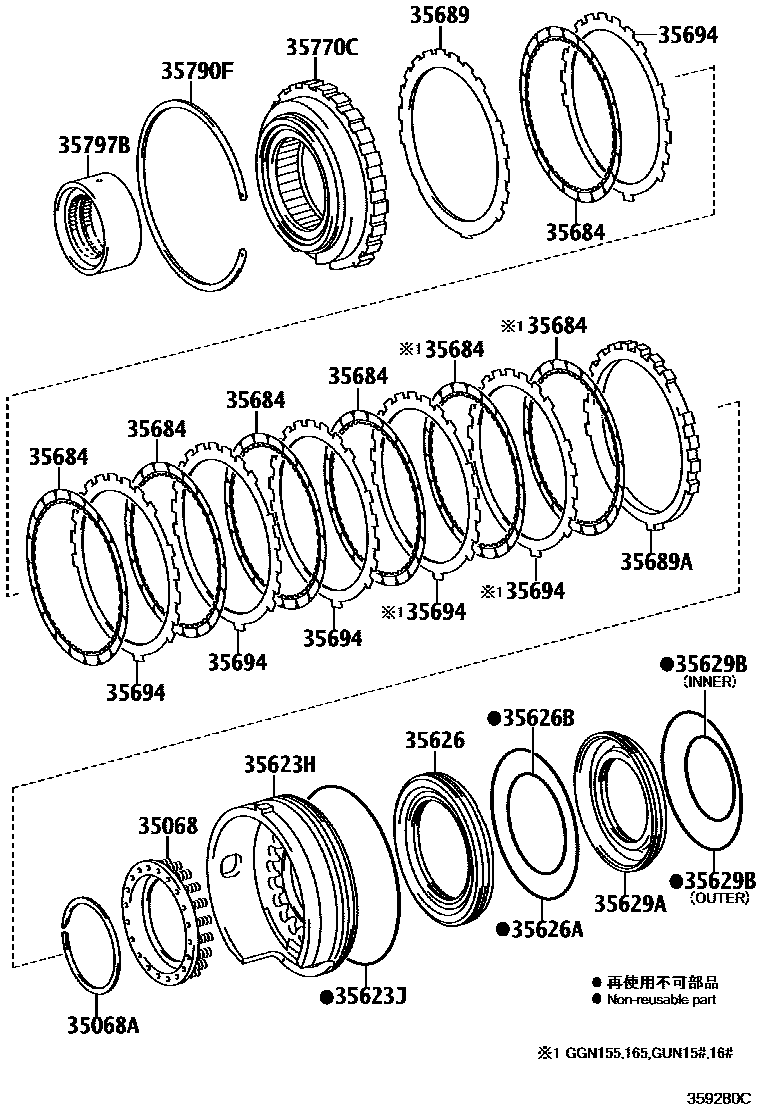

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1AC60E,AC60F 0002 1A750F

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-0K010iGUN165..M..TH; GUN165..THSUV;GUN156..THSUV..(ARL,GCC,GEN)201912-202005

(L); TOYOTA STOP & START SYSTEM-WITH

main35068-60010iGGN165,KUN156..ATM;TGN156,166..M..(LA,TH);GUN165..IDNSU..(H,S)..GCC;TGN156,166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA)201507-202104

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iGUN155..IDNSU..(H,M,S)201507-201905

35623HPISTON, 1ST & REVERSE BRAKE

main35623-0K010iGUN15#,165..(IDNSU,VNSUV)..6FC201912-202012

main35623-0K020iTGN156,166..(IDNSU,VNSUV)..6FC201912-202012

main35623-60060iKUN156..5FC201512-201709

main35623-71010iGUN155..IDNSU..(H,M,S)201507-201905

main35623-71020iTGN156,166..M..LA;TGN156,16#..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA)201507-202104

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGUN15#,16#,TGN156,166..THSUV..6FC201507-201708

main90301-T0072iGGN155..GCC,GEN201912-202007

(L)

35626SLEEVE, BRAKE REACTION

main35626-50010iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC201507-202104

main35626-60010iKUN156..5FC201512-201709

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99143iKUN156..5FC201512-201709

main90301-99144iGUN155..IDNSU..(H,M,S)201507-201905

main90301-T0073iGUN155,165,TGN156..MA202001-202012

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-79003iGGN155..GCC,GEN;TGN156..IDNSU..S..GCC;GUN155,165..IDNSU..6FC..L;GUN165..6FC..(GEN,IDN,PH,VN);TGN166..(IDNSU,VNSUV)..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN);GUN156,TGN156..(IDNSU,VNSUV)..6FC..(H,L,M)..(GCC,GEN,PH,VN)201507-201912

main90301-T0074iGUN156..TH;GUN155,166,TGN156,166..THSUV..6FC201708-202012

35629APISTON, BRAKE, NO.4

main35629-50020iGUN155..IDNSU..(H,M,S)201507-201905

main35629-60010iKUN156..5FC201512-201709

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-67006iGGN155..GCC,GEN;TGN156..IDNSU..S..GCC;GUN155,165..IDNSU..6FC..L;GUN165..6FC..(GEN,IDN,PH,VN);TGN166..(IDNSU,VNSUV)..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN);GUN156,TGN156..(IDNSU,VNSUV)..6FC..(H,L,M)..(GCC,GEN,PH,VN)201507-201912

INNER

main90301-99084iGGN155..GCC,GEN;TGN156..IDNSU..S..GCC;GUN155,165..IDNSU..6FC..L;GUN165..6FC..(GEN,IDN,PH,VN);TGN166..(IDNSU,VNSUV)..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN);GUN156,TGN156..(IDNSU,VNSUV)..6FC..(H,L,M)..(GCC,GEN,PH,VN)201507-201912

OUTER

main90301-99151iKUN156..5FC201512-201709

OUTER

main90301-T0075iGUN165..M..TH; GUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)201708-202005

(L),OUTER; TOYOTA STOP & START SYSTEM-WITH,OUTER

main90301-T0076iGUN165..M..TH; GUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)201708-202005

(L),INNER; TOYOTA STOP & START SYSTEM-WITH,INNER

35684DISC, BRAKE, NO.4

main35684-0K010×7iGUN155,165..MA; TGN156..MA202001-202012

main35684-50010×8iKUN156..5FC201512-201709

main35684-60030×7iGGN155..GCC,GEN;GUN155,165..IDNSU..6FC..L;GUN165..6FC..(GEN,IDN,PH,VN);GUN156..(IDNSU,VNSUV)..(GCC,GEN,PH,VN); TGN156..IDNSU..S..GCC;TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);TGN166..(IDNSU,VNSUV)..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN)201507-201912

35689FLANGE, BRAKE, NO.4

main35689-60270iGUN156,166,TGN166..6FC..IND201507-202012

T=1.8,MARK 0

main35689-60280iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..ATM201507-202104

T=1.97,MARK 1

main35689-60290iGUN155..IDNSU..(H,M,S)201912-202104

T=2.11,MARK 3

main35689-60300iGUN155..IDNSU..(H,M,S)201912-202104

T=2.25,MARK 4

main35689-60310iGUN155..IDNSU..(H,M,S)201507-201905

T=2.39,MARK 5

main35689-60320iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..ATM201507-202104

T=2.53,MARK 7

main35689-60330iGUN156,166,TGN166..6FC..IND201507-202012

T=2.67,MARK 8

main35689-60340iGUN156,166,TGN166..6FC..IND201507-202012

T=2.81,MARK10

main35689-60350iGUN155..IDNSU..(H,M,S)201507-201905

T=2.95,MARK 11

main35689-60360iGUN155..IDNSU..(H,M,S)201507-201905

T=3.09,MARK 12

main35689-60370iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..ATM201507-202104

T=3.23,MARK 14

35689AFLANGE, BRAKE, NO.4

main35689-60090iKUN156..5FC201512-201709

main35689-71010iGUN155..IDNSU..(H,M,S)201507-201905

35694PLATE, BRAKE, NO.4

main35694-0K010×4iGUN15#,165..(IDNSU,VNSUV)..6FC; TGN156,166..(IDNSU,VNSUV)..6FC201912-202012

main35694-60011×4iGUN155,165..MA; TGN156..MA201507-202001

35770CCLUTCH ASSY, 1WAY NO.3

main35770-0K010iGUN156..TH;GUN155,166,TGN156,166..THSUV..6FC; GUN165..M..TH; GUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)201708-201911

(L); TOYOTA STOP & START SYSTEM-WITH

main35770-0K020iGUN155,165,TGN156..MA202001-202012

(L)

main35770-60030iGGN155..GCC,GEN;TGN156..IDNSU..S..GCC;GUN155,165..IDNSU..6FC..L;GUN165..6FC..(GEN,IDN,PH,VN);TGN166..(IDNSU,VNSUV)..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN);GUN156,TGN156..(IDNSU,VNSUV)..6FC..(H,L,M)..(GCC,GEN,PH,VN)201507-201912

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90521-99131iGUN155..IDNSU..(H,M,S)201507-201905

35797BRACE, 1 WAY CLUTCH, INNER

main35797-50031iKUN156..5FC201512-201709

main35797-60020iGUN156,166,TGN166..6FC..IND201507-202012

16 parts on this diagram · 2 diagrams in section
