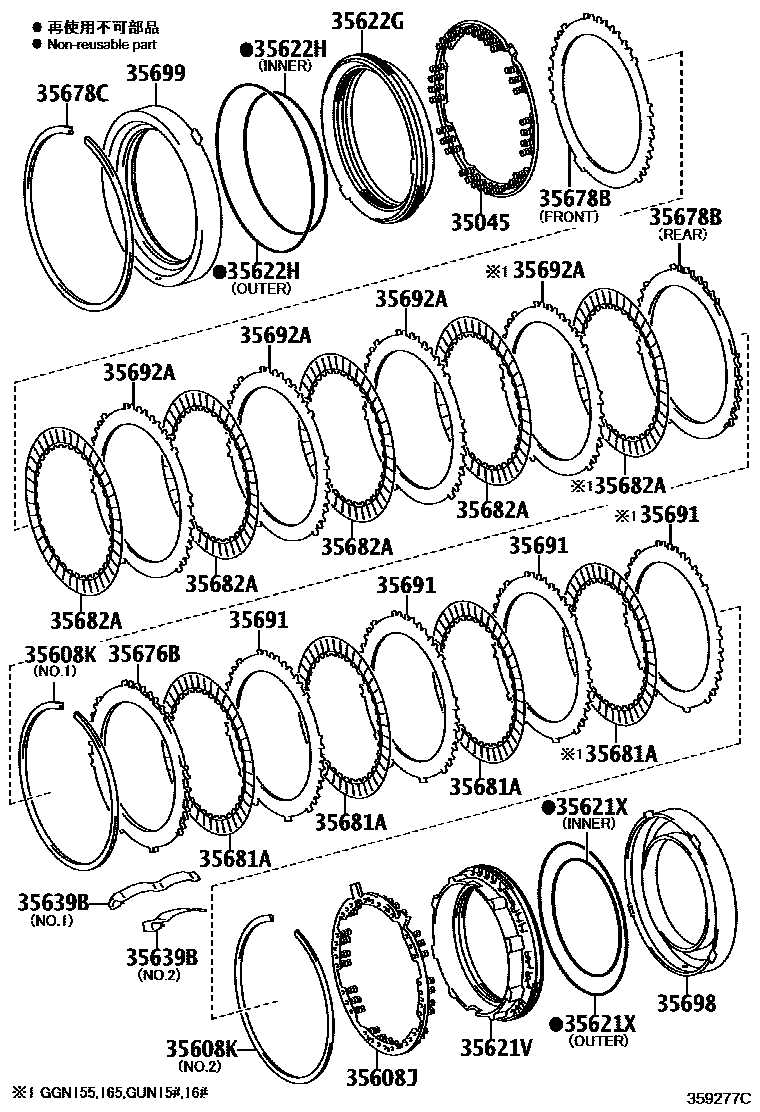

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1AC60E,AC60F 0002 1A750F

35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2

main35045-0K010iGUN155,165,TGN156..MA202001-202012

(L)

main35045-60010iKUN156..5FC201512-201709

main35045-71010iGUN155..IDNSU..(H,M,S)201507-201905

35608JSPRING SUB-ASSY, BRAKE PISTON RETURN

main35608-0K010iGGN155,GUN15#,16#,TGN156,166..(IDNSU,THSUV,VNSUV)..6FC201912-202012

(L)

main35608-60020iKUN156..5FC201512-201709

main35608-71010iGUN155..IDNSU..(H,M,S)201507-201905

35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)

main90520-99039iKUN156..5FC201512-201709

main90520-99156iGGN165;TGN156,166..M..LA;GUN165..IDNSU..(H,S)..GCC;TGN156,166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA)201507-202104

NO.1:REFER ILLUST.

main90520-99157iGUN156..6FC..ARL;GUN155,16#,TGN156,166..THSUV..6FC201507-201708

NO.2:REFER ILLUST.

main90520-T0288iGGN155,GUN15#,16#,TGN156,166..(IDNSU,THSUV,VNSUV)..6FC201912-202012

(L),NO.2:SEE ILLUST

main90520-T0290iGGN155,GUN15#,16#,TGN156,166..(IDNSU,THSUV,VNSUV)..6FC201912-202012

(L),NO.1:SEE ILLUST

35621VPISTON, BRAKE, NO.1

main35621-0K010iGGN155..GCC,GEN;GUN15#,165..(IDNSU,VNSUV)..6FC201912-202012

main35621-0K020iTGN156..MA202001-202012

main35621-60020iKUN156..5FC201512-201709

main35621-71010iGUN155,165..MA201507-202001

main35621-71020iTGN166..H..IND201507-202012

35621XRING, O (FOR BRAKE PISTON NO.1)

main90301-99115iGUN156,165..6FC..TH;GUN165..THSUV..6FC..L;TGN166..THSUV..6FC..GCC;GUN155,166,TGN156..THSUV..6FC201708-201911

(J),OUTER

main90301-99123iGGN165;TGN156,166..M..LA;GUN165..IDNSU..(H,S)..GCC;TGN156,166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA)201507-202104

INNER

main90301-T0078iGUN165..M..TH; GUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)201708-202005

(L),INNER; TOYOTA STOP & START SYSTEM-WITH,INNER

main90301-T0090iGGN155,GUN15#,16#,TGN156,166..(IDNSU,THSUV,VNSUV)..6FC201912-202012

(L),OUTER

35622GPISTON, BRAKE, NO.2

main35622-0K010iGUN165..M..TH; GUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)201708-202005

(L); TOYOTA STOP & START SYSTEM-WITH

main35622-0K020iTGN156,166..(IDNSU,VNSUV)..6FC201912-202012

main35622-60020iKUN156..5FC201512-201709

main35622-71010iGGN165;GUN165..IDNSU..(H,S)..GCC;GGN155,GUN15#,16#..6FC..(BZAGT,EPT,LA,PKN,SA)201507-202104

main35622-71020iTGN166..H..IND201507-202012

35622HRING, O (FOR BRAKE PISTON NO.2)

main90301-99095iKUN156..5FC201512-201709

OUTER

main90301-99118iKUN156..5FC201512-201709

INNER

main90301-99132iGUN155..IDNSU..(H,M,S)201507-201905

INNER

main90301-99179iGUN15#,16#,TGN156,166..THSUV..6FC201507-201708

OUTER

main90301-T0077iGGN155..GCC,GEN;GUN15#,165,TGN156,166..(IDNSU,VNSUV)..6FC201912-202012

OUTER

main90301-T0089iGGN155,GUN15#,16#,TGN156,166..(IDNSU,THSUV,VNSUV)..6FC201912-202012

(L),INNER

35639BSPRING, BRAKE PLATE STOPPER

main35639-60010iKUN156..5FC201512-201709

main35639-71010iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC201507-202104

NO.1:REFER ILLUST.

main35639-71020iGUN155..IDNSU..(H,M,S)201507-201905

NO.2:REFER ILLUST.

35676BFLANGE, BRAKE, NO.1

main35676-60080iKUN156..5FC201512-201709

T=2.0,MARK 0

main35676-60090iKUN156..5FC201512-201709

T=2.2,MARK 1

main35676-60100iKUN156..5FC201512-201709

T=2.4,MARK 2

main35676-60110iKUN156..5FC201512-201709

T=2.6,MARK 3

main35676-71010iGUN156,166,TGN166..6FC..IND201507-202012

T=4.9

main35676-71020iGUN156,166,TGN166..6FC..IND201507-202012

T=5.0

main35676-71030iGUN155..IDNSU..(H,M,S)201507-201905

T=5.1

main35676-71040iGUN156,166,TGN166..6FC..IND201507-202012

T=5.2

main35676-71050iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC201507-202104

T=5.3

main35676-71060iGUN156,166,TGN166..6FC..IND201507-202012

T=5.4

main35676-71070iGUN156,166,TGN166..6FC..IND201507-202012

T=5.5

main35676-71080iGUN155..IDNSU..(H,M,S)201507-201905

T=5.6

main35676-71090iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC201507-202104

T=5.7

main35676-71100iGUN156,166,TGN166..6FC..IND201507-202012

T=5.8

35678BFLANGE, BRAKE, NO.2

main35678-60010iKUN156..5FC201512-201709

T=4.6

main35678-71010iGUN156,166,TGN166..6FC..IND201507-202012

T=3.8,REAR

main35678-71020iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC201507-202104

T=2.0,FRONT

main35678-71030iGUN155..IDNSU..(H,M,S)201912-202104

T=2.1,FRONT

main35678-71040iGUN155..IDNSU..(H,M,S)201507-201905

T=2.2,FRONT

main35678-71050iGUN156,166,TGN166..6FC..IND201507-202012

T=2.3,FRONT

main35678-71060iGUN155..IDNSU..(H,M,S)201507-201905

T=2.4,FRONT

main35678-71070iGUN156,166,TGN166..6FC..IND201507-202012

T=2.5,FRONT

main35678-71080iGUN155..IDNSU..(H,M,S)201507-201905

T=2.6,FRONT

main35678-71090iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC201507-202104

T=2.7,FRONT

main35678-71100iGUN155..IDNSU..(H,M,S)201507-201905

T=2.8,FRONT

35678CRING, SNAP (FOR BRAKE NO.2)

main90520-99075iKUN156..5FC201512-201709

main90520-99155iGUN156,166,TGN166..6FC..IND201507-202012

main90520-T0291iGUN165..M..TH; GUN165..THSUV;GUN156..THSUV..(ARL,GCC,GEN)201912-202005

(L); TOYOTA STOP & START SYSTEM-WITH

35681ADISC, BRAKE, NO.1

main35681-0K010×4iGUN156..TH;GUN155,166..THSUV; TGN156,166..THSUV..6FC201708-202012

main35681-60020×3iKUN156..5FC201512-201709

main35681-71010×3iGUN156,166..6FC..IND; TGN166..H..IND201507-202012

35682ADISC, BRAKE, NO.2

main35682-0K010×5iGGN155..GCC,GEN;GUN15#,165..(IDNSU,VNSUV)..6FC; TGN156,166..(IDNSU,VNSUV)..6FC201912-202012

main35682-50010×3iKUN156..5FC201512-201709

main35682-71010×5iGUN155,165..MA; TGN156..MA201507-202001

35691PLATE, BRAKE, NO.1

main35691-0K010×3iGGN155..GCC,GEN;GUN15#,165..(IDNSU,VNSUV)..6FC; TGN156,166..(IDNSU,VNSUV)..6FC201912-202012

main35691-60010×3iKUN156..5FC201512-201709

main35691-71010×3iGGN165;GUN165..IDNSU..(H,S)..GCC;GGN155,GUN15#,16#..6FC..(BZAGT,EPT,LA,PKN,SA); TGN156,166..M..LA;TGN156,16#..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA)201507-202104

35692APLATE, BRAKE, NO.2

main35692-0K010×4iGUN165..M..TH; GUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)201708-202005

(L); TOYOTA STOP & START SYSTEM-WITH

main35692-60010×3iKUN156..5FC201512-201709

main35692-71010×4iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)201708-202005

(J)

35698CYLINDER, BRAKE, NO.1

main35698-60010iKUN156..5FC201512-201709

main35698-71010iGUN155..IDNSU..(H,M,S)201912-202104

35699CYLINDER, BRAKE, NO.2

main35699-60010iKUN156..5FC201512-201709

main35699-71010iGUN155..IDNSU..(H,M,S)201912-202104
