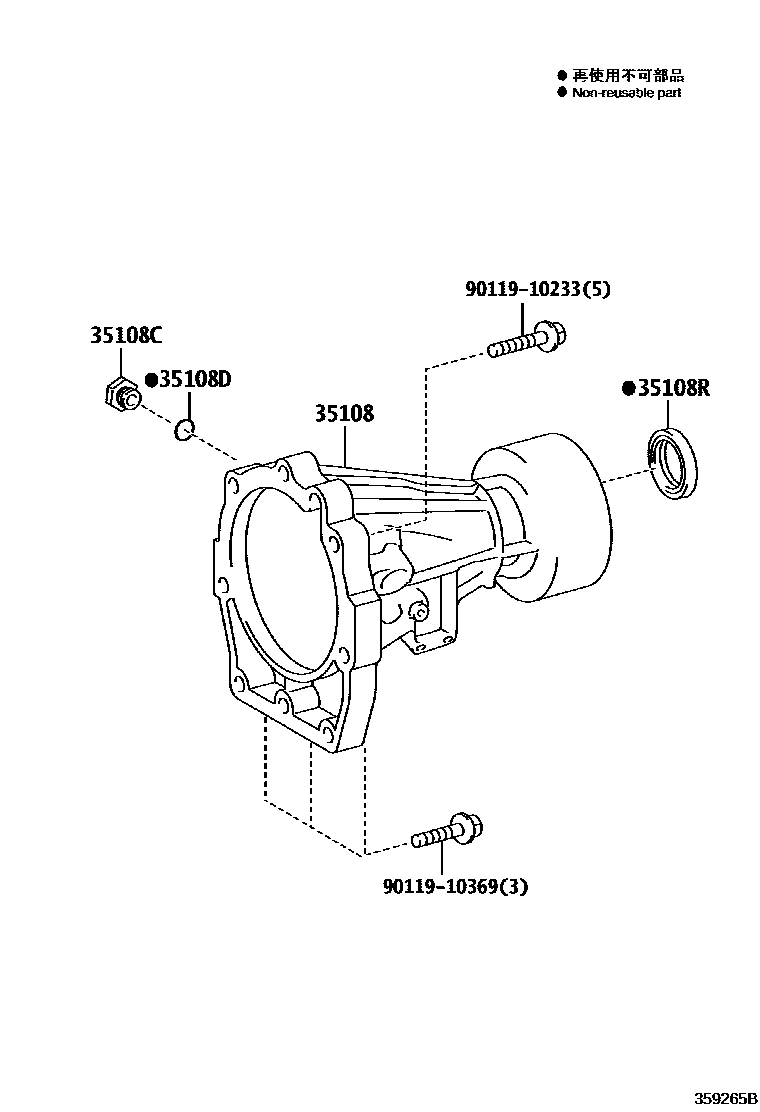

EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-0K010iGUN165..M..TH; GUN165..THSUV..6FC; TGN166..THSUV..6FC201708-201911

(L); TOYOTA STOP & START SYSTEM-WITH

main35108-0K020iGUN166..TH201708-201911

main35108-0K030iGUN165,TGN166..(IDNSU,THSUV,VNSUV)..6FC201912-202012

(L)

main35108-0K040iGUN166..TH201912-202005

main35108-71030iGUN165..IDNSU..6FC..L;GUN165..6FC..(GEN,IDN,PH,VN);TGN166..(IDNSU,VNSUV)..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN)201507-201912

main35108-71040iGGN165,GUN166..6FC..(H,S)201507-202012

35108CPLUG (FOR AUTOMATIC EXTENSION HOUSING)

main90341-18059iGGN165,GUN16#,TGN16#..(AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC201507-202104

35108DRING, O (FOR AUTOMATIC EXTENSION HOUSING)

main90301-15004iGUN165..THSUV..6FC201708-202005

(J)

main90301-T0068iGUN165..M..TH; GUN165..THSUV..6FC201708-202005

(L); TOYOTA STOP & START SYSTEM-WITH

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40045iTGN166..H..IND201507-202012

main90311-45035iGGN165,GUN166..6FC201507-201611

main90311-45037iGGN165,GUN166..6FC201612-202012

9011910233

main90119-10233

9011910369

main90119-10369

6 parts on this diagram · 1 diagram in section
