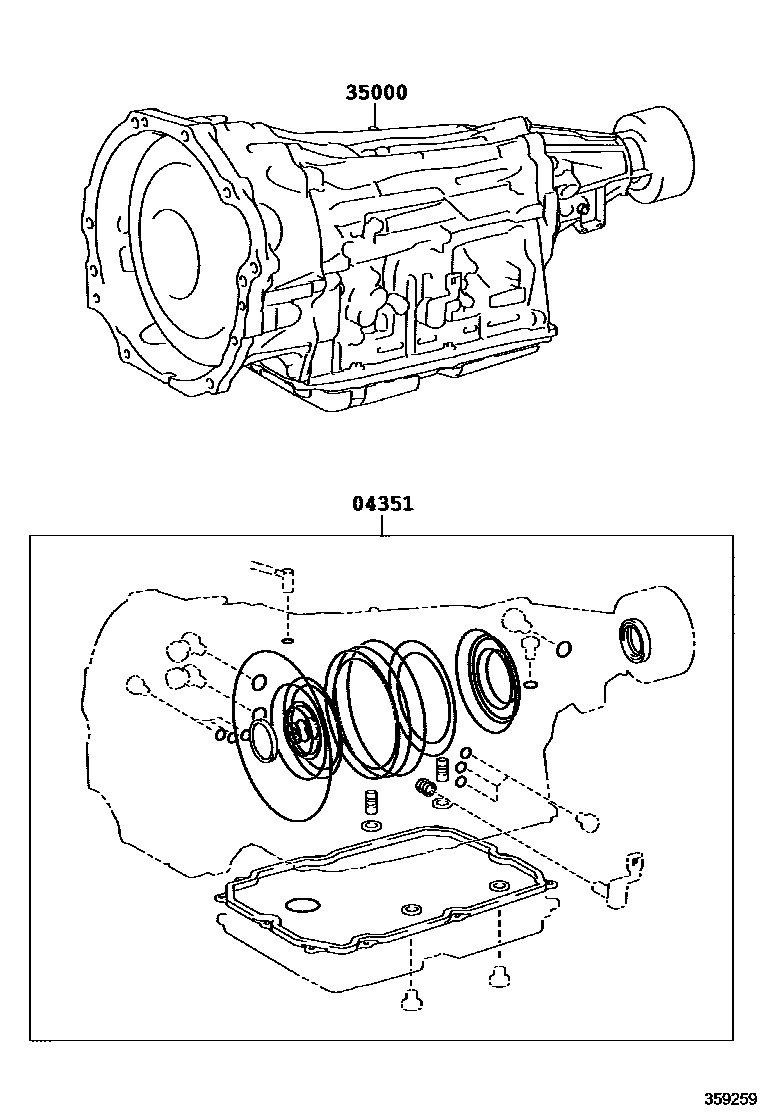

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1AC60E 0002 1AC60F 0003 1A750F

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-60470iKUN156..5FC201512-201709

main04351-71220iTGN166..H..IND201507-202012

main04351-71230iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,GUN156,TGN156..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC201507-202104

main04351-71241iGGN165,GUN166..6FC201507-202012

35000TRANSMISSION ASSY, AUTOMATIC

main35000-0K030iGUN155..THSUV..GCC201708-202012

AC60F

main35000-0K040iGUN15#..TH201708-202005

AC60F

main35000-0K050iGUN165..THSUV..6FC201708-202005

AC60E,(L)

main35000-0K070iGGN155..GCC,GEN201912-202007

AC60F

main35000-0K080iTGN166..(IDNSU,VNSUV)..6FC201912-202008

AC60E

main35000-0K090iTGN156..THSUV..6FC201708-202012

AC60F

main35000-71330iGGN165201601-201805

AC60E

main35000-71380iTGN166..H..IND201507-202012

AC60E

main35000-71390iGUN165..IDNSU..6FC..L;GUN165..6FC..(GEN,IDN,PH,VN)201507-201912

AC60E

main35000-71400iKUN156..5FC201512-201709

A750F

main35000-71410iTGN156..M..LA;TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA)201512-202101

AC60F

main35000-71420iGUN156..6FC..IND201507-201709

AC60F,*681

main35000-71440iGGN155..AGTSU,EPTSU,SASUV201512-202101

AC60F

main35000-71450iGUN166..6FC..SA201507-202009

AC60E,*681

main35000-71480iGUN156..6FC..IND201709-202012

AC60F,*680

main35000-71500iGUN166..H201709-202012

AC60E,*680

main35000-0K020supersedes 35000-71450iGUN166..TH201708-202005

AC60E,TOYOTA STOP & START SYSTEM-WITH

main35000-0K060iGUN165..M..TH201708-202005

AC60E,TOYOTA STOP & START SYSTEM-WITH

main35000-71470iGUN165..M..TH201507-201708

AC60E,TOYOTA STOP & START SYSTEM-WITH

2 parts on this diagram · 3 diagrams in section
