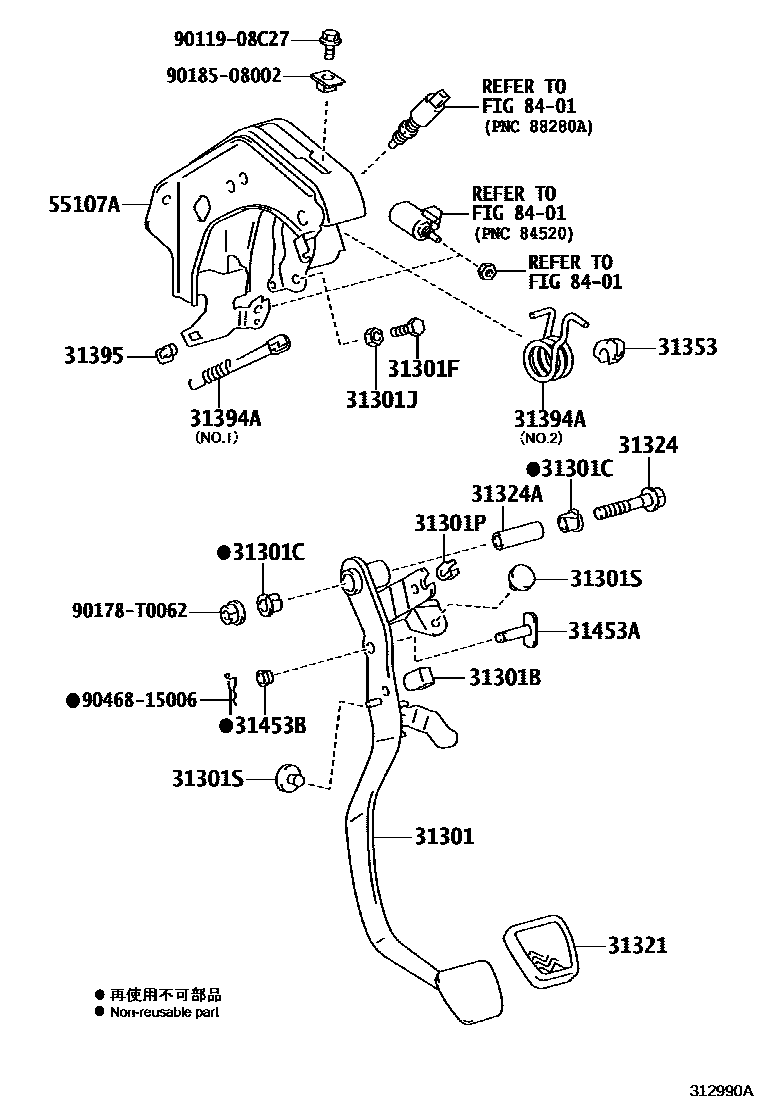

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1CLUTCH PEDAL 0002 1CLUTCH PEDAL 0003 1CLUTCH PEDAL 0004 1CLUTCH PEDAL 0005 1CLUTCH PEDAL 0006 1CLUTCH PIPING 0008 1CLUTCH PIPING 0009 1CLUTCH PIPING 0010 1CLUTCH PIPING 0011 1CLUTCH PIPING 0012 1CLUTCH PIPING 0013 1CLUTCH PIPING

31301PEDAL SUB-ASSY, CLUTCH

main31301-0K280iLAN155201603-202009

main31301-KK020iTGN166..M..IND201610-202012

main31301-KK040iGUN156,16#,KUN156..RHD..6F201507-202012

main31301-KK080iGUN15#,165,KUN156,165..LHD..6F201512-202010

main31301-KK100iTGN156,16#..5F..L201601-202010

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06063iGUN156,16#..RHD..6F..SA201806-201906

(J)

main90541-T0004iTGN166..M..IND201806-202012

(L)

main90541-T0005iGUN15#,165,KUN156,165,LAN155,TGN156,16#..LHD..MTM201512-202010

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iGUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM201507-202012

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-T0005iGUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM201507-202012

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0005iGUN156,16#,LAN155,TGN156,16#..MTM202004-202012

main90170-T0011iGUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM201507-202004

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGUN15#,16#,KUN156,165..6F201507-202012

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06036iLAN155201603-202009

31321PAD, CLUTCH PEDAL

main31321-02020iGUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM201507-202012

31324SHAFT, CLUTCH PEDAL

main90105-T0112iGUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM201507-202012

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM201507-202012

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iGUN15#,16#,KUN156,165..6F201507-202012

31394ASPRING, PEDAL W/HOOK

main31394-25010iGUN15#,16#,KUN156,165..6F201507-202012

NO.1:REFER ILLUST.

main31394-KK010iGUN15#,16#,KUN156,165..6F201507-202012

NO.2:REFER ILLUST.

31395HOOK, PEDAL SPRING

main31395-33020iGUN15#,16#,KUN156,165..6F201507-202012

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-T0002iGUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM201507-202012

L=31.9

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iGUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM201507-202012

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-KK020iLAN155,TGN156,16#..5F201601-202012

main55107-KK030iGUN15#,16#,KUN156,165..6F201507-202012

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C27

main90119-08C27

90178T0062

main90178-T0062

9018508002

main90185-08002

9046815006

main90468-15006
