ALTERNATOR

0001 112V 80A,100A,130A(DENSO) 0002 112V 100A(DENSO) 0003 112V 90A(BOSCH) 0004 112V 115A(BOSCH) 0005 112V 90A(BOSCH) 0006 112V 100A(DENSO) 0007 112V 80A,90A,100A 0008 112V 80A(DENSO) 0009 112V 115A(BOSCH) 0010 112V 90A

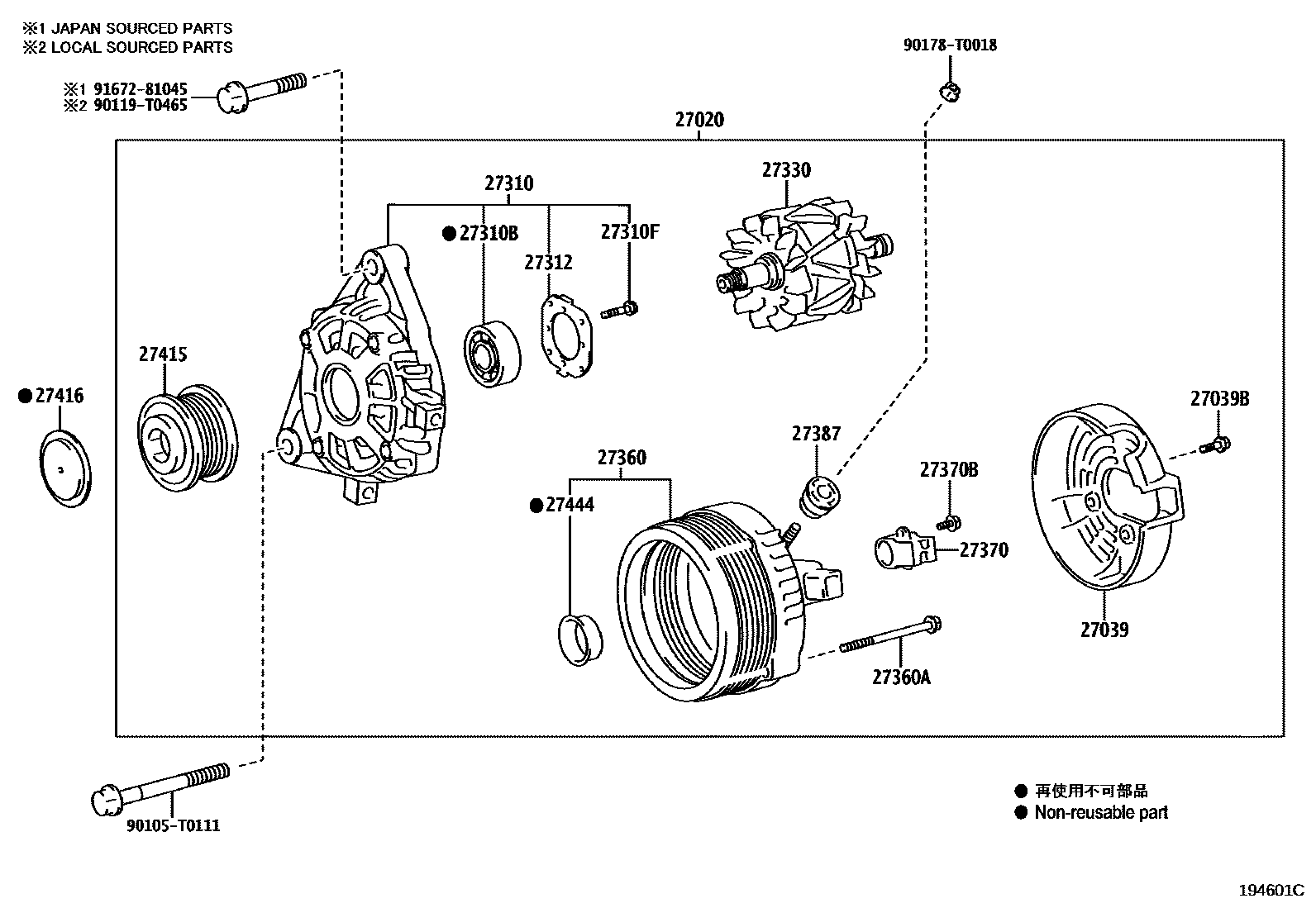

27020ALTERNATOR ASSY

main27060-0C080i2TRFE..TGN156..6FC..GEN;2TRFE..TGN156..BZAGT,GCC,KZS,LA,PKN,VN;2TRFE..TGN16#..AGTSU,IDNSU,PKNSU,THSUV,VNSUV201507-202104

12V 100A

main27060-0C160i2TRFE..TGN156,166..SA201603-202009

12V 115A

main27060-0C190i2TRFE..TGN156..L..GEN201601-202007

12V 80A,CS AMERICA SPEC

main27060-0C190i2TRFE..TGN166..L..GEN201601-202007

12V 80A

main27060-0C200i2TRFE..TGN156..MA201605-202012

12V 100A

main27060-0L110i2GDFTV..GUN165..S..VN;1GDFTV..GUN156..(IDNSU,PKNSU,SASUV)..(H,M,S);1GDFTV,2GDFTV..GUN155,16#..(IDNSU,SASUV)..(GCC,GEN,IDN,PH,SA)201507-201811

12V 100A

sub27060-0L290

main27060-0L120i2KDFTV..KUN165;1KDFTV..KUN156..(IDNSU,SASUV)..(H,M,S)201601-201709

12V 100A

main27060-0L140i1GDFTV..GUN156,166..6FC..IND201610-202012

12V 100A

main27060-0L150i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

12V 90A,BOSCH

main27060-0L160i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

12V 100A,DENSO

main27060-0L160i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

12V 100A

main27060-0L200i1KDFTV..KUN156..IDNSU..L201601-201707

12V 80A

main27060-0L210i1KDFTV..KUN156..AGTSU..L201512-201709

12V 90A

main27060-0L220i1KDFTV..KUN156..AGTSU..M201512-201709

12V 100A

main27060-0L260i1GDFTV,2GDFTV..GUN156,165..(IDNSU,VNSUV)..L..(LA,VN)201601-202008

12V 80A

main27060-0L270i2GDFTV..GUN155,165..MA201605-202012

12V 100A

main27060-0L290i2GDFTV..GUN165..THSUV..6F..GCC;1GDFTV,2GDFTV..GUN16#..RHD..(GEN,TH);2GDFTV..GUN165..LHD..(THSUV,VNSUV)..6FC;1GDFTV,2GDFTV..GUN15#..(THSUV,VNSUV)..(ARL,GCC,GEN,VN)201802-202104

12V 100A

main27060-0P290i1GRFE..GGN155,165..LHD201512-202101

12V 100A

main27060-0P330i1GRFE..GGN155..SA201603-202009

12V 115A

main27060-30230i1GDFTV..GUN156,166..6FC..IND201507-202012

12V 130A

main27060-54431i5LE..LAN155201603-202009

12V 90A

27039COVER, ALTERNATOR REAR END

main27039-0C190i2TRFE..TGN156..L..GEN;1GDFTV,2GDFTV..GUN156,165..(IDNSU,VNSUV)..L..(LA,VN)201601-202008

main27039-0L150i1KDFTV..KUN156..IDNSU..(H,M);1KDFTV,2KDFTV..KUN156,165..AGTSU,SASUV201512-201709

main27039-0L180i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

BOSCH

main27039-0L230i1KDFTV..KUN156..IDNSU..L201601-201707

main27039-0T300i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

DENSO

main27039-0V220i1GRFE,2TRFE..GGN155,TGN156,166..EPT201507-202104

main27039-37220i1GDFTV,2GDFTV..GUN15#..TH201507-202012

27039BBOLT(FOR ALTERNATOR REAR END COVER)

main90068-04046i1GRFE,2TRFE..GGN155,TGN156,166..EPT201507-202104

main90068-04047i2TRFE..TGN156..L..GEN;1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..(IDNSU,VNSUV)..L..(LA,VN)201601-202012

main90068-04051i1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..AGTSU201512-202010

main90099-04627i1GDFTV,2GDFTV..GUN16#..6FC..(IND,MA);1GDFTV,2GDFTV,2TRFE..GUN15#,TGN156..6FC..(IND,MA,TH)201507-202012

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0C080i2TRFE..TGN156..6FC..GEN;2TRFE..TGN156..BZAGT,GCC,KZS,LA,MA,PKN,VN;2TRFE..TGN16#..AGTSU,IDNSU,PKNSU,THSUV,VNSUV201507-202104

main27310-0C190i2TRFE..TGN166..L..GEN201601-202007

CS AMERICA SPEC

main27310-0L140i1GDFTV,2GDFTV..GUN16#..THSUV;1GDFTV,2GDFTV..GUN15#..THSUV..(ARL,GCC,GEN)201507-201908

main27310-0L150i2KDFTV..KUN165;1KDFTV..KUN156..(IDNSU,SASUV)..(H,M,S)201601-201709

main27310-0L160i1GDFTV..GUN156,166..6F..IND201610-202012

main27310-0L190i1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..(H,M,S)201512-202010

DENSO

main27310-0L230i1KDFTV..KUN156..IDNSU..L201601-201707

main27310-0L240i1KDFTV..KUN156..AGTSU201512-201709

main27310-0L290i1GDFTV,2GDFTV..GUN156,165..(IDNSU,VNSUV)..L..(LA,VN)201601-202008

main27310-0L300i1GDFTV..GUN156..PKN202009-202104

main27310-0L320i2GDFTV..GUN165..THSUV..6F..GCC;1GDFTV,2GDFTV..GUN16#..RHD..(GEN,TH);2GDFTV..GUN165..LHD..(THSUV,VNSUV)..6FC;1GDFTV,2GDFTV..GUN15#..(THSUV,VNSUV)..(ARL,GCC,GEN,VN)201802-202012

main27310-0P340i1GRFE..GGN155,165..LHD201512-202101

main27310-30240i1GDFTV,2GDFTV..GUN15#..TH201507-202012

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10040i2TRFE..TGN156..L..GEN;1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..IDNSU..L..(LA,VN)201601-201812

CS AMERICA SPEC

main90068-10042i2TRFE..TGN168;2TRFE..TGN156..M..GEN;2TRFE..TGN166..L..GEN;2TRFE..TGN156..6FC..(L,M,S)..(BZAGT,EPT,GCC,KZS,VN);2TRFE..TGN156,166..(AGTSU,INDSU,THSUV)..(H,L,M)..(IND,201507-201908

main90068-10045i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-201812

DENSO

sub90068-10049

main90068-10047i2GDFTV,2TRFE..GUN165,TGN156..L..(GEN,VN)201812-202008

DENSO

sub90068-10029

main90068-10049i1GDFTV,2GDFTV..GUN156,165..AGTSU201812-202010

sub90068-10033

main90068-10050i2TRFE..TGN156,166..EPT201802-202104

sub90068-10033

main90068-10051i1GDFTV..GUN156..PKN202009-202104

sub90068-10033

main90099-10223i1GDFTV..GUN156,166..6FC..IND201507-202012

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

main90068-00022i2TRFE..TGN166..IND;1GDFTV..GUN156,166..6F..IND201507-202104

main90068-00039i1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..AGTSU201512-202010

main90099-00268i1GDFTV..GUN156,166..6FC..IND201507-202012

27312PLATE, RETAINER

main27312-0C020i1GRFE,2TRFE..GGN155,TGN156,166..EPT201507-202104

main27312-0C130i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

BOSCH

main27312-0C190i2TRFE..TGN156..L..GEN;1GDFTV,2GDFTV..GUN156,165..(IDNSU,VNSUV)..L..(LA,VN)201601-202008

main27312-0T300i1GDFTV..GUN156..AGTSU..(H,M,S);1GDFTV,1KDFTV..GUN156,KUN156..AGTSU..(L,M)..(DCR,IART)201512-202010

DENSO

main27312-0Y100i1GDFTV..GUN156,166..6F..IND201610-202012

main27312-72100i1GDFTV..GUN156,166..6FC..IND201507-202012

27330ROTOR ASSY, ALTERNATOR

main27330-0C190i2TRFE..TGN156..L..GEN;1GDFTV,2GDFTV..GUN156,165..(IDNSU,VNSUV)..L..(LA,VN)201601-202008

main27330-0L140i2TRFE..TGN156..6FC..GEN;2GDFTV..GUN165..L..(GCC,SA);1GDFTV..GUN156..IDNSU..M..LA;2TRFE..TGN156..BZAGT,GCC,KZS,LA,MA,PKN,VN;2TRFE..TGN166..AGTSU,IDNSU,PKNSU,THSUV,VN201507-202104

main27330-0L180i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

BOSCH

main27330-0L240i1KDFTV..KUN156..AGTSU..L201512-201709

main27330-0M100i1KDFTV..KUN156..IDNSU..L201601-201707

main27330-0N110i1GDFTV..GUN156,166..6FC..IND201610-202012

main27330-0T300i1GDFTV..GUN156..L..BZAGT;1GDFTV,1KDFTV..GUN156,KUN156..AGTSU..(H,M,S)201512-202010

DENSO

main27330-37220i1GDFTV..GUN156,166..6FC..IND201507-202012

main27330-64300i5LE..LAN155201603-202009

27360COIL ASSY, ALTERNATOR

main27360-0C080i2TRFE..TGN166..IND201507-202104

main27360-0C190i2TRFE..TGN166..L..GEN201601-202007

CS AMERICA SPEC

main27360-0C200i2TRFE..TGN156..MA201605-202012

main27360-0L140i2GDFTV..GUN165..L..(GCC,SA);1GDFTV..GUN156..IDNSU..M..LA;1GDFTV,2GDFTV..GUN15#..ARL,GCC,GEN,IDN,PH,PKN,SA,VN;1GDFTV,2GDFTV..GUN16#..(IDNSU,SASUV,THSUV,VNSUV)..(H,M,201507-202104

main27360-0L150i2KDFTV..KUN165;1KDFTV..KUN156..(IDNSU,SASUV)..(H,M,S)201601-201709

main27360-0L170i1GDFTV..GUN156,166..6FC..IND201610-202012

main27360-0L190i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

DENSO

main27360-0L230i1KDFTV..KUN156..IDNSU..L201601-201707

main27360-0L240i1KDFTV..KUN156..AGTSU..L201512-201709

main27360-0L250i1KDFTV..KUN156..AGTSU..M201512-201709

main27360-0L290i1GDFTV,2GDFTV..GUN156,165..(IDNSU,VNSUV)..L..(LA,VN)201601-202008

main27360-0L300i2GDFTV..GUN155,165..MA201605-201908

main27360-0P340i1GRFE..GGN155,165..LHD201512-202101

main27360-30240i1GDFTV..GUN156,166..6FC..IND201507-202012

27360ABOLT(FOR ALTERNATOR COIL)

main90068-04048i2TRFE..TGN156..6FC..GEN;2GDFTV..GUN165..L..(GCC,SA);1GDFTV..GUN156..IDNSU..M..LA;2TRFE..TGN156..BZAGT,GCC,KZS,LA,PKN,VN;1GDFTV..GUN156..ARL,GCC,GEN,PH,PKN,SA,VN;2TR201507-202104

main90068-04050i1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..AGTSU201512-202010

main90099-04626i1GDFTV..GUN156,166..6FC..IND201507-202012

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0C020i2TRFE..TGN156,166..EPT201507-202104

main27370-0C190i2TRFE..TGN166..L..GEN201601-202007

CS AMERICA SPEC

main27370-0L240i1KDFTV..KUN156..AGTSU201512-201709

main27370-0M040i2GDFTV..GUN155,165..MA201507-202104

main27370-0T300i1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..(H,M,S)201512-202010

DENSO

main27370-0Y100i1GDFTV..GUN156,166..6F..IND201610-202012

main27370-31220i1GDFTV..GUN156,166..6FC..IND201507-202012

main27370-58460i2TRFE..TGN156..MA201605-201908

main27370-75060i5LE..LAN155201603-202009

27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)

main90068-00023i2TRFE..TGN166..IND;1GDFTV..GUN156,166..6F..IND201507-202104

main90068-00037i1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..AGTSU201512-202010

main90099-00197i1GDFTV..GUN156,166..6FC..IND201507-202012

27387INSULATOR, TERMINAL

main27387-0C020i2TRFE..TGN166..IND201507-202104

main27387-0C190i2TRFE..TGN156..L..GEN;1GDFTV,2GDFTV..GUN156,165..(IDNSU,VNSUV)..L..(LA,VN)201601-202008

main27387-0H110i1GDFTV..GUN156,166..6FC..IND201610-202012

main27387-0T300i1GDFTV..GUN156..AGTSU..(H,M,S);1GDFTV,1KDFTV..GUN156,KUN156..AGTSU..(L,M)..(DCR,IART)201512-202010

DENSO

main27387-20130i1GDFTV..GUN156,166..6FC..IND201507-202012

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0C010i2TRFE..TGN156,166..SA201603-201907

main27415-0C010i2TRFE..TGN156,166..SA201908-202009

LABEL=-0C150,-0C160

main27415-0C020i2TRFE..TGN156,166..SA201908-202009

P/N LABEL=270600C131

main27415-0L030i1GDFTV,2GDFTV,1KDFTV..GUN156,165,KUN156..(IDNSU,VNSUV)..L..(LA,VN)201601-202008

main27415-0L030i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

DENSO, 12V 80A

main27415-0L040i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

BOSCH

main27415-0L050i1GDFTV..GUN156,166..6F..IND201507-202104

main27415-0L050i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

DENSO, 12V 100A

main27415-0W053i2TRFE..TGN156..L..GEN201601-202007

CS AMERICA SPEC

main27415-0W063i2TRFE..TGN166..IND201507-202104

main27415-30010i1GDFTV,2GDFTV..GUN15#..TH201507-202012

27416CAP, ALTERNATOR PULLEY

main27416-0L030i1GDFTV..GUN156..AGTSU..(H,M,S);1GDFTV..GUN156..IDNSU,INDSU,SASUV,THSUV;1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN155,16#,KUN156,165201507-201707

main27416-0L030i1GDFTV..GUN156..AGTSU..L201512-201707

DENSO

main27416-0L050i1KDFTV..KUN156;1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..(H,M,S);1GDFTV,2GDFTV,2KDFTV..GUN15#,16#,KUN165..IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201708-202104

main27416-0L050i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201708-202010

DENSO

main27416-0W050i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

main27416-33010i1GDFTV,2GDFTV..GUN156,165..AGTSU..L..LA201512-202010

BOSCH

27444PACKING, ALTERNATOR BEARING COVER

main27444-0T300i1GDFTV..GUN156..AGTSU..(H,M,S);1GDFTV,1KDFTV..GUN156,KUN156..AGTSU..(L,M)..(DCR,IART)201512-202010

DENSO

main27444-0Y180i1GDFTV..GUN156,166..6FC..IND201507-202104

main27444-21190i1GDFTV,2GDFTV..GUN15#..TH201507-202012

90105T0111

main90105-T0111

90119T0465

main90119-T0465

90178T0018

main90178-T0018

9167281045

main91672-81045

20 parts on this diagram · 10 diagrams in section
