V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1107MOUNTING

→ Go to FIG 11-07

1601WATER PUMP

→ Go to FIG 16-01

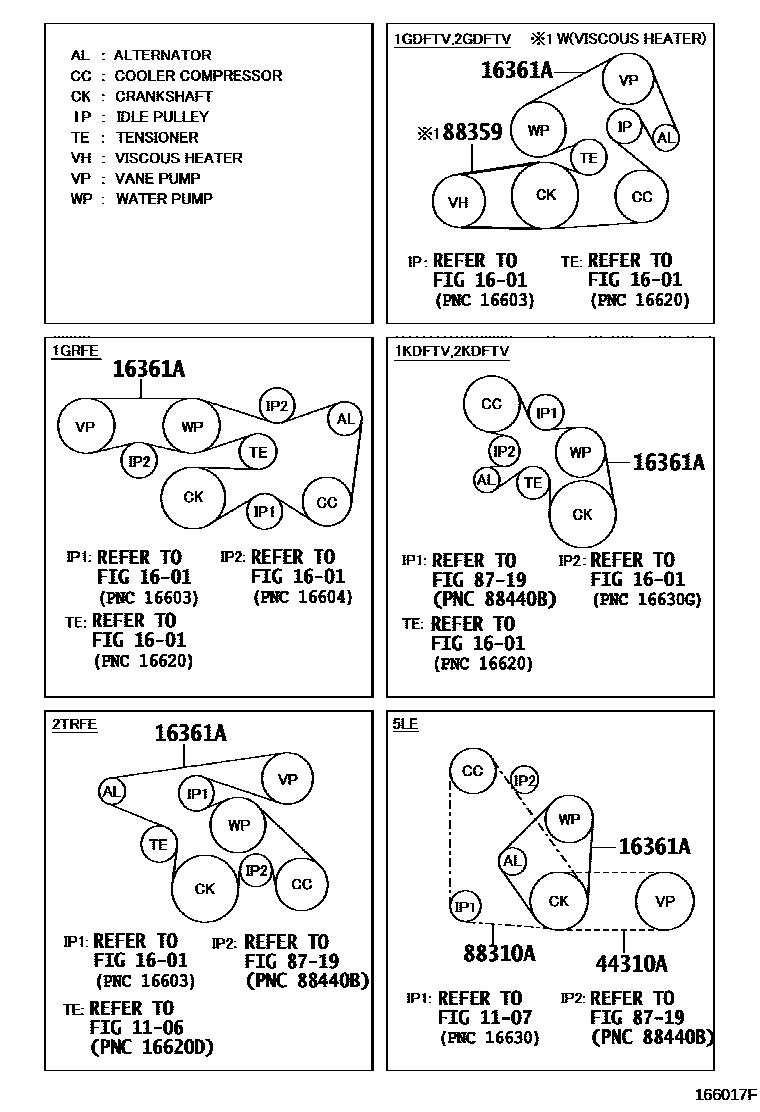

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-92016i5LE..LAN155201603-202009

main90916-02571i1GRFE..GGN155,165201512-201906

main90916-02708i2TRFE..TGN156,166..EPT,GCC201601-202101

main90916-T2006i1KDFTV,2KDFTV..KUN156,165201512-201709

main90916-T2024i2TRFE..TGN166..IND201507-202012

main90916-T2033i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

main99367-H2120i1GRFE..GGN155..EPT,LA,SA201907-202101

main90916-02707i2TRFE..TGN156..L..GEN; 2TRFE..TGN166..L..GEN201601-202007

BANDO; CS AMERICA SPEC,BANDO

44310ABELT, V(FOR VANE PUMP)

main90916-T2020iLAN155201603-202009

L=825

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-T2008iLAN155201603-202009

L=1265

88359BELT, V(FOR VISCOUS HEATER)

main88359-0K010iGUN156..THSUV..(M,S)..GEN201708-202005

8 parts on this diagram · 1 diagram in section
