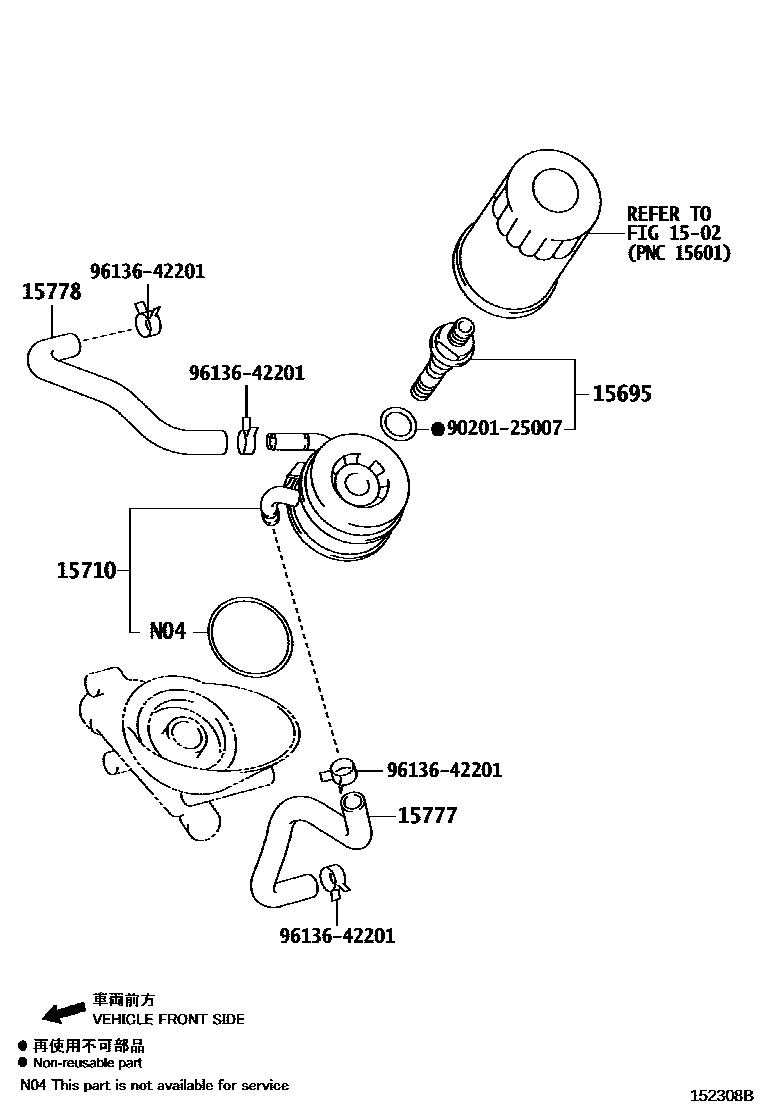

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1 0005 1

1502OIL FILTER

→ Go to FIG 15-02

15695BOLT, OIL COOLER UNION

main15695-22010i1GRFE..GGN155,165201512-202101

main15695-88411i2TRFE..TGN156,16#..6FC..(BZAGT,LA,SA); 2TRFE..TGN156,166..M..GEN201603-201812

CS AMERICA SPEC

main15726-75010i2TRFE..TGN156,16#..(AGTSU,SASUV)..6FC201812-202010

*447

15710COOLER ASSY, OIL

main15710-0L010i2KDFTV..KUN165201603-201709

main15710-0L020i1KDFTV..KUN156201512-201709

main15710-31010i1GRFE..GGN155,165201512-202101

main15710-54050i5LE..LAN155201603-202009

main15710-75040i2TRFE..TGN156,16#..6FC..(BZAGT,LA,SA)201512-201812

main15710-75050i2TRFE..TGN156,16#..(AGTSU,SASUV)..6FC201812-202010

*447

15777HOSE, OIL COOLER

main15777-0P020i1GRFE..GGN155,165201512-202101

(L)

main15777-31010i1GRFE..GGN155,165201512-202008

(J)

15778HOSE, OIL COOLER, NO.2

main15778-0P020i1GRFE..GGN155,165201512-202101

(L)

main15778-31010i1GRFE..GGN155,165201512-202008

(J)

9020125007

main90201-25007

9613642201

main96136-42201

7 parts on this diagram · 5 diagrams in section
