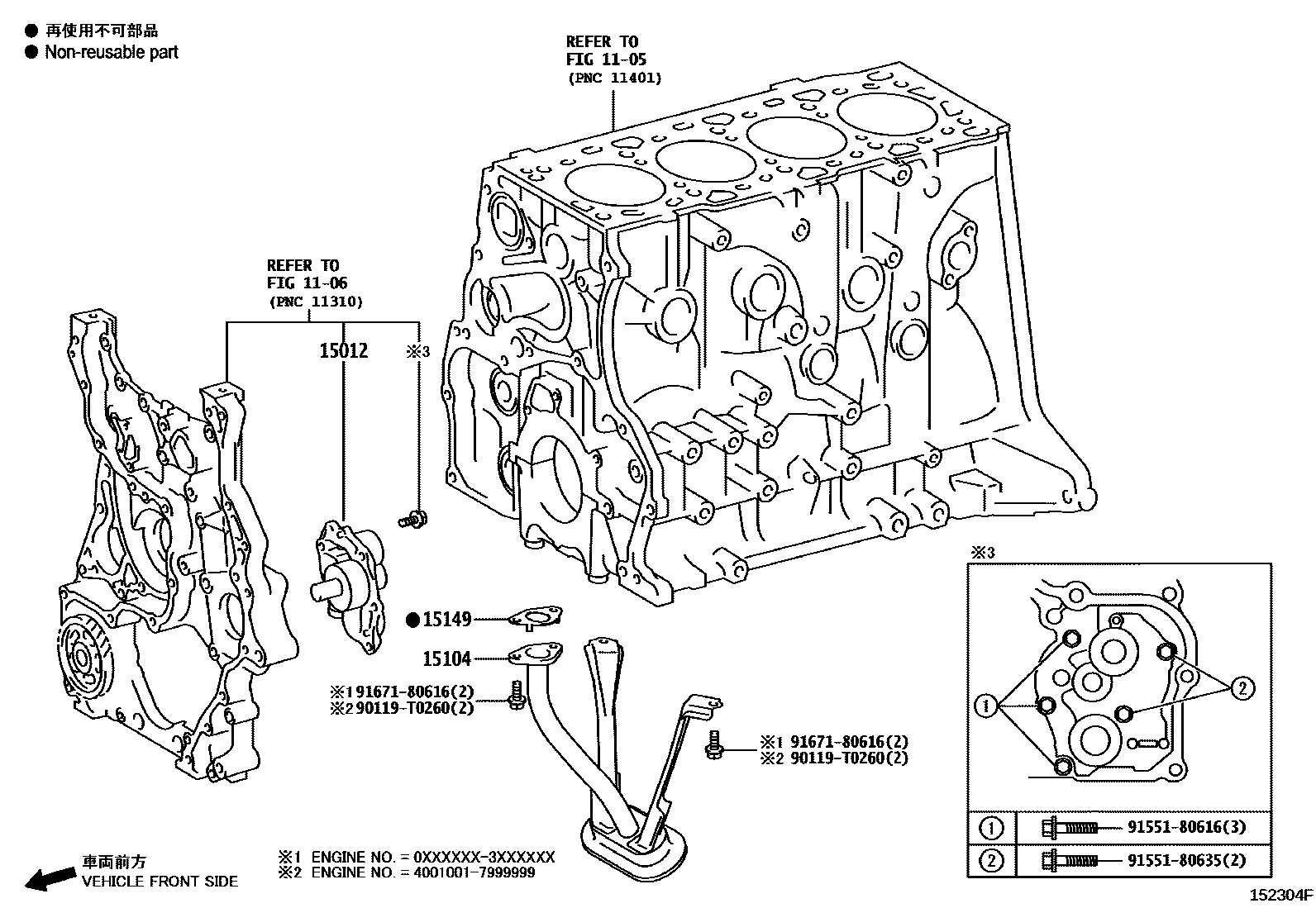

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15012COVER SUB-ASSY, OIL PUMP

main15012-0E010i1GDFTV..GUN156..AGTSU..6F..LA201706-202010

main15012-11030i2GDFTV..GUN165..S..PH;2GDFTV..GUN165..IDNSU..(L,M)..(PH,VN)201507-202004

(J)

15104STRAINER SUB-ASSY, OIL

main15104-0C050i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

main15104-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202004

THA SOURCED PARTS

main15104-0E020i1GDFTV..GUN156..L..BZAGT;1GDFTV..GUN156..AGTSU..6F..LA;1GDFTV..GUN156..6FC..S..HDCR..BZAGT201610-201911

ARG SOURCED PARTS

main15104-0E040i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,VNSUV202005-202104

THA SOURCED PARTS

main15104-0L010i1KDFTV,2KDFTV..KUN156,165201512-201709

main15104-11120supersedes 15104-0E020i2GDFTV..GUN165..S..PH;2GDFTV..GUN165..IDNSU..(L,M)..(PH,VN)201507-202004

JAPAN SOURCED PARTS

main15104-31110i1GRFE..GGN155,165201512-202101

main15104-54260i5LE..LAN155201603-202009

15149GASKET, OIL STRAINER FLANGE

main15149-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

THA SOURCED PARTS

main15149-0E020i1GDFTV..GUN156,166..IND201709-202012

IND SOURCED PARTS

main15149-0L010i1KDFTV,2KDFTV..KUN156,165201512-201709

main15149-11120i1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA201507-201809

JAPAN SOURCED PARTS

90119T0260

main90119-T0260

9155180616

main91551-80616

9155180635

main91551-80635

9167180616

main91671-80616

9 parts on this diagram · 5 diagrams in section
