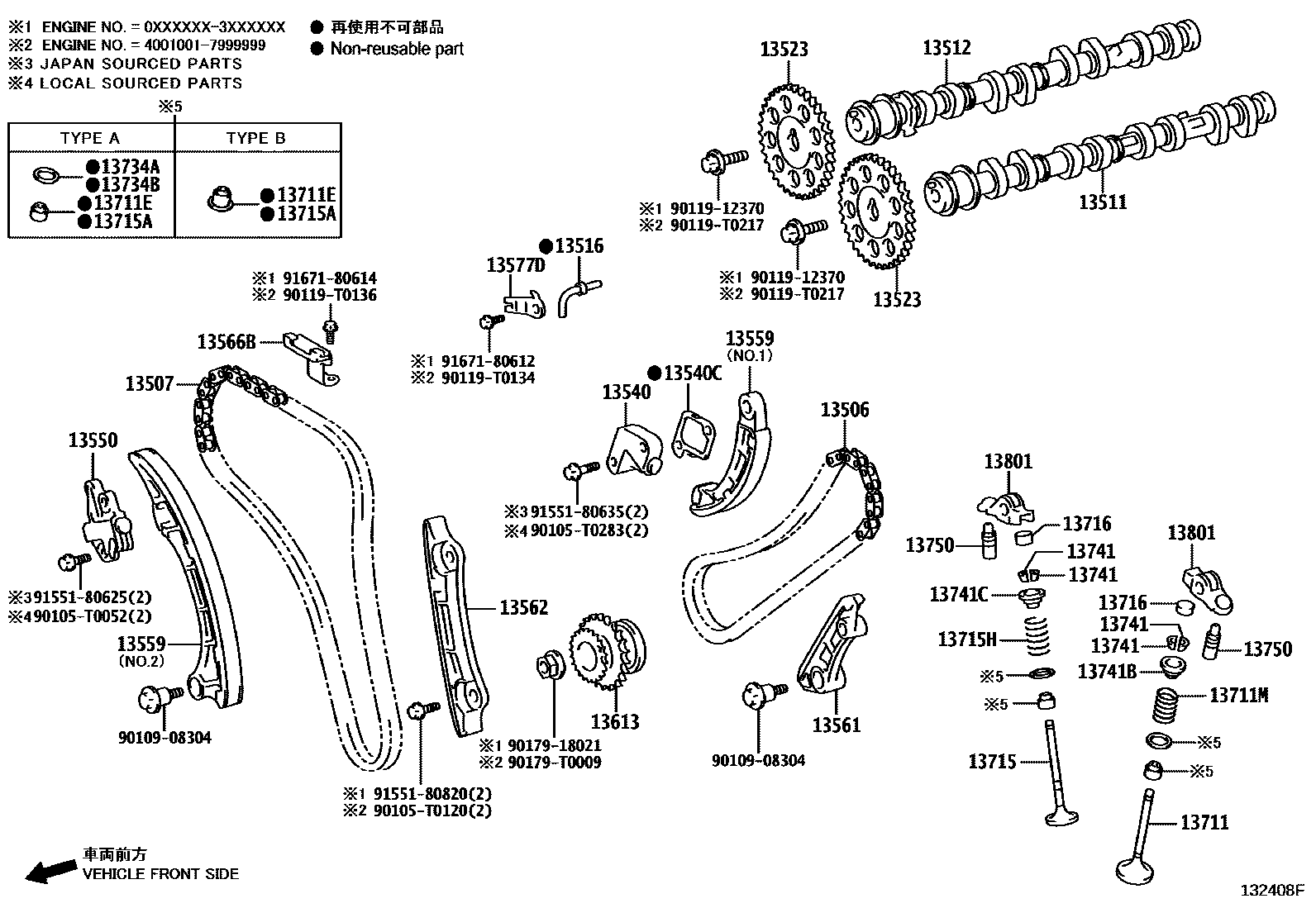

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

13506CHAIN SUB-ASSY

main13506-0C040i2TRFE..TGN166..IND201507-202104

(L)

main13506-0E010i2GDFTV..GUN165..LA;1GDFTV..GUN156..S..IART;2GDFTV..GUN165..(H,S)..GCC;1GDFTV..GUN156..IDNSU..6FC..LA;1GDFTV..GUN156..(IDNSU,THSUV)..6F201507-201809

(L)

sub13506-0E011

main13506-0E011i1GDFTV..GUN156,166..IND201809-202104

(L)

main13506-11010i1GDFTV..GUN156..(IDNSU,THSUV)..6F201507-201807

(J)

sub13506-11011

main13506-11011i2GDFTV..GUN165..IDNSU..6F..(PH,VN);2GDFTV..GUN155,165..IDNSU..6FC..(GCC,PH)201807-202008

(J)

main13506-31010i1GRFE..GGN155,165201512-202101

main13506-75070i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(J)

13507CHAIN SUB-ASSY, NO.2

main13507-0C010i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13507-0E010i1GDFTV..GUN156,166..IND201507-202104

(L)

sub13507-0E011

main13507-11010i2GDFTV..GUN155,165..IDNSU..6FC..GCC201507-202008

(J)

sub13507-11011

main13507-31010i1GRFE..GGN155,165201512-202101

main13507-75030i2TRFE..TGN166..IND201507-202104

(J)

13511CAMSHAFT

main13501-0C011i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,201512-202104

main13501-0C011i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

W/O(MARK)

main13501-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

THA SOURCED PARTS

main13501-0E020i1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)201610-202012

IND SOURCED PARTS

main13501-11070i2GDFTV..GUN165..6F..GCC;2GDFTV..GUN155..THSUV..GCC201507-202010

JAPAN SOURCED PARTS

main13501-31040i1GRFE..GGN155,165201512-202101

main13501-54090i5LE..LAN155201603-202009

main13501-75071i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

W(MARK)

13512CAMSHAFT, NO.2

main13502-0C030i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,201512-202104

main13502-0C030i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

PNC 13511=W/O(MARK)

main13502-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

THA SOURCED PARTS

main13502-0E020i1GDFTV..GUN156,166..IND201610-202012

IND SOURCED PARTS

main13502-11070i1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA201507-202010

JAPAN SOURCED PARTS

main13502-31010i1GRFE..GGN155,165201512-202101

main13502-75080i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

PNC 13511=W(MARK)

13516JET, OIL

main13516-0E010i1GDFTV..GUN156,166..IND201711-202012

(L)

main13516-11010i1GDFTV..GUN156,166..IND201507-202104

(J)

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

THA SOURCED PARTS

main13523-0E020i1GDFTV..GUN156,166..IND201610-202004

IND SOURCED PARTS

sub13523-0E030

main13523-0E030i1GDFTV..GUN156,166..IND202005-202012

IND SOURCED PARTS

main13523-11030i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)201507-202008

JAPAN SOURCED PARTS

main13523-31030i1GRFE..GGN155,165201512-202101

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0C020i2TRFE..TGN166201507-201508

(L)

sub13540-0C021

main13540-0C021i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201508-202104

(L)

main13540-0E010i1GDFTV..GUN156,166..IND201507-202104

(L)

main13540-11010i2GDFTV..GUN155,165..THSUV..GCC;2GDFTV..GUN165..IDNSU..6F..GCC201507-202008

(J)

main13540-31011i1GRFE..GGN155,165201512-202101

main13540-75040i2TRFE..TGN166201507-201508

(J)

sub13540-75041

main13540-75041i2TRFE..TGN166..IND201508-202104

(J)

13540CGASKET(FOR CHAIN TENSIONER)

main13552-0C020i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

(L),MADE IN THAILAND

main13552-0C030i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,201707-202104

(L),MADE IN IDN

main13552-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

THA SOURCED PARTS

main13552-0E020i1GDFTV..GUN156,166..IND201610-202012

IND SOURCED PARTS

main13552-11010i2GDFTV..GUN155,165..THSUV..GCC;2GDFTV..GUN165..IDNSU..6F..GCC201507-202008

JAPAN SOURCED PARTS

main13552-75030i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(J)

13550TENSIONER ASSY, CHAIN, NO.2

main13550-0C020i2TRFE..TGN166..IND201507-202104

(L)

main13550-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13550-11010i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)201507-202008

(J)

main13550-31010i1GRFE..GGN155,165201512-202101

main13550-75010i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(J)

13559SLIPPER, CHAIN TENSIONER

main13559-0C040i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13559-0E010i1GDFTV..GUN156,166..IND201507-202104

(L),NO.2

main13559-0E020i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L),NO.1

main13559-11010i2GDFTV..GUN155,165..LHD..IDNSU..6FC..(GEN,VN)201507-202008

(J),NO.2

main13559-11020i2GDFTV..GUN155,165..THSUV..GCC;2GDFTV..GUN165..IDNSU..6F..GCC201507-202008

(J),NO.1

main13559-31010i1GRFE..GGN155,165201512-202101

main13559-75060i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(J)

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-0C040i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13561-0E010i1GDFTV..GUN156..S..IART;2GDFTV..GUN165..(H,S)..GCC;1GDFTV..GUN156..IDNSU..6FC..LA;2GDFTV..GUN165..RHD..S..(GEN,TH);1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,201507-201906

(L)

sub13561-0E011

main13561-0E011i1GDFTV..GUN156,166..IND201906-202104

(L)

main13561-11010i2GDFTV..GUN165..LA201809-201904

PERU SPEC,(J)

sub13561-11011

main13561-11010i2GDFTV..GUN155,165..LHD..6FC..(GEN,VN)201507-201904

(J)

sub13561-11011

main13561-11011i2GDFTV..GUN155,165..LHD..IDNSU201905-202008

(J)

main13561-31010i1GRFE..GGN155,165201512-202101

main13561-75060i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(J)

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-0C010i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13562-0E010i1GDFTV..GUN156,166..IND201507-202104

(L)

main13562-11010i2GDFTV..GUN155,165..THSUV..GCC;2GDFTV..GUN165..IDNSU..6F..GCC201507-202008

(J)

main13562-31010i1GRFE..GGN155,165201512-202101

main13562-75010i2TRFE..TGN166..IND201507-202104

(J)

13566BGUIDE, TIMING CHAIN

main13566-0C020i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13566-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13566-11030i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)201507-202008

(J)

main13566-75020i2TRFE..TGN166..IND201507-202104

(J)

13577DPLATE, LOCK

main13577-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

THA SOURCED PARTS

main13577-0E020i1GDFTV..GUN156,166..IND201610-202012

IND SOURCED PARTS

main13577-11010i2GDFTV..GUN155,165..THSUV..GCC;2GDFTV..GUN165..IDNSU..6F..GCC201507-202008

JAPAN SOURCED PARTS

13613GEAR, INJECTION PUMP DRIVE

main13616-0E010i1GDFTV..GUN156,166..IND201507-201908

THA SOURCED PARTS

sub13616-0E011

main13616-0E011i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201909-202104

THA SOURCED PARTS

main13616-0E020i1GDFTV..GUN156,166..IND201801-201810

IND SOURCED PARTS

sub13616-0E021

main13616-0E021i1GDFTV..GUN156,166..IND;1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)201811-202012

IND SOURCED PARTS

main13616-11020i2GDFTV..GUN165..S..PH;2GDFTV..GUN165..IDNSU..(L,M)..(PH,VN)201604-202008

JAPAN SOURCED PARTS

13711VALVE, INTAKE

main13711-0C040i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,201512-202104

MARK=2T,N

main13711-0C051i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

MARK=2T,T

main13711-0C080i2TRFE..TGN168201607-202010

main13711-0E010i1GDFTV..GUN156,166..IND201507-202104

THA SOURCED PARTS

main13711-0E020i1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)201801-202012

IND SOURCED PARTS

main13711-0L010i2KDFTV..KUN165201603-201709

main13711-0L020i1KDFTV..KUN156201512-201709

main13711-11030i2GDFTV..GUN155,165..IDNSU..6FC..GCC201507-202008

JAPAN SOURCED PARTS

main13711-31071i1GRFE..GGN155,165201512-202101

main13711-54030i5LE..LAN155201603-202009

main13711-75110i2TRFE..TGN166..IND201507-202104

MARK=2T

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31099i1KDFTV,2KDFTV..KUN156,165201512-201709

main90913-02101i1GRFE..GGN155,165201512-202101

main90913-02110i5LE..LAN155201603-202009

TYPE A:REFER ILLUST.

main90913-02117i5LE..LAN155201603-202009

TYPE B:REFER ILLUST.

main90913-02129i1GDFTV..GUN156..6FC..ARL;2GDFTV..GUN165..GEN,IDN,MA,PH,SA,VN;2GDFTV..GUN165..6FC..(L,M)..(GCC,TH);1GDFTV,2GDFTV..GUN15#,166..GCC,GEN,IDN,MA,PH,PKN,SA,TH,VN201507-201908

TYPE A:REFER ILLUST.

main90913-02130i2GDFTV..GUN155..IDNSU..GCC;2GDFTV..GUN165..IDNSU..6FC..L201801-202008

(J),TYPE B:REF ILL.

main90913-T2006i1GDFTV..GUN156,166..IND;1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)201810-202012

TYPE B:REFER ILLUST.

main90913-T2006i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201809-202104

(L),TYPE B:REF ILL.

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90080-50404i1KDFTV,2KDFTV..KUN156,165201512-201709

main90501-29063i1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA201507-202008

(J)

main90501-T0043i1GDFTV..GUN156,166..IND201610-202012

main90501-T0043i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

13715VALVE, EXHAUST

main13715-0C040i2TRFE..TGN166..IND201512-202104

MARK=2T,N

main13715-0C051i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

MARK=2T,T

main13715-0E010i1GDFTV..GUN156,166..IND201507-202104

THA SOURCED PARTS

main13715-0E020i1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)201801-202012

IND SOURCED PARTS

main13715-0L010i2KDFTV..KUN165201603-201709

main13715-0L020i1KDFTV..KUN156201512-201709

main13715-11050i2GDFTV..GUN155,165..THSUV..GCC;2GDFTV..GUN165..IDNSU..6F..GCC201507-202008

JAPAN SOURCED PARTS

main13715-31091i1GRFE..GGN155,165201512-202101

main13715-54050i5LE..LAN155201603-202009

main13715-75130i2TRFE..TGN168201607-202010

main13715-75140i2TRFE..TGN156,166..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

MARK=8

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31099i1KDFTV,2KDFTV..KUN156,165201512-201709

main90913-02110i5LE..LAN155201603-202009

TYPE A:REFER ILLUST.

main90913-02112i1GRFE..GGN155,165201512-202101

main90913-02117i5LE..LAN155201603-202009

TYPE B:REFER ILLUST.

main90913-02129i1GDFTV..GUN156,166..IND201507-201908

TYPE A:REFER ILLUST.

main90913-02130i1GDFTV..GUN156..LHD..6F..SA;1GDFTV..GUN156..AGTSU..6FC..LA;2GDFTV..GUN155..6FC..(GEN,IDN,MA,SA);2GDFTV..GUN165..(M,S)..(GEN,IDN,MA,VN);1GDFTV..GUN156..6FC..(H,L)..(201801-202008

(J),TYPE B:REF ILL.

main90913-T2006i1GDFTV..GUN156,166..IND;1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)201810-202012

TYPE B:REFER ILLUST.

main90913-T2006i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201809-202104

(L),TYPE B:REF ILL.

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90080-50404i1KDFTV,2KDFTV..KUN156,165201512-201709

main90501-29063i2GDFTV..GUN155,165..LHD..IDNSU..6FC..(GEN,VN)201507-202008

(J)

main90501-T0043i1GDFTV..GUN156..THSUV..(L,M,S)..(ARL,GEN)201610-202012

main90501-T0043i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

13716CAP, VALVE STEM

main13716-0C010i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

*163,(L)

main13716-0C020i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,LA,MA,PKN,SA,VN);2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,I201512-202002

*447,(L)

sub13716-0C030

main13716-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13716-33010i1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..RHD..6F..SA;1GDFTV,2GDFTV..GUN155,16#..6F..SA201507-202008

(J)

main13716-75020i2TRFE..TGN166..IND201507-202104

(J)

13734SEAT, VALVE SPRING

main13734-0C010i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13734-62020i1GRFE..GGN155,165201512-202101

main13734-62020i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(J)

13734ASEAT, INTAKE VALVE SPRING

main13734-33020i1GDFTV..GUN156,166..IND201610-201810

main13734-33020i1GDFTV..GUN156..6FC..ARL;2GDFTV..GUN165..GEN,IDN,MA,PH,SA,VN;2GDFTV..GUN165..6FC..(L,M)..(GCC,TH);1GDFTV,2GDFTV..GUN15#,166..GCC,GEN,IDN,MA,PH,PKN,SA,TH,VN201507-201908

TYPE A:REFER ILLUST.

13734BSEAT, EXHAUST VALVE SPRING

main13734-33020i1GDFTV..GUN156..6FC..ARL;2GDFTV..GUN165..GEN,IDN,MA,PH,SA,VN;2GDFTV..GUN165..6FC..(L,M)..(GCC,TH);1GDFTV,2GDFTV..GUN15#,166..GCC,GEN,IDN,MA,PH,PKN,SA,TH,VN201507-201908

TYPE A:REFER ILLUST.

main13734-33020i1GDFTV..GUN156,166..IND201610-201810

13741RETAINER, VALVE SPRING

main13741-0C030i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L),MADE IN IDN

main13741-0Y010i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,201804-202104

(L),MADE IN THAILAND

main13741-20021i1GRFE..GGN155,165201512-202101

main13741-36010i2TRFE..TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(J)

main13741-54020i5LE..LAN155201603-202009

main90913-03021i1GDFTV..GUN156,166..IND201507-202104

13741BRETAINER, INTAKE VALVE SPRING

main13741-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13741-0E010i1GDFTV..GUN156,166..IND201610-202012

main13741-0L010i1KDFTV,2KDFTV..KUN156,165201512-201709

main13741-33020i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(J)

13741CRETAINER, EXHAUST VALVE SPRING

main13741-0E010i1GDFTV..GUN156,166..IND201610-202012

main13741-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13741-0L010i1KDFTV,2KDFTV..KUN156,165201512-201709

main13741-33020i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(J)

13750ADJUSTER ASSY, VALVE LASH

main13750-0C030i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

*163,(L)

main13750-0C040i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,201512-202104

*447,(L)

main13750-0E010i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

main13750-21010i2TRFE..TGN166..IND201507-202104

(J)

main13750-26010i1GDFTV..GUN156..(IDNSU,THSUV)..6F;2GDFTV..GUN155,165..(THSUV,VNSUV)..(TH,VN)201507-202008

(J)

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0C020i2TRFE..TGN156,166..THSUV..(GCC,TH)201507-202005

*163,(L)

main13801-0C030i2TRFE..TGN156..5F;2TRFE..TGN166..THSUV..5F;2TRFE..TGN156..IDNSU..6FC..GCC;2TRFE..TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,VNSUV;2TRFE..TGN156..6FC..(BZAGT,EPT,GEN,KZS,201512-202104

*447,(L)

main13801-0E010i1GDFTV,2GDFTV..GUN15#,16#201507-201902

(L)

sub13801-0E011

main13801-0E011i2GDFTV..GUN165..RHD..S..(GEN,TH);2GDFTV..GUN155,165..LHD..6F..(GCC,SA)201903-201906

(L)

sub13801-0E012

main13801-0E012i1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201906-202104

(L)

main13801-11010i2GDFTV..GUN165..LA201809-201901

PERU SPEC,(J)

sub13801-11011

main13801-11010i2GDFTV..GUN165..LA201507-201901

(J)

sub13801-11011

main13801-11011i2GDFTV..GUN155..GCC,TH;2GDFTV..GUN155..H..GEN;2GDFTV..GUN165..GCC,GEN,PH,TH,VN201902-201904

(J)

sub13801-11012

main13801-11011i2GDFTV..GUN155..GCC,TH;2GDFTV..GUN155..H..GEN;2GDFTV..GUN165..GCC,GEN,PH,TH,VN201902-201904

PERU SPEC,(J)

sub13801-11012

main13801-11012i2GDFTV..GUN155,165..LHD..IDNSU201905-202008

(J)

main13801-36020i2TRFE..TGN166..IND201507-202104

(J)

90105T0052

main90105-T0052

90105T0120

main90105-T0120

90105T0283

main90105-T0283

9010908304

main90109-08304

9011912370

main90119-12370

90119T0134

main90119-T0134

90119T0136

main90119-T0136

90119T0217

main90119-T0217

9017918021

main90179-18021

90179T0009

main90179-T0009

9155180625

main91551-80625

9155180635

main91551-80635

9155180820

main91551-80820

9167180612

main91671-80612

9167180614

main91671-80614

45 parts on this diagram · 6 diagrams in section
