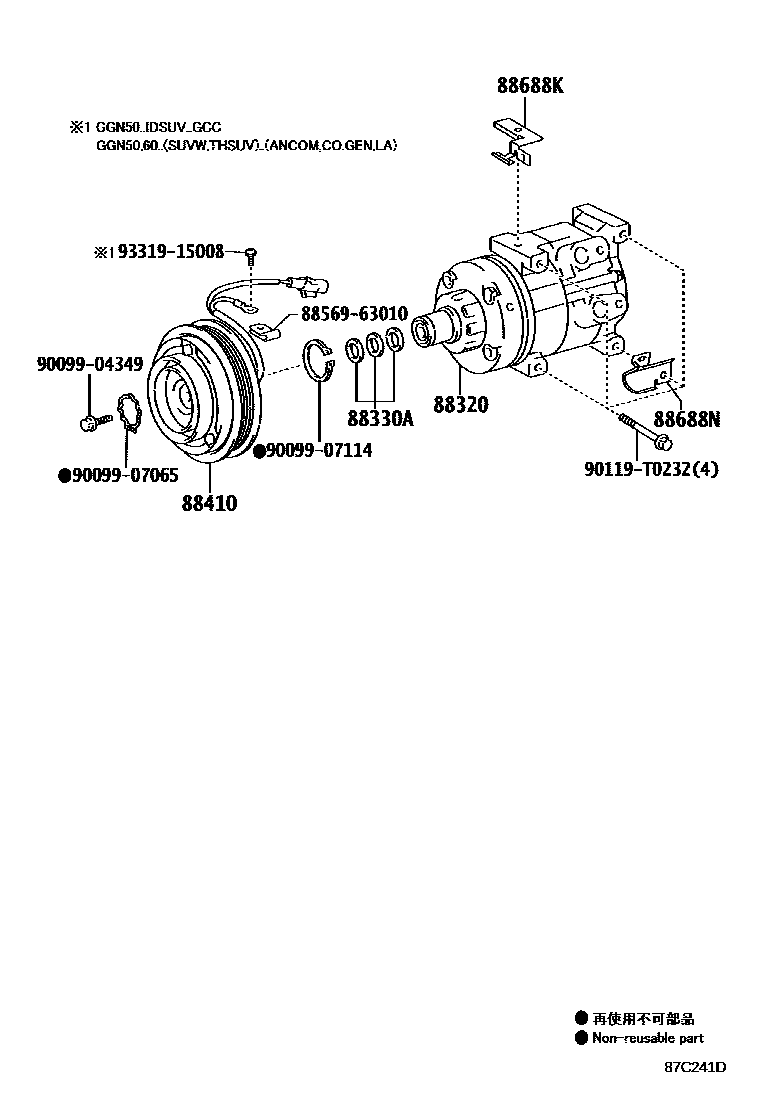

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

88320COMPRESSOR ASSY, COOLER

main88320-0K090iKUN51,60..IDSUV201107-201209

main88320-0K110iTGN51,61..IDSUV..(IDN,PHL)201107-201209

main88320-0K170iGGN50..EPT,GCC201107-201612

main88320-0K330iTGN51,61..SUVW..(EPT,GCC)201107-201612

main88320-0K390iKUN51..SUVW..SR..(CO,LA)201110-201510

main88320-0K400iGGN50,60,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main88320-0K410iKUN51..DLX201204-201510

main88320-0K470iKUN5#,60..IDSUV201209-201510

main88320-0K490iTGN51,61..IDSUV..(GEN,IDN,PHL)201209-201510

main88320-0K600iTGN51,61..GCC201402-201510

main88320-0K360iTGN61..HTWCF201110-201510

AIR CONDITIONER-SINGLE AIR CONDITIONER

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iTGN51,61..IDSUV..(IDN,PHL)201107-201209

main88335-30420iKUN50;KUN51,60..IDSUV;TGN51..SUVW..IDN;TGN61..IDSUV..GEN;TGN51..GEN,KZS,MA,PKN,VN;TGN61..SUVW..(GEN,IDN,PHL,VN)201107-201703

88410CLUTCH ASSY, MAGNET

main88410-0K030iGGN50,TGN51,61..EPT,GCC201107-201612

main88410-0K090iTGN51,61..VN201107-201611

main88410-0K100iKUN51..IDSUV..LA;KUN5#,6#..(IDSUV,SUVW,THSUV)..(GEN,IDN,MA,PHL,TH,VN)201107-201611

main88410-0K200iKUN51,6#..IND201201-201608

main88410-0K310iKUN51..SUVW..(CO,LA)201110-201510

main88410-0K320iTGN51,61..HTWC..(CO,LA)201110-201510

main88410-0K340iGGN50,60..ANCOM,CO,GEN,LA201107

main88410-0K560iTGN61..HTWCF201110-201510

88688KBRACKET, COOLER COMPRESSOR

main88688-0K090iTGN51,61..VN201107-201611

main88688-0K100iKUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)201107-201611

main88688-0K110iKUN5#,60..IDSUV201107-201510

main88688-0K120iKUN51..SUVW..(CO,LA)201110-201510

main88688-0K130iKUN51,6#..IND201201-201608

main88688-0K140iKUN51,6#..SA;KUN51..SASUV201108-201512

main88688-0K170iKUN50..MA201109-201601

main88688-0K190iGGN50..(SUVW,THSUV)..(EPT,GCC,GEN)201107-201612

main88688-0K200iGGN50,60..SA201108-201512

main88688-0K210iGGN50,60..ANCOM201204

main88688-0K280iTGN51,61..CO,EPT,GCC,LA201107-201612

main88688-0K590iGGN50..IDSUV201107-201510

main88688-0K610iGGN50..SUVW..(CO,LA)201110-201510

88688NBRACKET, COOLER

main88688-0K430iGGN50..EPT,GCC201107-201612

8856963010CLAMP (FOR COOLER RELAY)

main88569-63010

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

90119T0232

main90119-T0232

9331915008

main93319-15008

11 parts on this diagram · 9 diagrams in section
