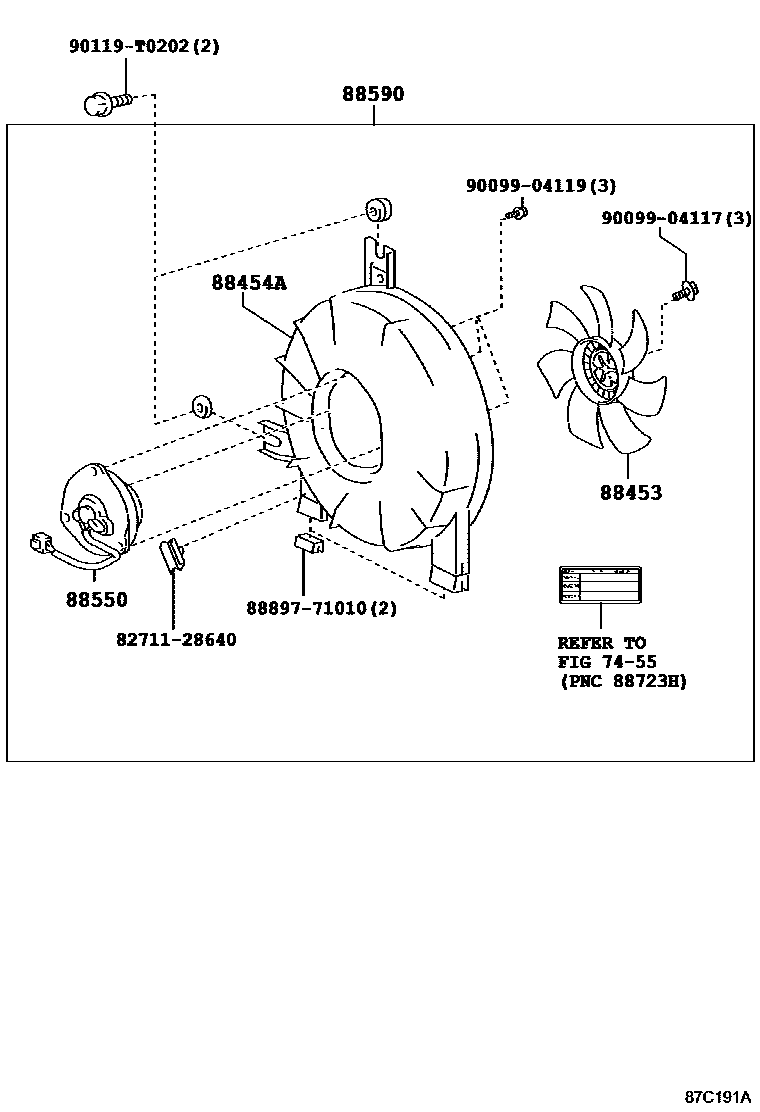

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FUN SHROUD 0003 1FUN SHROUD 0004 1FRONT(DUAL AIR CONDITIONER) 0006 1FRONT(DUAL AIR CONDITIONER) 0008 1FRONT(DUAL AIR CONDITIONER) 0010 1FRONT(DUAL AIR CONDITIONER) 0011 1FRONT(DUAL AIR CONDITIONER) 0013 1FRONT(DUAL AIR CONDITIONER) 0015 1FRONT(DUAL AIR CONDITIONER) 0016 1FRONT(DUAL AIR CONDITIONER) 0017 1FRONT(DUAL AIR CONDITIONER) 0019 1FRONT(DUAL AIR CONDITIONER) 0020 1FRONT(DUAL AIR CONDITIONER) 0022 1FRONT(DUAL AIR CONDITIONER) 0023 1FRONT(DUAL AIR CONDITIONER) 0024 1FRONT(DUAL AIR CONDITIONER) 0025 1FRONT(DUAL AIR CONDITIONER) 0026 1FRONT(DUAL AIR CONDITIONER) 0028 1FRONT(DUAL AIR CONDITIONER) 0029 1FRONT(DUAL AIR CONDITIONER) 0030 1FRONT(DUAL AIR CONDITIONER) 0031 1FRONT(SINGLE AIR CONDITIONER)0033 1REAR 0034 1REAR 0035 1REAR 0037 1O-RING

7455CAUTION PLATE

→ Go to FIG 74-55

88453FAN, COOLING (FOR CONDENSER)

main88453-60010iGGN50,TGN51,61..EPT,GCC201107-201612

88454ASHROUD, FAN

main88454-0K010iGGN50,TGN51,61..EPT,GCC201107-201612

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12160iGGN50,TGN51,61..EPT,GCC201107-201612

88590BLOWER ASSY, W/SHROUD

main88590-0K010iGGN50,TGN51,61..SUVW..(EPT,GCC)201107-201612

main88590-0K030iGGN50,TGN51,61..IDSUV..GCC201107-201510

8271128640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-28640

8889771010VALVE, COOLER MAGNET

main88897-71010

9009904117

main90099-04117

9009904119

main90099-04119

90119T0202

main90119-T0202

10 parts on this diagram · 26 diagrams in section
