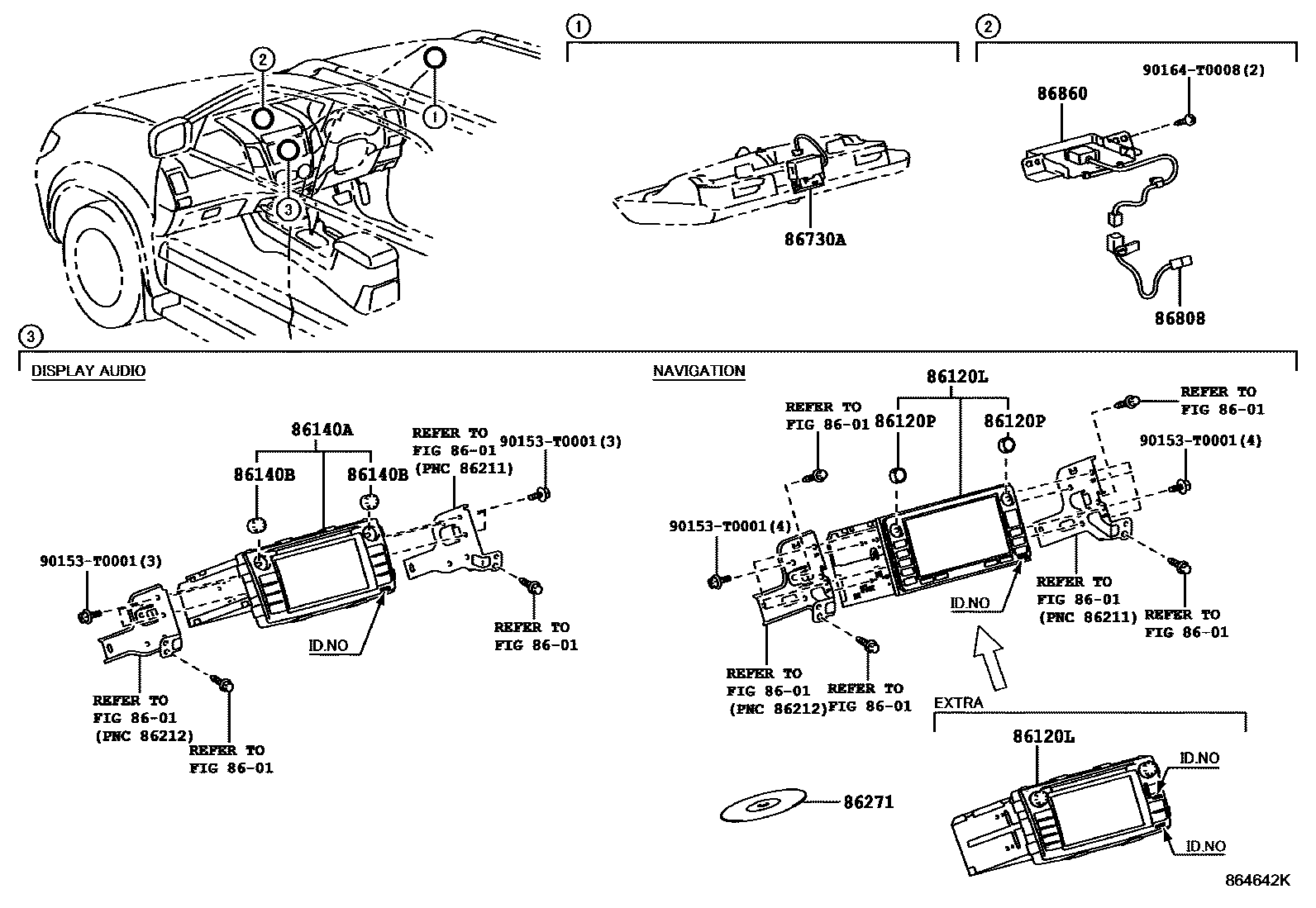

NAVIGATION & FRONT MONITOR DISPLAY
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86120LRECEIVER ASSY, NAVIGATION
FUJITSU TEN,ID100485
PIONEER,ID=P10130,AUDIO-AVN(EXTRA) & CD & 6SPEAKER & FOR BRAZIL
PIONEER,AUDIO-AVN(EXTRA) & DVD & 6SPEAKER & FOR ASIA; PIONEER,MULTI INFORMATION DISPLAY-WITH&AUDIO-AVN(EXTRA) & DVD & 6SPEAKER & FOR ASIA
AISHIN AW,AUDIO-AVN & DVD & *BT & 6SPEAKER
PIONEER,ID=10489,AUDIO-AVN(EXTRA) & DVD & 6SPEAKER
PIONEER,ID=P10491,AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL
PIONEER,ID=P10492,AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA
86120PKNOB, NAVIGATION RECEIVER SWITCH
AUDIO-AVN & DVD & *BT & 6SPEAKER
AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA; AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL
AUDIO-AVN(EXTRA) & DVD & 6SPEAKER
86140ARECEIVER ASSY, RADIO & DISPLAY
PANASONIC,ID=57023
PANANONIC,ID=57025
main86140-0K100iKUN51..THSUV;TGN61..4FC..HTWC..LA;KUN51..SUVW..SR..(CO,LA);GGN50..(SUVW,THSUV)..(CO,GEN,LA)201107-201310
PANASONIC,ID=57026
PANASONIC,ID=57028; PANASONIC,ID=57028,AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
PANASONIC,ID=57018
PANASONIC,ID=57019
PANASONIC,ID=57021
PANASONIC,ID=57022
PIONEER,ID=P10493; PIONEER,ID=P10493,AUDIO-*DA(EXTRA) & DVD & 6SPEAKER
PIONEER,ID=P10495
PIONEER,ID=P10498
PIONEER,ID=P10500
main86140-0K391iGGN50..CO;TGN61..4FC..HTWC..LA;KUN51..LHD..(SASUV,SUVW)..SR..(CO,GEN,LA)201310-201512
PIONEER,ID=P10505
PIONEER,ID=P10496
PIONEER,ID=P10506; PIONEER,ID=P10506,COLOMBIA SPEC&AUDIO-*DA(EXTRA) & DVD & 6SPEAKER; PIONEER,ID=P10506,ECUADOR SPEC&AUDIO-*DA(EXTRA) & DVD & 6SPEAKER
FUJITSU TEN,ID100320; FUJITSU TEN,ID100320,AUDIO-*DA(EXTRA) & CD & 6SPEAKER
PANASONIC,ID=57024,AUDIO-*DA(EXTRA) & CD & 6SPEAKER
PANASONIC,ID=57020,BRUNEI SPEC&AUDIO-*DA(EXTRA) & DVD & 6SPEAKER; PANASONIC,ID=57020,SINGAPORE SPEC&AUDIO-*DA(EXTRA) & DVD & 6SPEAKER
CS AMERICA SPEC
PIONEER,ID=P10502,AUDIO-*DA(EXTRA) & DVD & 6SPEAKER
FUJITSU TEN,ID100251,AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
PIONEER,ID=P10494,BRUNEI SPEC&AUDIO-*DA(EXTRA) & DVD & 6SPEAKER; PIONEER,ID=P10494,SINGAPORE SPEC&AUDIO-*DA(EXTRA) & DVD & 6SPEAKER
PIONEER,ID=P10499,AUDIO-*DA(EXTRA) & DVD & 6SPEAKER
PIONEER,ID=P10504,CS AMERICA SPEC&AUDIO-*DA(EXTRA) & DVD & 6SPEAKER
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
main90011-25189×2supersedes 90011-25271iKUN51..LHD..SASUV;KUN51..RHD..5F..SA;TGN61..4FC..HTWC..LA;KUN51..SUVW..5F..(CO,LA);GGN50,60,KUN61..SUVW..(CO,EPT,LA,SA);KUN51..SUVW..(4FC,5FC)..SR..(CO,LA,SA); LAN50,TGN51..SA;GGN50,KUN51..LHD..SUVW..(GCC,SA)201107-201310
AUDIO-*DA(EXTRA) & CD & 6SPEAKER
AUDIO-*DA(EXTRA) & CD & 6SPEAKER
AUDIO-*DA(EXTRA) & CD & 6SPEAKER
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
86271DISC, DISC PLAYER
AUDIO-AVN(EXTRA) & DVD & 6SPEAKER
AUDIO-AVN(EXTRA) & CD & 6SPEAKER & FOR BRAZIL
AUDIO-AVN(EXTRA) & CD & 6SPEAKER & FOR BRAZIL
AUDIO-AVN(EXTRA) & CD & 6SPEAKER & FOR BRAZIL
AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL
AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL
AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL
AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA
AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA
AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA
AUDIO-AVN & DVD & *BT & 6SPEAKER
86730AMICROPHONE ASSY, TELEPHONE
86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1
AUDIO-AVN(EXTRA) & CD & 6SPEAKER & FOR BRAZIL
AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS
AUDIO-AVN(EXTRA) & DVD & 6SPEAKER
AUDIO-AVN & DVD & *BT & 6SPEAKER
AUDIO-AVN(EXTRA) & DVD & 6SPEAKER & FOR ASIA
86860ANTENNA ASSY, NAVIGATION
AUDIO-AVN & DVD & *BT & 6SPEAKER
90153T0001
main90153-T0001
90164T0008
main90164-T0008
11 parts on this diagram · 2 diagrams in section
