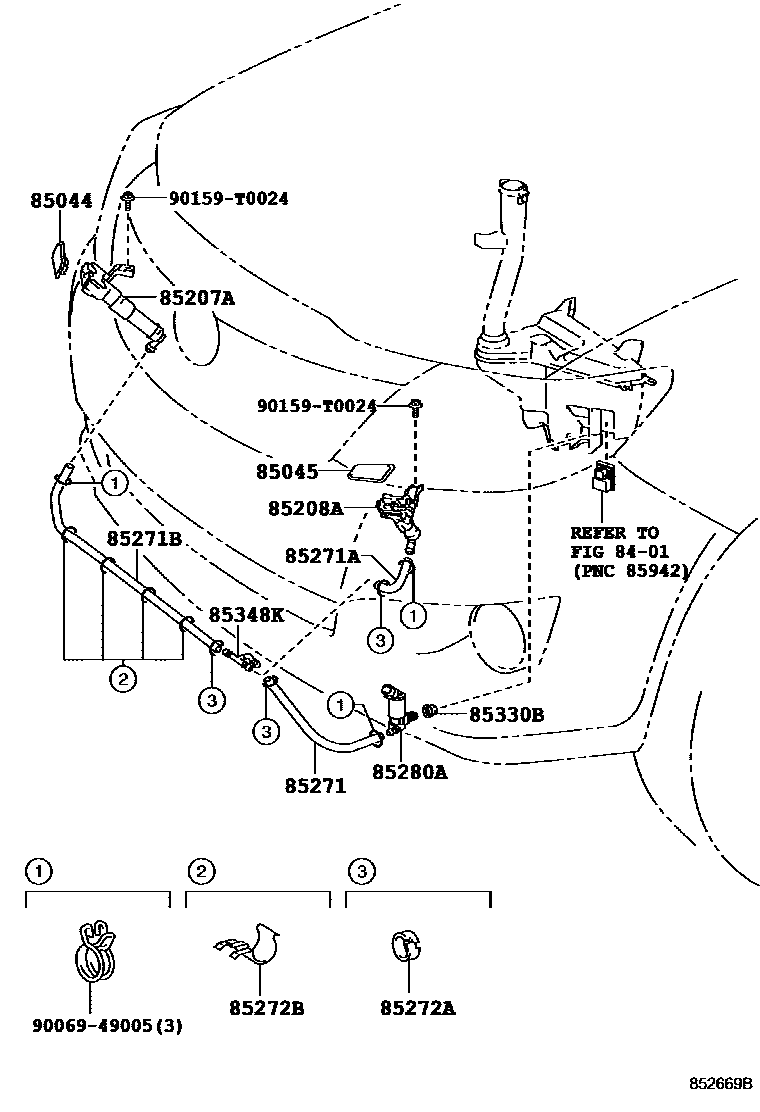

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
main85046-71030iGGN50..CO,LA;KUN51..IDSUV;GGN50..IDSUV..GCC;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;TGN61..4FC..HTWC..LA; KUN60..LHD..GEN;KUN60..SUVW..PHL;TGN61..IDSUV..GEN;TGN61..SUVW..(GEN,PHL)201107-201510
HEADLAMP-DISCHARGE
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
main85047-71030iGGN50..CO,LA;KUN51..IDSUV;GGN50..IDSUV..GCC;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;TGN61..4FC..HTWC..LA; KUN60..LHD..GEN;KUN60..SUVW..PHL;TGN61..IDSUV..GEN;TGN61..SUVW..(GEN,PHL)201107-201510
HEADLAMP-DISCHARGE
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
main85207-0K030iGGN50..CO,LA;KUN51..IDSUV;GGN50..IDSUV..GCC;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;TGN61..4FC..HTWC..LA; KUN60..LHD..GEN;KUN60..SUVW..PHL;TGN61..IDSUV..GEN;TGN61..SUVW..(GEN,PHL)201107-201510
HEADLAMP-DISCHARGE
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
main85208-0K030iGGN50..CO,LA;KUN51..IDSUV;GGN50..IDSUV..GCC;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;TGN61..4FC..HTWC..LA; KUN60..LHD..GEN;KUN60..SUVW..PHL;TGN61..IDSUV..GEN;TGN61..SUVW..(GEN,PHL)201107-201510
HEADLAMP-DISCHARGE
85271HOSE, HEADLAMP CLEANER, NO.1
main85277-0K030iGGN50..CO,LA;KUN51..IDSUV;GGN50..IDSUV..GCC;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;TGN61..4FC..HTWC..LA; KUN60..LHD..GEN;KUN60..SUVW..PHL;TGN61..IDSUV..GEN;TGN61..SUVW..(GEN,PHL)201107-201510
HEADLAMP-DISCHARGE
85271AHOSE, HEADLAMP CLEANER, NO.2
main85276-0K030iGGN50..CO,LA;KUN51..IDSUV;GGN50..IDSUV..GCC;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;TGN61..4FC..HTWC..LA; KUN60..LHD..GEN;KUN60..SUVW..PHL;TGN61..IDSUV..GEN;TGN61..SUVW..(GEN,PHL)201107-201510
HEADLAMP-DISCHARGE
85271BHOSE, HEADLAMP CLEANER, NO.3
main85275-0K030iGGN50..CO,LA;KUN51..IDSUV;GGN50..IDSUV..GCC;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;TGN61..4FC..HTWC..LA; KUN60..LHD..GEN;KUN60..SUVW..PHL;TGN61..IDSUV..GEN;TGN61..SUVW..(GEN,PHL)201107-201510
HEADLAMP-DISCHARGE
85272ACLAMP, HEADLAMP CLEANER, NO.1
main85273-20020×3iGGN50..CO,LA;KUN51..IDSUV;GGN50..IDSUV..GCC;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;TGN61..4FC..HTWC..LA; KUN60..LHD..GEN;KUN60..SUVW..PHL;TGN61..IDSUV..GEN;TGN61..SUVW..(GEN,PHL)201107-201510
HEADLAMP-DISCHARGE
85272BCLAMP, HEADLAMP CLEANER, NO.2
main90075-90509×4iGGN50..CO,LA;KUN51..IDSUV;GGN50..IDSUV..GCC;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;TGN61..4FC..HTWC..LA; KUN60..LHD..GEN;KUN60..SUVW..PHL;TGN61..IDSUV..GEN;TGN61..SUVW..(GEN,PHL)201107-201510
HEADLAMP-DISCHARGE
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
main85279-0K030iGGN50..CO,LA;KUN51..IDSUV;GGN50..IDSUV..GCC;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;TGN61..4FC..HTWC..LA; KUN60..LHD..GEN;KUN60..SUVW..PHL;TGN61..IDSUV..GEN;TGN61..SUVW..(GEN,PHL)201107-201510
HEADLAMP-DISCHARGE
9006949005
main90069-49005
90159T0024
main90159-T0024
15 parts on this diagram · 1 diagram in section
