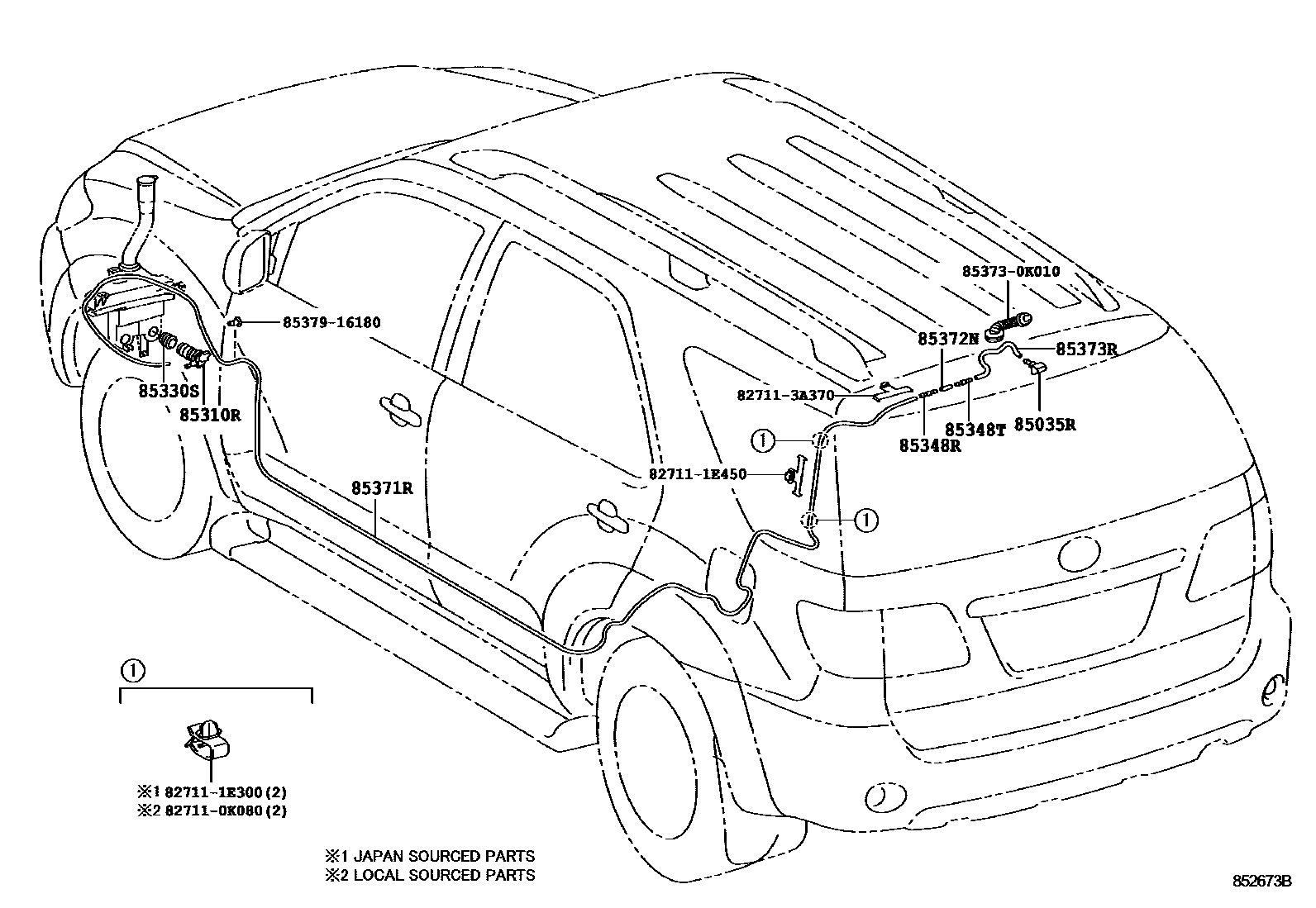

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-0K020iGGN50,TGN51..EPT201107-201612

main85391-52010iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

85310RMOTOR ASSY, REAR WASHER

main85330-60160iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH201107

85330SBUSH, REAR WASHER JAR

main85336-0K020iGGN50,TGN51..EPT201107-201612

main85336-0K140iKUN50,TGN51..MA201110-201601

main85336-60300iKUN51,6#..(5F,5FC)..IND201107-201608

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main85375-02330iGGN50,TGN51..EPT201107-201612

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iKUN51,6#..(5F,5FC)..IND201107-201608

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90068-59044iKUN51,6#..(5F,5FC)..IND201107-201608

L=5740

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-33121iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

L=50

main90099-33080iKUN51,6#..(5F,5FC)..IND201107-201608

L=1450(*H,L=50)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-59082iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

L=270

main90446-07001iKUN51,6#..(5F,5FC)..IND201107-201608

L=1800(*H,L=270)

827110K080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K080

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E450

827113A370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A370

853730K010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-0K010

8537916180JOINT

main85379-16180

14 parts on this diagram · 1 diagram in section
