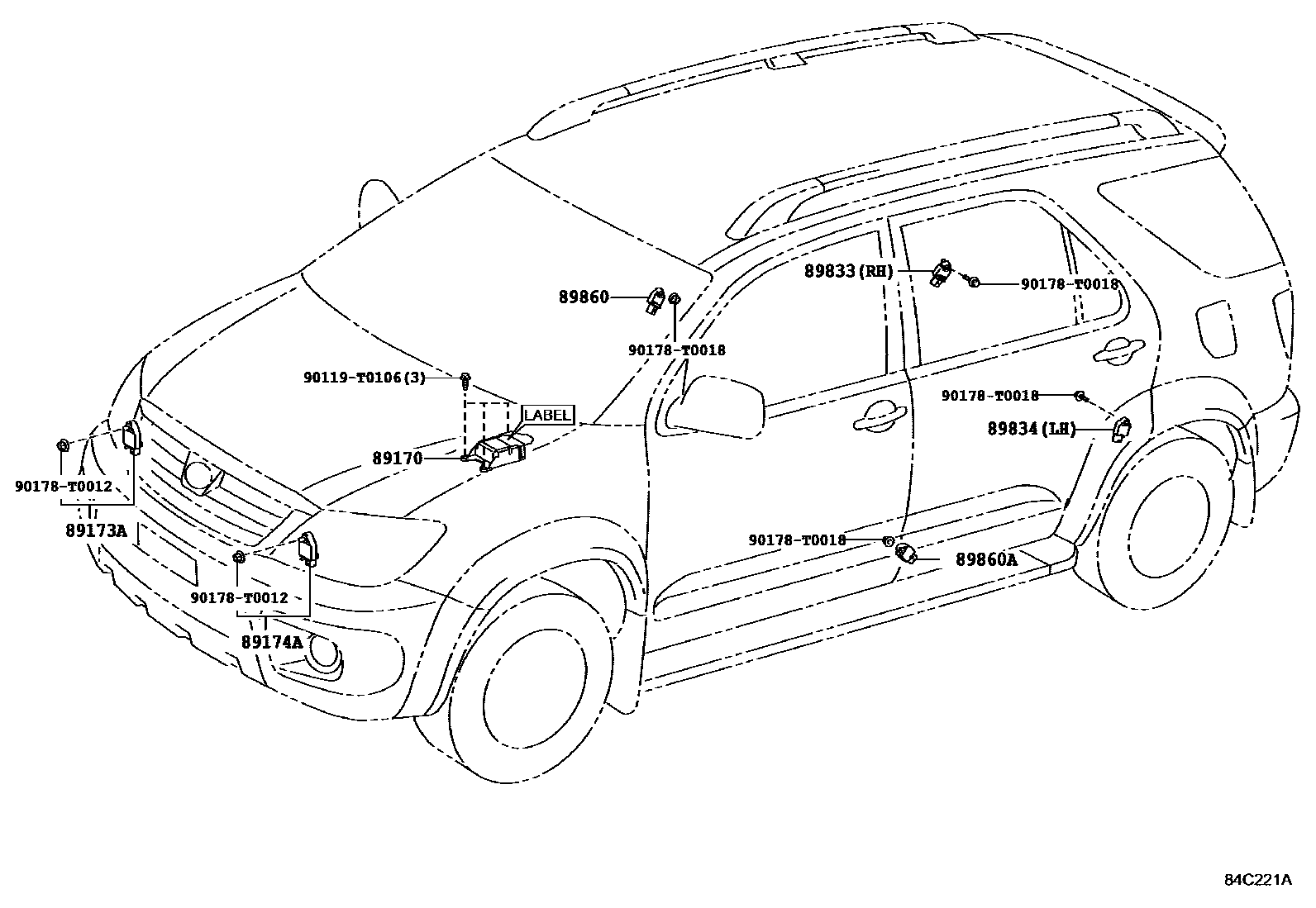

AIR BAG
89170SENSOR ASSY, AIRBAG
P/N LABEL=891700K131
P/N LABEL=891700K141
P/N LABEL=891700K151
SINGAPORE SPEC&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89833SENSOR, AIRBAG, REAR RH
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
89834SENSOR, AIRBAG, REAR LH
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
89860SENSOR ASSY, SIDE AIRBAG, RH
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
89860ASENSOR ASSY, SIDE AIRBAG, LH
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
90119T0106
main90119-T0106
90178T0012
main90178-T0012
90178T0018
main90178-T0018
10 parts on this diagram · 1 diagram in section
