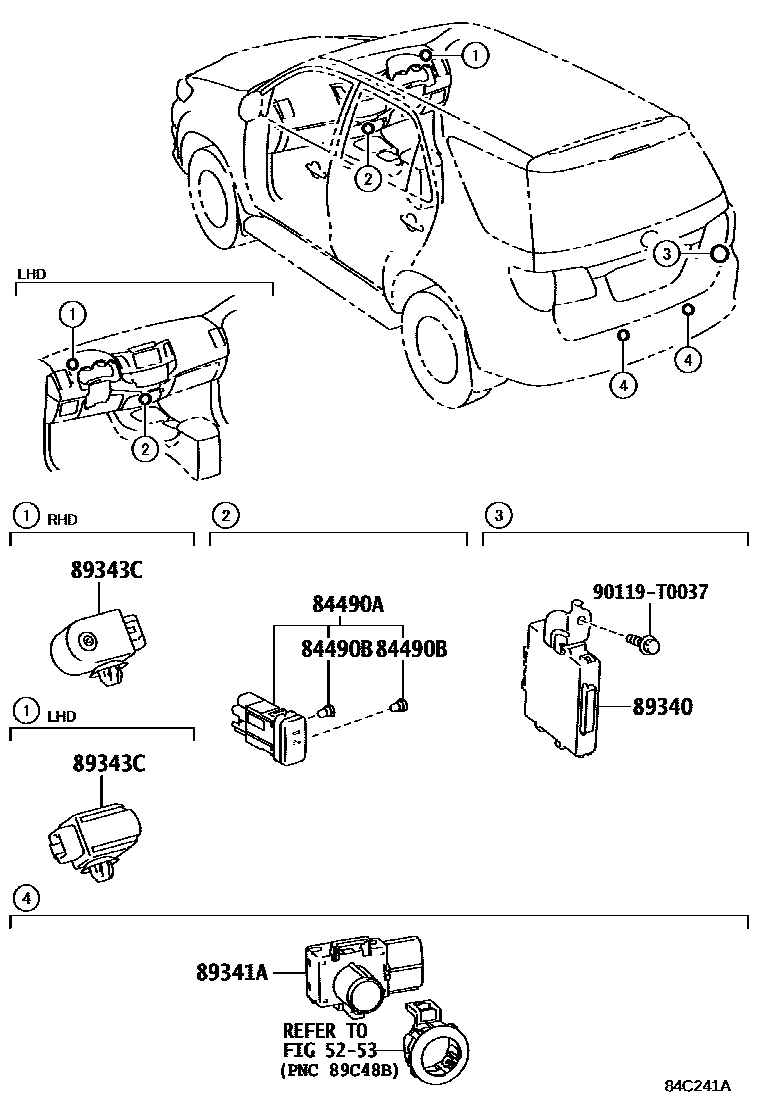

CLEARANCE & BACK SONAR
5253REAR BUMPER & BUMPER STAY
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
main84490-0K010supersedes 84490-0K021iGGN50,KUN60,TGN51,61..IDSUV..(GCC,IDN); KUN51,60,TGN61..IDSUV..PHL201107-201210
BACK MONITOR-WITHOUT
BACK MONITOR-WITHOUT
BACK MONITOR-WITHOUT
84490BBULB(FOR BACK SONAR SWITCH)
main90010-01089supersedes 90011-01055iGGN50..5F..GCC;KUN51,6#,TGN61..(4FC,5FC)..TH; KUN51,60,TGN61..PHL201308-201408
14V 0.63W,W(CAP); 14V 0.63W,W(CAP),BACK MONITOR-WITHOUT
14V 0.84W,W(CAP); 14V 0.84W,W(CAP),BACK MONITOR-WITHOUT
14V 0.91W; 14V 0.91W,BACK MONITOR-WITHOUT
89340COMPUTER ASSY, REAR CLEARANCE WARNING
main89340-71020iKUN51,60,TGN61..IDSUV..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408
BACK MONITOR-WITHOUT
89341ASENSOR, ULTRASONIC, NO.1
SUPER WHITE 2,040
main89341-48010-A4×2iKUN51,60,TGN61..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408
BACK MONITOR-WITHOUT,WHITE PEARL CS.,070; WHITE PEARL CS.,070
main89341-48010-B3×2iKUN60..RHD..GEN;TGN61..4FC..HTWCF;KUN51,TGN61..(5F,5FC)..DLX;KUN60..(4FC,5F)..(IDN,PHL,TH);GGN50,KUN51..(4FC,5FC)..(GCC,PHL);KUN50,TGN51,61..CO,GCC,GEN,IDN,PHL; TGN61..4FC..HTWC..LA;KUN51..SUVW..(5F,5FC)..DCR..LA201501-201510
GRAY ME.,1G3; SEAT COVER MATERIAL-LEATHER,GRAY ME.,1G3
main89341-48010-B7×2iKUN60..RHD..GEN;TGN61..4FC..HTWCF;KUN51,TGN61..(5F,5FC)..DLX;KUN60..(4FC,5F)..(IDN,PHL,TH);GGN50,KUN51..(4FC,5FC)..(GCC,PHL);KUN50,TGN51,61..CO,GCC,GEN,IDN,PHL; TGN61..4FC..HTWC..LA;KUN51..SUVW..(5F,5FC)..DCR..LA201501-201510
SEAT COVER MATERIAL-LEATHER,SILVER ME.,1D6; SILVER ME.,1D6
DK. STEEL MC.,1H2
main89341-48010-C3×2iKUN51,60,TGN61..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408
BACK MONITOR-WITHOUT,BLACK MC.,209; BLACK MC.,209
main89341-48010-C6×2iKUN60..RHD..GEN;TGN61..4FC..HTWCF;KUN51,TGN61..(5F,5FC)..DLX;KUN60..(4FC,5F)..(IDN,PHL,TH);GGN50,KUN51..(4FC,5FC)..(GCC,PHL);KUN50,TGN51,61..CO,GCC,GEN,IDN,PHL; TGN61..4FC..HTWC..LA;KUN51..SUVW..(5F,5FC)..DCR..LA201501-201510
ATTITUDE BLACK MC.,218; SEAT COVER MATERIAL-LEATHER,ATTITUDE BLACK MC.,218
main89341-48010-F0×2iKUN51,60,TGN61..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408
BACK MONITOR-WITHOUT,SILKY GOLD M.M.,5A7; SILKY GOLD M.M.,5A7
LT.PURPLE M.M.,9AE
main89341-48010-P1×2iKUN51..4FC..TH;GGN50..SUVW..GCC;TGN61..4FC..HTWCF;TGN61..CO,GCC,GEN,IDN;GGN50..IDSUV..5FC..GCC;KUN60..RHD..(4FC,5F)..SR;KUN51,TGN61..(5F,5FC)..DLX;KUN61,TGN51..(4FC,5F)..(CO,GCC,GEN,IDN,TH)201107-201501
SILVER ME.,1C0
main89341-48010-P2×2iKUN51,60,TGN61..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408
BACK MONITOR-WITHOUT,DK.GRAY M.M.,1E9; DK.GRAY M.M.,1E9
89343CBUZZER, CLEARANCE WARNING, NO.1
main89343-30010iKUN51,60,TGN61..IDSUV..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408
BACK MONITOR-WITHOUT
90119T0037
main90119-T0037
7 parts on this diagram · 1 diagram in section
