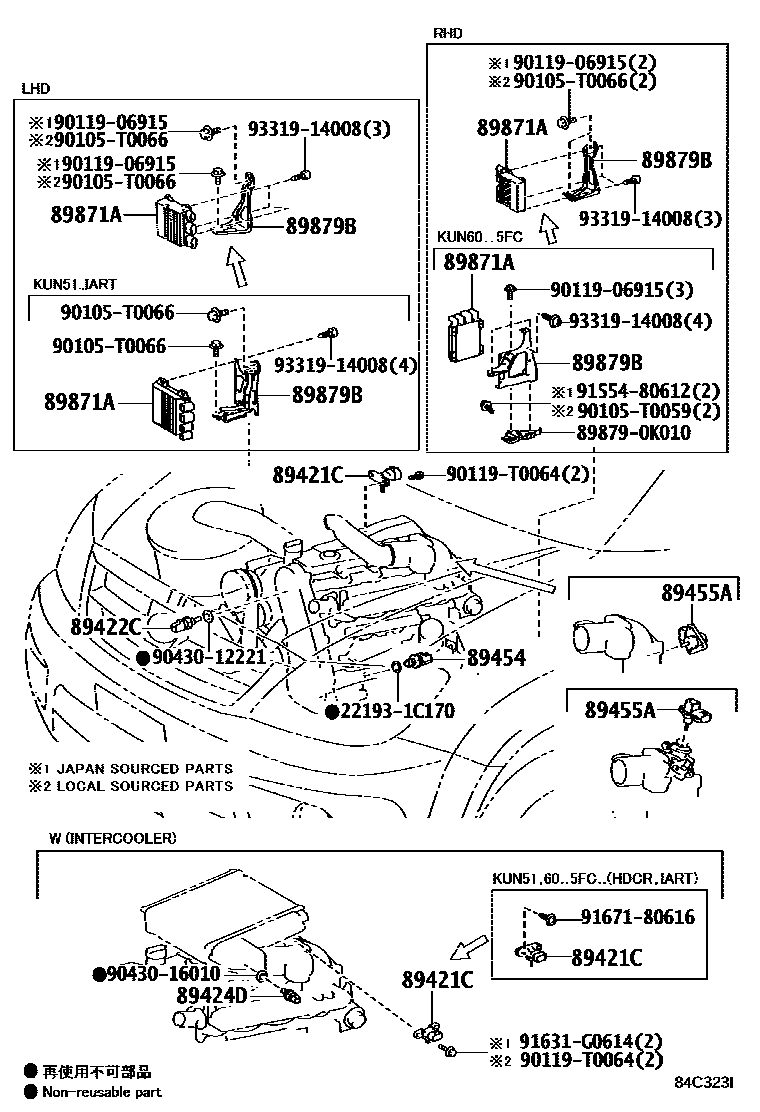

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-12150iLAN50..RHD201108-201308

main89421-71030iKUN5#,6#201107

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iKUN50..MA201107-201601

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iKUN60..IND,SA,TH,VN;KUN60..SUVW..4FC..IDN;KUN5#,61..CO,GEN,IDN,IND,LA,PHL,SA,TH201107

89454SENSOR, FUEL TEMPERATURE

main89454-20010iKUN51..4FC..CO;KUN51,6#..(SUVW,THSUV)..(GEN,IDN,IND,PHL,TH,VN)201107

main89454-60010iLAN50..RHD201108-201308

89455ASENSOR, EGR VALVE POSITION

main89455-35020iKUN51..4FC..LA201107-201210

89871ADRIVER, INJECTOR

main89871-20080iKUN60..5FC201204

main89871-25010iKUN51,6#..SA;KUN51..SASUV201107-201512

89879BBRACKET, INJECTOR DRIVER

main89879-71030iKUN5#,61..RHD;KUN60..RHD..(4FC,5F)201107-201406

main89879-71031iKUN51,6#..RHD..(SASUV,SUVW)..(GEN,SA)201406-201512

main89879-71040iKUN51..DCR..LA;KUN51..(5F,5FC)..CO;KUN51,60..LHD..IDSUV..(GEN,PHL)201107-201510

main89879-71050iKUN51..IART201204-201510

main89879-71070iKUN60..5FC201208

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

898790K010BRACKET, INJECTOR DRIVER

main89879-0K010

90105T0059

main90105-T0059

90105T0066

main90105-T0066

9011906915

main90119-06915

90119T0064

main90119-T0064

9043012221

main90430-12221

9043016010

main90430-16010

9155480612

main91554-80612

91631G0614

main91631-G0614

9167180616

main91671-80616

9331914008

main93319-14008

19 parts on this diagram · 3 diagrams in section
