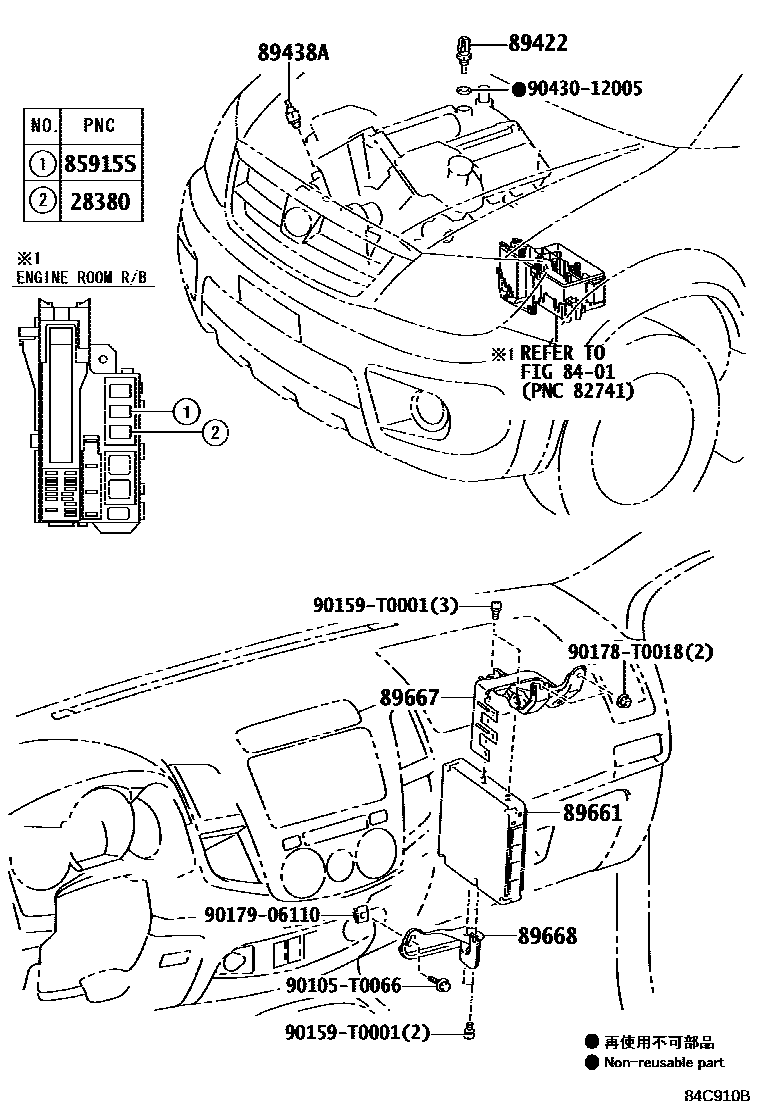

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

28380RELAY ASSY, FUEL PUMP

main90080-87009i1GRFE..GGN50,60..(SUVW,THSUV)..(ANCOM,EPT,GCC,GEN)201107

(L)

main90987-04004i1GRFE..GGN50,60..(SUVW,THSUV)..(ANCOM,EPT,GCC,GEN)201107

(J)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iGGN50..CO,LA;TGN61..HTWC..LA;GGN50..IDSUV..GCC201107-201510

(J)

main90987-T2001iGGN60,TGN51,61..ANCOM,KZS,TH;GGN50..(SUVW,THSUV)..(ANCOM,EPT,GCC,GEN)201107

(L)

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGGN50,TGN51,61..CO,LA;GGN50,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)201107-201510

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iGGN50,60,TGN61;TGN51..4FC..SA;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN201107-201701

main89438-71010iGGN50,60,TGN51..ANCOM,KZS201702

89661COMPUTER, ENGINE CONTROL

main89661-0KK20iGGN50..SUVW..LA201110-201510

main89661-0KV70iGGN50..IDSUV..5FC..LA;GGN50,60..5FC..(CO,GEN,SA)201107-201512

main89661-71330iTGN61..5F..HTWCF201110-201510

main89661-71340iTGN61..4FC..HTWCF201110-201510

main89666-0K080iGGN50..5F201107-201510

main89666-0K090iGGN50,60..5FC..(ANCOM,EPT,GCC)201107

main89666-0K260iTGN61..5F..HTWC..LA201110-201510

main89666-0K270iTGN61..TH201107-201208

main89666-0K280supersedes 89666-0KN00iTGN51..4FC..(CO,EPT,GCC,GEN,IDN,PKN,SA,VN)201107

main89666-0K290iTGN61..4FC..(CO,GCC,GEN,IDN,PHL,VN)201107

main89666-0K300iTGN51..5F..(GCC,SA)201107-201308

P/N LABEL=896660K300

main89666-0K310iTGN51..5F..(GCC,SA)201107-201308

P/N LABEL=896660K310

main89666-0K360iTGN51..5F..CO201111-201510

main89666-0K370supersedes 89666-0K320iTGN61..5F..CO201111-201510

main89666-0K520iTGN61..4FC..HTWC..(LA,TH)201208-201510

main89666-0KM80iTGN51..5F..KZS201403

main89666-0KM90iTGN51..4FC..KZS201403

main89666-0K330iTGN51..5F..SA201108-201310

ENGINE-2TR-FE LEADED

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0K010iTGN51,61..SUVW..(GEN,IDN,PKN,TH)201107

main89667-0K020iGGN50,60,TGN51,61..LHD..(SUVW,THSUV)..(ANCOM,EPT,GCC,GEN,KZS,PHL,VN)201107

main89667-0K050iTGN61..HTWCF201110-201510

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0K010iTGN51,61..SUVW..(GEN,IDN,PKN,TH)201107

main89668-0K020iGGN50,TGN51,61..HTWC..(CO,LA);GGN50,TGN51,61..IDSUV..(GCC,PHL)201107-201510

main89668-0K070iTGN61..HTWCF201110-201510

90105T0066

main90105-T0066

90159T0001

main90159-T0001

90178T0018

main90178-T0018

9017906110

main90179-06110

9043012005

main90430-12005

13 parts on this diagram · 4 diagrams in section
