SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1STEERING 0012 1SEAT 0013 1DOOR,ROOF,FLOOR & BACK DOOR

3304

3505

83181GSENSOR, SPEEDOMETER

main83181-12020iKUN6#,TGN61..5F;GGN50,KUN5#,LAN50,TGN51201107

main83181-35070iGGN60,KUN6#,TGN61..4FC,5FC201107

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90301-18004iGGN60,KUN6#,TGN61..4FC,5FC201107

main96711-24030iKUN6#,TGN61..5F;GGN50,KUN5#,LAN50,TGN51201107

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iKUN51,6#..SA;KUN51..SASUV201107-201601

DENSO

main83530-28020iTGN51..MA201107-201601

DENSO

main83530-60010iKUN51,6#..SA;KUN51..SASUV201107-201601

YAZAKI

main83530-60020iGGN50..IDSUV..GCC;GGN50,TGN51,61..CO,LA;TGN51,61..IDSUV..(GEN,IDN,PHL)201107-201601

YAZAKI

main83530-60030iLAN50201108-201512

84210SWITCH ASSY, BACK-UP LAMP

main84210-04010iKUN51,6#..5F..IND201107-201611

TYPE D:REFER 33-01

main84210-0K010iGGN50..IDSUV..5F..GCC;KUN51..5F..(CO,GEN,LA,SA,TH);GGN50,KUN6#..(IDSUV,SUVW)..5F..(CO,GEN,IDN,LA,PHL,SA,TH,VN)201107-201611

TYPE C:REFER 33-01

main84210-12040iGGN50..(SUVW,THSUV)..5F..(GCC,GEN)201107-201206

TYPE B:REFER 33-01

sub84210-52050

main84210-12040iLAN50201108-201206

sub84210-52050

main84210-52050iKUN51,60..(SUVW,THSUV)..5F..(GEN,IDN,PHL)201107-201308

TYPE B:REFER 33-01

main84210-52050iKUN51,60..5F..TH201107-201504

TYPE A,B:SEE 33-01

main84210-52050iLAN50..LHD201206-201512

main84210-71010iTGN51..5F..SA201107-201703

main84210-71020iTGN61..5F201107-201510

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35080iTGN51..5F..GCC201107-201308

DIFFERENTIAL LOCK-WITH&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main84222-35080iLAN50..RHD;TGN51..5F..SA201107-201308

DIFFERENTIAL LOCK-WITH

main84222-35080iLAN50..RHD;TGN51..5F..SA201107-201308

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main84222-35080iKUN51..LHD..SASUV..4FC201107-201703

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35090iKUN51..5FC..IND201107-201703

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-60100iLAN50..RHD;TGN51..5F..SA201107-201703

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGGN50,60,KUN5#,6#..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201309-201612

(L)

main84540-35050iTGN51..PKN201107-201703

main84540-71010iKUN51,6#..5FC..IND201309-201612

(J)

main84540-71010iGGN50,60,KUN5#,6#..4FC,5FC201107-201309

89465SENSOR, OXYGEN

main89465-0K010iTGN51..5F..SA201107-201309

main89465-0K040iGGN50..5F201107-201510

LH

main89465-0K060iGGN50..5F201107-201510

RH

main89465-0K070iGGN50..IDSUV..5FC..LA;GGN50,60..5FC..(ANCOM,CO,EPT,GCC,GEN,SA)201107

RH

main89465-0K080iGGN50..IDSUV..5FC..LA;GGN50,60..5FC..(ANCOM,CO,EPT,GCC,GEN,SA)201107

LH

main89465-0K100iTGN61..LA,TH201107-201510

main89465-0K130iGGN50..SUVW..LA201110-201510

LH

main89465-0K140iGGN50..SUVW..LA201110-201510

RH

main89465-0K160iTGN51..KZS,MA201309

89467BSENSOR, AIR FUEL RATIO

main89467-35110iGGN50,60201107-202202

main89467-71070iTGN51,61..HTWC..(KZS,LA,TH)201107-201703

main89467-71080iTGN61..HTWCF201110-201510

89615SENSOR, KNOCK CONTROL

main89615-20090iTGN51,61..SUVW..(EPT,GCC,GEN,IDN,KZS,PHL,PKN,TH,VN)201107-201601

827150K430BRACKET,WIRING HARNESS CLAMP

main82715-0K430

8271571070BRACKET,WIRING HARNESS CLAMP

main82715-71070

9011908C62

main90119-08C62

90119T0126

main90119-T0126

9043018008

main90430-18008

9092901366

main90929-01366

9155180830

main91551-80830

9165140825

main91651-40825

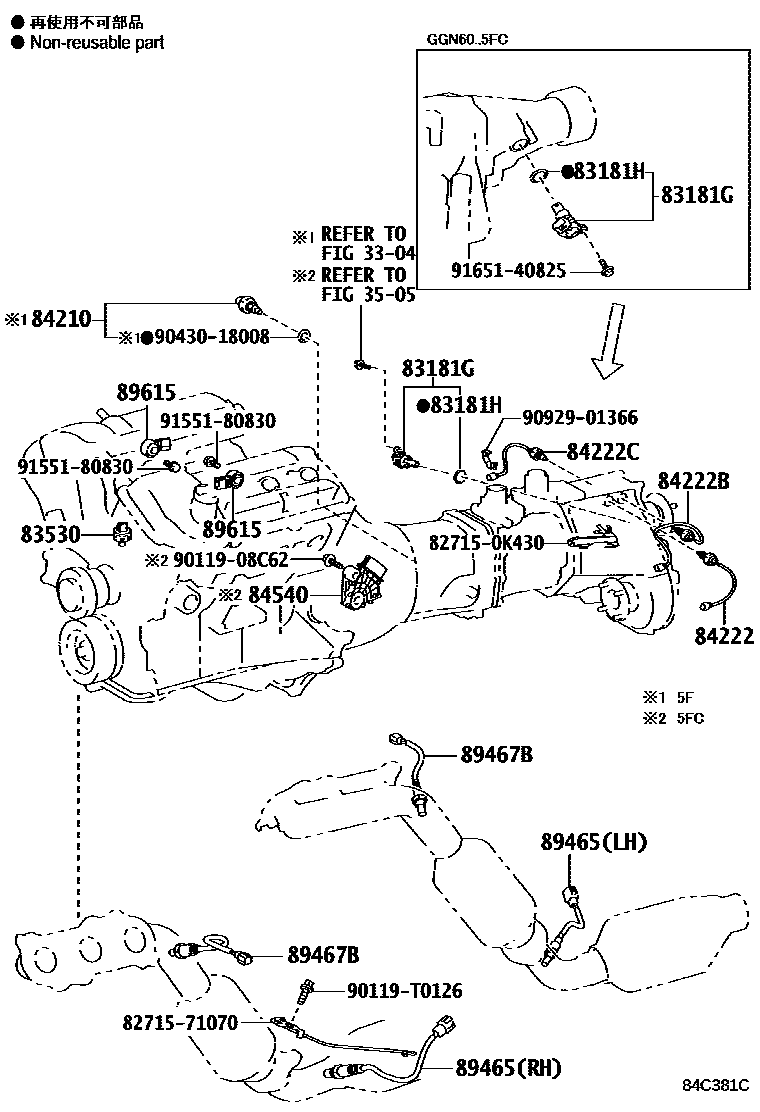

21 parts on this diagram · 13 diagrams in section
