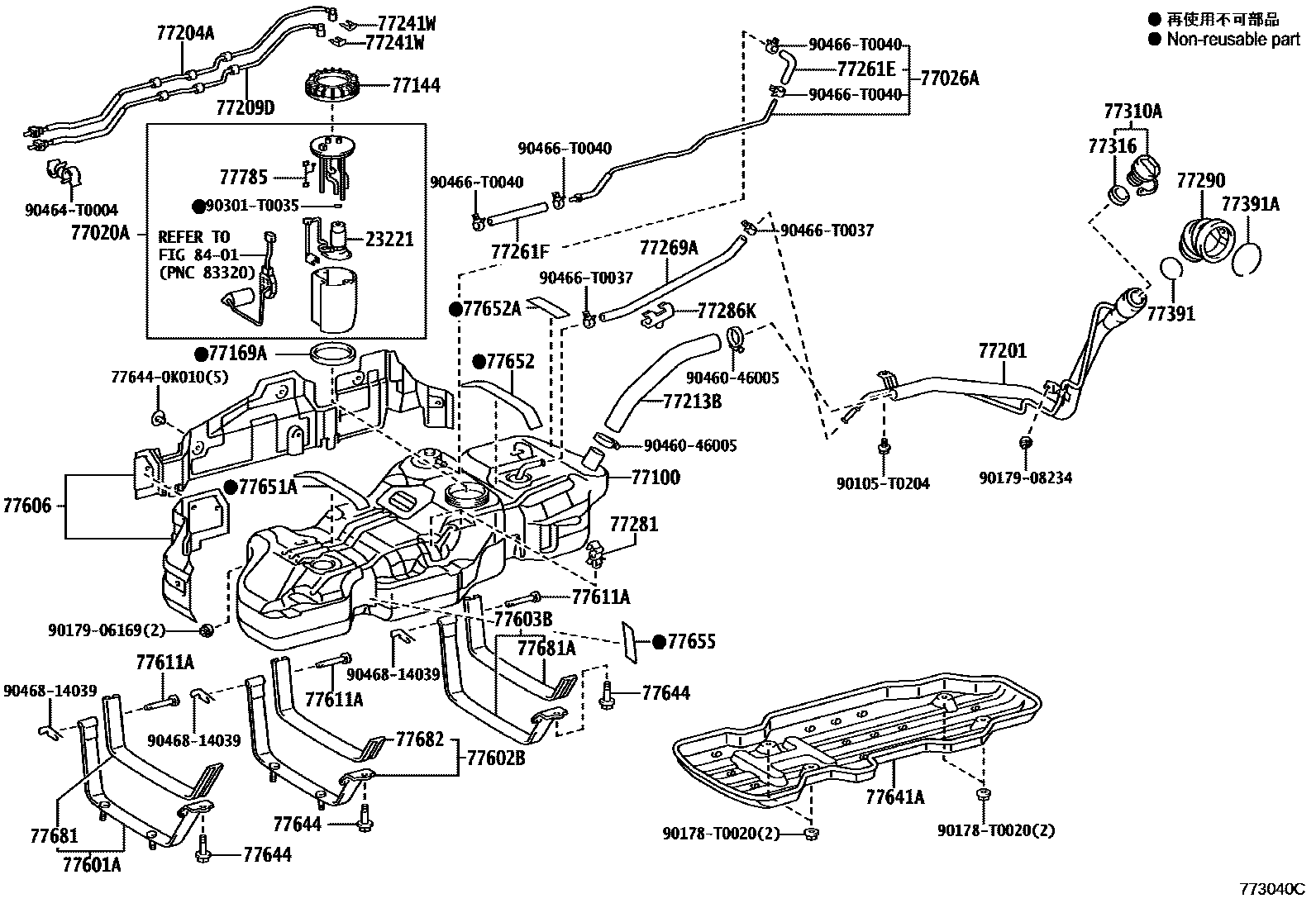

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK(LEADED GASOLINE) 0004 1FUEL TANK(TANK BAND X 3) 0006 1FUEL TANK(TANK BAND X 2) 0008 1FUEL TANK 0009 1FUEL SUB TANK 0010 1FUEL TUBE 0011 1FUEL TUBE(LEADED GASOLINE) 0012 1FUEL TUBE 0015 1FUEL TUBE(W/FUEL COOLER) 0016 1FUEL TUBE 0017 1FUEL LID OPENER

23221PUMP, FUEL

main23220-0C050i2TRFE..TGN51,61..HTWC..(CO,EPT,GCC,LA,MA,PHL,SA,TH,VN)201107-201207

main23220-0C051i2TRFE..TGN51..EPT201208-201612

main23220-0C130i2TRFE..TGN51,61..IDN201107-201207

main23220-0P010i1GRFE..GGN50..IDSUV..LA;1GRFE..GGN50,60..EPT,GCC,GEN,SA201107-201612

main23220-0P160i1GRFE..GGN50,60..SUVW..(ANCOM,CO,LA)201110

main23221-0D030i2TRFE..TGN61..HTWCF201303-201510

main23221-0D221i2TRFE..TGN61..HTWCF201110-201302

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0K020iTGN51..PKN201107-201609

main77020-0K140iTGN51,61..HTWC..(CO,GCC,KZS,LA,SA)201107-201703

main77020-0K150iGGN50..IDSUV..LA;GGN50,60..EPT,GCC,GEN,SA201107-201612

main77020-0K160iTGN51,61..IDN201107-201510

main77020-0K200iGGN50,60..SUVW..(ANCOM,CO,LA)201110

main77020-0K210iTGN61..HTWCF201110-201510

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-0K020iGGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

main77027-0K020iKUN51,6#..(5F,5FC)..IND201107-201608

77100TANK ASSY, FUEL

main77001-0K030iTGN51,61..GEN,IDN,MA,PHL,TH,VN201107-201611

main77001-0K040iKUN51..PHL,TH;KUN51..RHD..5F..GEN;KUN51..LHD..(IDSUV,SUVW)..GEN;KUN50,6#..GEN,IDN,MA,PHL,TH,VN201107-201611

main77001-0K260iGGN50,TGN51..EPT201107-201612

main77001-0K270iKUN51..LHD..SA;KUN51..IDSUV..LA;KUN6#,LAN50..IND,SA;KUN51..RHD..5F..(IND,SA);KUN51..LHD..(SASUV,THSUV);KUN51..RHD..(4FC,5FC)..(GEN,IND,SA)201107-201608

main77001-0K290iGGN50,60,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main77001-0K300iKUN51..SUVW..(CO,LA)201110-201510

77144RETAINER, FUEL PUMP GAUGE

main77144-0K010iGGN50,TGN51..EPT201107-201612

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0K132iTGN51..KZS201107-201703

main77201-0K143iKUN51,6#..(5F,5FC)..IND201107-201608

77204ATUBE, FUEL TANK RETURN

main77204-0K030iTGN51,61..VN201107-201611

main77204-0K040iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN5#,60,LAN50..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN201107-201611

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K030iGGN50,TGN51..EPT201107-201612

main77209-0K040iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN5#,60,LAN50..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN201107-201611

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0K030iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN5#,60,LAN50..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN201107-201611

main77213-0K070iTGN51..KZS201107-201703

main77213-0K080iGGN50,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)201301-201510

77241WCLIP, TUBE JOINT

main77241-33011iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN5#,60,LAN50..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN; TGN51,61..VN201107-201611

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main95333-06020iTGN51..PKN201107-201609

*H,L=140

77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)

main95333-06020iTGN51..PKN201107-201609

*H,L=160

77269AHOSE, FUEL TANK BREATHER

main77269-0K030iKUN51,6#..(5F,5FC)..IND201107-201608

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-0K070×2iTGN51..PKN201107-201609

77286KCLAMP, FUEL TUBE, NO.2

main77286-0K120iGGN50,TGN51..EPT201107-201612

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-0K060iKUN51,6#..(5F,5FC)..IND201107-201608

77310ACAP ASSY, FUEL TANK

main77300-52030iTGN51..PKN201107-201609

77316GASKET, FUEL TANK CAP

main77316-52040iTGN51..KZS201107-201703

77391RING, FUEL INLET BOX

main77371-35010iKUN60,TGN51,61..VN201112-201611

*300

main77391-0K010iGGN50,TGN51..EPT201112-201612

*299

77391ARING, FUEL INLET BOX

main77391-0K020iKUN51,6#..(5F,5FC)..IND201107-201608

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0K050iTGN51..PKN201107-201609

main77601-0K130iGGN50,TGN51..EPT201107-201612

main77601-0K140iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0K050iTGN51..PKN201107-201609

main77602-0K120iGGN50,TGN51..EPT201107-201612

main77602-0K130iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH

main77603-0K040iKUN51,6#..(5F,5FC)..IND201107-201608

main77603-0K050iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

77611APIN (FOR FUEL TANK BAND)

main77653-0K041×3iKUN51,6#..(5F,5FC)..IND201107-201608

77641APROTECTOR, FUEL TANK, NO.1

main77641-0K040iKUN60,TGN51,61..VN201107-201611

main77641-0K080iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

77644BOLT, FUEL TANK

main77644-35030×3iKUN51..RHD..5F..SA;KUN51..LHD..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV);KUN60,TGN51,61..CO,GCC,LA,SA;KUN51,61..RHD..4FC..(GEN,IND,SA);GGN50,60,KUN61,LAN50..(5F,5FC)..(ANCOM,CO,GCC,GEN,LA,SA)201107

77651ACUSHION, FUEL TANK, NO.1

main77651-0K030iKUN51,6#..(5F,5FC)..IND201107-201608

77652CUSHION, FUEL TANK, NO.1

main77652-0K030iKUN51,6#..(5F,5FC)..IND201107-201608

77652ACUSHION, FUEL TANK, NO.2

main77652-0K040iKUN51,6#..(5F,5FC)..IND201107-201608

77655CUSHION, FUEL TANK, NO.3

main77653-0K050iTGN51..KZS201107-201703

77681SEAT, FUEL TANK BAND, RH

main77681-0K050iTGN51..PKN201107-201609

main77681-0K080iGGN50,TGN51..EPT201107-201612

77681ASEAT, FUEL TANK BAND

main77681-0K100iKUN51,6#..(5F,5FC)..IND201107-201608

77682SEAT, FUEL TANK BAND, LH

main77681-0K090iGGN50,TGN51..EPT201107-201612

main77682-0K010iKUN51..PHL,TH;KUN51..RHD..5F..GEN;KUN51..LHD..(IDSUV,SUVW)..GEN;KUN50,6#,TGN51,61..GEN,IDN,MA,PHL,TH,VN201107-201611

77785HARNESS, FUEL PUMP

main77785-0K010iTGN51,61..GEN,IDN,MA,PHL,PKN,TH,VN201107-201511

main77785-0K011iTGN51,61..MA,VN201512-201611

main77785-0K030iGGN50,60,TGN51..ANCOM,EPT,KZS201107-201511

main77785-0K031iGGN50,60..ANCOM201512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

776440K010BOLT, FUEL TANK

main77644-0K010

90105T0204

main90105-T0204

90178T0020

main90178-T0020

9017906169

main90179-06169

9017908234

main90179-08234

90301T0035

main90301-T0035

9046046005

main90460-46005

90464T0004

main90464-T0004

90466T0037

main90466-T0037

90466T0040

main90466-T0040

9046814039

main90468-14039

48 parts on this diagram · 13 diagrams in section
