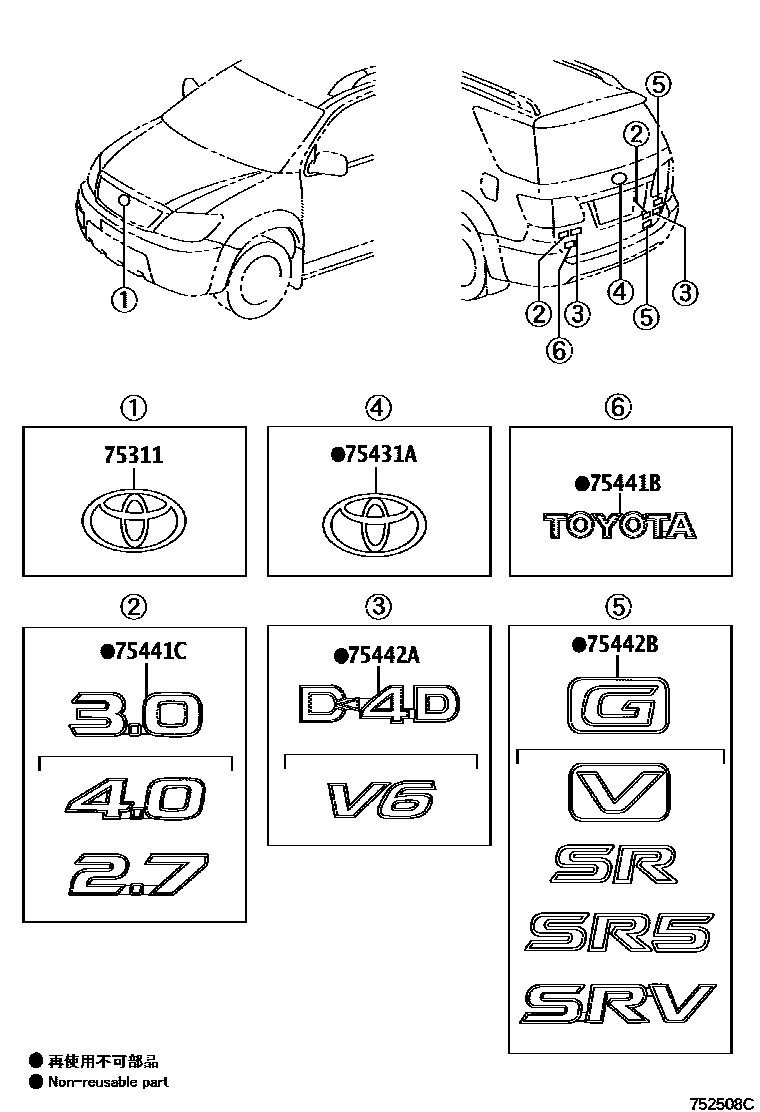

EMBLEM & NAME PLATE

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-0K040iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,MA,PHL,PKN,SA,TH,VN201107

main75311-0K240iTGN51..KZS201403

75431AEMBLEM, BACK DOOR, NO.1

main75431-0K031iTGN51..PKN201107-201609

main75431-0K060iTGN51..KZS201403-201703

75441BPLATE, BACK DOOR NAME

main75441-0K031iKUN51..4FC..LA201110-201210

TOYOTA

75441CPLATE, BACK DOOR NAME

main75473-0K011iTGN61..HTWCF201110-201510

2.7

main75473-0K021iKUN51,61201107-201608

3.0

main75473-0K031iGGN50..EPT201107-201612

4.0

75442APLATE, BACK DOOR NAME, NO.2

main75428-0K021iKUN51,61201107-201608

D-4D

main75428-0K031iGGN50..EPT201107-201612

V6

75442BPLATE, BACK DOOR NAME, NO.2

main75459-0K051iKUN51..SR..(CO,LA);KUN51..LHD..(SASUV,THSUV);GGN50,TGN61..SUVW..(4FC,5FC)..HTWC..LA201107-201512

SRV

main75459-0K061iGGN50..EPT,GCC;TGN51,61..CO,EPT,GCC201107-201612

SR5

main75459-0K071iKUN50,TGN61..IDN,MA,PHL;KUN51..RHD..5F..(GEN,TH);KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN)201107-201611

G

main75459-0K081iTGN51..PKN201107-201609

V

main75479-0K040iGGN50..IDSUV..LA;TGN61..4FC..HTWCF;GGN50,60..ANCOM,CO,GEN;KUN51,TGN61..(5F,5FC)..DLX201107

SR

6 parts on this diagram · 1 diagram in section
