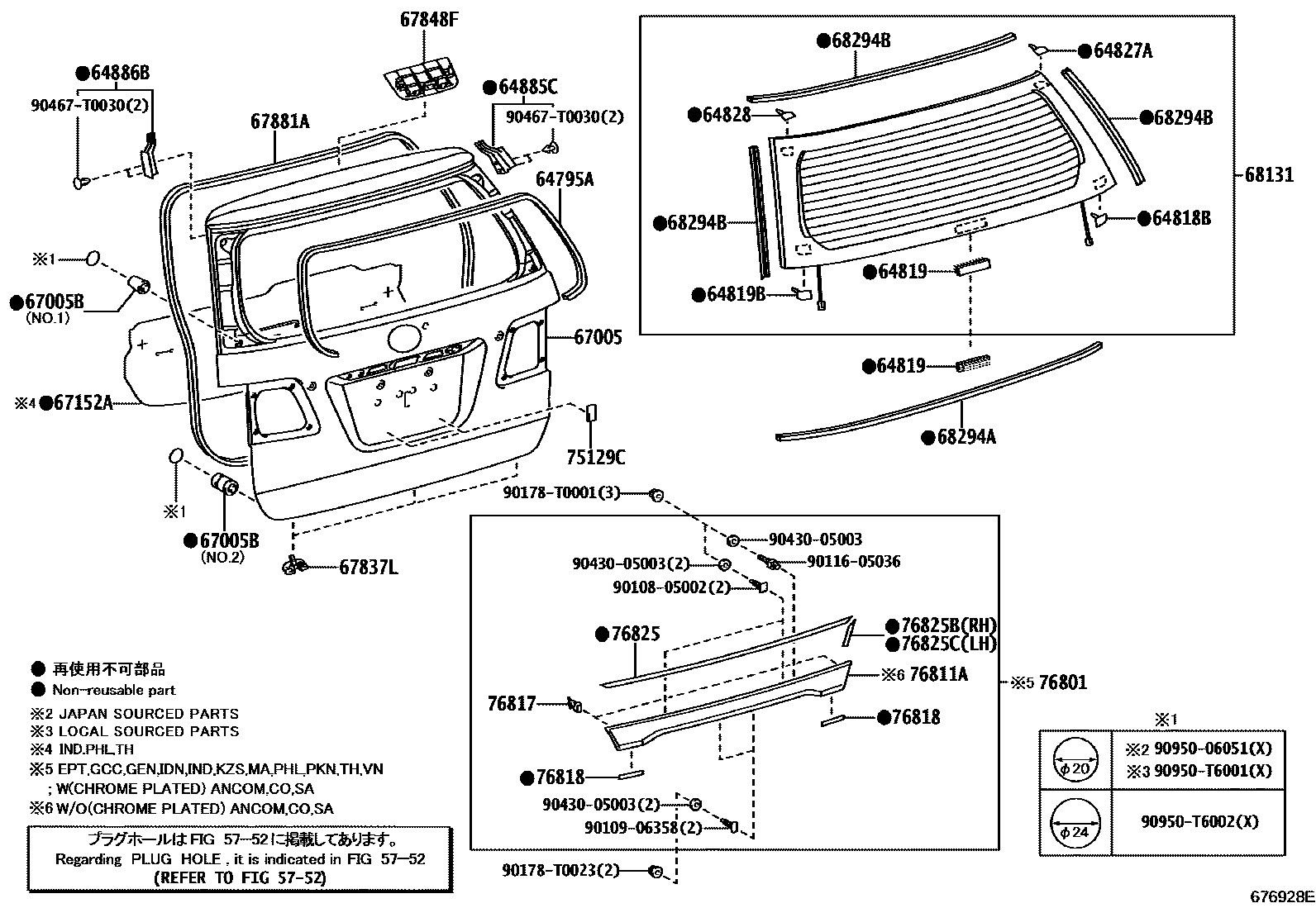

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

5752HOLE PLUG

→ Go to FIG 57-52

64795ATRIM, BACK WINDOW OPENING

main64795-0K010iTGN51..KZS201107-201703

main64795-0K070iKUN51,6#..IND201401-201608

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0K040iKUN60,TGN51,61..VN201107-201611

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-0K050×2iTGN51..PKN201107-201609

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0K010iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

64827ACLIP, BACK WINDOW GLASS, RH

main64827-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

64828CLIP, BACK WINDOW GLASS, LH

main64828-0K010iTGN51..PKN201107-201609

64885CCHANNEL, BACK DOOR GLASS, RH

main64885-0K020iTGN51..PKN201107-201609

64886BCHANNEL, BACK DOOR GLASS, LH

main64886-0K020iTGN51..PKN201107-201609

67005PANEL SUB-ASSY, BACK DOOR

main67005-0K100supersedes 67005-0K230iKUN51,60,TGN61..IDSUV..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408

BACK MONITOR-WITHOUT

main67005-0K150supersedes 67005-0K240iGGN50,60..ANCOM;KUN51..SUVW..DCR..LA;TGN51,61..HTWC..(CO,LA)201110

main67005-0K160iKUN51,TGN61..DLX..(HTWCF,IART)201110-201510

main67005-0K230iKUN51,6#..(5F,5FC)..IND201107-201608

main67005-0K250iGGN50,KUN51..SUVW..SR..(HTWC,IART)..LA201110-201510

main67005-0K240iKUN51..SUVW..DCR..LA;TGN61..4FC..HTWC..LA201110-201510

BACK MONITOR-WITH

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-T0002×2iTGN51..PKN201107-201609

NO.1:REFER ILLUST.

main90541-T0003×2iGGN50,TGN51..EPT201107-201612

NO.2:REFER ILLUST.

67152ACOVER, BACK DOOR SERVICE HOLE

main67847-0K040iKUN51,6#,TGN61..IND,PHL,TH201107-201608

67837LSEAL, DOOR DUST PROOF

main67837-0K050×3iGGN50,TGN51..EPT201107-201612

67848FCOVER, BACK DOOR SERVICE HOLE, NO.2

main67847-0K030iTGN61..CO;TGN61..5F..LA;TGN61..4FC..HTWCF;GGN50,KUN51,TGN51..SUVW..(CO,LA)201107-201310

main67847-0K051iKUN51..5FC..CO;GGN50,KUN51..IDSUV..LA;TGN61..4FC..HTWC..(GEN,LA,PHL,TH);GGN50,KUN51,6#,TGN51..EPT,GEN,PHL,TH201107-201612

67881AWEATHERSTRIP, BACK DOOR

main67881-0K010iKUN60,TGN51,61..VN201107-201611

68131GLASS, BACK DOOR

main68105-0K011iKUN51,TGN61..RHD..(IDN,SA);GGN50,60,KUN50,6#,TGN51..RHD..SR..(GEN,IDN,SA)201107-201512

*TT,T=3.5,GREEN

main68105-0K021iTGN51..PKN201107-201609

*EHTT,T=3.5,GREEN

main68105-0K091iGGN50,60,KUN51,TGN51,61..ANCOM,CO,LA201110-201205

*EHTT,T=3.5,GREEN

main68105-0K092iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201206

*EHTT,T=3.5,GREEN

main68105-0K160iKUN51,6#..IND201201-201608

*EHTT,T=3.5,GREEN

68294ADAM, BACK DOOR GLASS ADHESIVE

main68294-0K030iTGN51..PKN201107-201609

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-0K010iKUN60,TGN51,61..VN201107-201611

UPPER

main68294-0K020×2iKUN51,6#..(5F,5FC)..IND201107-201608

RH & LH

75129CCUSHION, REAR LICENCE PLATE

main75129-13020×2iTGN51..PKN201107-201609

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-0K080iKUN51..5FC..CO;KUN51,60,TGN61..LHD..SUVW..(GEN,PHL); KUN51..RHD..SASUV;KUN51,61..4FC..TH;KUN51..SUVW..5F..(GEN,TH);GGN50,KUN51..LHD..SUVW..(GCC,SA);KUN60..RHD..SUVW..(4FC,5F)..(GEN,IDN,SA,TH);LAN50,TGN51,61..SUVW..(EPT,GEN,IDN,MA,PKN,SA)201107

PLATED; PLATED,BACK MONITOR-WITHOUT

main76801-0K120supersedes 76801-0K240iKUN51..5FC..CO;KUN51..RHD..5F..SA;KUN60..LHD..SUVW..GEN;KUN51,TGN51..LHD..SUVW..(GEN,VN);KUN51..SUVW..(4FC,5F)..(CO,IND,PHL);KUN51..RHD..(IDSUV,SUVW)..(4FC,5FC)..(GEN,IND,SA);GGN50,60,KUN6#,TGN61..SUVW..SR..(EPT,IND,PHL,SA,VN);KUN51..LHD..(IDSUV,SASUV,THSUV)..(4FC,5F)..(GEN,LA)201107

PLATED

main76801-0K240iKUN51..IDSUV..5F..LA;KUN51..IDSUV..4FC..(GEN,LA); KUN51..IDSUV..5FC;KUN51..IDSUV..5F..GEN;KUN60,TGN51,61..IDSUV..(GEN,IDN);GGN50,KUN50..IDSUV..(4FC,5FC)..(GCC,IDN)201107-201510

PLATED; PLATED,BACK MONITOR-WITHOUT

main76801-0K540iTGN51..KZS201403

PLATED

main76801-0K903supersedes 76801-0K904iKUN50201107-201210

PAINT REQ.

main76801-0K905iGGN50..IDSUV..LA; TGN51..4FC..GCC201308-201510

PAINT REQ.; PAINT REQ.,AUDIO-*DA(EXTRA) & DVD & 6SPEAKER

main76801-0K550iTGN51..4FC..KZS201403

PLATED,AUDIO-*DA(EXTRA) & CD & 6SEPAKER & RDS

76811AGARNISH, BACK DOOR, OUTSIDE

main76811-0K100iKUN51..SUVW..(5F,5FC)..DCR..LA;KUN51,TGN61..(4FC,5FC)..DLX..(HTWC,IART)201110-201510

PLATED

main76811-0K140supersedes 76811-0K100iGGN50,KUN51..SUVW..SR..(HTWC,IART)..LA; TGN61..4FC..HTWC..LA;KUN51..SUVW..(5F,5FC)..DCR..LA201110-201510

PLATED; PLATED,BACK MONITOR-WITH

main76811-0K914iTGN61..HTWCF201110-201510

PAINT REQ.

main76811-0K921supersedes 76811-0K915iTGN51,61..CO;GGN50,60..ANCOM;TGN61..5F..HTWC..LA201110

PAINT REQ.

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-0K020×2iTGN61..CO,GCC;TGN61..5F..HTWC..LA;TGN51..SUVW..(CO,GCC);TGN61..IDSUV..(GEN,IDN,PHL);GGN50,KUN51,60,TGN51..IDSUV;GGN50,60,KUN50..ANCOM,CO,GEN,IDN201305

main76817-12070×2iTGN51,61..CO,GCC;TGN61..5F..HTWC..LA;GGN50,KUN51,60..IDSUV;GGN50,60..ANCOM,CO,GEN;TGN51,61..IDSUV..(IDN,PHL)201107-201305

76818PAD, BACK DOOR OUTSIDE GARNISH

main76818-0K020×2supersedes 76818-0K030iGGN50,TGN51,61..CO;KUN51..(5F,5FC)..CO;TGN61..5F..HTWC..LA201107-201510

main76818-0K030×2iTGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN51..SUVW..(5F,5FC)..LA201110-201510

main76818-0K040×2iGGN50,KUN5#,60,TGN51,61..IDSUV201112-201510

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0K060supersedes 76825-0K070iGGN50,KUN51,60,TGN51,61..IDSUV201107-201111

main76825-0K070iTGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN51..SUVW..(5F,5FC)..LA201110-201510

main76825-0K080iGGN50,KUN5#,60,TGN51,61..IDSUV201112-201510

76825BPROTECTOR, BACK DOOR OUTSIDE GARNISH

main76821-0K020supersedes 76821-0K030iGGN50,KUN51,60,TGN51,61..IDSUV201107-201111

main76821-0K030iTGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN51..SUVW..(5F,5FC)..LA201110-201510

main76821-0K040iGGN50,KUN5#,60,TGN51,61..IDSUV201112-201510

76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH

main76822-0K020supersedes 76822-0K030iTGN61..5F..HTWC..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN)201107

main76822-0K030iTGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN51..SUVW..(5F,5FC)..LA201110-201510

main76822-0K040iGGN50,KUN5#,60,TGN51,61..IDSUV201112-201510

9010805002

main90108-05002

9010906358

main90109-06358

9011605036

main90116-05036

90178T0001

main90178-T0001

90178T0023

main90178-T0023

9043005003

main90430-05003

90467T0030

main90467-T0030

9095006051

main90950-06051

90950T6001

main90950-T6001

90950T6002

main90950-T6002

36 parts on this diagram · 3 diagrams in section
