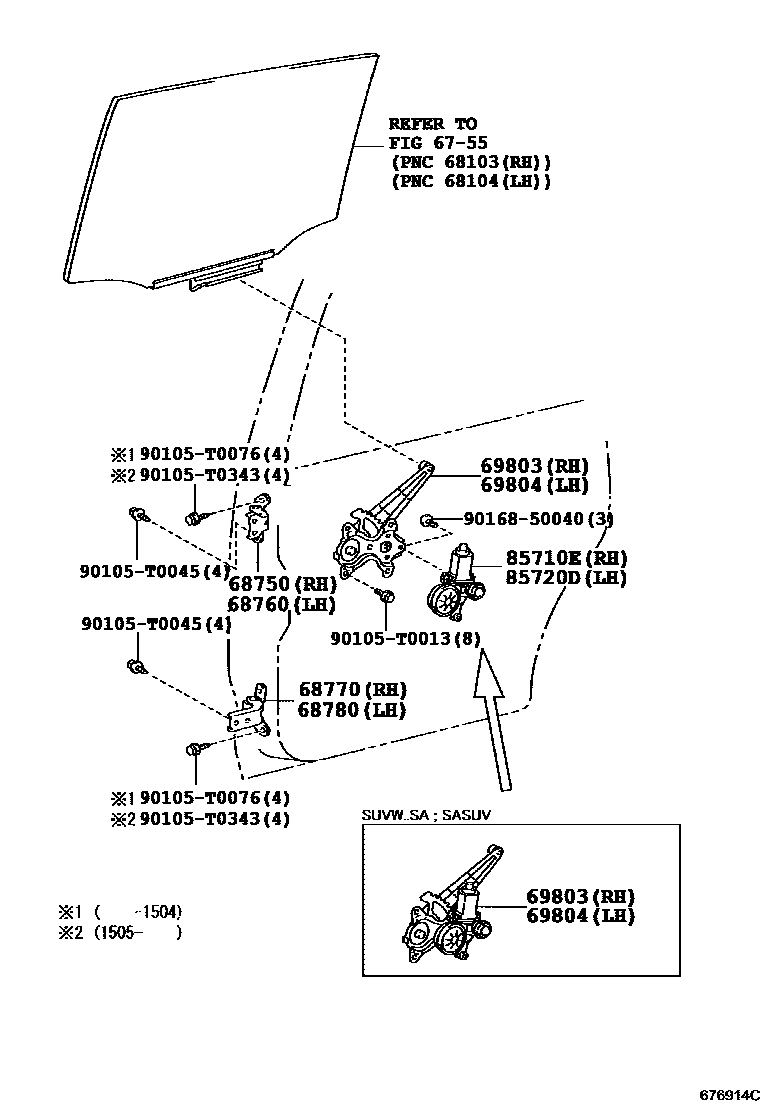

REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0K010iKUN60,TGN51,61..VN201107-201611

main68750-0K020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main68750-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main68750-0K040iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main68750-0K050iKUN51,6#..IND201201-201608

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0K010iGGN50,TGN51..EPT201107-201612

main68760-0K020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main68760-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main68760-0K040iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main68760-0K050iKUN51,6#..IND201201-201608

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main68770-0K040iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main68770-0K050iKUN51,6#..IND201201-201608

main68770-52031iTGN51..PKN201107-201609

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main68780-0K040iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main68780-0K050iKUN51,6#..IND201201-201608

main68780-52031iGGN50,TGN51..EPT201107-201612

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0K010iKUN60,TGN51,61..VN201107-201611

main69803-0K051iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69830-0K041iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0K010iGGN50,TGN51..EPT201107-201612

main69804-0K051iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69840-0K041iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0K020iKUN51,6#..(5F,5FC)..IND201107-201608

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0K020iKUN51,6#..(5F,5FC)..IND201107-201608

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

90105T0343

main90105-T0343

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
