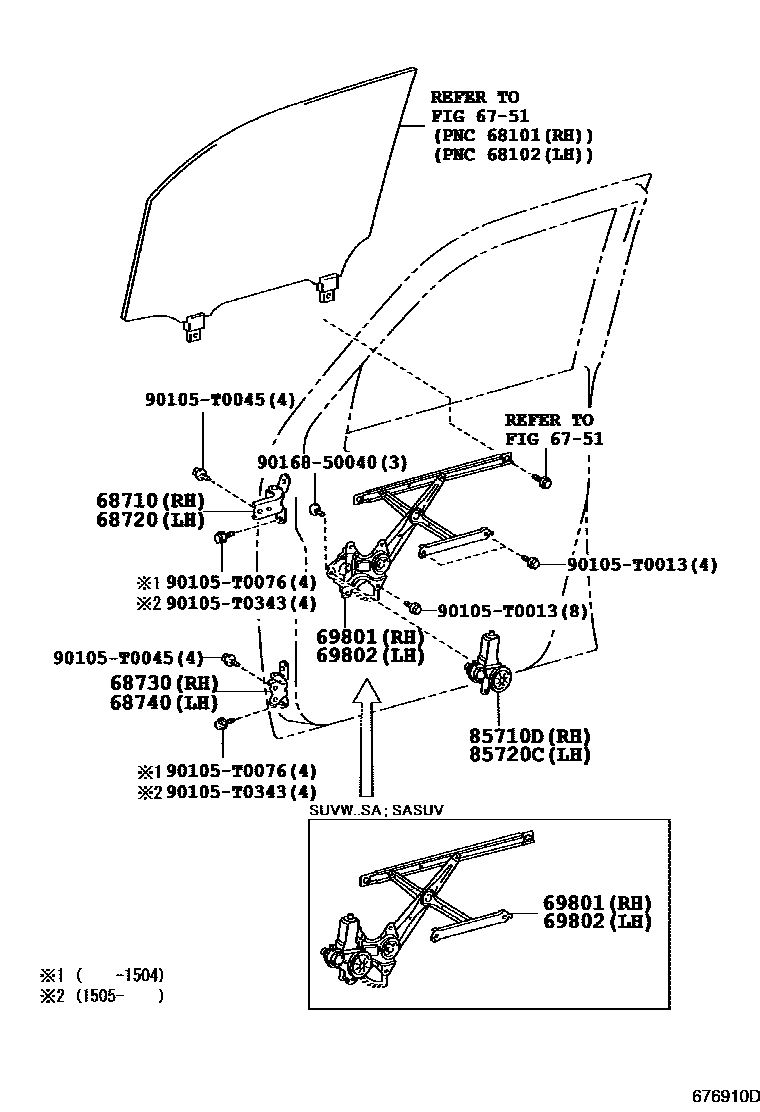

FRONT DOOR WINDOW REGULATOR & HINGE

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main68710-0D030iTGN51..PKN201107-201609

main68710-0K020iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main68710-0K030iKUN51,6#..IND201201-201608

main68710-12151iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main68720-0D030iTGN51..PKN201107-201609

main68720-0K020iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main68720-0K030iKUN51,6#..IND201201-201608

main68720-12151iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02020iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main68730-0K020iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main68730-0K030iKUN51,6#..IND201201-201608

main68730-52010iGGN50,60,KUN5#,6#,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,SA,TH)201107-201703

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02020iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main68740-0K020iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main68740-0K030iKUN51,6#..IND201201-201608

main68740-52010iTGN51..PKN201107-201609

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K011iKUN60,TGN51,61..VN201107-201611

main69801-0K052iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69810-0K041iKUN51..LHD..SASUV;KUN51,LAN50,TGN51..LHD..SA201108-201512

main69810-0K141iKUN51..RHD..SASUV;GGN50,60,KUN51,6#,LAN50..RHD..SA201108-201512

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K011iTGN51..PKN201107-201609

main69802-0K052iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69820-0K041iKUN51..RHD..SASUV;GGN50,60,KUN51,6#,LAN50..RHD..SA201108-201512

main69820-0K141iKUN51..LHD..SASUV;KUN51,LAN50,TGN51..LHD..SA201108-201512

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0K010iKUN60,TGN51,61..VN201107-201611

main85710-0K030iKUN61..5FC..TH;KUN61..4FC..(IND,TH);KUN5#,60,TGN51,61..RHD..(IDSUV,SUVW)..(GEN,IDN,MA,PKN,TH)201107-201609

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0K010iKUN61..5FC..TH;GGN50..IDSUV..LA;KUN61..4FC..(IND,TH);KUN51,60..RHD..(IDSUV,SUVW)..(GEN,IDN,TH);GGN50,KUN50,TGN51,61..EPT,GCC,GEN,IDN,MA,TH201107-201612

main85720-0K050iTGN51..KZS201107-201703

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

90105T0343

main90105-T0343

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
