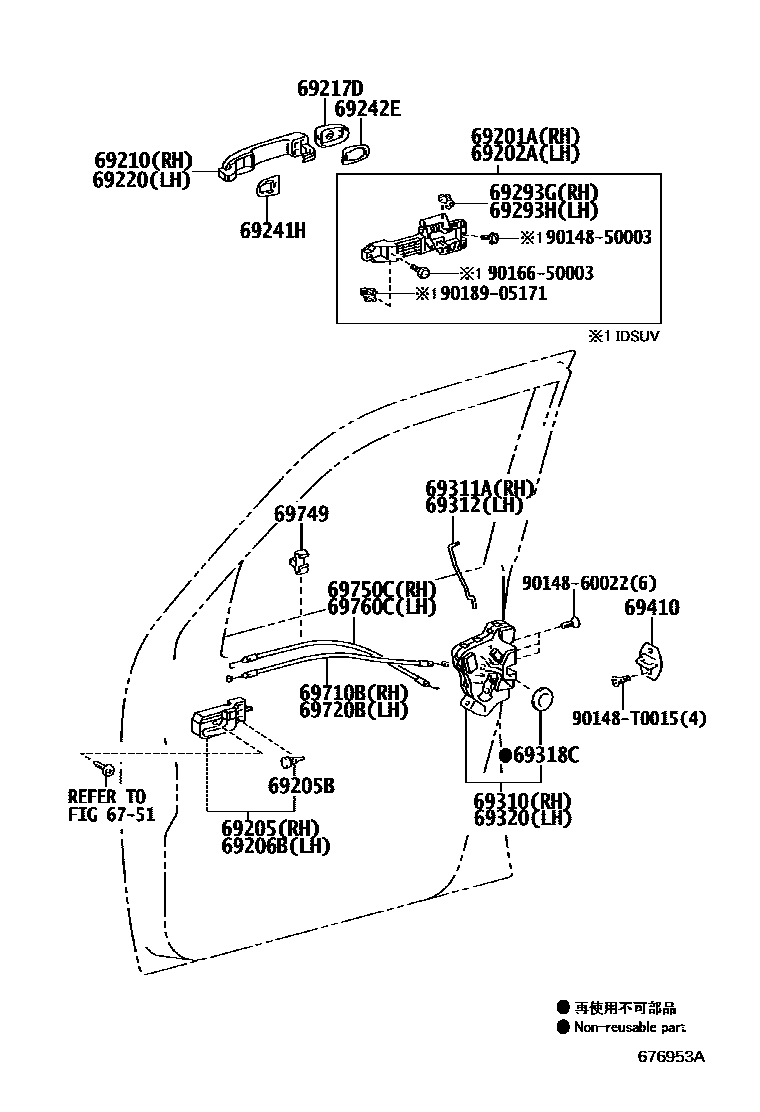

FRONT DOOR LOCK & HANDLE

6751

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02030iGGN50,KUN51,TGN51,61..SUVW..(CO,LA)201110-201510

main69201-02050iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main69201-06010iTGN51,61..SUVW..GCC201112-201308

*299

main69201-06010iTGN51,61..SUVW..GCC201112-201308

WIRELESS DOOR LOCK-WITHOUT,*299

main69201-06010iTGN61..TH201107-201112

WIRELESS DOOR LOCK-WITHOUT

main69201-06010iKUN50..MA201107-201703

(L)

main69201-0K010iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main69201-0K030iKUN51,6#..IND201201-201608

main69201-33010iKUN50201112-201308

*300

main69201-33010iTGN61..GEN201112-201308

WIRELESS DOOR LOCK-WITH,(J)

main69201-33010iTGN51,61..SUVW..GCC201112-201308

WIRELESS DOOR LOCK-WITHOUT,*300

main69201-33010iTGN51..PKN201112-201703

(J)

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02020iGGN50,KUN51,TGN51,61..SUVW..(CO,LA)201110-201510

main69202-02030iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main69202-06010iGGN50,TGN51..EPT201107-201703

(L)

main69202-06010iTGN51..SUVW..GCC;KUN50,TGN61..SUVW..(GCC,MA)201107-201112

WIRELESS DOOR LOCK-WITHOUT

main69202-06010iKUN50201112-201308

*299

main69202-06010iTGN51,61..SUVW..GCC201112-201308

WIRELESS DOOR LOCK-WITHOUT,*299

main69202-0K010iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

main69202-0K030iKUN51,6#..IND201201-201608

main69202-33010iTGN51,61..SUVW..GCC201112-201308

WIRELESS DOOR LOCK-WITH,(J)

main69202-33010iTGN51,61..SUVW..GCC201112-201308

*300

main69202-33010iKUN50..MA201112-201703

(J)

main69202-33010iTGN61..GEN201112-201308

WIRELESS DOOR LOCK-WITHOUT,*300

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0D080-B0iKUN51..5FC..TH;KUN6#,TGN61..TH201203-201308

DK.GRAY,TRIM1#,(L)

sub69205-0D080

main69205-0D080-C0iKUN60,TGN51,61..VN201308-201703

BLACK,TRIM2#,(L)

sub69205-0D080

main69205-0D080-E3iGGN50,TGN51..EPT201107-201703

SAND BEIGE,TRIM4#,(L)

sub69205-0D080

main69205-0K020-C0iGGN50,KUN5#,60..IDSUV;TGN51,61..GEN,IDN,PHL201308-201510

BLACK,TRIM2#

main69205-0K020-E1iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

SAND BEIGE,TRIM4#

main69205-0K040-C0iKUN51,6#..IND201501-201608

BLACK,TRIM2#

sub69205-0K040

main69205-0K040-E1iKUN51,6#..(5F,5FC)..IND201207-201608

SAND BEIGE,TRIM4#

sub69205-0K040

main69205-12190iKUN61..5F..IND201112-201306

(J)

sub69205-0D080

main69205-12190-B1iKUN60,TGN61..TH;KUN51,61..5FC..TH201112-201306

DK.GRAY,TRIM1#,(J)

sub69205-12190

sub69205-0D080

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201608

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0D080-B0iKUN51..5FC..TH;KUN6#,TGN61..TH201203-201308

DK.GRAY,TRIM1#,(L)

sub69206-0D080

main69206-0D080-C0iGGN50,60,KUN5#,6#,LAN50,TGN51,61..(SASUV,SUVW)..(CO,GEN,KZS,LA,MA,SA,TH)201308-201703

BLACK,TRIM2#,(L)

sub69206-0D080

main69206-0D080-E3iKUN61..5F..IND201107-201703

SAND BEIGE,TRIM4#,(L)

sub69206-0D080

main69206-0K020-C0iGGN50,KUN5#,60..IDSUV;TGN51,61..GEN,IDN,PHL201308-201510

BLACK,TRIM2#

main69206-0K020-E1iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

SAND BEIGE,TRIM4#

main69206-0K040-C0iKUN51,6#..IND201501-201608

BLACK,TRIM2#

sub69206-0K040

main69206-0K040-E1iKUN51,6#..(5F,5FC)..IND201207-201608

SAND BEIGE,TRIM4#

sub69206-0K040

main69206-12190iKUN61..5F..IND201112-201306

(J)

sub69206-0D080

main69206-12190-B1iKUN60,TGN61..TH;KUN51,61..5FC..TH201112-201306

DK.GRAY,TRIM1#,(J)

sub69206-12190

sub69206-0D080

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-06040iGGN50,60,KUN51,6#,TGN51,61..(SUVW,THSUV)..(ANCOM,EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,TH,VN)201107

PLATED

main69210-0K010iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

PLATED

main69210-0K030iKUN51,6#..IND201201-201608

PLATED

main69210-12260iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

PLATING

main69211-02130iKUN50201109-201210

NO PAINT REQ.

main69211-02180iGGN50,KUN51,TGN51,61..SUVW..(CO,LA)201110-201510

PAINT REQ.

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-02060iKUN50201112-201210

BLACK,*299,DRIVER SIDE

main69217-02060iKUN50201109-201112

BLACK,DRIVER SIDE

main69217-02120iTGN61..LA;GGN50,KUN51..SUVW..(CO,LA)201110-201510

LESS COLOR,DRIVER SIDE

main69217-02120iTGN51,61..CO201111-201510

LESS COLOR,DRIVER & PASSENGER

main69217-06020iTGN51,61..SUVW..GCC201107-201308

*CR,DRIVER & PASSENGER

main69217-06020iTGN51,61..SUVW..GCC201107-201308

*CR,WIRELESS DOOR LOCK-WITHOUT,DRIVER & PASSENGER

main69217-06020iTGN61..GEN201107-201308

*CR,WIRELESS DOOR LOCK-WITH,DRIVER SIDE

main69217-06020iKUN50..MA201107

*CR,DRIVER SIDE

main69217-0K040iGGN50,KUN5#,60..IDSUV;TGN51,61..IDSUV..(GEN,IDN,PHL)201107-201510

*CR,DRIVER & PASSENGER

main69217-0K040iTGN51,61..IDSUV..GCC201107-201510

*CR,DRIVER SIDE

main69217-0K040iTGN51,61..IDSUV..GCC201107-201510

*CR,WIRELESS DOOR LOCK-WITH,DRIVER SIDE

main69217-0K070iKUN50201109-201210

BLACK,PASSENGER SIDE

main69217-0K110iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

*CR,(L),PASSENGER SIDE

main69217-0K110iTGN51,61..SUVW..(EPT,GEN,IDN,KZS,MA,PHL,PKN,TH,VN);GGN50,60,KUN51,6#..(SUVW,THSUV)..(ANCOM,EPT,GCC,GEN,IDN,PHL,TH,VN)201107

*CR,PASSENGER SIDE

main69217-0K120iTGN51,61..IDSUV..GCC201107-201510

*CR,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE

main69217-0K120iTGN51,61..IDSUV..GCC201107-201510

*CR,PASSENGER SIDE

main69217-0K200iKUN51,6#..IND201201-201608

*CR,DRIVER SIDE

main69217-0K210iKUN51,6#..IND201201-201608

*CR,PASSENGER SIDE

main69217-0K904iTGN61..LA;GGN50,KUN51..SUVW..(CO,LA)201110-201510

LESS COLOR,PASSENGER SIDE

main69217-12010iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

*CR,DRIVER SIDE

main69217-33030iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

*CR,(J),PASSENGER SIDE

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-06040iKUN50..MA201107

PLATED

main69210-0K010iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

PLATED

main69210-0K030iKUN51,6#..IND201201-201608

PLATED

main69210-12260iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

PLATING

main69211-02130iKUN50201109-201210

NO PAINT REQ.

main69211-02180iGGN50,KUN51,TGN51,61..SUVW..(CO,LA)201110-201510

PAINT REQ.

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02050iGGN50,KUN51,TGN51,61..SUVW..(CO,LA)201110-201510

main69241-02060iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main69241-06020iTGN61..TH201107-201112

WIRELESS DOOR LOCK-WITHOUT

main69241-06020iKUN50201112-201405

*299

main69241-06020iKUN60..IND;KUN51..5FC..IND201107-201608

main69241-06020iTGN51..PKN201107-201703

(L)

main69241-0D180iGGN50,KUN5#,60,TGN51,61..IDSUV201405-201510

main69241-42020iTGN51,61..SUVW..(GEN,IDN,MA,PHL,TH);GGN50,60,KUN51,6#..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,PHL,TH)201112-201703

(J)

main69241-42020iKUN50201112-201308

*300

main69241-42020iTGN61..GEN201112-201308

WIRELESS DOOR LOCK-WITHOUT,*300

main69241-42020iTGN61..GEN201112-201308

WIRELESS DOOR LOCK-WITH,(J)

main69241-42020iGGN50,KUN51,60,TGN51,61..IDSUV201107-201404

main69241-42020iKUN51,61..IND201201-201305

*303

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-02050iGGN50,KUN51,TGN51,61..SUVW..(CO,LA)201110-201510

main69242-02060iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main69242-06020iTGN51..PKN201107-201703

(L)

main69242-06020iTGN51..SUVW..GCC;KUN50,TGN61..SUVW..(GCC,MA)201107-201112

WIRELESS DOOR LOCK-WITHOUT

main69242-06020iKUN50201112-201308

*299

main69242-06020iTGN51,61..SUVW..GCC201112-201308

WIRELESS DOOR LOCK-WITHOUT,*299

main69242-0D120iKUN51..IDSUV..LA;GGN50,KUN50,TGN51,61..IDSUV;KUN51,6#..(IDSUV,SUVW)..(GEN,IDN,IND,PHL)201405-201608

main69242-42010iTGN61..GEN201112-201308

WIRELESS DOOR LOCK-WITHOUT,*300

main69242-42010iKUN51,61..IND;GGN50,KUN51,60,TGN51,61..IDSUV201107-201404

main69242-42010iTGN51,61..SUVW..GCC201112-201308

WIRELESS DOOR LOCK-WITH,(J)

main69242-42010iTGN51,61..SUVW..GCC201112-201308

*300

main69242-42010iTGN51..PKN201112-201703

(J)

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-10010iKUN51,6#..IND;GGN50,KUN5#,60,TGN51,61..IDSUV201107-201608

main69293-12030iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51,61..SUVW..(CO,LA,SA)201108-201512

main69293-33010iTGN51..KZS201107-201703

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-10020iKUN51,6#..IND;GGN50,KUN5#,60,TGN51,61..IDSUV201107-201608

main69293-12040iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51,61..SUVW..(CO,LA,SA)201108-201512

main69293-33020iGGN50,60,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,MA,PHL,TH)201107-201703

69310LOCK ASSY, FRONT DOOR, RH

main69030-02190iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110-201412

main69030-0K010iKUN5#,6#,TGN51,61..RHD..SUVW..(GEN,IDN,MA,PKN,TH)201107-201609

main69030-0K020iGGN50,KUN51,60,TGN51,61..LHD..(SUVW,THSUV)..(EPT,GCC,GEN,KZS,PHL,VN)201107-201412

main69030-0K060iKUN60..SA;KUN51,60,TGN51,61..RHD..(IDSUV,SASUV);GGN50,60,KUN5#,61,LAN50..RHD..(IDN,SA)201107-201512

main69030-0K070iTGN51..4FC..SA;KUN51..LHD..SASUV;KUN51,LAN50..LHD..SA201107-201510

main69030-0K080iKUN51,6#..IND201201-201608

main69030-0K230iKUN51,LAN50,TGN51..LHD..(SASUV,SUVW)..(GEN,SA)201409-201512

main69030-0K240iKUN60,TGN51,61..VN201501-201703

main69030-0K250iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201501

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0K010iGGN50,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)201107-201703

main69311-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69311-0K060iKUN60,TGN51..SA;GGN50,60,KUN5#,61,LAN50..IDN,SA;GGN50,KUN51,60,TGN51,61..IDSUV,SASUV201107-201512

main69311-0K090iKUN51,6#..IND201201-201608

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0K010iGGN50,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)201107-201703

main69312-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69312-0K060iKUN60,TGN51..SA;GGN50,60,KUN5#,61,LAN50..IDN,SA;GGN50,KUN51,60,TGN51,61..IDSUV,SASUV201107-201512

main69312-0K090iKUN51,6#..IND201201-201608

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iTGN51..PKN201107-201703

69320LOCK ASSY, FRONT DOOR, LH

main69040-02180iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69040-0K010iKUN5#,6#,TGN51,61..RHD..SUVW..(GEN,IDN,MA,PKN,TH)201107-201412

main69040-0K020iGGN50,KUN51,60,TGN51,61..LHD..(SUVW,THSUV)..(GCC,GEN,KZS,PHL)201107-201703

main69040-0K060iKUN51..RHD..SASUV;GGN50,60,KUN51,6#..RHD..SA201107-201510

main69040-0K070iKUN51,LAN50,TGN51..LHD..SA;GGN50,KUN51,60,TGN51,61..LHD..(IDSUV,SASUV)201107-201512

main69040-0K080iKUN51,6#..IND201201-201608

main69040-0K190iGGN50,60,KUN51,6#..RHD..(SASUV,SUVW)..(GEN,SA)201409-201512

main69040-0K200iKUN5#,6#,TGN51,61..MA,PKN,TH201501-201609

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0K010iGGN50,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)201107-201703

main69410-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69410-0K040iKUN60,TGN51..SA;GGN50,60,KUN5#,61,LAN50..IDN,SA;GGN50,KUN51,60,TGN51,61..IDSUV,SASUV201107-201512

main69410-0K050iKUN51,6#..IND201201-201608

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0K010iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)201107-201703

main69710-0K020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main69710-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69710-0K100iKUN51,6#..IND201201-201608

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0K010iGGN50,TGN51..EPT201107-201703

main69710-0K020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main69710-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69710-0K100iKUN51,6#..IND201201-201608

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iKUN60,TGN51,61..VN201107-201703

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0K010iTGN51..PKN201107-201703

main69750-0K020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main69750-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69750-0K100iKUN51,6#..IND201201-201608

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-0K010iKUN60,TGN51,61..VN201107-201703

main69760-0K020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main69760-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main69760-0K100iKUN51,6#..IND201201-201608

9014850003

main90148-50003

9014860022

main90148-60022

90148T0015

main90148-T0015

9016650003

main90166-50003

9018905171

main90189-05171

29 parts on this diagram · 1 diagram in section
